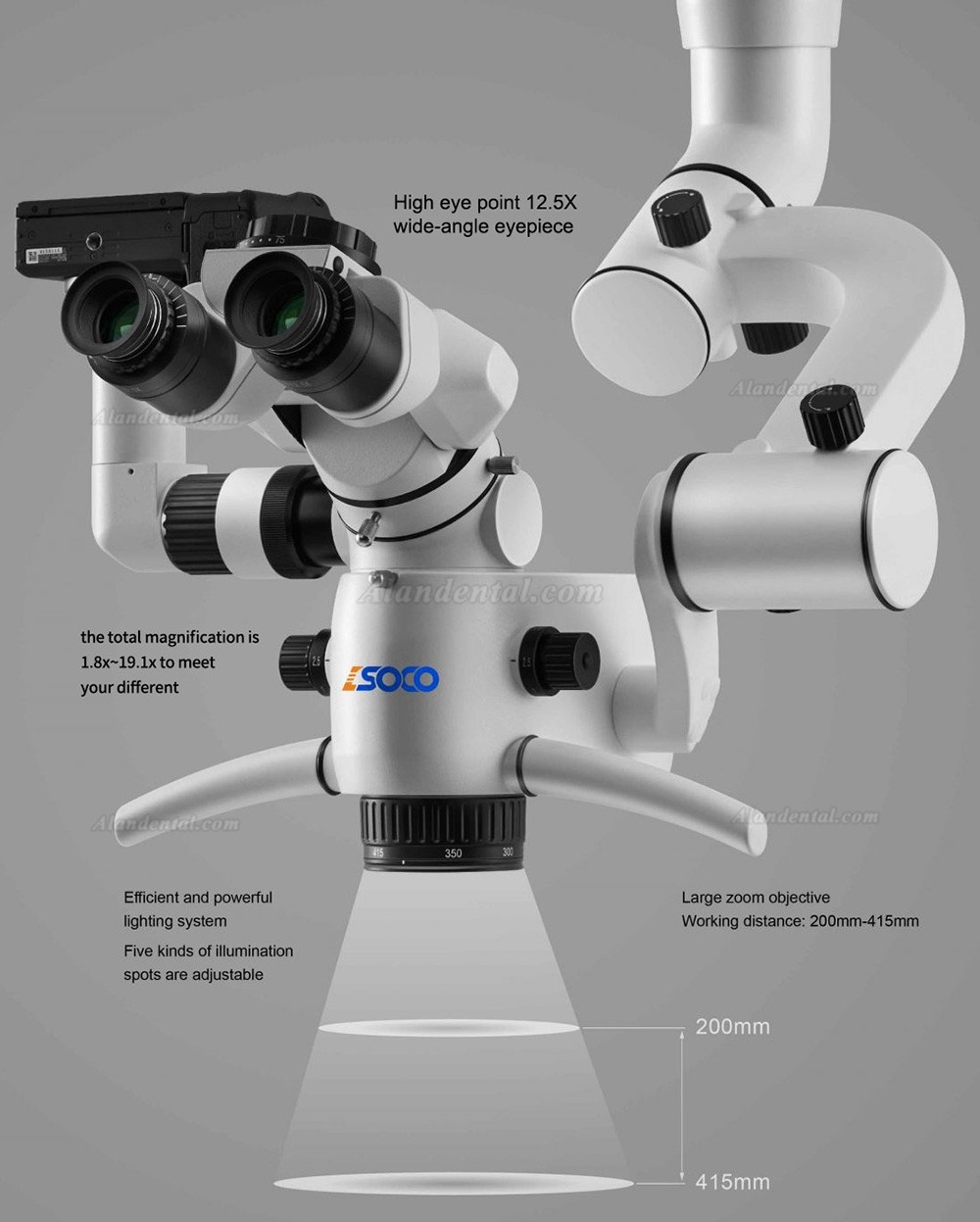

* High eye point 12.5X wide-angle eyepiece, adjustable diopter
* Five levels of magnification
* Large zoom objective lens
* Three-in-one beam splitter: 45° extender, pendulum system, beam splitter Optical integration, splitting ratio 2:8 or 5:5
* Efficient and powerful lighting system
* Five kinds of light spots are adjustable
High eye point 12.5X wide-angle eyepiece
High eye point wide-angle eyepieces allow for a wider field of view, making it easier to use.
The user's eyes can be easily observed without being close to the eyepieces. The photometric design is more suitable for spectacle wearers
Apochromatic Optical System
The SCM660 uses an apochromatic optical system that can correct red, The refraction of different wavelengths of green and blue visible light ensures that in each Magnification levels reveal complete detail.
Five-level amplification factor
SCM660 has five-level amplification factor:(0.4, 0.6, 1,1.6,2.5), the total magnification is 1.8x~19.1x to meet your different. Treatment needs.
Large zoom objective /Working distance: 200mm-415mm
Large zoom objective for general dentistry with a working distance of.
Between 200mm and 415mm, the focusing range completely covers the entire oral depth, can improve efficiency and focus, while keeping Ergonomic.
Efficient and powerful lighting system
The SCM660 lighting system has high color perception and color reproduction, making it easier to distinguish treatment details, especially for small, deep, and narrow cavities. 5 kinds of lighting spots are optional, with Iower energy consumption and longer service life.
SCM660 has the function of raising the balance arm to automatically turn off the light source and pulling it down to automatically turn on the light source.
Five illumination spots are optional
Allows you to focus more on the treatment area when you choose a small to medium white spot.
Lighting of the area to avoid interference caused by light reflection in other areas, lt also gives patients a more comfortable treatment experience.
Standard large objective lens protection cover:
The standard large objective lens protection cover can avoid splashing of water droplets, impurities, etc. brought into the large objective lens during treatment, resulting in large objects mirror damage, and at the same time easy to clean.
External HD video system interface
SCM660 can help doctors to visualize the diagnosis and treatment process, and can give patients It can bring more accurate real-time images, improve communication efficiency, and greatly improve the patient's Satisfaction with medical treatment, and it is also convenient to share your treatment experience in the future.

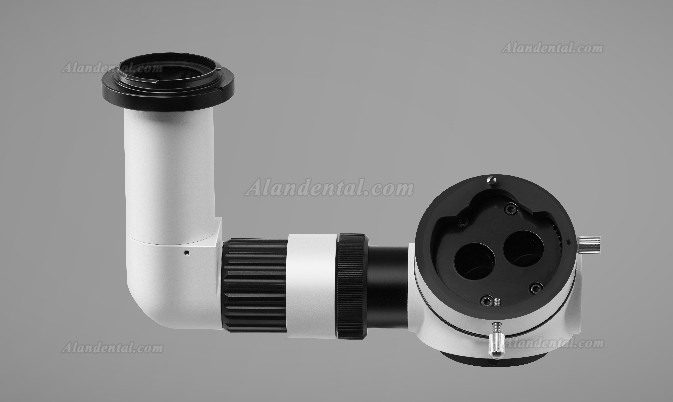

3-in-1 beam splitter
45° extender, pendulum system, splitter Optical integration, split ratio 2:8 or 5:5.

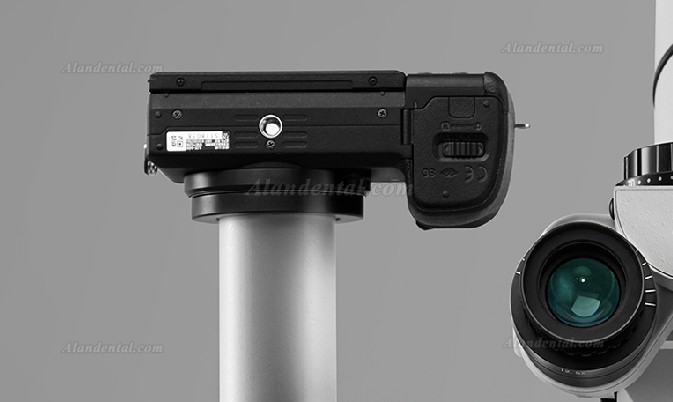

Compatible with Canon and Sony cameras
SCM660 Imaging System External Camera Interface Adaptation , Canon and Sony cameras.

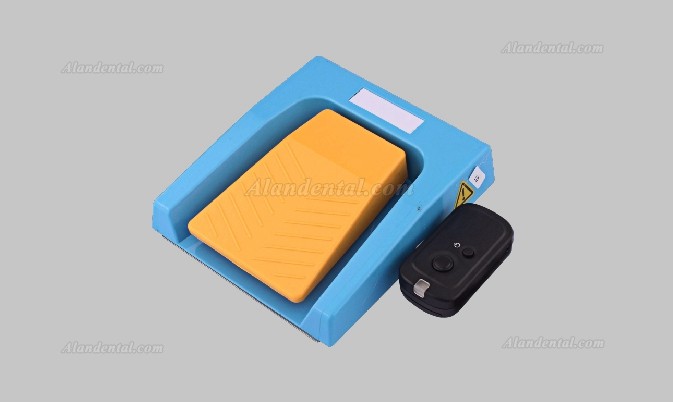

Wireless camera system
While you are treating a patient , you can use the wireless camera system . The system captures the photos you need at any time , and the wireless foot switch can be used at any time.

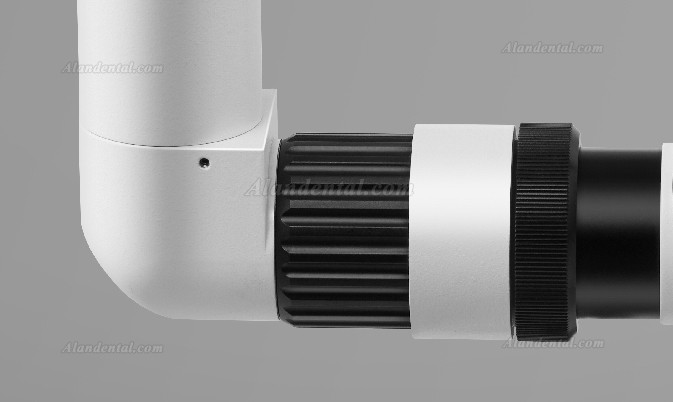

Adjustable focal length
SCM660 focal length adjustment knobs can be very convenient to adjust the external . Set the focal length of the device to get the best clarity when shooting clarity .

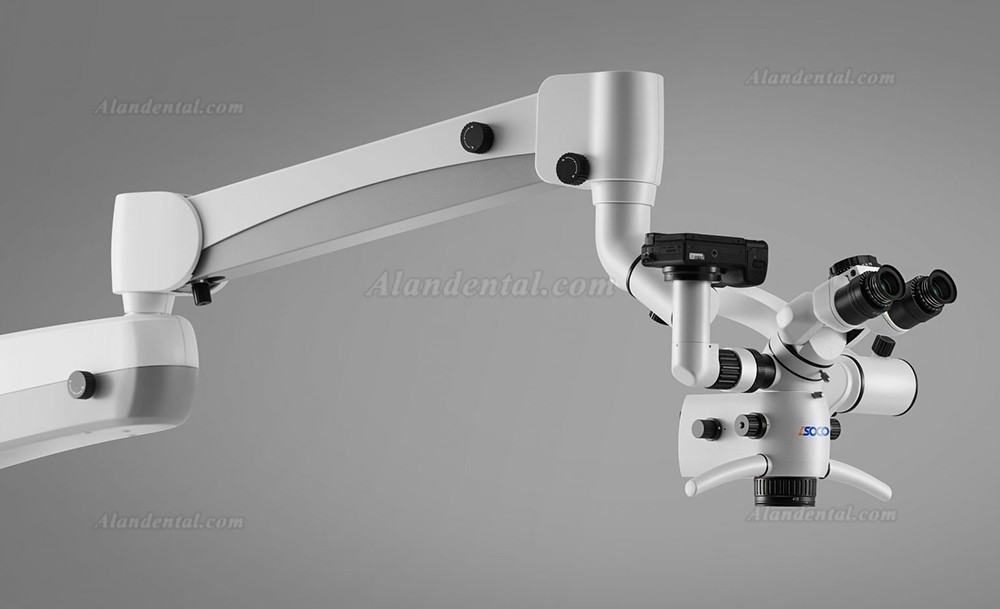

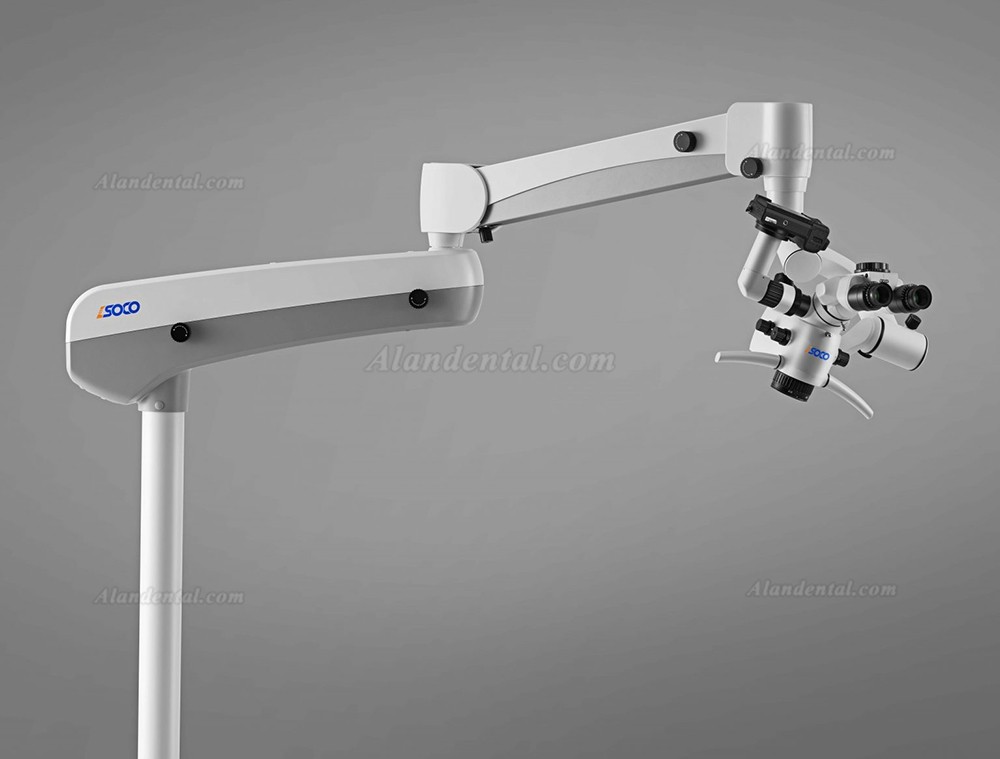

Powerful stand system
The powerful stand system of SCM660 can easily help you at work.Always find the right balance in the environment to achieve the ideal body position and uprightness.Correct posture will allow you to avoid occupational diseases caused by poor posture.
0~180° variable angle binocular tube
0~180° adjustable binocular tube improves the comfort angle when you work. Moderation and flexibility for wider viewing
Interpupillary distance adjustment
The interpupillary distance adjustment function helps you adjust to suit yourself. The interpupillary distance, the interpupillary distance adjustment range is 55-75mm.
Host balance force adjustment device
The microscope host can adjust the torque and damping according to the load to maintain the balance of the microscope after loading digital accessories such as cameras and video cameras, the host canstill be adjusted to keep the host in a balanced state.

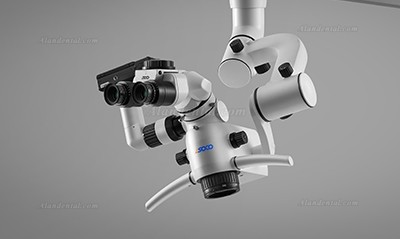

Pendulum system
Under the condition that the doctor's sitting position remains unchanged, the host tilts to the left and right can maintain a horizontal viewing position.
Bracket system damping adjustment device
When you adjust the microscope bracket system to any position, the microscope bracket system can hover.
German high-quality gas spring
The key parts of SCM660 adopt German high-quality gas spring. Allows you to provide better mechanics when moving the microscope arm.
Balance arm balance force adjustment device
Help you adjust the support force feel of the balance arm according to the load of the microscope host.
Integrated base
The integrated base provides a more stable support effect, and at the same time integrates the power supply of thewhole machine, the appearance design is simple and easy to maintain.
Quiet Medical Casters
When you need to move the microscope, the 3-inch silent medical casters can be quieter and more stable when moving.
Reserve HDMI transmission interface
Reserve the HDMI transmission interface to reserve the upgrade space when you upgrade and install the video system later.
Optional accessories :

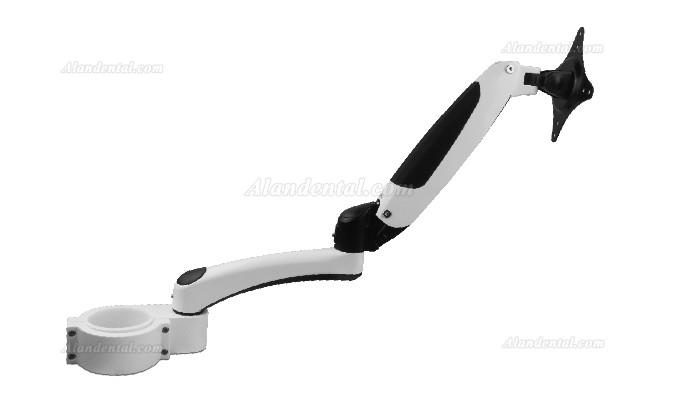

High quality monitor stand
Order code : ZJ-XS01

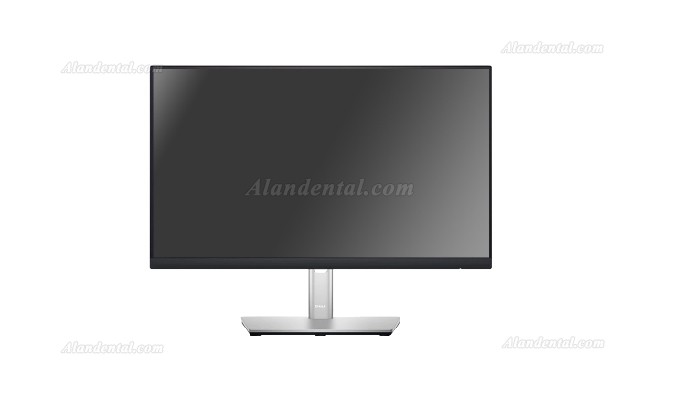

24" Dell HD Monitor
Order code : P2422H

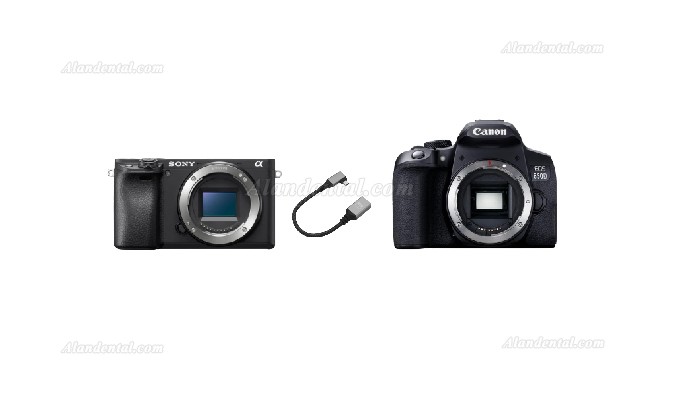

Camera Optional Canon and
Sony cameras
Order code : а6400、 a6100、 EOS-850D

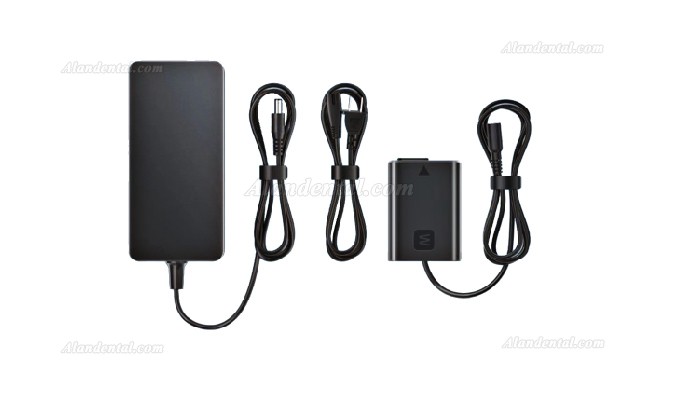

Camera direct power supply
Order code : FW50
Wireless camera system
Order code : WX-01
Optional equipment is not included in the product. If you need optional accessories, please contact customer service for a quote.
Technical parameter
Model
SCM660-ST
SCM660-UL
Optical system
Apochromatic Optical System , Multiplication Factor
●
●
Amplification system
Five-speed zoom: The magnification factor is: 0.4,0.6,1, 1.6,2.5
●
●
Total magnification 1.8x~19.1x
Binocular Tube
0°-180° variable angle binocular tube, with interpupillary distance adjustment mechanism, the interpupillary distance adjustment range is 55-75mm
●
●
High eye point 12.5x wide-angle eyepiece, eye cup height adjustable, diopter compensation range 7D
Zoom system
Large zoom objective, variable working distance 200-415mm
●
●
Lighting system
Integrated true color LED lighting color temperature 5500K, color rendering index>90%, illumination>65000Lux
●
●
Integrated orange filter and green filter, the white spot can be adjusted in three sizes: large, medium and small
External HD video system
3-in-1 beam splitter: 45° extender, pendulum system, splitter Optical integration, split ratio 2:8 or 5:5
○
●
The focal length is adjustable
○
●
Canon, Sony camera interface
Bracket system
Host balance force adjustment device
●
●
Balance arm balance force adjustment device
Rotary arm: turning radius 508mm, 330° rotation, up and down travel range (up/down) 600mm
Integrated base, 3-inch silent medical casters, base size: 590x590mm
Appendix
High quality monitor stand
○
○
HD display
○
○
Camera (optional camera brand: Canon, Sony)
○
○
Camera direct power supply
○
○
Wireless camera system
○
○
In addition to floor-standing dental microscopes, we also provide wall-mounted, ceiling-mounted, and desktop-mounted dental microscopes. If you need a dental microscope of other installation types, please contact our customer service.
