Dental Surgical Operating Microscope Root Canal Therapy 10X/15X/20X (For Table Desk)

Dental Surgical Operating Microscope Root Canal Therapy 10X/15X/20X (For Table Desk)
Item No. ADL003262
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
Market price:$1865.99
But It Now : $1130.99
Model :

Quantity :
Weight:0gram
Goods click count:487

Item Description Reviews

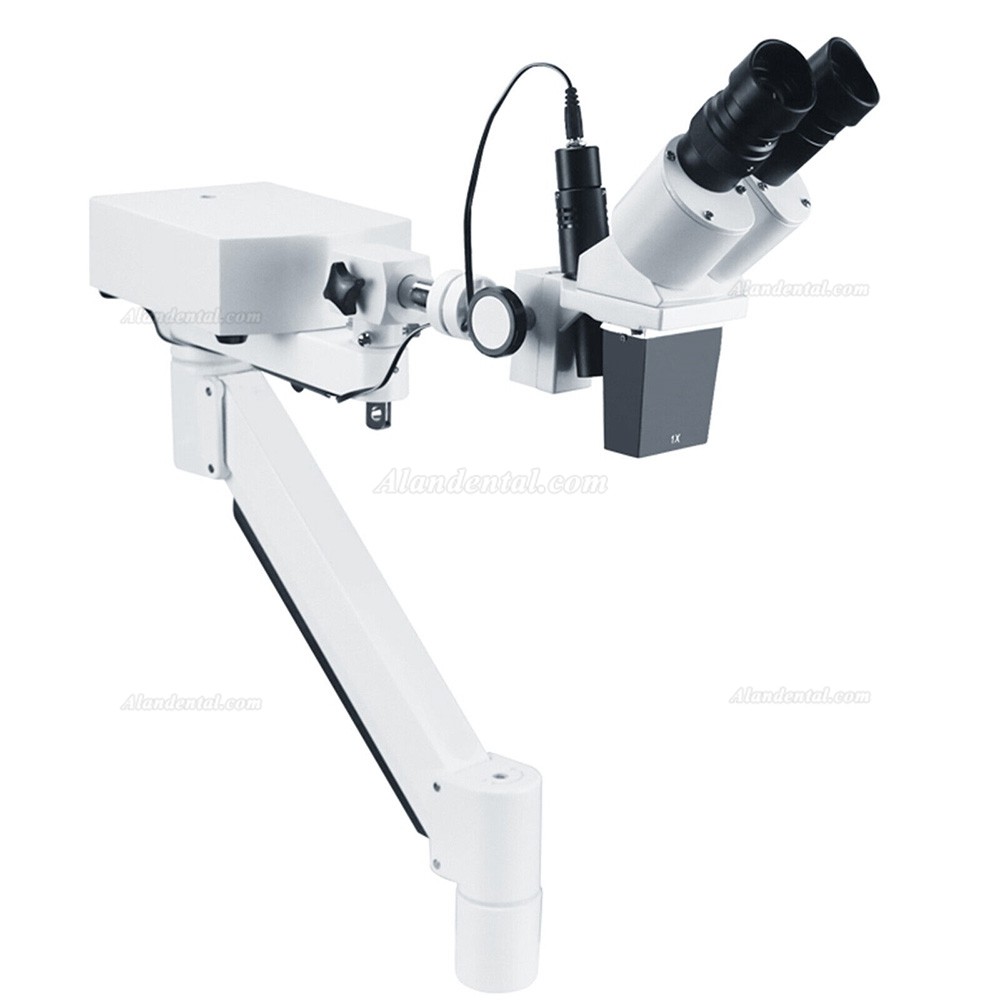

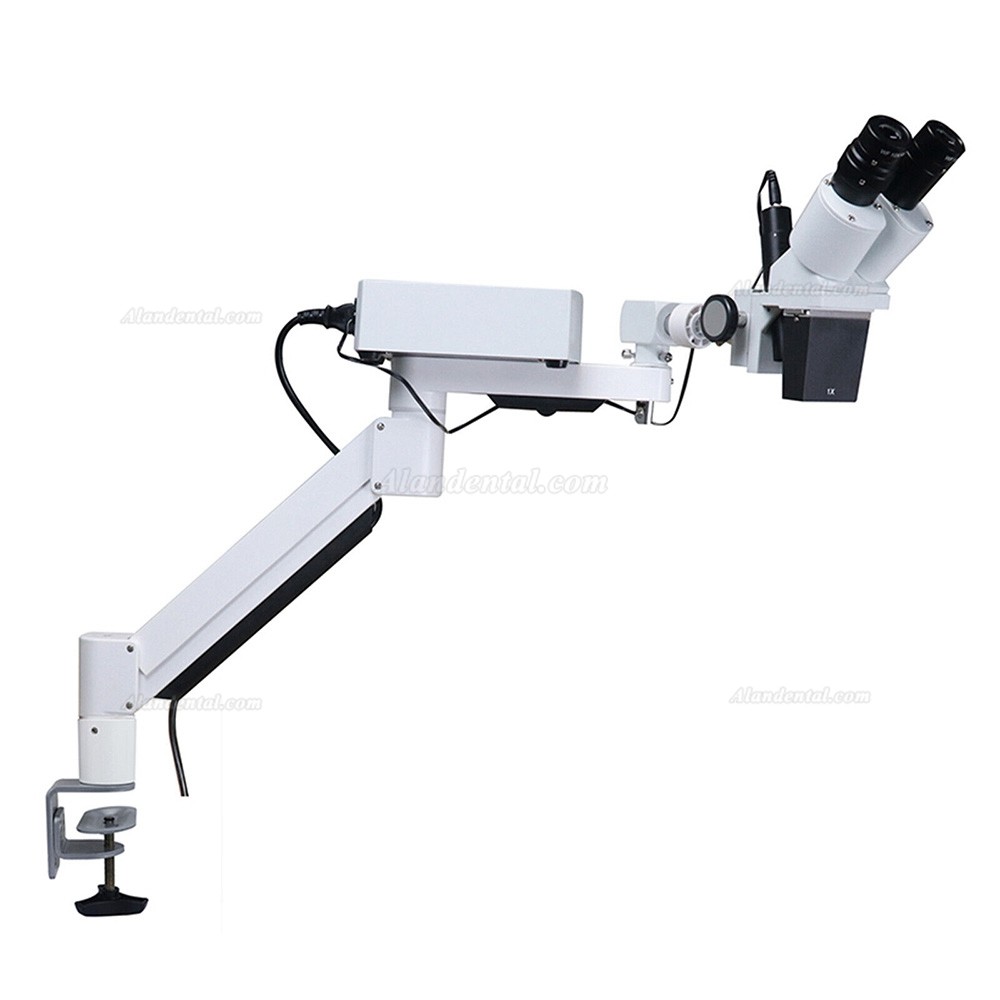

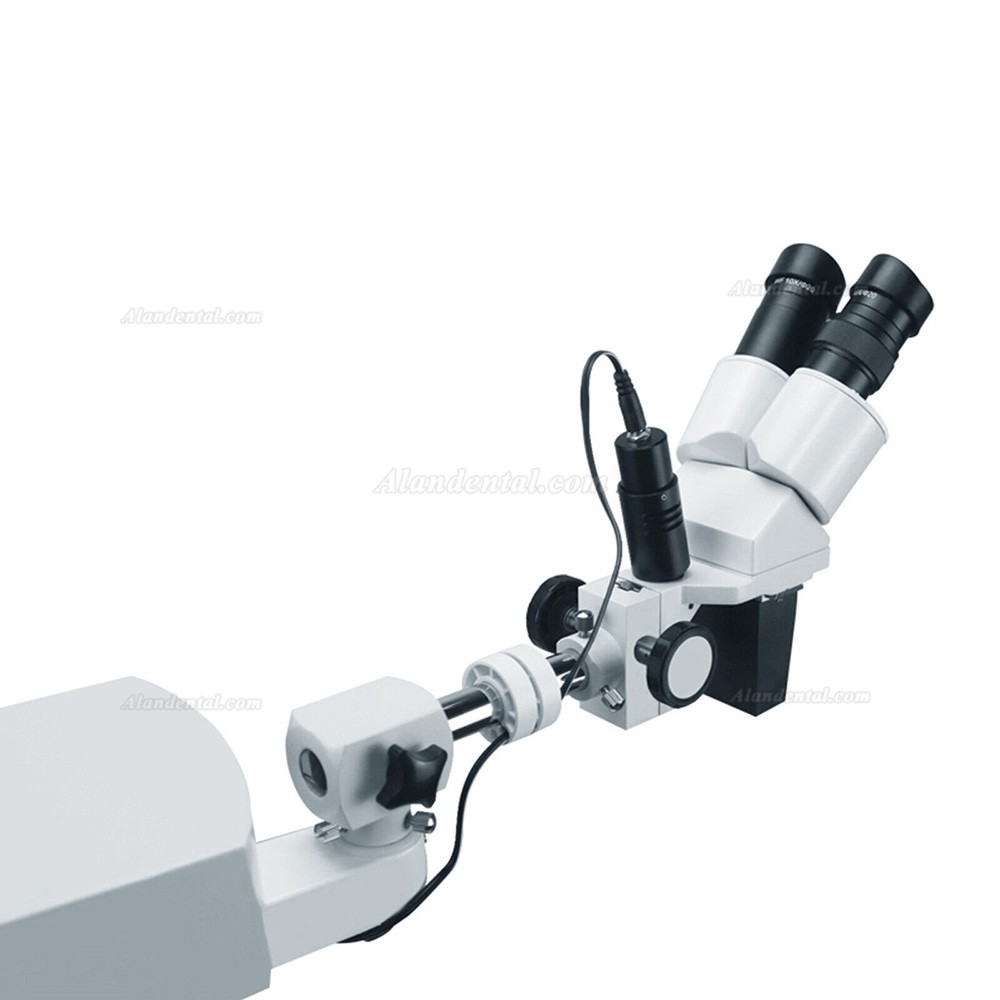

Dental Surgical Operating Microscope Root Canal Therapy 10X/15X/20X (For Table Desk)

*The magnification microscope is 5X, 10X, 15X, 20X.Our product is 10X.If you need other type,please contact us by email.

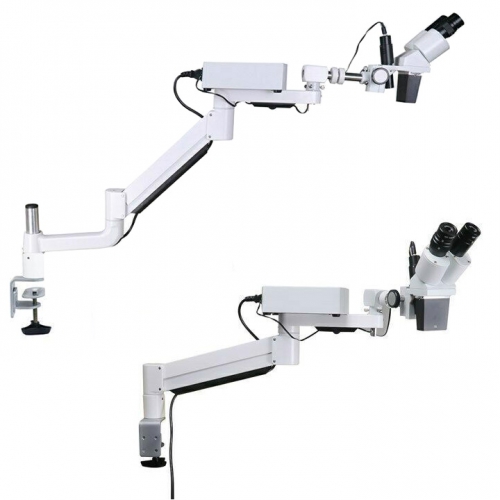

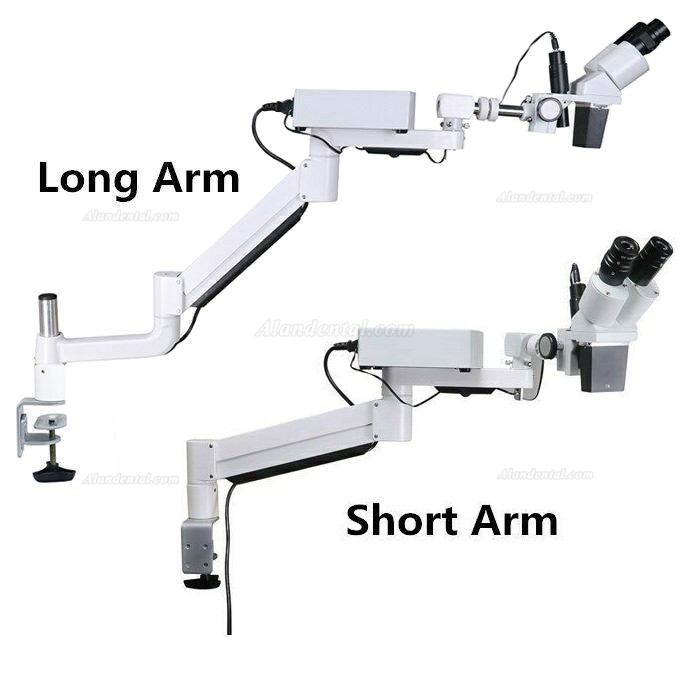

The maximum stretching distance of short arm is about 80CM; the maximum stretching distance of long arm is about 112CM

Product features:

1. Reliable performance, strong stereoscopic observation

2. Exquisite design, space saving, convenient movement and simple operation.

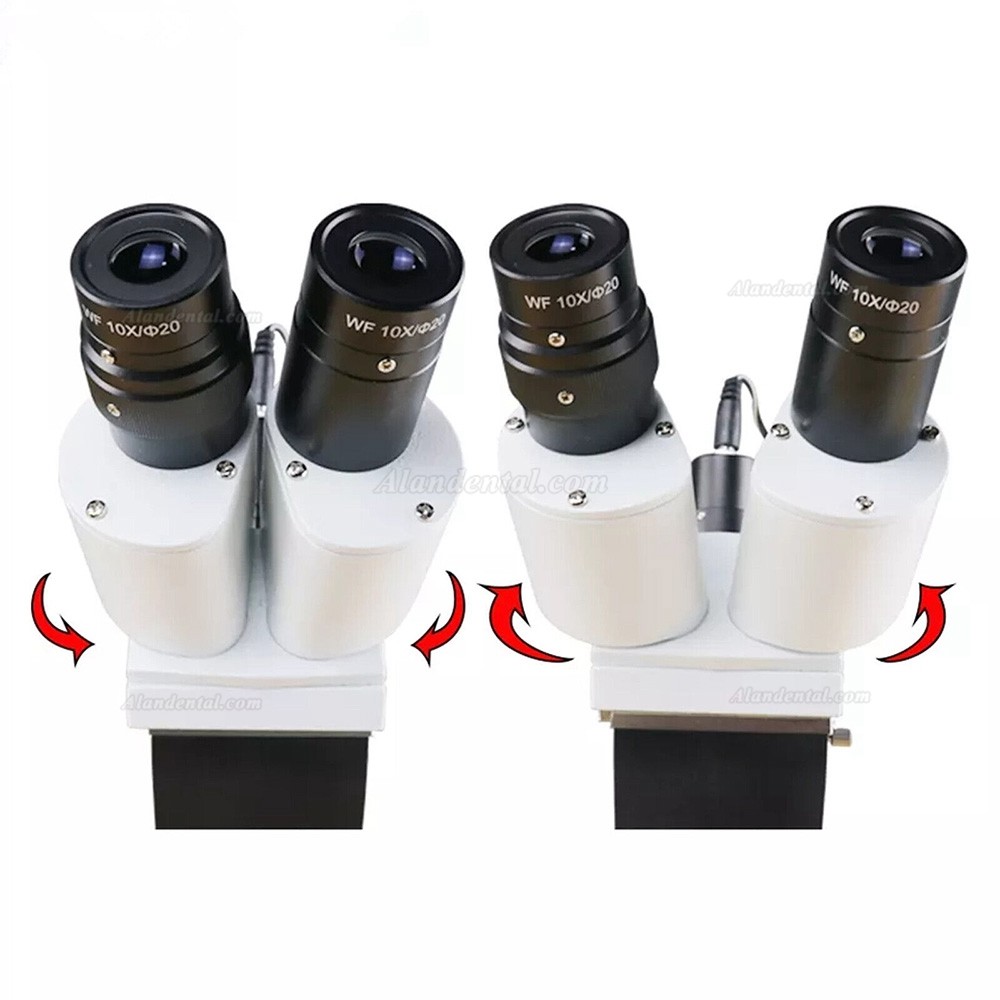

3. Adjust eyepiece position arbitrarily according to operating environment and posture.

4. Unique 10x magnification design, broad and bright vision.

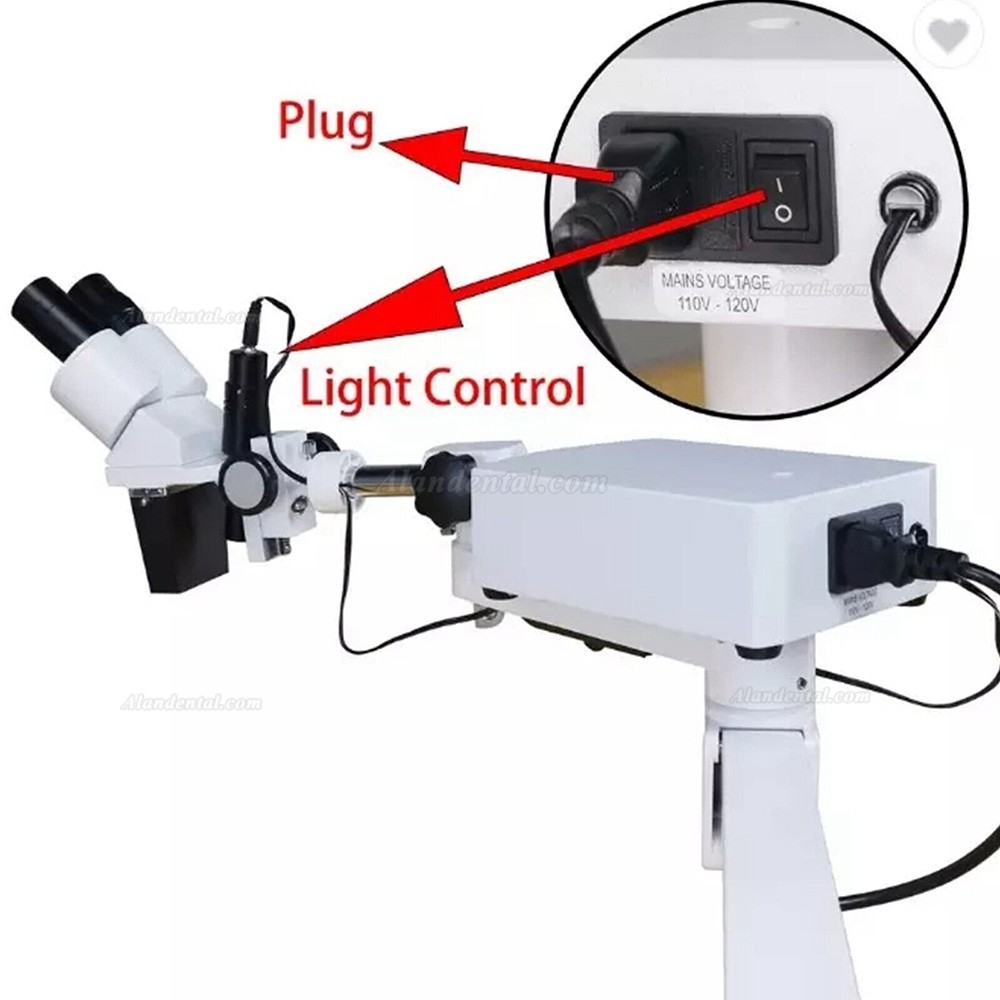

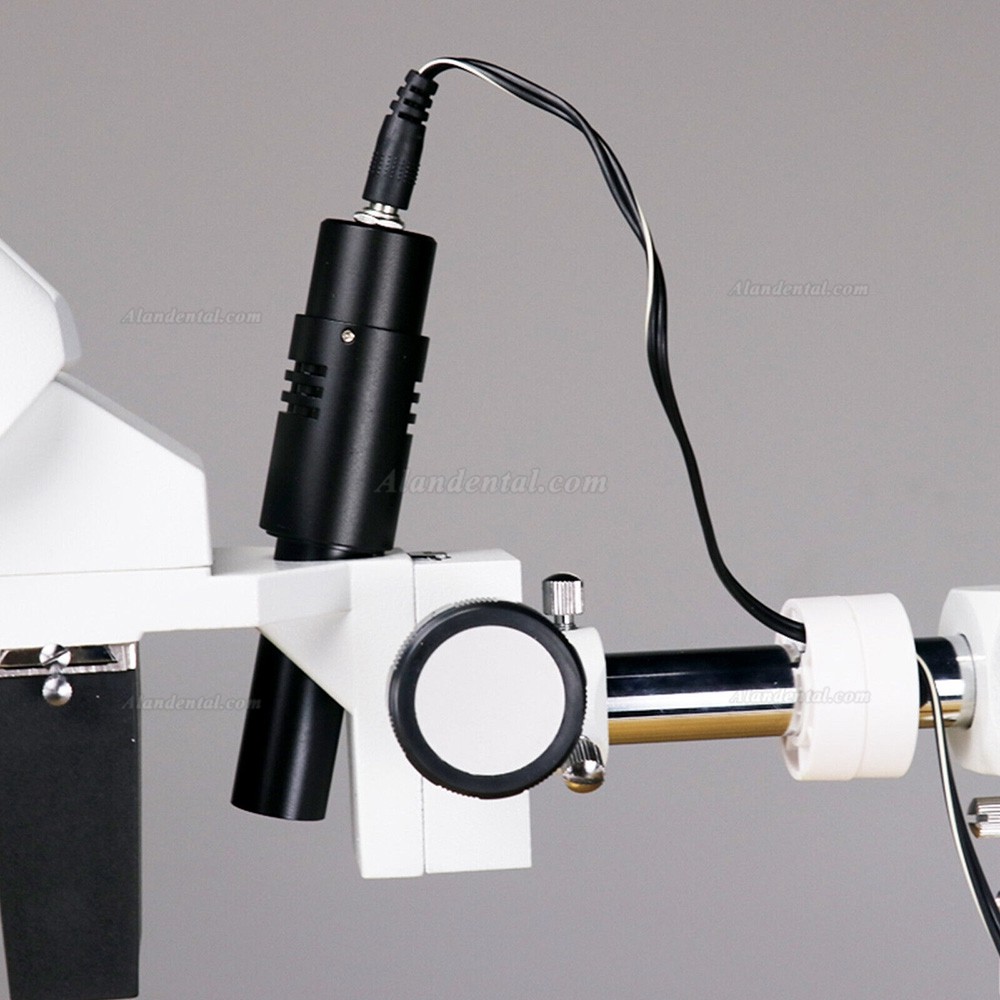

5. If the illumination of the operating place is dark, adjustable LED lights can be optional.

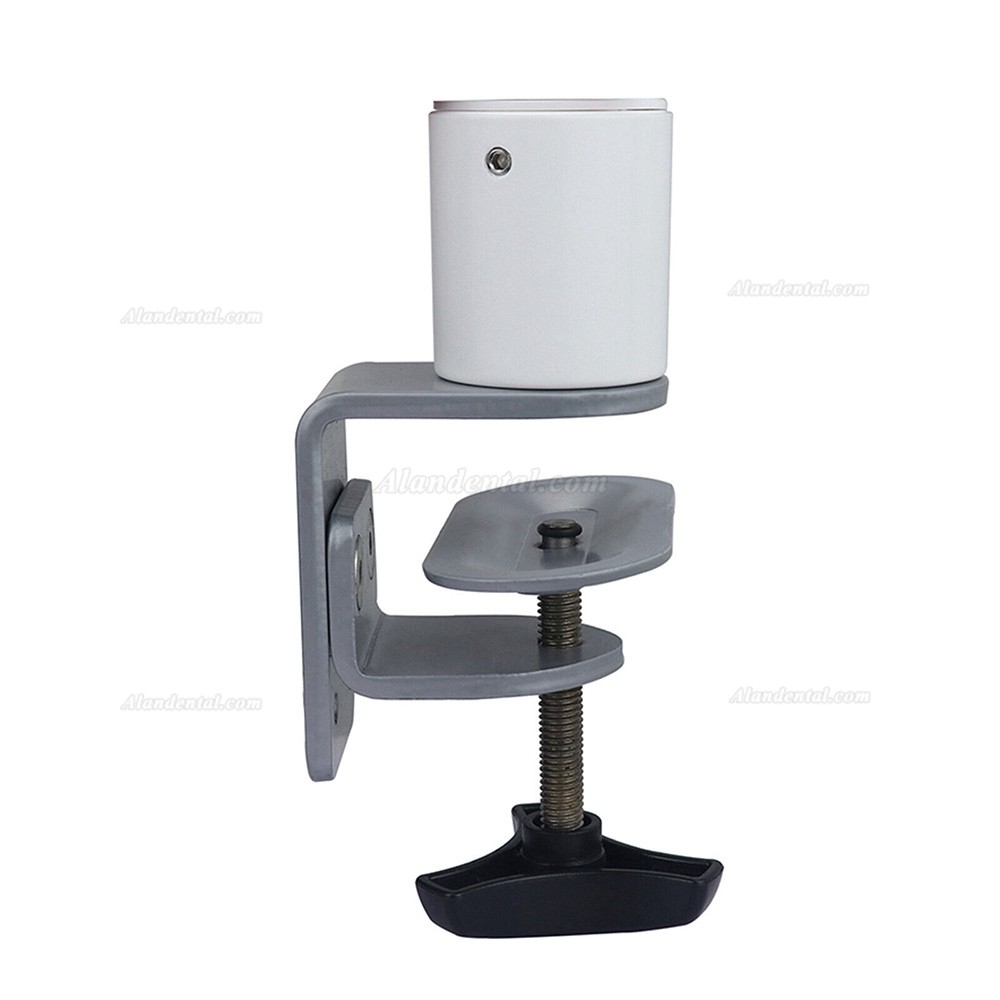

6.It can be connected to the center pillar of the dental chair. It is very convenient to use. Usually the diameter is 45MM.

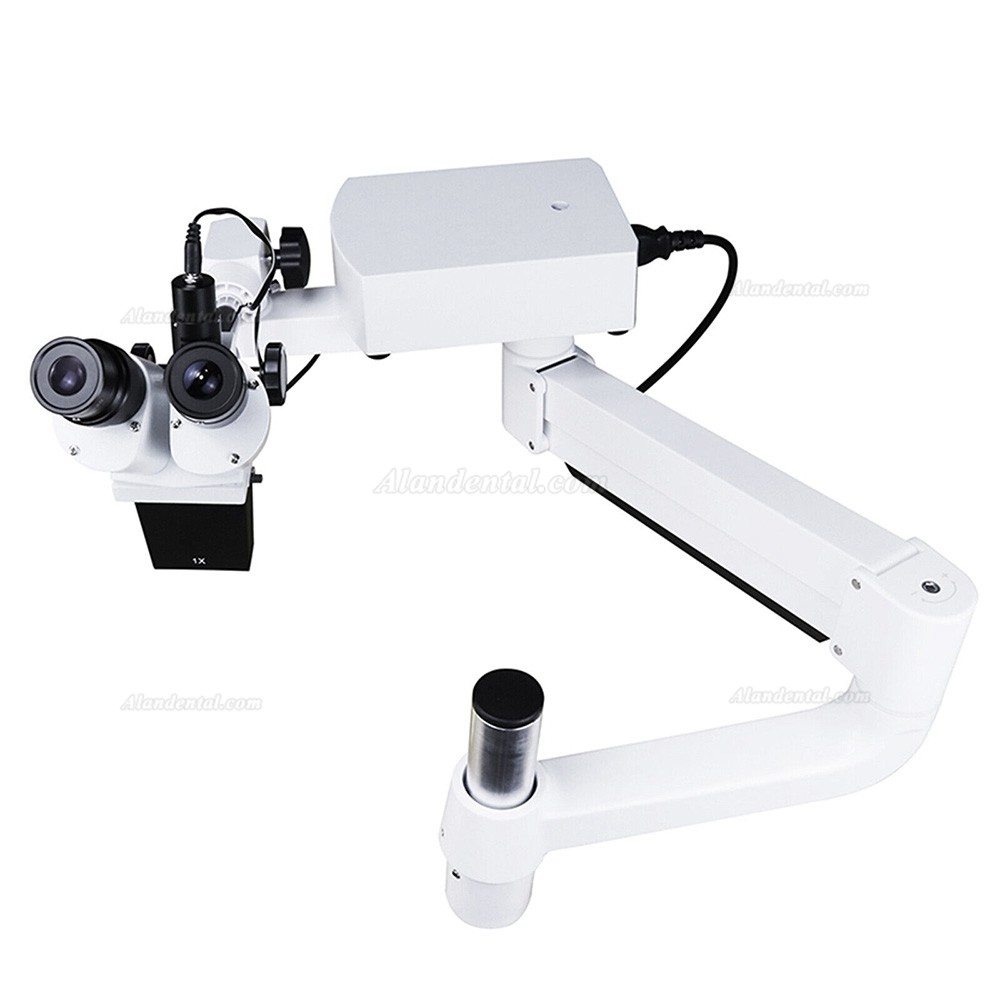

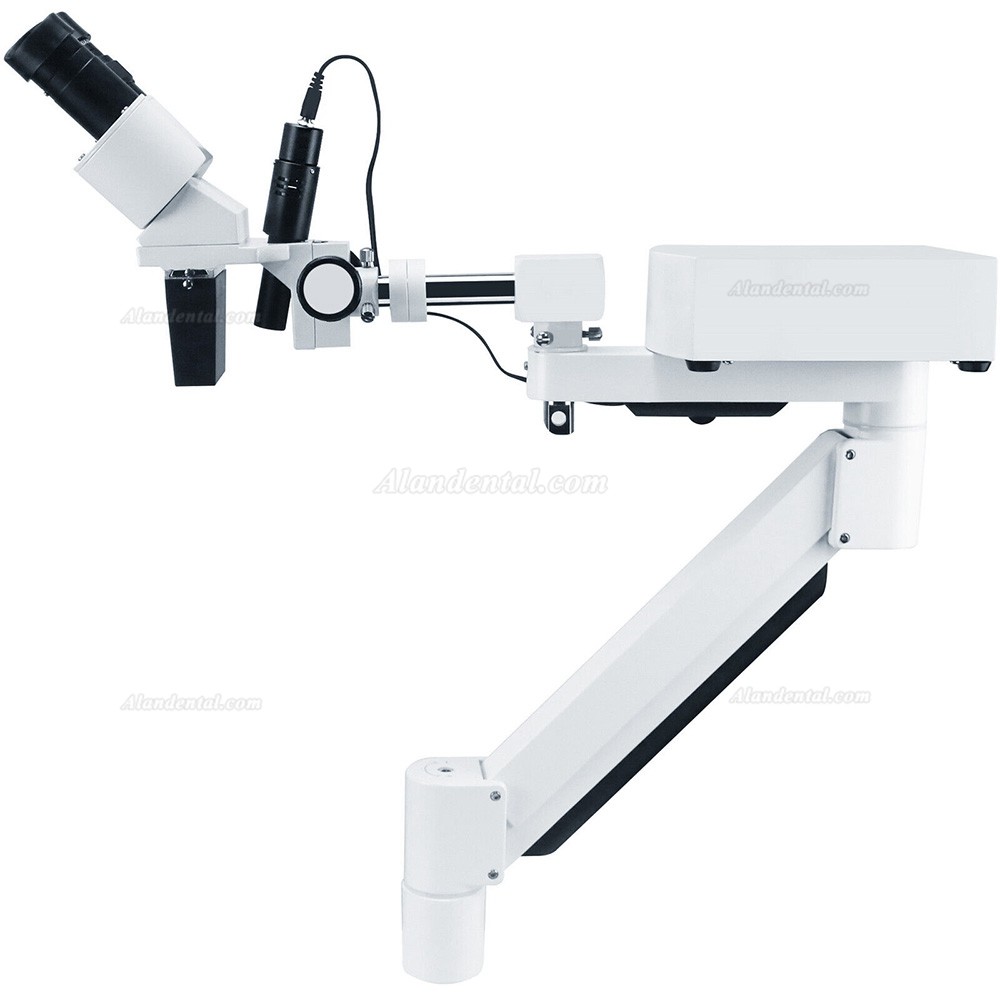

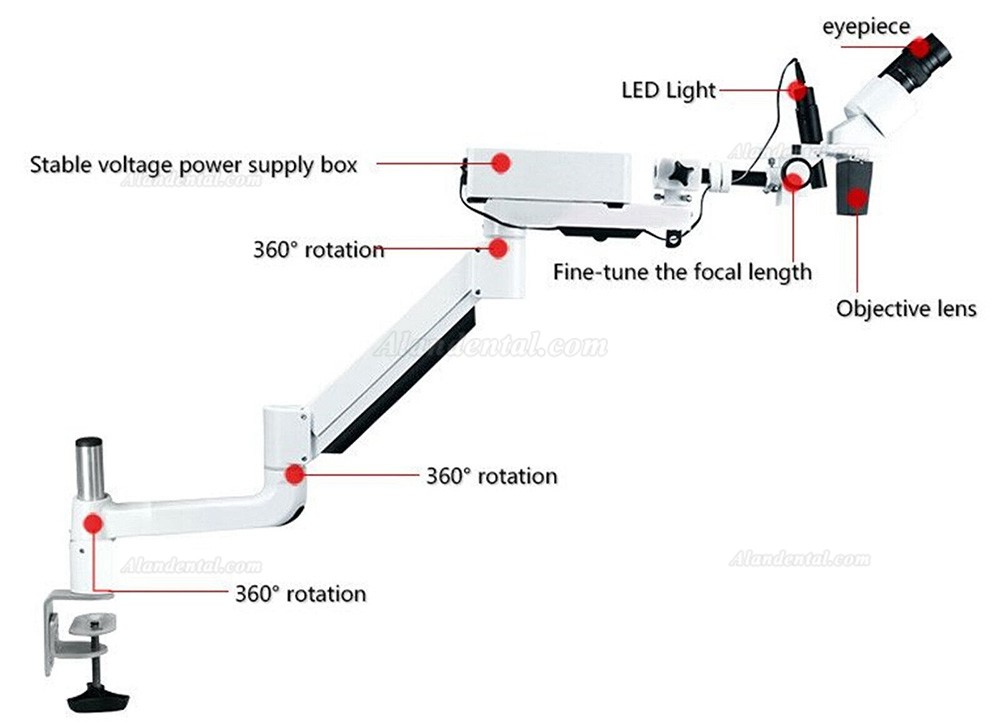

7.There are four mechanical arm bends that can be rotated at multiple angles.

8.The microscope arm bending: three angles can rotate arm angle.

9.Worktable: total height 80CM, upper disk 38.5CM*33CM, middle disk 34CM*22CM, Lower disk 42CM*36CM.

10.The magnification microscope is 5X, 10X, 15X, 20X for choice.The magnification microscope is 5X, 10X, 15X, 20X.Our product is 10X.If you need other type,please contact us by email.

11. Very suitable for the compact working environment but the pursuit of efficiency of the workplace, can be widely used in tooth carving, wax operation

Teaching and clinical operation for dental technicians, such as porcelain making, precision casting, etc.

Technical parameters

Microscope parameters

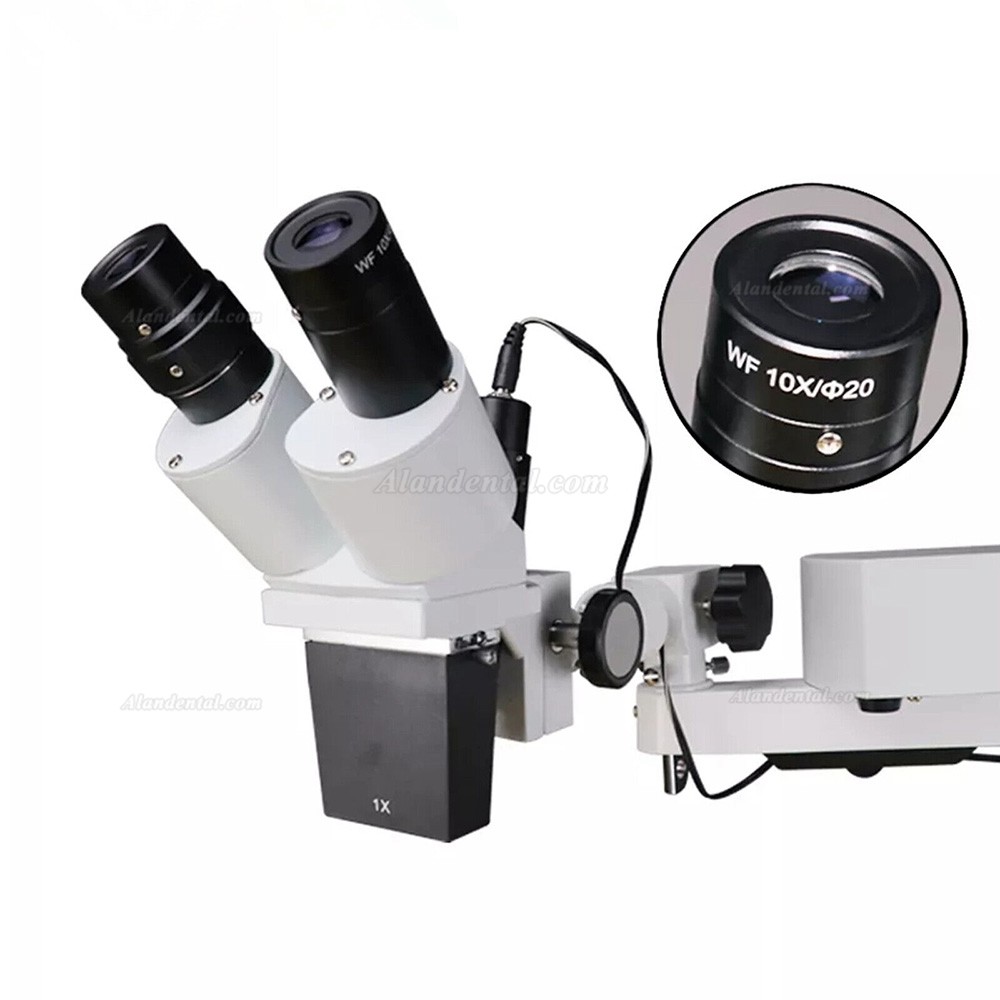

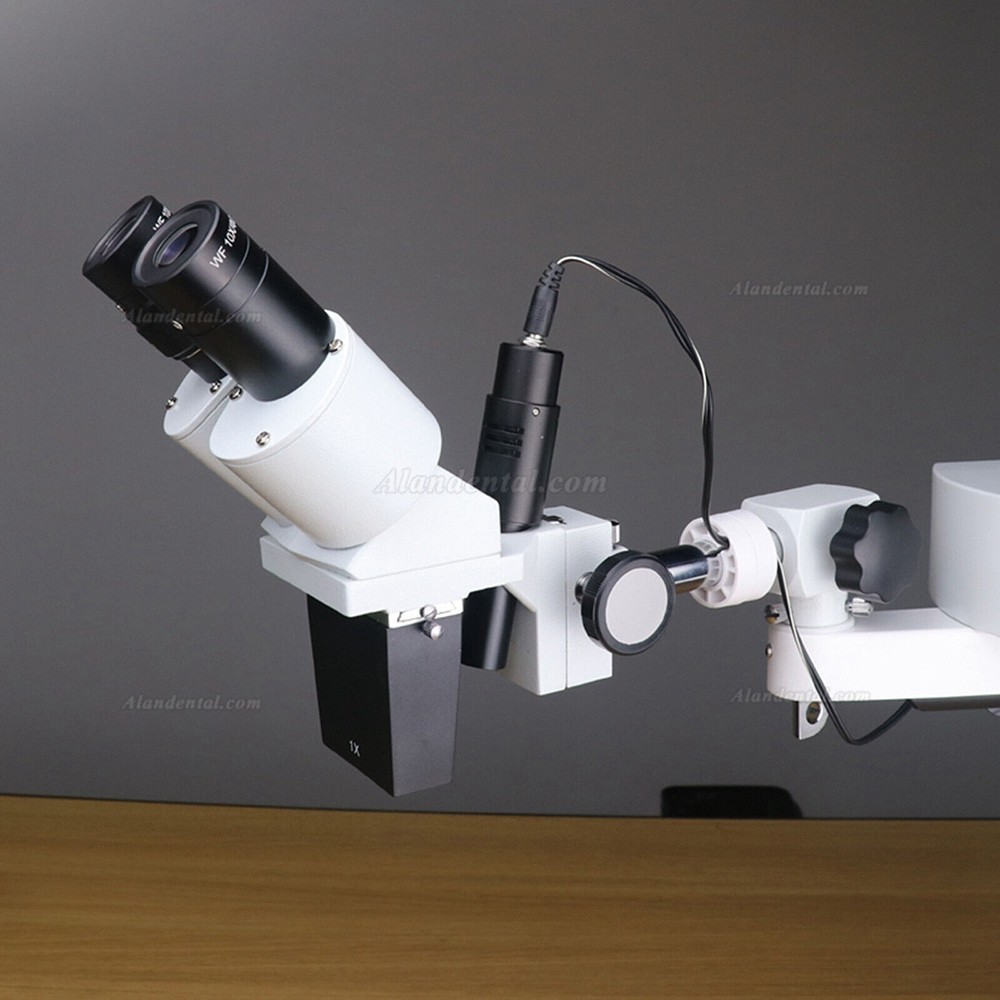

Dubleey epiece tube:Pupildistance adjustment rang :55mm-80mm

Eyepiece:Field of vision adjustment :±7D

Big objective lens:F=250mm

Object diameter:LED light source>45,000LX

Light source:5W LED

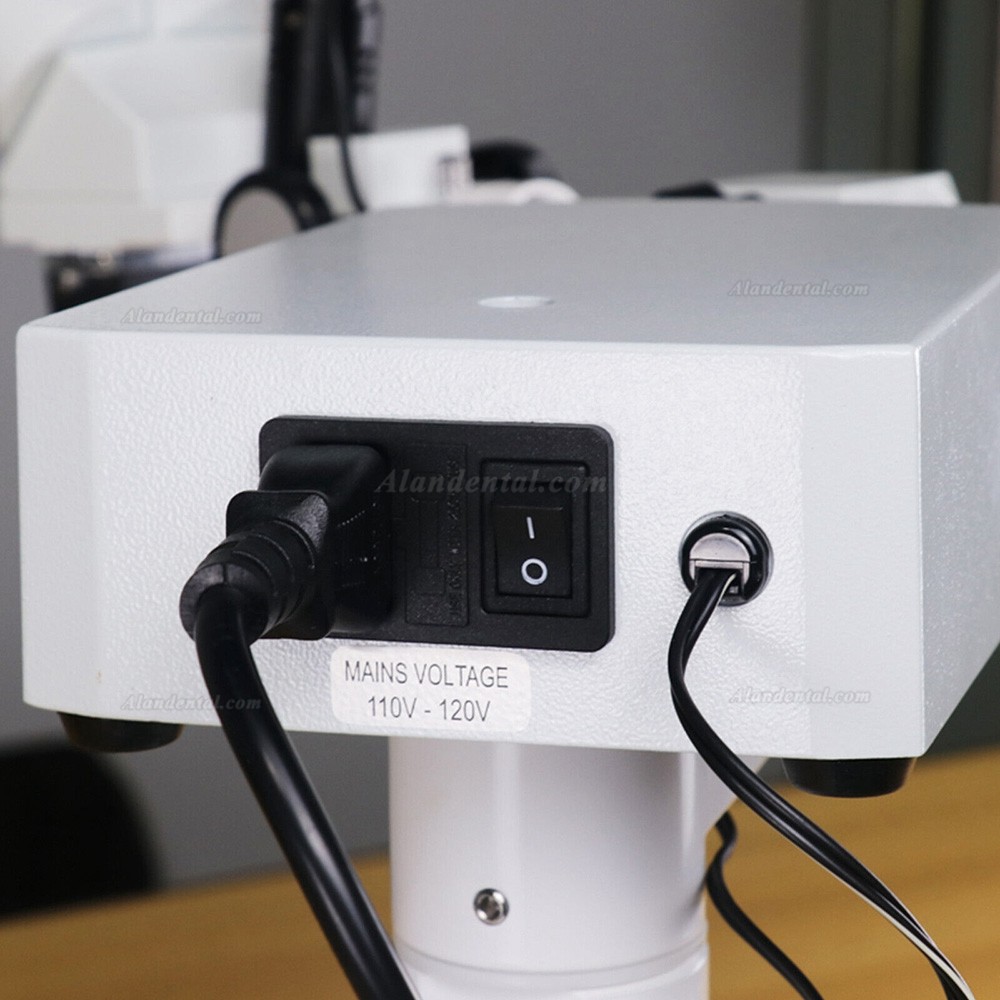

Power supply: AC220V 50HZ/AC110V 60HZ

View diameter:10mm-100mm

Spot diameter:90mm

Balance arm:Down：240mm,Middle：450mm,Up：230mm

Microscope light source:Balance the light source

Maximum resolution:1920*1080P

Total magnification ratio: 3.75X-22.5X. Manual continuous regulation
