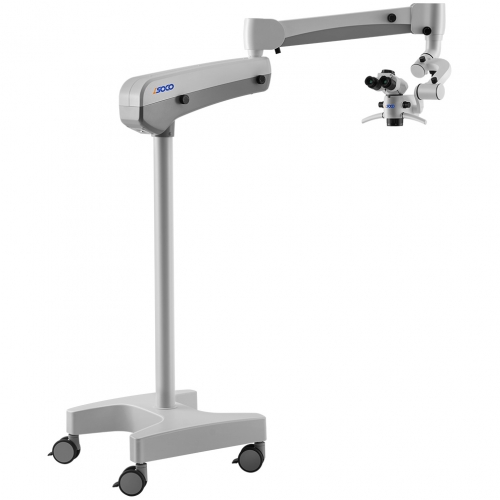

SOCO SCM660ST Dental Microscope Surgical Operating Microscope

SOCO SCM660ST Dental Microscope Surgical Operating Microscope
Item No. ADL003508
Reviews: 5 stars, 0 reviews
Brand:SOCO
Manuals and Documentation:

SOCO SCM600-ST Brochure.pdf
Market price:$15923.00
But It Now : $9650.00
Quantity :
Weight:0gram
Goods click count:145

Item Description Reviews

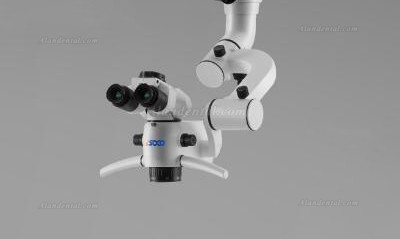

SOCO SCM660ST Dental Microscope Surgical Operating Microscope

More comtortable and clearer immersve optical experence, allowing doctors to It can easily cope with the needs of refined treatment, and at the same time enjoy the treatment process fun of.

* Apochromatic optical system.

* High eye point 12.5X wide-angle eyepiece, diopter adjustable.

* Five-level magnification factor.

* Zoom large objective lens Efficient and powerful lighting system.

* Five kinds of lighting spots are adjustable.

SOCO SCM660UL Dental Microscope Surgical Operating Microscope

SOCO SCM660ST Dental Microscope Surgical Operating Microscope

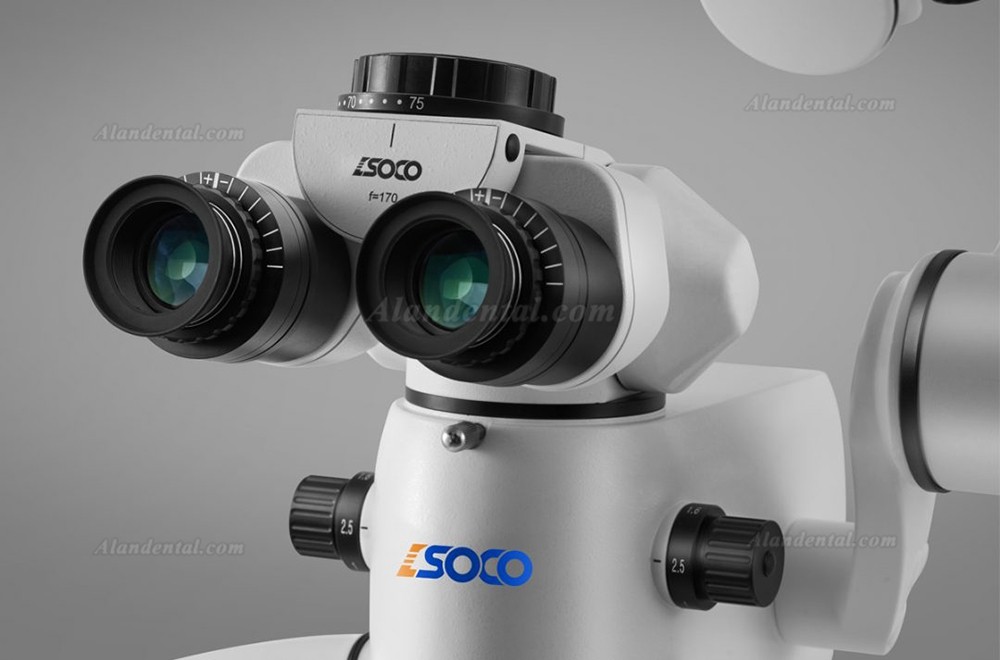

High eye point 12.5X wide-angle eyepiece

High eye point wide-angle eyepieces allow for a wider field of view, making it easier to use.

The user's eyes can be easily observed without being close to the eyepieces. The photometric design is more suitable for spectacle wearers

SOCO SCM660UL Dental Microscope Surgical Operating Microscope

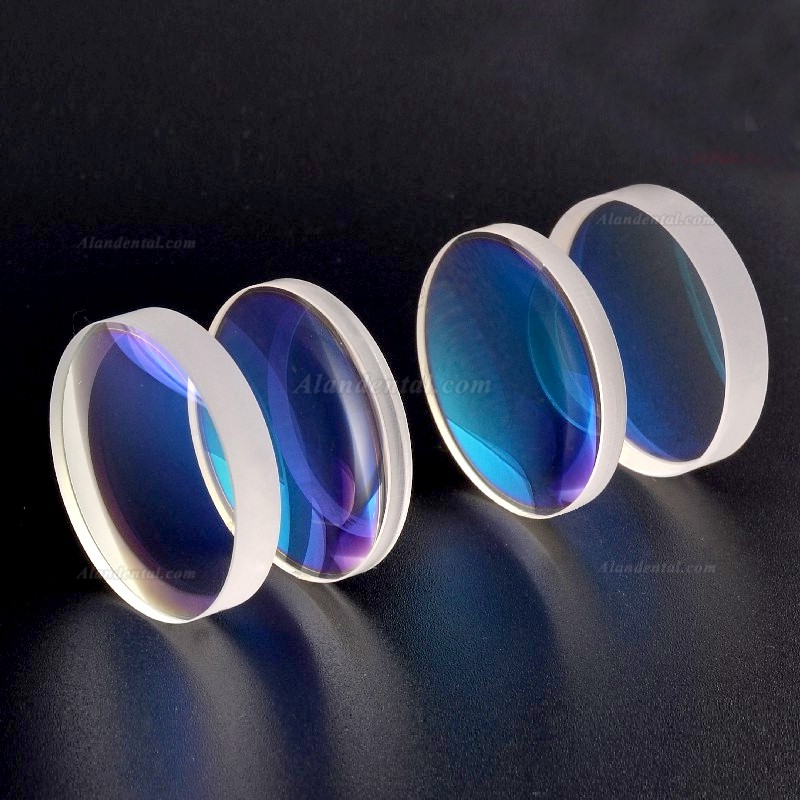

Apochromatic Optical System

The SCM660 uses an apochromatic optical system that can correct red, The refraction of different wavelengths of green and blue visible light ensures that in each Magnification levels reveal complete detail.

Five-level amplification factor

SCM660 has five-level amplification factor:(0.4, 0.6, 1,1.6,2.5), the total magnification is 1.8x~19.1x to meet your different. Treatment needs.

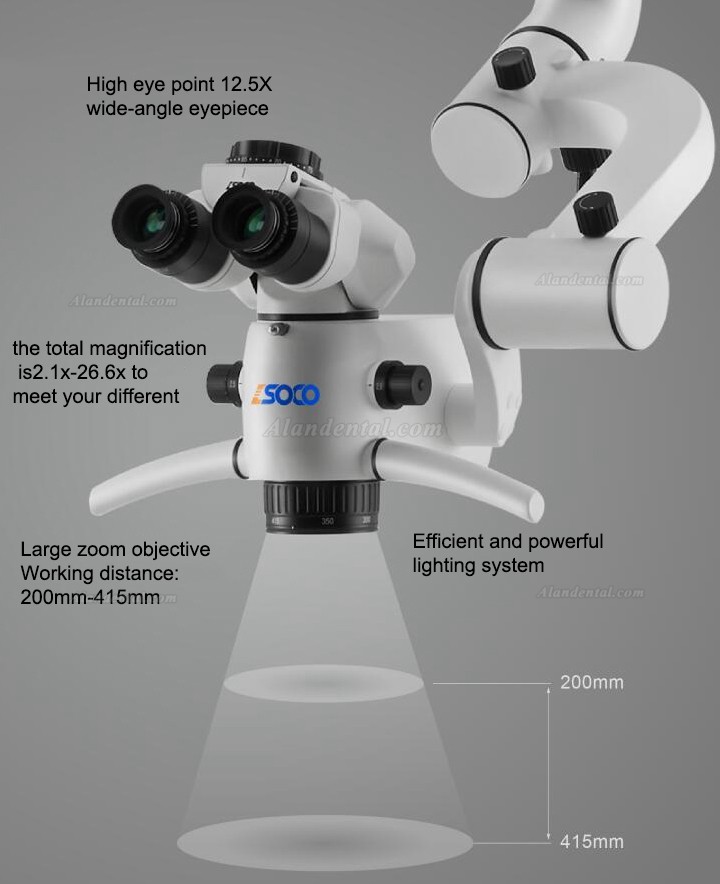

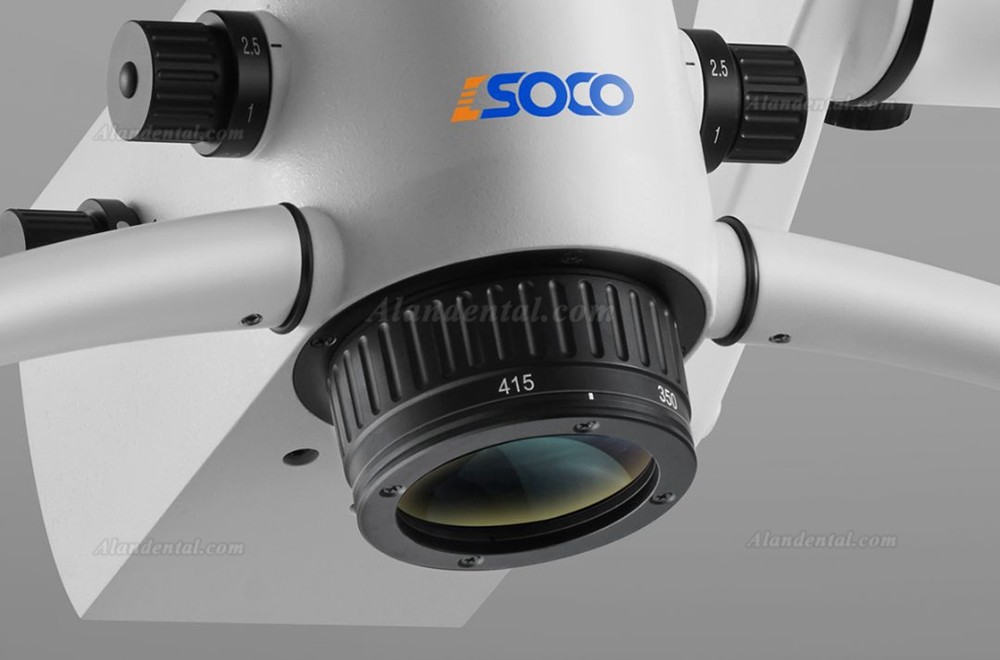

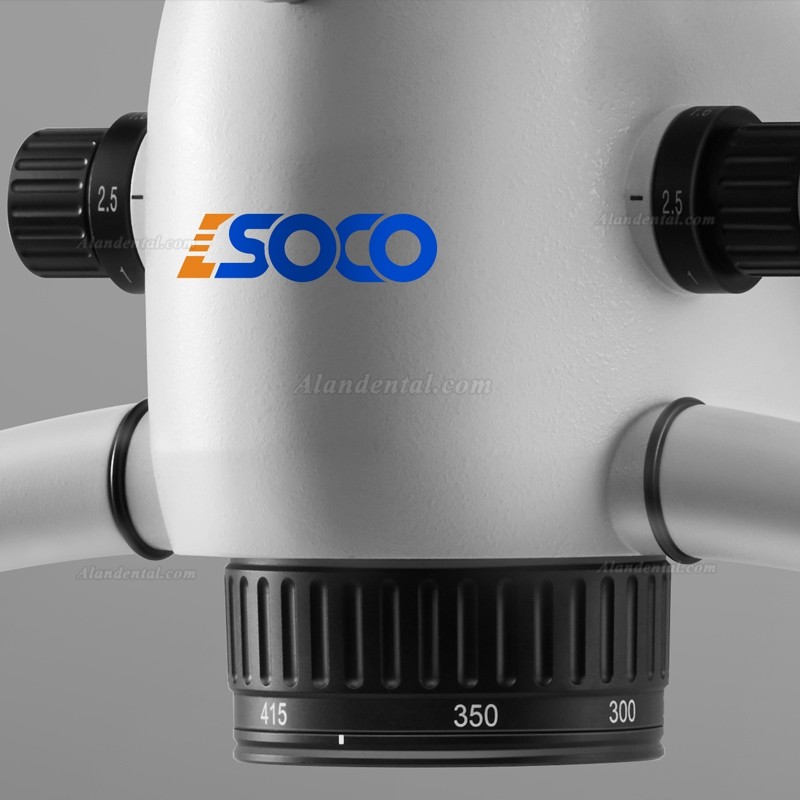

Large zoom objective /Working distance: 200mm-415mm

Large zoom objective for general dentistry with a working distance of.

Between 200mm and 415mm, the focusing range completely covers the entire oral depth, can improve efficiency and focus, while keeping Ergonomic.

Efficient and powerful lighting system

The SCM660 lighting system has high color perception and color reproduction, making it easier to distinguish treatment details, especially for small, deep, and narrow cavities. 5 kinds of lighting spots are optional, with Iower energy consumption and longer service life.

SCM660 has the function of raising the balance arm to automatically turn off the light source and pulling it down to automatically turn on the light source.

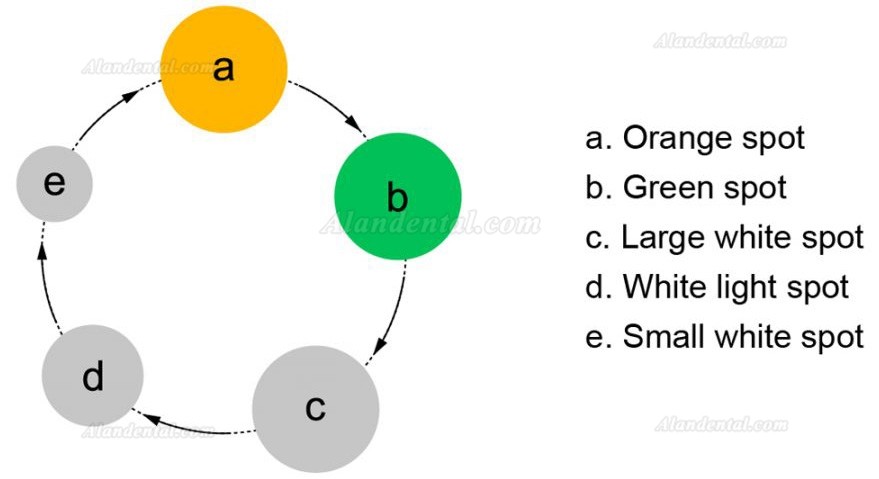

Five illumination spots are optional

Allows you to focus more on the treatment area when you choose a small to medium white spot.

Lighting of the area to avoid interference caused by light reflection in other areas, lt also gives patients a more comfortable treatment experience.

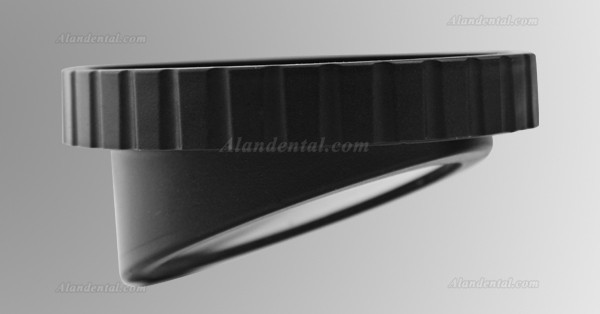

Standard large objective lens protection cover:

The standard large objective lens protection cover can avoid splashing of water droplets, impurities, etc. brought into the large objective lens during treatment, resulting in large objects mirror damage, and at the same time easy to clean.

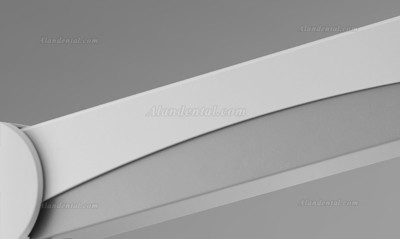

Powerful stand system

The powerful stand system of SCM660 can easily help you at work.Always find the right balance in the environment to achieve the ideal body position and uprightness.Correct posture will allow you to avoid occupational diseases caused by poor posture.

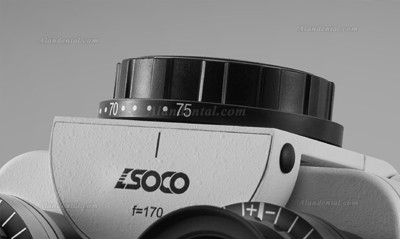

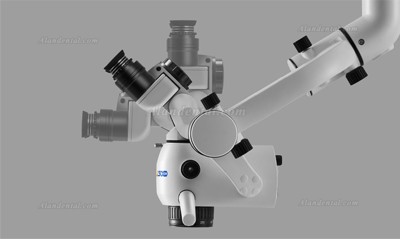

0~180° variable angle binocular tube 0~180° adjustable binocular tube improves the comfort angle when you work. Moderation and flexibility for wider viewing	Interpupillary distance adjustment The interpupillary distance adjustment function helps you adjust to suit yourself. The interpupillary distance, the interpupillary distance adjustment range is 55-75mm.

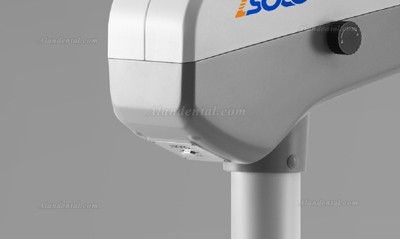

Host balance force adjustment device The microscope host can adjust the torque and damping according to the load to maintain the balance of the microscope after loading digital accessories such as cameras and video cameras, the host canstill be adjusted to keep the host in a balanced state.	Pendulum system Under the condition that the doctor's sitting position remains unchanged, the host tilts to the left and right can maintain a horizontal viewing position.

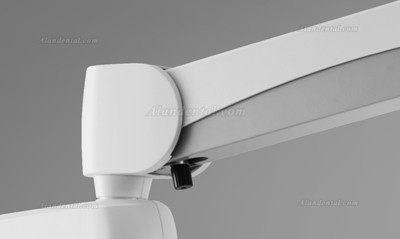

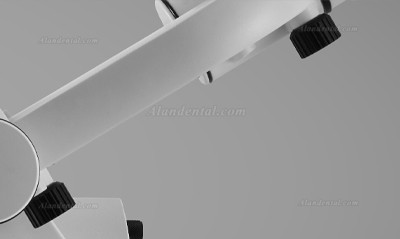

Bracket system damping adjustment device When you adjust the microscope bracket system to any position, the microscope bracket system can hover.	German high-quality gas spring The key parts of SCM660 adopt German high-quality gas spring. Allows you to provide better mechanics when moving the microscope arm.

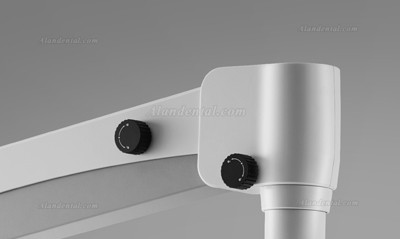

Balance arm balance force adjustment device Help you adjust the support force feel of the balance arm according to the load of the microscope host.	Integrated base The integrated base provides a more stable support effect, and at the same time integrates the power supply of thewhole machine, the appearance design is simple and easy to maintain.

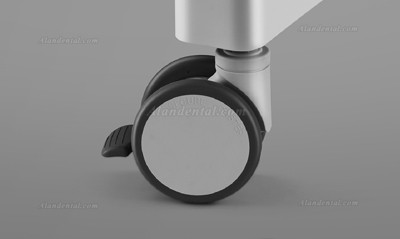

Quiet Medical Casters When you need to move the microscope, the 3-inch silent medical casters can be quieter and more stable when moving.	Reserve HDMI transmission interface Reserve the HDMI transmission interface to reserve the upgrade space when you upgrade and install the video system later.

Technical parameter
Optical system	Apochromatic Optical System
Amplification system	Amplification factor 0.4x~2.5x
Amplification system	Total magnification 2.1x~26.6x
Field of view diameter	10.3mm-102.9mm
Binocular Tube	0°-180° variable angle binocular tube, with interpupillary distance adjustment mechanism, the interpupillary distance adjustment range is 55-75mm
Binocular Tube	High eye point 12.5x wide-angle eyepiece, eye cup height adjustable, diopter compensation range t7D
Zoom system	Large zoom objective, variable working distance 200-415mm
Lighting system	Integrated true color LED lighting color temperature 6000K, color rendering index>90%, illumination>65000Lux

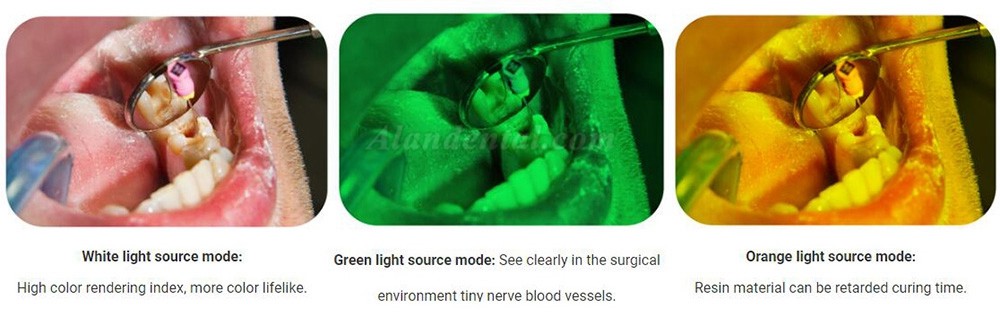

Lighting system	Integrated orange filter and green filter, the white spot can be adjusted in three sizes: large, medium and small
Bracket system	Host balance force adjustment device
	Balance arm balance force adjustment device

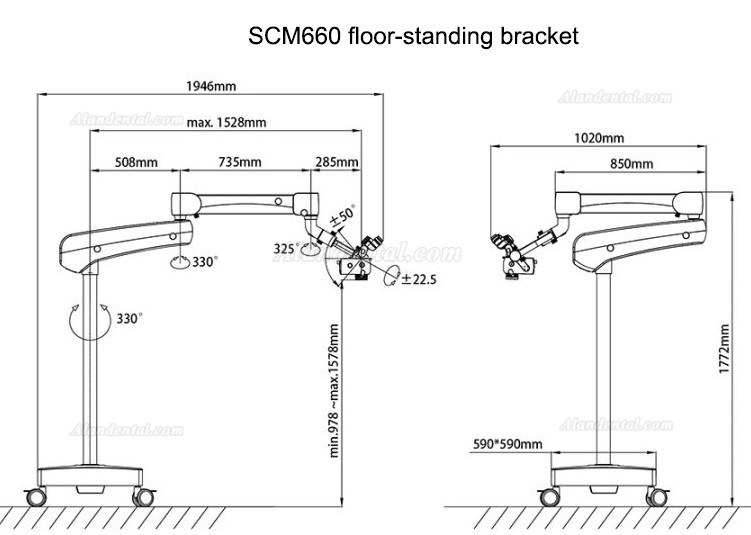

	Balance arm: gyration radius 508mm, 145° rotation
	Swivel arm: Rotation radius 735mm, 150° rotation, up and down travel range (up/down) 600mm
	Maximum arm net extension: 1528mm
	Integrated base, 3-inch silent medical casters, base size: 590x590mm
Electrical parameters	Input voltage: AC100-240V,50/60Hz
	Power: 20VA
	Fuse: F1A 250V
Package dimensions	Net weight: 104kg
	Gross weight: 145kg
	Packaging size: 1245x895x630mm (lengthxwidthxheight)

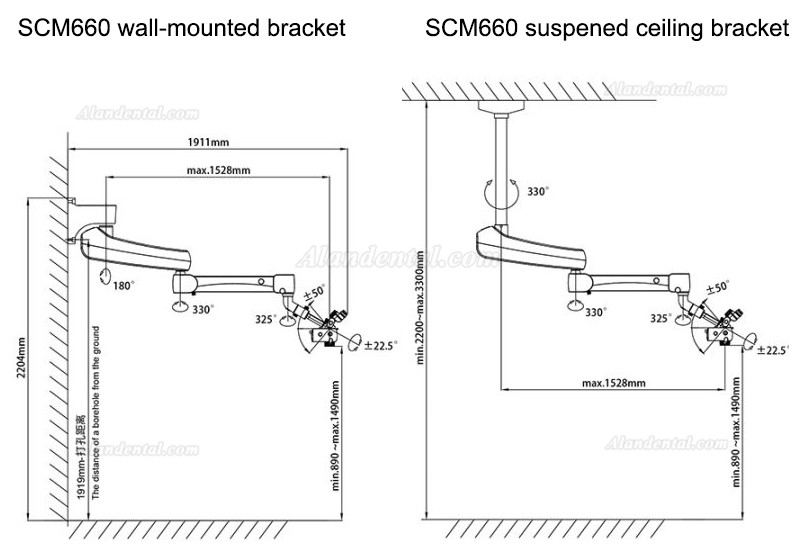

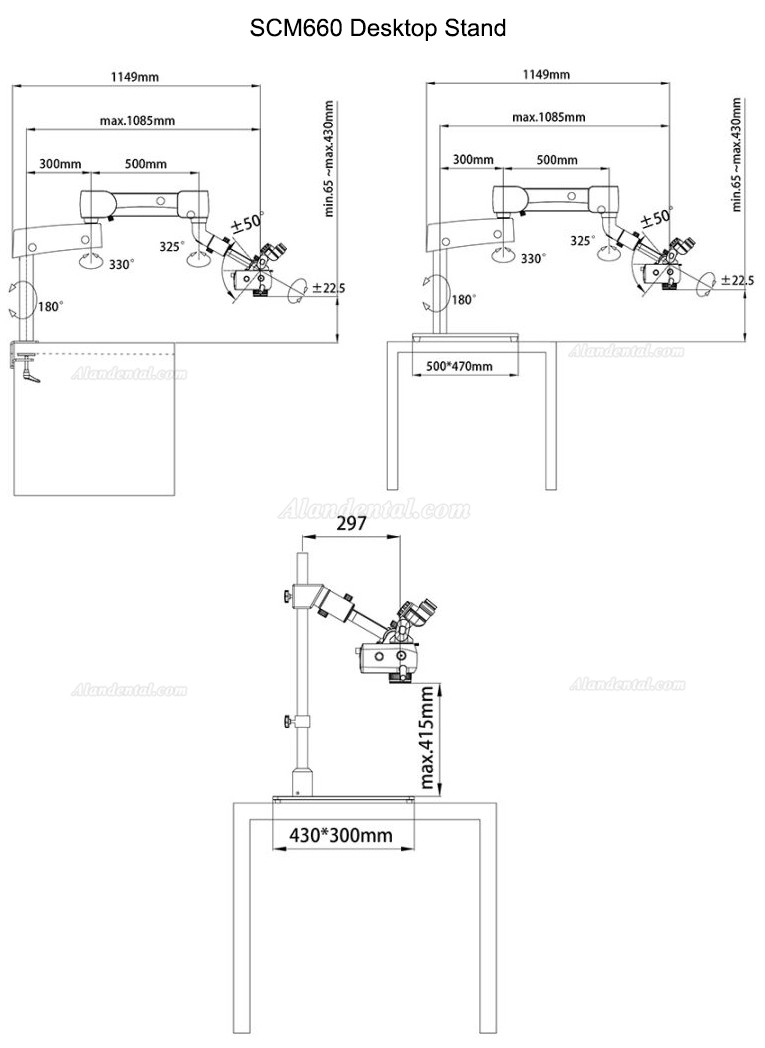

In addition to floor-standing dental microscopes, we also provide wall-mounted, ceiling-mounted, and desktop-mounted dental microscopes. If you need a dental microscope of other installation types, please contact our customer service.
