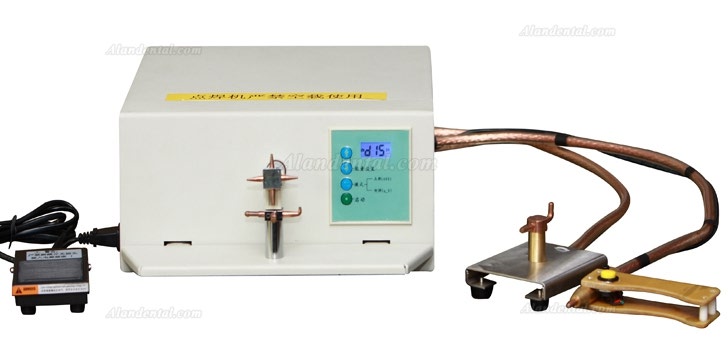

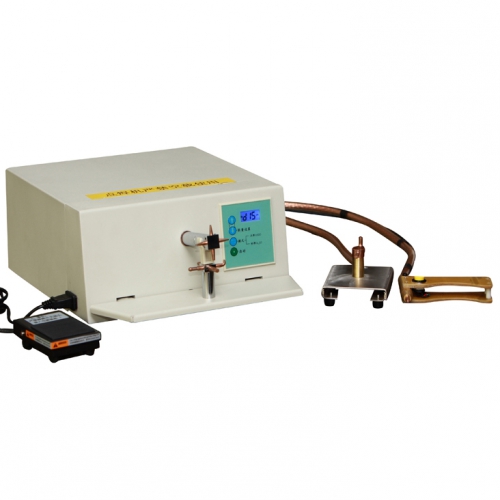

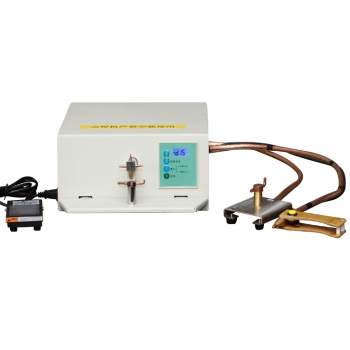

Zoneray HL-WD-V Hotselling Customized Spot Welder
1. Introduction
The product agrees to ISO13485:2016 standard CE certification
2. Technique Parameter
Power supply:
AC 110V, 60 Hz
AC 120V, 60 Hz
AC 220V, 50 Hz
AC 230V, 50 Hz
AC 240V, 50 Hz
Power:maximum instantaneous current 20A
Transformer output power:3500W, output voltage: 5V
Incorrect operation alarm:when operation condition don’t accord with SET mode, the display shows Error beep.
Security type:belong to classⅠ, type B
Transformer overheating protection:95°C

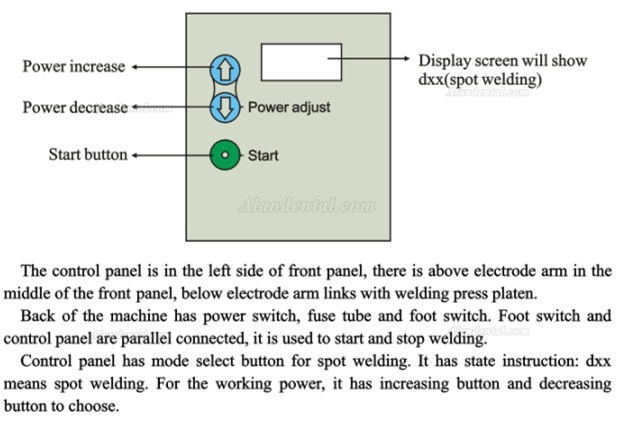

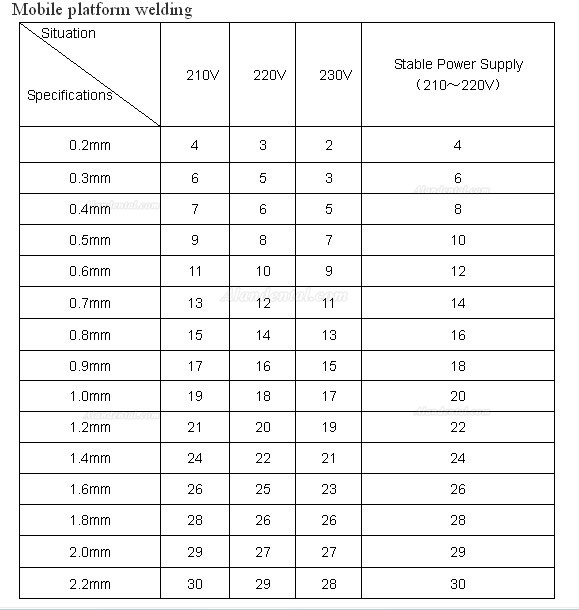

Energy regulation:

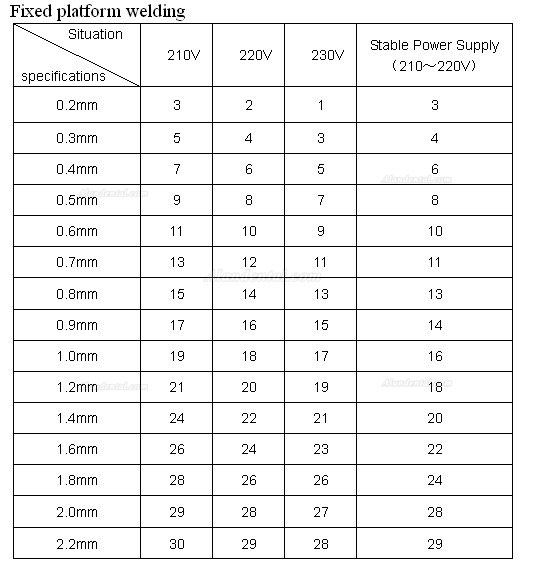

Spot welding (dxx) 1~30
Braze welding(qxx) 1~9
Dimensions of weldment:Diameter 0.2mm~2.2mm stainless steel wire
Fuse:Diameter 5×20mm, 30A
Environment conditions:temperature 5°C~40°C, Relative humidity ≤80%
Storage condition:temperature -10°C~55°C, Relative humidity ≤80%
3. Applicant
HL-WD Super: used for welding stainless steel wire, stainless steel sheet in Jewelry/dental orthodontics and treatment.
4.Spot Welder Packing List
Main machine x1
Power cord x1
Foot switch x1
Fuse 30A x1
State block x1
Certificate x1
Warranty card x1
Manual x1
5.Test Report
