Dental Soldering Machine Argon-arc Spot Welder for Dental & Jewelry Welding

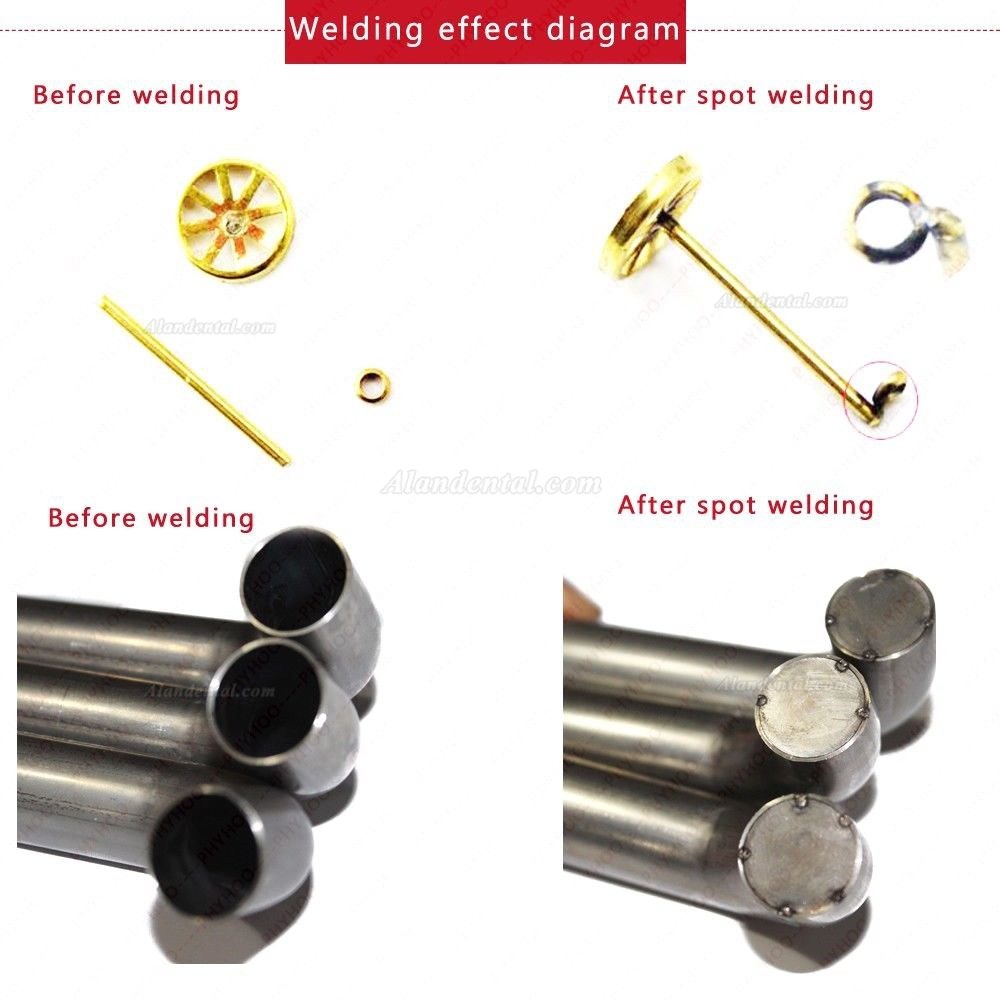

Argon-arc Spot Welders includes five preset basic programs for gold (Au), cobalt chrome (co-cr), hybrid-welding (such as precious to non precious), titanium (Ti) and orthodontics. Besides its features a compact size, safe and stable system, easy operations, low noise, and maintenance. It requires minimum working space, and the adjustable power and pulse settings allow adjustment of penetration depth and welding spot diameter. This unit will switch to Ortho mode if there are no operations within 5 minutes to prevent any damage to the workpiece. It's great for jewelry and dental welding.



Power Supply: 220V/110V 50/60Hz

Power Consumption: 100W

Degree of protection: IP21

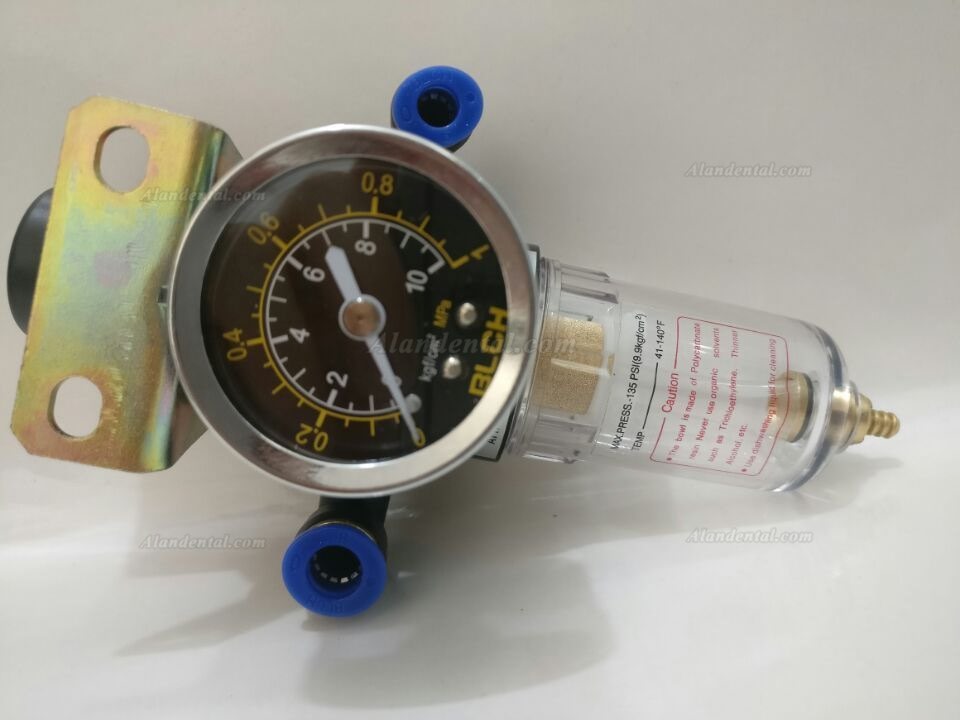

Gas supply pressure: ≥0.1Mpa

Welding voltage: 40V

Welding current: 5A600A

Welding time: 3ms--30ms

Max. welding frequency: 1Hz

Max. argon consumption: 5L/min

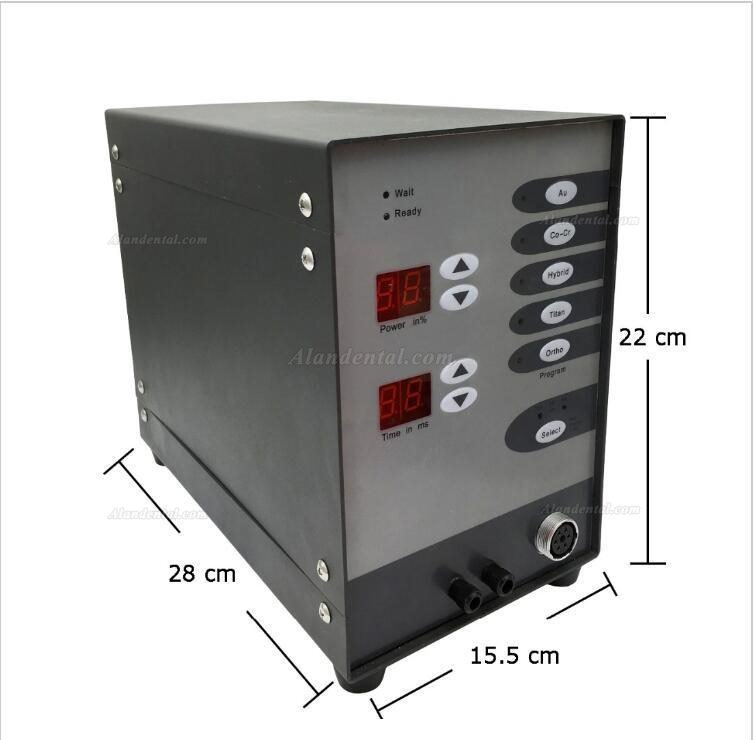

Dimensions: 280mm*160mm*230cm

Weight: about 8.5kg.



In order to avoid electric shock, fire and dangerous accident when using electrical equipment, be sure to pay attention to follow basic safety measures:

1. Before using the instrument, please read this manual and precautions. Placing this manual near the instrument for a convenient view.

2. Please keep the electrical equipment away from children and absolutely forbid children to play this electrical equipment, spare parts, and other cables.

3. The operating of the equipment should maintain good ventilation and lighting, do not work in a humid and dusty environment thus to avoid accidents by abnormal environment.

4. Never let any liquid enter the instrument.

5. There will be a strong arc light when operating, irrelevant personnel should away from the work site for avoiding damage the eyes.

6. Do not use a cable to drag equipment. Cables should be away from heat, oil and other sharp objects, so as not to damage the cable.

7. You must completely cut off the power before clean the equipment and open the case.

8. This machine with a compact and reasonable structure does not need special and tedious maintenance. Paying attention to the cleaning of the instrument, especially the microscope. Not clean the attachments will seriously affect the observation of objects.

9. The instrument should be covered with a dust cover in non-working status.

10. For your security, please use the correct fittings.
