YP-11 Dental Real Color 3D Intraoral Scanner Dental 3D Scanner with Software

YP-11 Dental Real Color 3D Intraoral Scanner Dental 3D Scanner with Software
Item No. ADL003583
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
Manuals and Documentation:

YP-11 Intraoral Scanner User Manual.pdf
- Special Offer in Blackfriday:
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
Market price:$7423.31
But It Now : $4498.98
Voltage :

Plug :

Quantity :
Limit points for buying:4400 score
Weight:0gram
Goods click count:9

Item Description Reviews

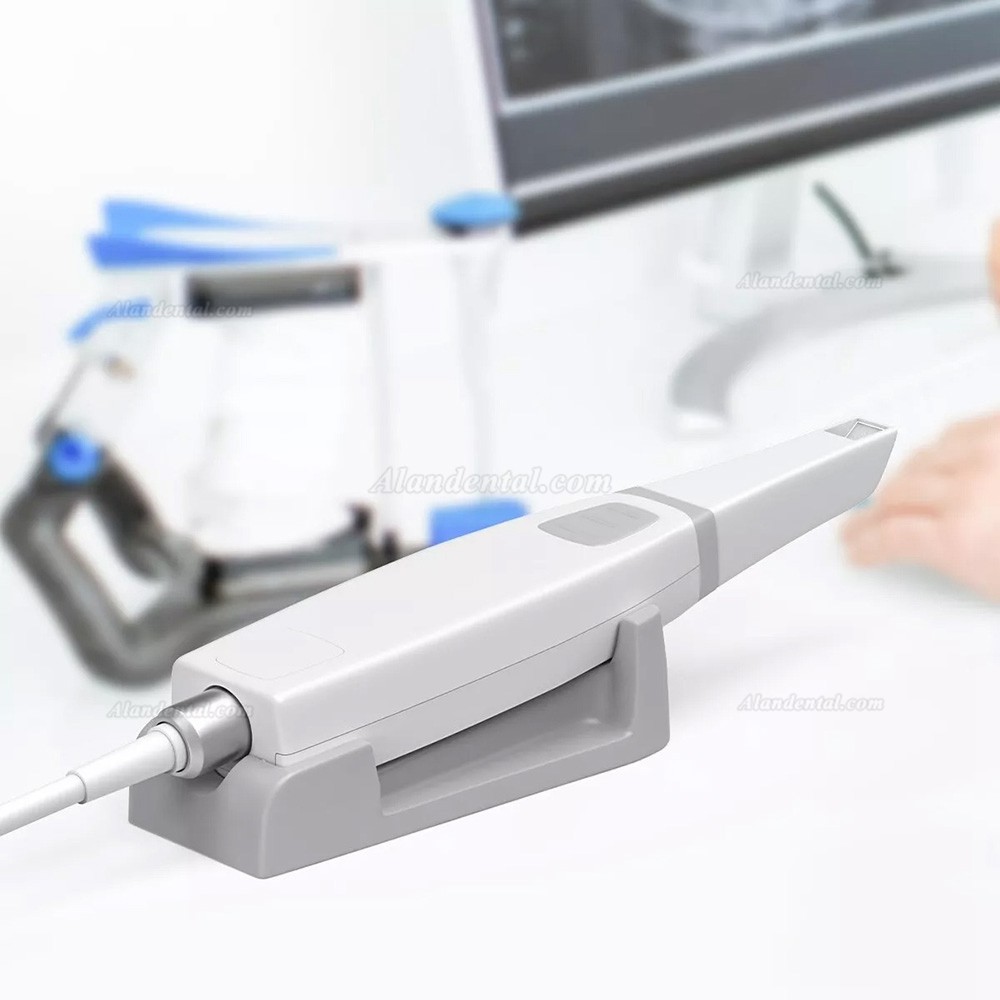

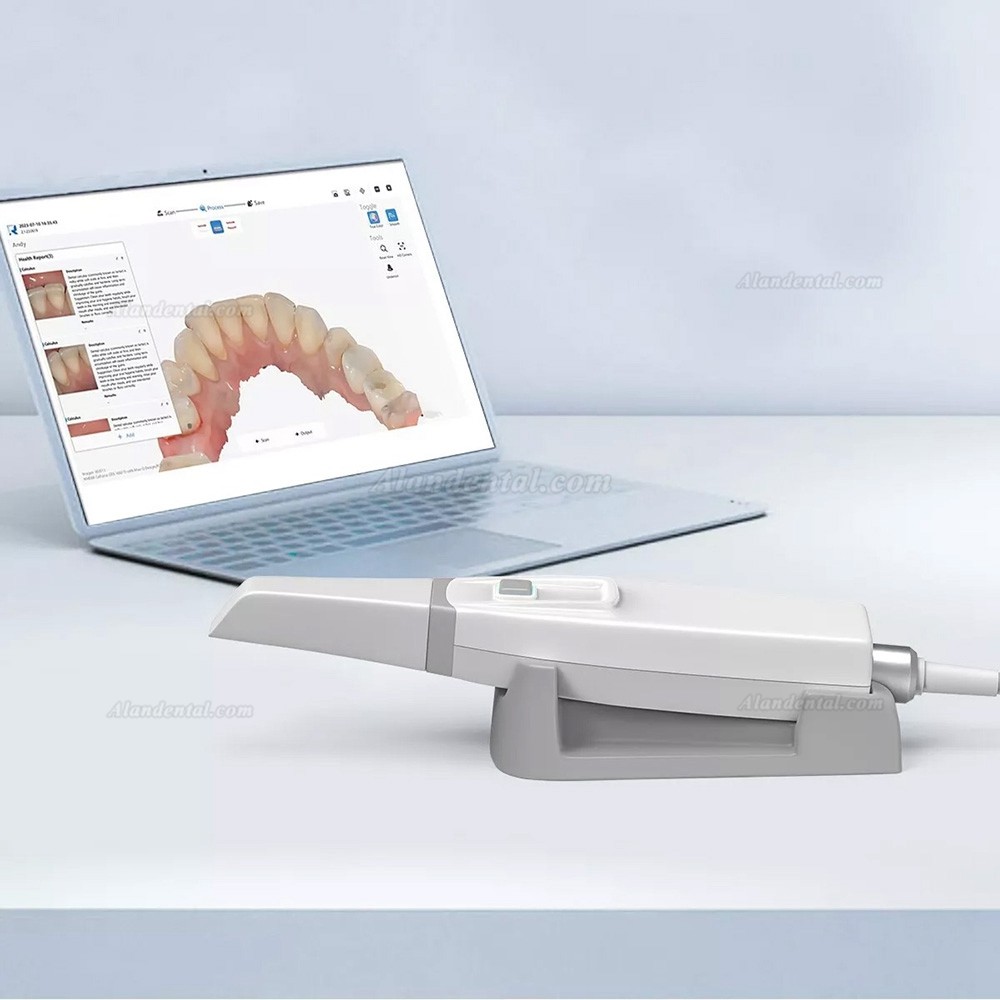

YP-11 Dental Real Color 3D Intraoral Scanner Dental 3D Scanner with Software

FEATURE：

1. Engonomic Size & Weight：Scanner dimension 240mm(L) x30.5mm(W)x49.5 mm(H)，Weight 210g, Scanner tip dimension 79mm x19.7mm x15.8mm.We also offer a mini tip that is perfect for children

2. Chromoscan：Colored scanning that can show the true，dental situation in vivo in real-time

3. High accuracy that can cover all different indications，Whole scanning process takes ≤3 minutes approximately which is much faster than taking traditional impression.

4. Continuous scanning：Shorten the clinical operation time and improve the efficiency，Real time display of scanning data,doctors can analyze the data simultaneously.

5. Moderate depth of field：15mm depth of field to provide scanning，efficiency and ensure data integrity.

6. Built-in anti-fog module：Scanner tips with automatically mirror，heating to ensure data accuracy

7. Apply to various clinical treatment：Restoration, Implant, and Orthodontics appliance.

8. Versatile, including:Metal scan,Margin Line Drawing,UndercutInspection,HD Camera,Model Builder,Occlusion Check.

Basic Computer Configuration:

Required(Recommended):Microsoft Windows 10 64bit Pro edition or above;

Processor: Intel Core i7-9700H, 16GB or above;

Graphics Card: NVIDIA GeForce 1660, 6GB or above;

Note: AMD Graphics may not support all software functions, which is not suggested. SSD: 256GB or 128GB + 1TB mechanical disk or above;

Port: USB 2.0/3.0

Display Resolution: 1920x1080

Device Operation

Specification:

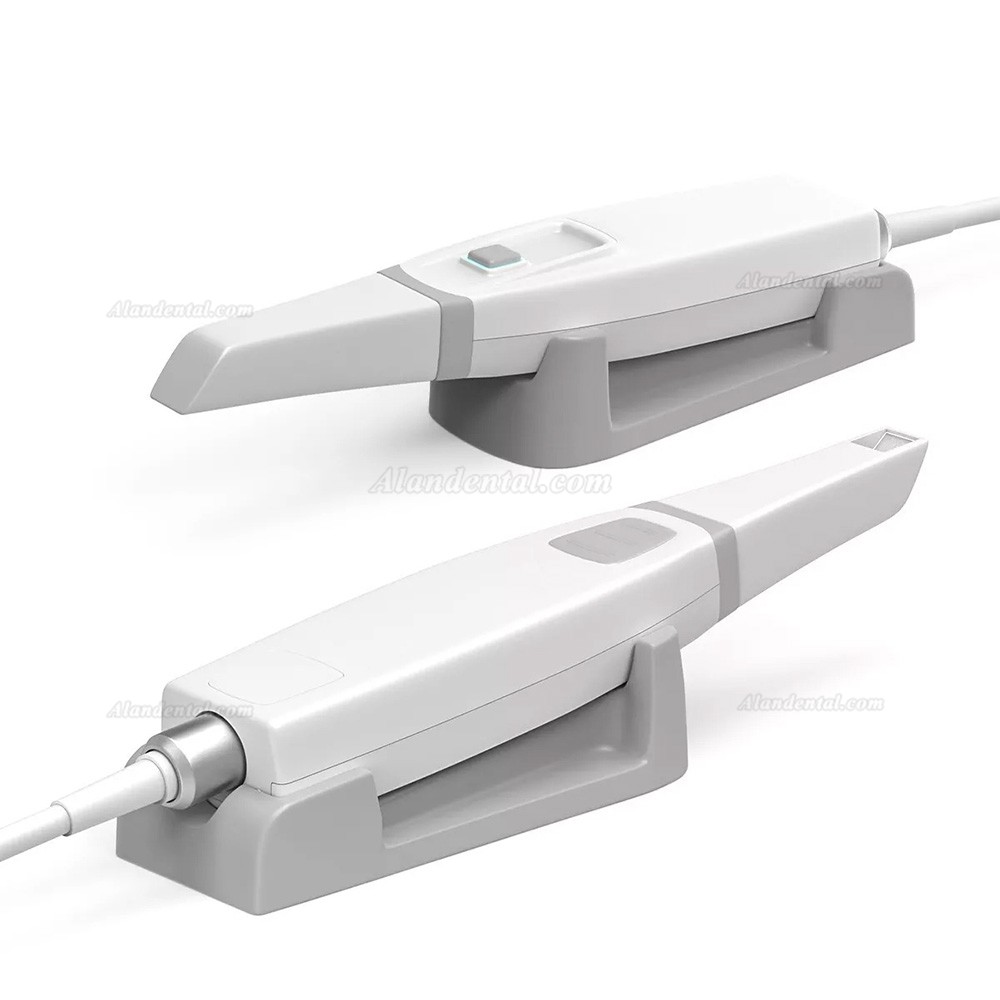

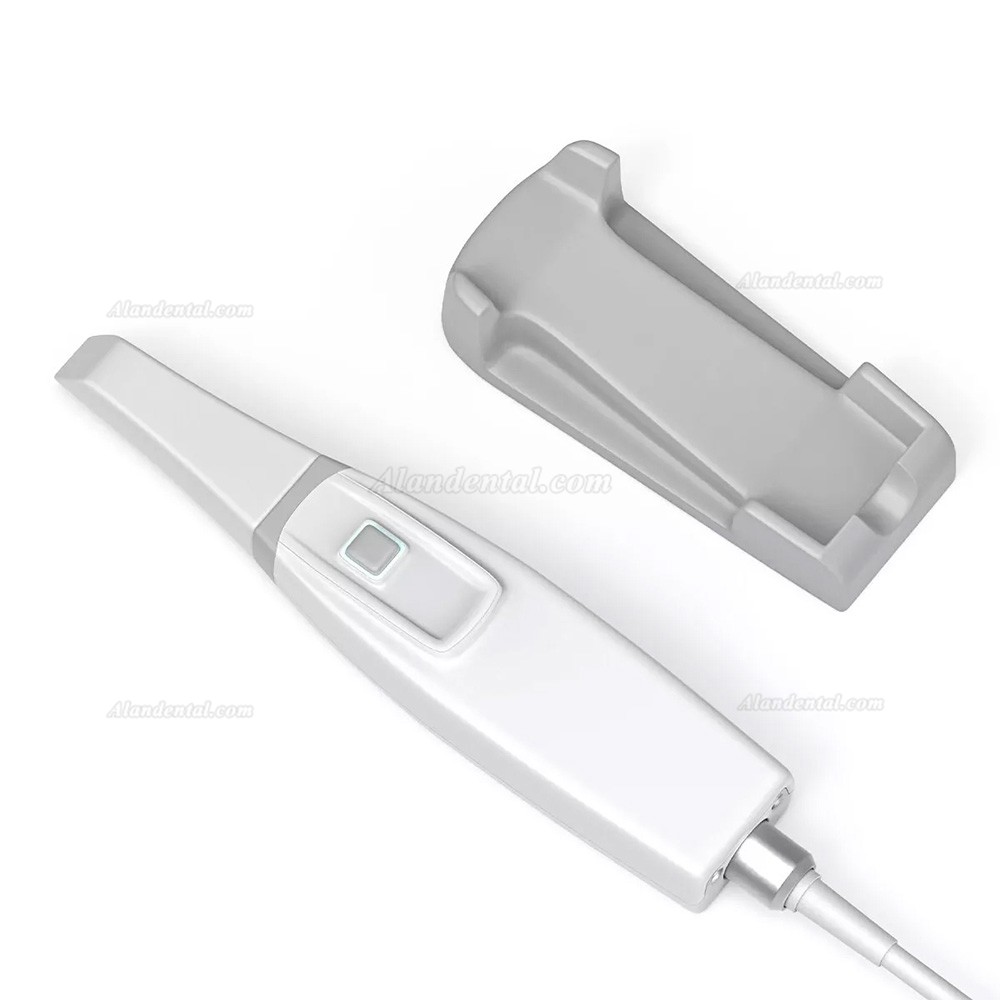

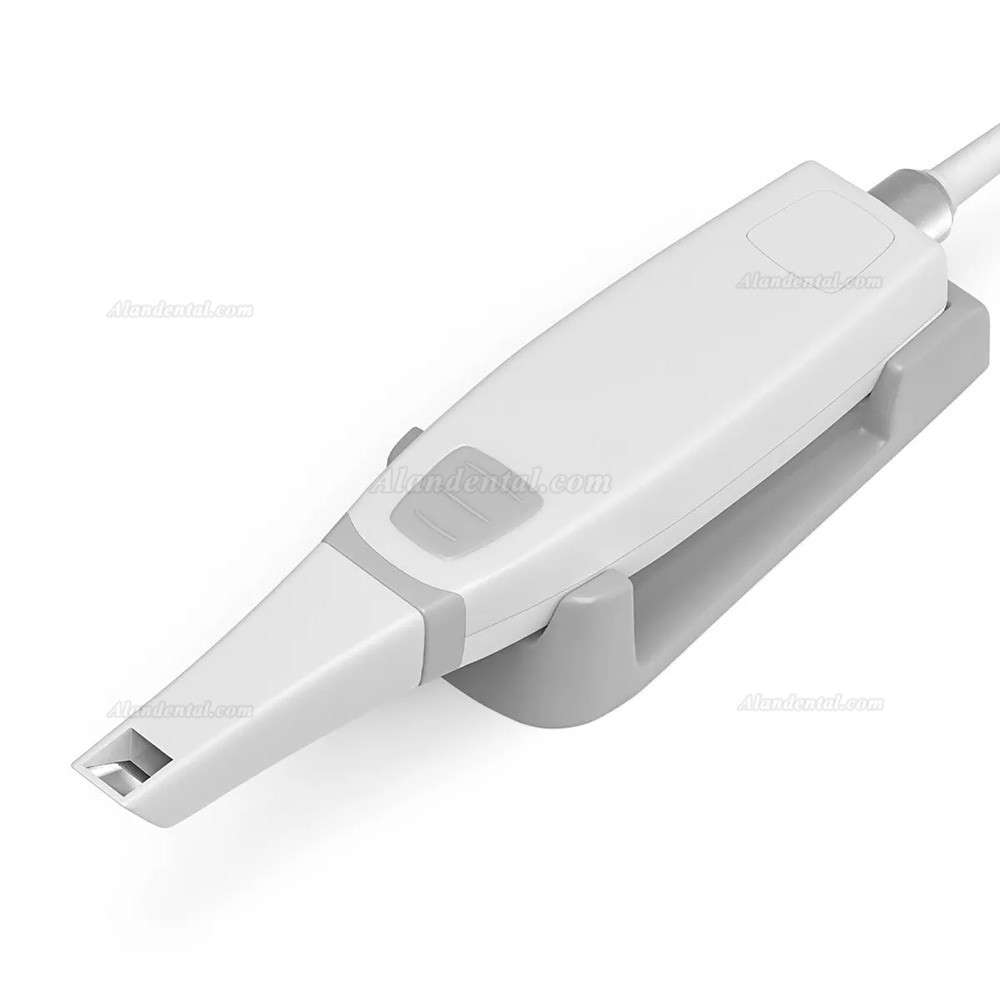

1.Handpiece Size:240x49.5x30.5mm

2.Handpiece Weight:210g

3.Tip：

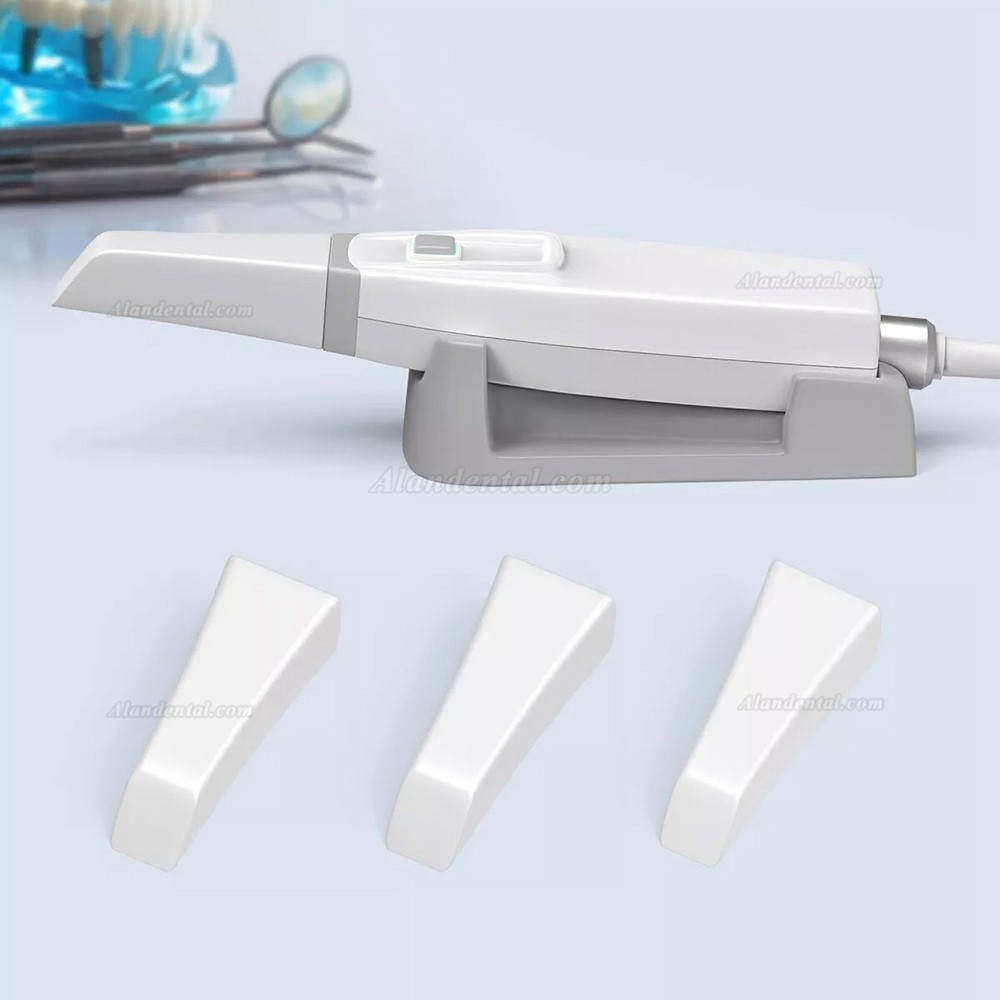

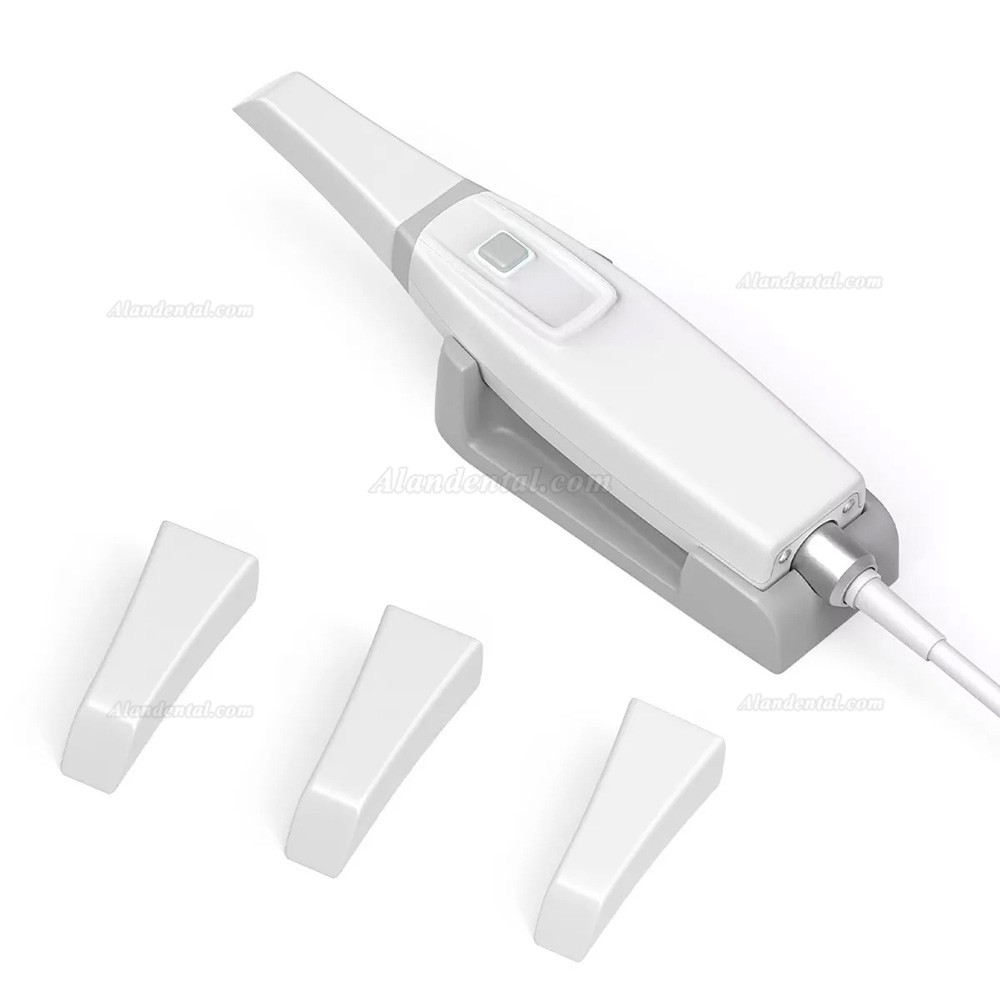

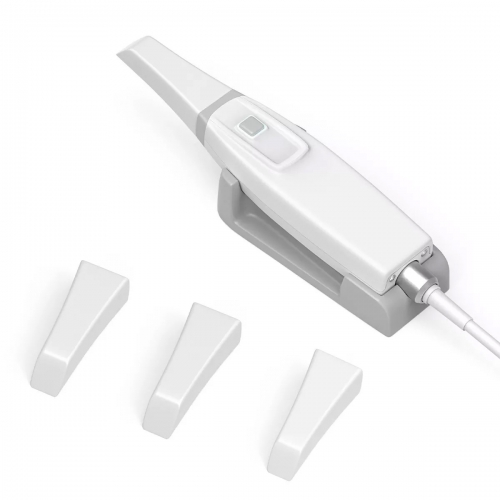

●Standard tip(3PCS) size:79mm×19.7mm×15.8mm

●Mini tip(1PC) size:80mm×16mm×11mm

●Scan area(Standard):15×15mm

●Scan area(Mini):12×12mm

●Depth of field:15mm

●Autoclavable:Up to 100 times Autoclavable 121℃ 16 mins/Autoclavable 134℃ 4 mins

4.Accuracy：

●Crown:<10um

●Full arch:<20um

5.Scan Speed：

●Single arch:30S

●Full arch with occlusion:90S

6.Calibration:Calibration free

7.Export Format:STL,PLY,OBJ

8.Connectivity:USB3.0

9.Optical Continuous:Imaging Technology,Video Capture

10.Scanning Distance:0-17mm

11.lmaging Sync:3D

12.Quick Reset:Yes

13.Data Refine:Yes

14.Service Life>30000h

15.Mutilingual System:Chinese, English, French, Spanish, Russian, Portuguese,Italian, Greek, Polish, Romanian, Japanese and Korean.

16.Power Supply:

a) Voltage: 100~240V, 50/60Hz

b) Power: 25 VA
