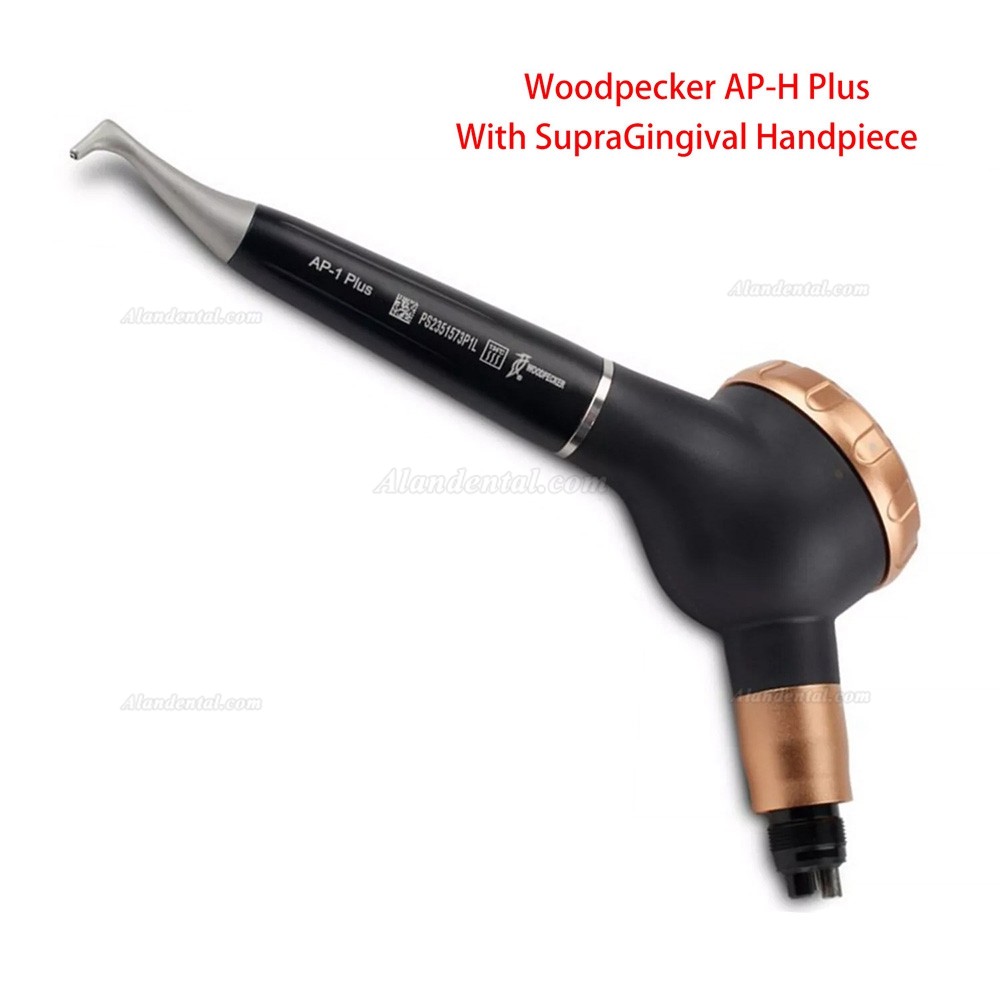

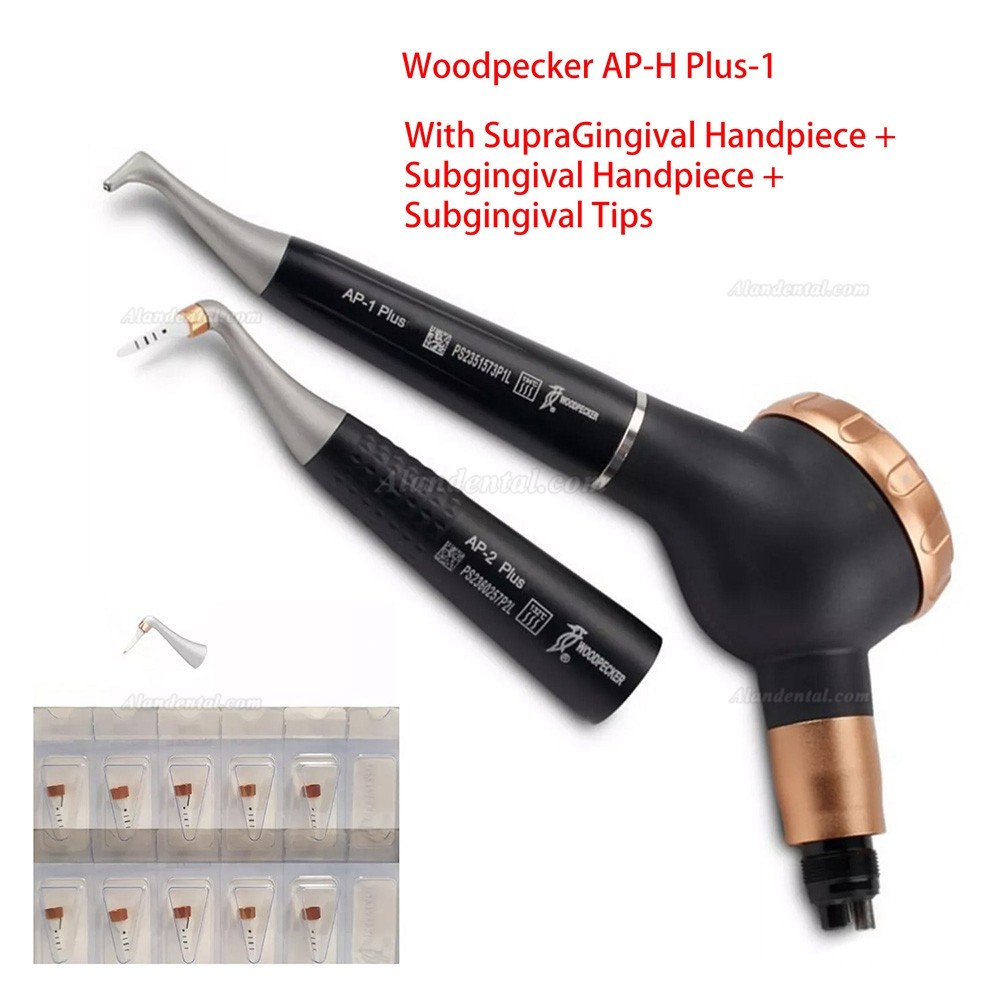

Woodpecker AP-H Plus Dental Air Flow Prophy Polisher SupraGingival / Subgingival Handpiece 4Hole

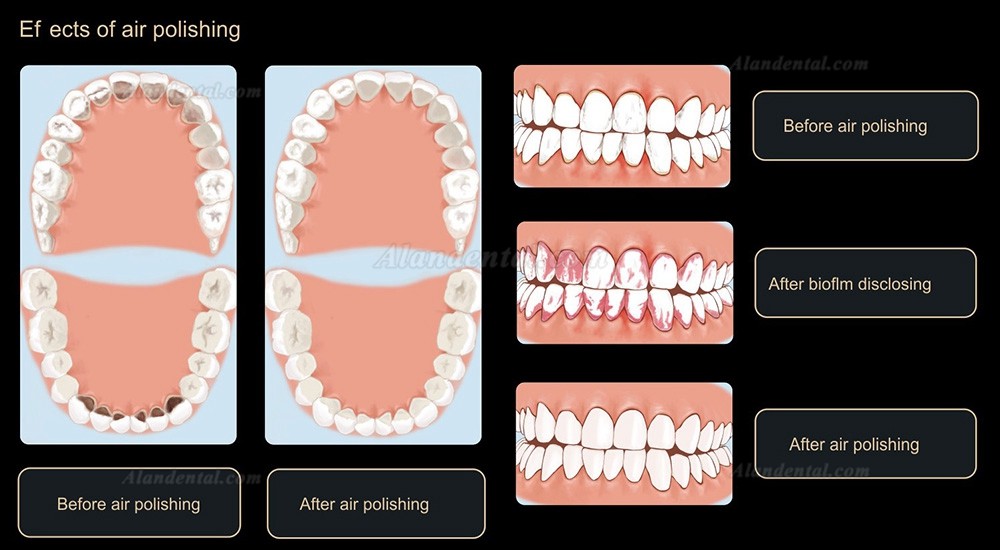

Air polishing is a process of using compressed air to spray powder and water on the tooth surface through air-polishing equipment to remove the attachments (such as biofilm, pigment, soft dirt, etc.) and polish the tooth surface. Air polishing has become an indispensable tool for biofilm control in the new era. Compared with traditional ultrasonic scaling, air polishing is more efficient and comfortable, causing no scratch to the tooth surface, and is less likely to harm soft tissues, so as to reduce patient tension.

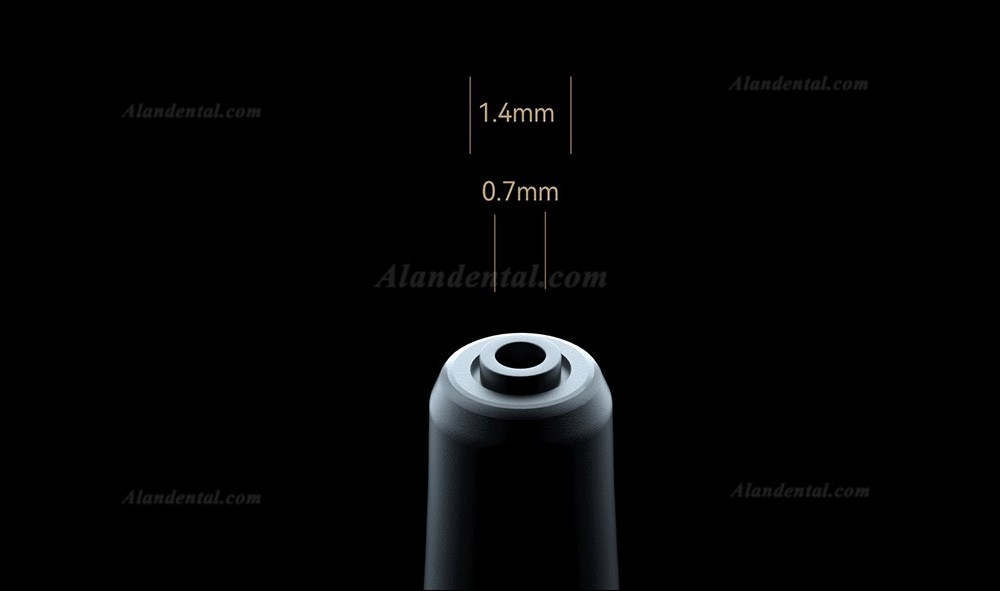

0.7mm Nozzle caliber for powder measures 0.7mm, 1.4mm Nozzle caliber for water measures 1.4mm. Smaller caliber allows more concentrated air polishing.

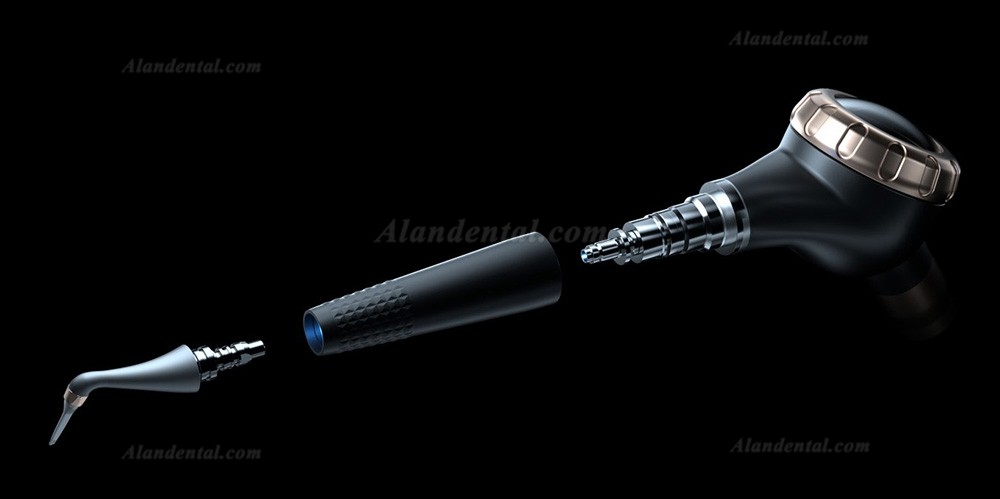

Woodpecker handpiece can be detached for maintenance if clog occurs, which makes it unique among all the brands.

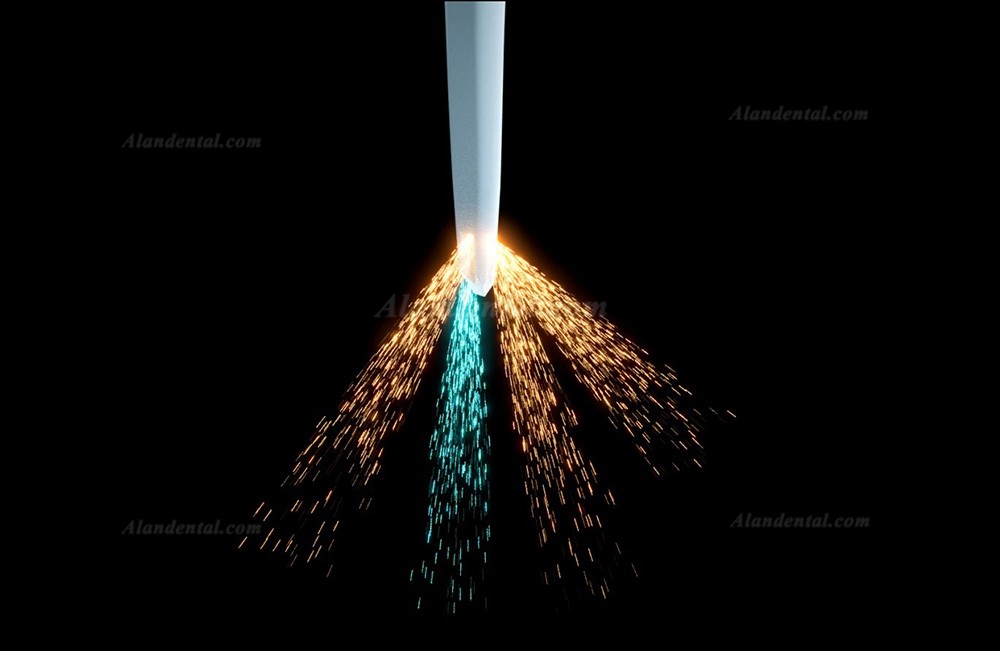

Three-direction powder output, one-direction water output, Ef ciently eliminate biofilms, thoroughly clean dead ends.

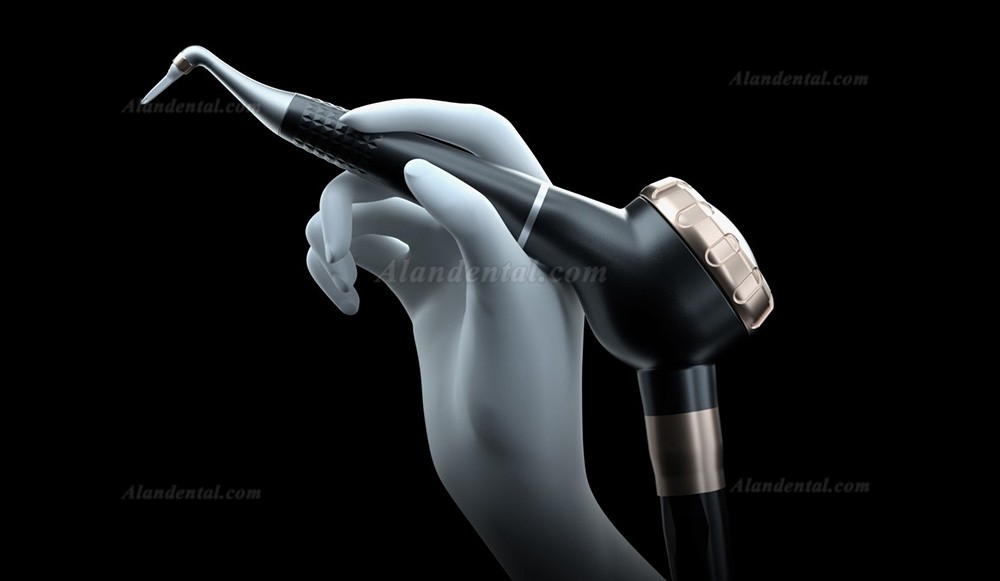

Easy quick connection for plugging and using, lightweight design relieves grip fatigue.

Suitable for all dental chairs. The whole device weights about 125g, much Iower than similar products on the market (135~165g). Easy to adjust the angle, fexible to apply to use.

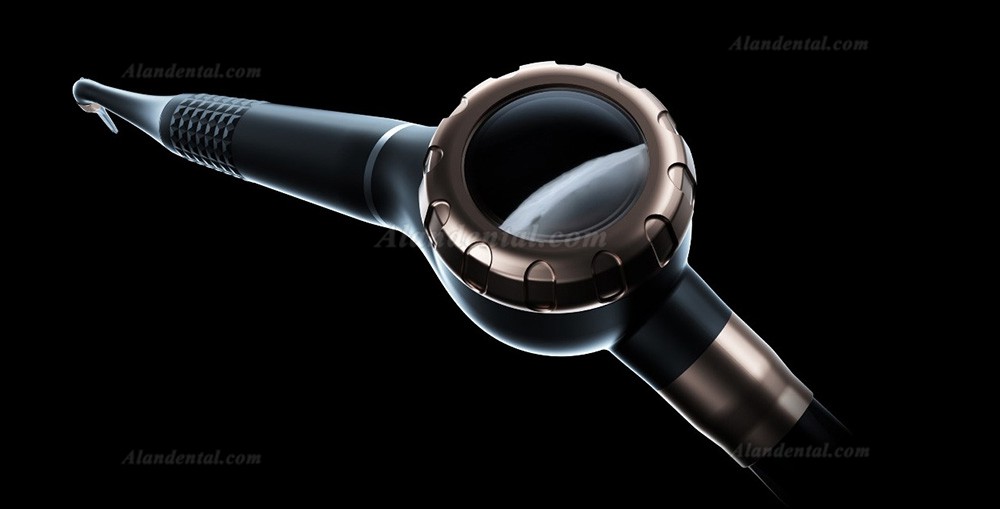

Lateral transparent powder container enables easier observation of remaining powder.

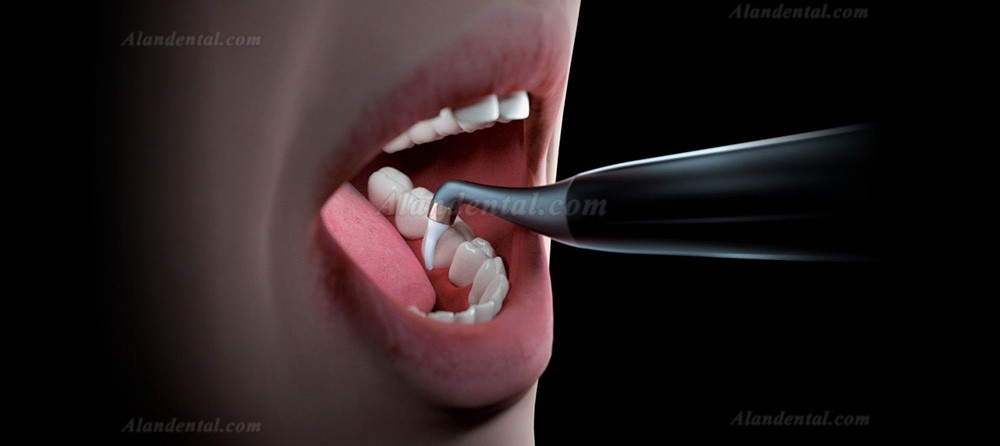

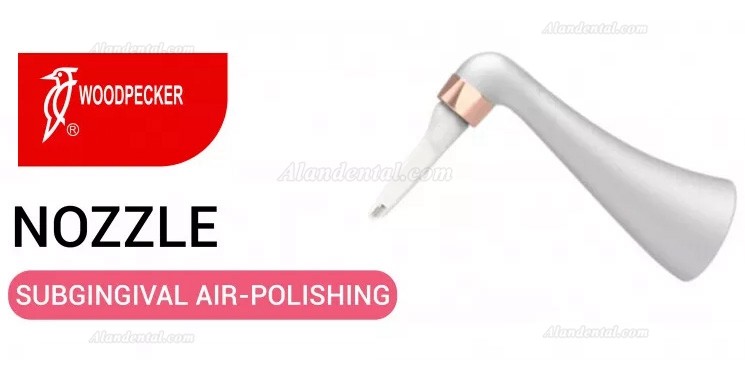

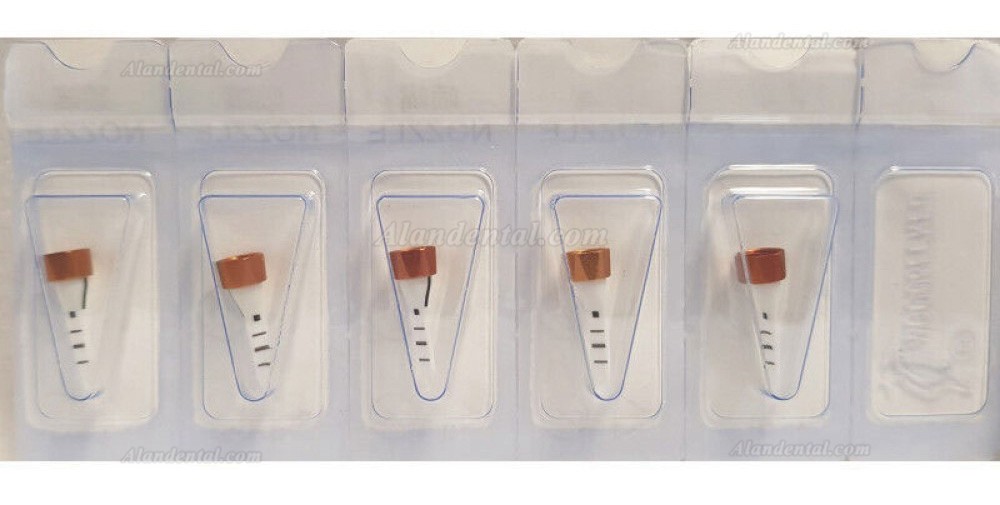

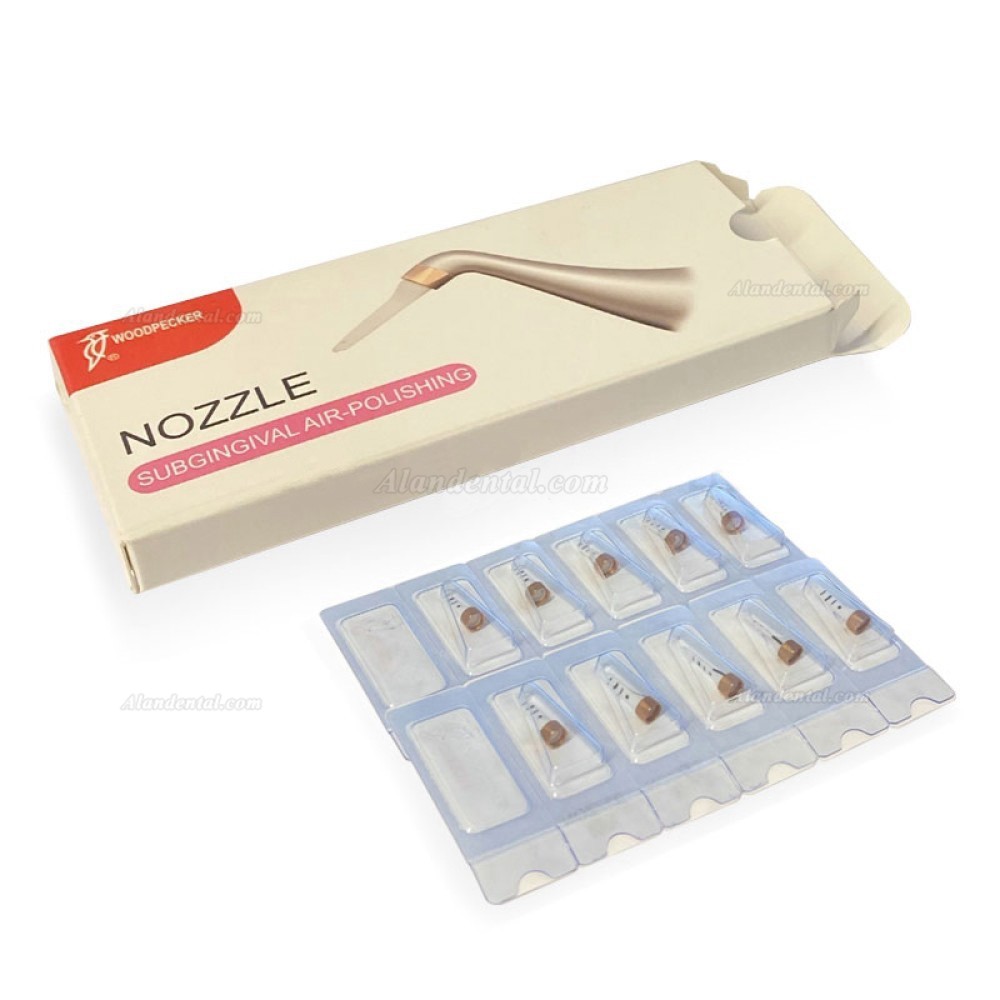

The subgingival nozzle can be rotated 360°after installation. By adjusting diferent angles, it can clean the lingual side, labial side and adjacent space. Enable more comprehensive subgingival periodontal air polishing. Pre-bendable subgingival nozzle design makes it easy to clear dead ends. Subgingival nozzle with three directions for powder and one for water output Minimum size is only 0.25mm.

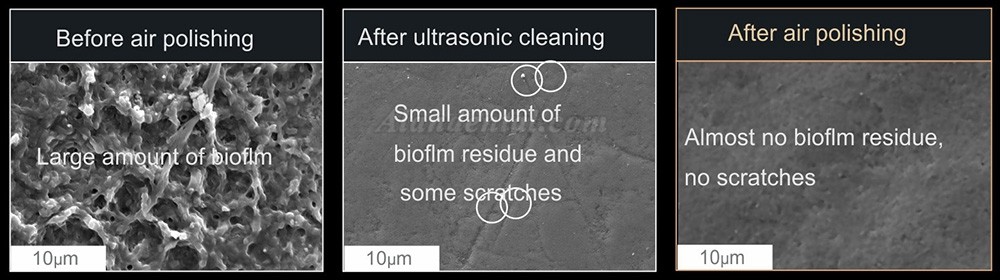

The hardness of the air-polishing powder is much Iower than that of the enamel. Therefore, our teeth can be protected better during cleaning, avoiding the tooth surace damage caused by excessive traditional scaling so as to improve the experience and compliance of customers.



Input water pressure:0.7bar to 2.2bar (70-220kPa)

Input air pressure: 3.5bar to 4.5bar (350-450kPa)

Working mode: continuous operation, Intermittent operation

Weight: About 0.150kg

Connector: Meets the requirements of YY / T 0514

Operation environment:

Environment temperature: ＋ 10℃～ +40℃

Relative humidity: 30% ～ 75%

Atmospheric pressure：50kPa ～ 106kPa
