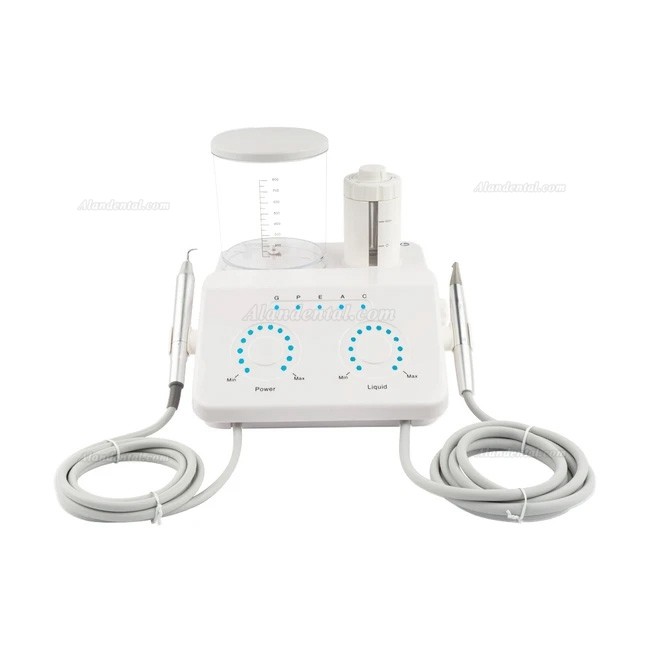

VRN® DQ-40 Periodontal Treatment Device With Ultrasonic Scaler and Dental Air Polisher
Features:
DQ-40 Ultrasonic Scaler has both ultrasound system and air polishing system. It is suitable for scaling,periodontal treatment,air polishing and root canal irrigation.It has the following characteristics:
● Automatically identify the ultrasonic/air polishing working mode according to the handpiece selected.
● DQ-40 panel adopts intelligent multi-touch to intelligently control the periodontal treatment power of dental cleaning, and adopts imported pressure regulator to accurately adjust.
● Titanium alloy tips have circular vibration trajectory, small amplitude of tips can achieve painless treatment.
● In the automatic water supply mode, special chemical solutions such as hydrogen peroxide, sodium hypochlorite and chlorhexidine can be used to improve the clinical treatment effect.
● Detachable ultrasonic handpiece and air polishing handpiece can be sterilized under high temperature of 134℃ and high pressure of 0.22MPa.
● The evolutionary wireless foot switch remotes the main unit, and the wired foot switch can also be selected according to user’s needs.
● Soft LED lighting for improving clinical operation efficiency.
● The working process is fully automatic controlled by microcomputer, which is convenient and simple to operate and high efficiency.
Intended Use
This equipment is suitable for periodontal treatment in clinical oral treatment. It uses air polishing and ultrasonic scaling to remove tartar, plaque and stains on the tooth surface. Remove the dental calculus and plaque in the periodontal pockets. Clean and wash the root canal.

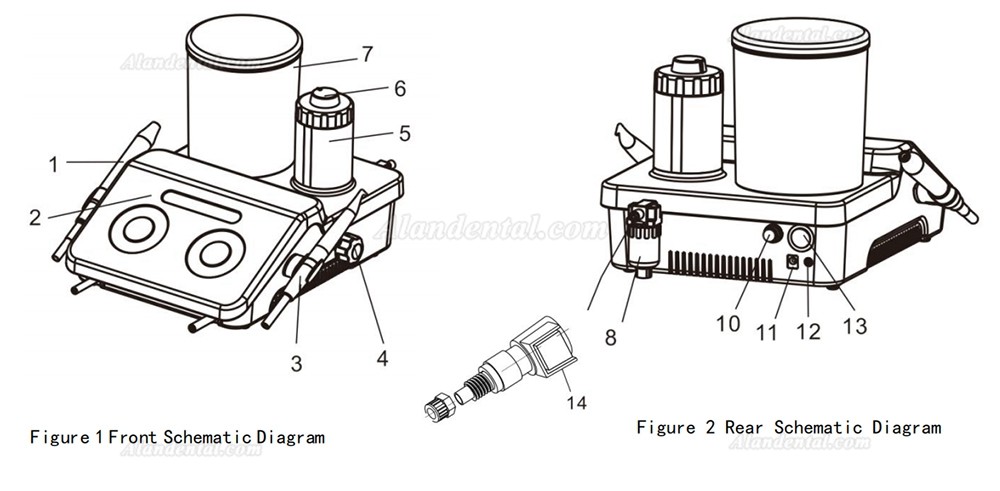

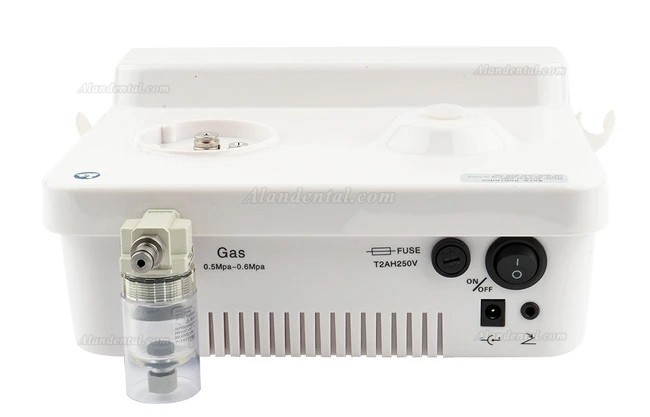

Product Structure
1.Ultrasonic handpiece |
6.Powder flow control knob |
11.Socket for DC power adapter |
2.Operation panel |
7.Water bottle |
12.Wired foot switch socket |
3.Air polishing handpiece |
8.Air/Water separator |
13.Power switch |
4.Air pressure control knob: adjust the air pressure under air polishing mode |
9.Air intake |
14.Check valve quick coupling |
5.Powder tank |
10.Fuse |
|

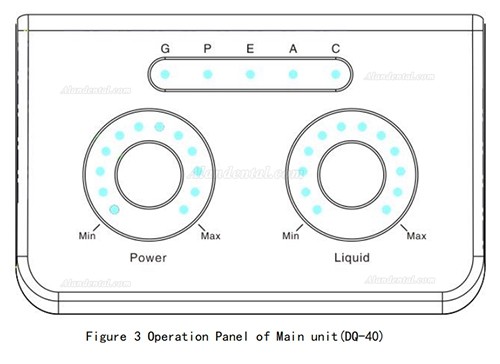

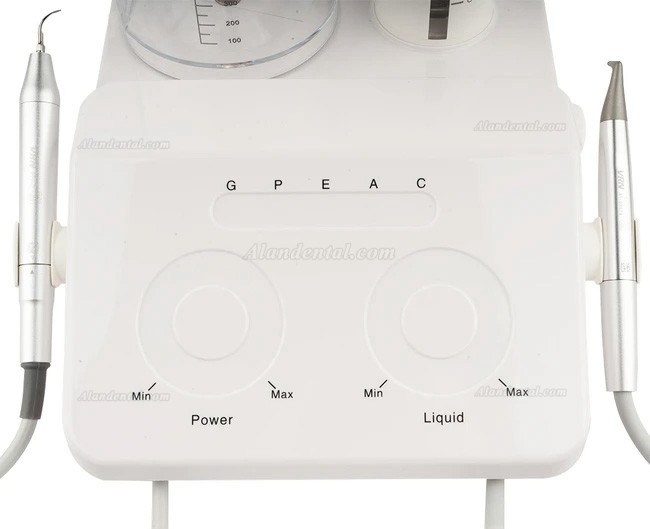

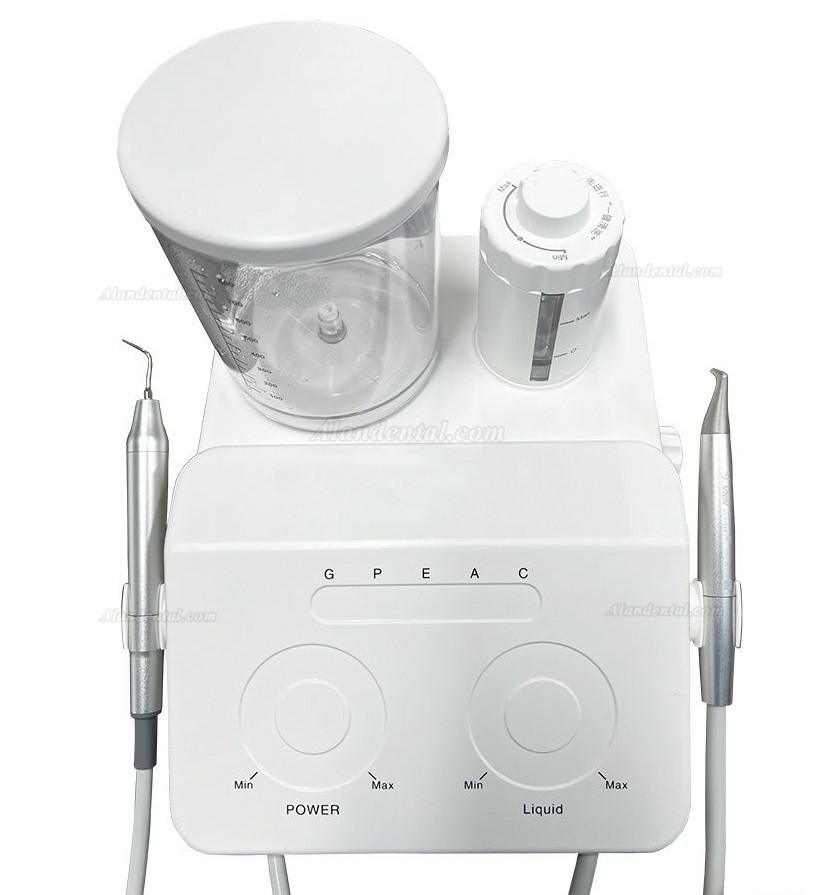

Operation Panel
1. POWER: power slider, under the mode of cleaning: slide it for setting power; under the mode of powder spray: slide it for setting air pressure.
2. Liquid: water volume adjustment slider
3. Mode selection area:
G: Scaling
P: Periodontal treatment
E: Root canal irrigation
A: Air polishing(Intelligent recognition after taking the air polishing handpiece, no need for manual selection)
C: Air polishing pipe cleaning
Specification
1. Input Voltage:220 V~50/60 Hz
2. Main Unit Input:25V 50Hz 1.3A
3. Wireless Footswitch Battery:Battery No.5 *2
4. Primary Tip Vibration Excursion:Minimum: 1 μm;deviation: -50%;maximum: 100μm,deviation: +50%
5. Half-excursion Force:Minimum :0.1 N;deviation: -50%;maximum: 5 N;deviation: +50%
6. Tip Vibration Frequence:30 kHz±5 KHz
7. Tip Output Power:3 W~20 W
8. Intake Pressure:5 bar~6 bar(0.5 MPa~0.6 MPa)
9. Leaving Water Temp Of Sanblasting System:0℃~45℃
10. Dental Sandblasting Powder Requriement:Applicable only to URIT approved dental sandblasting powder
11. Fuse:T2AH250V
12. Fuse Power:T1AL250V
13. Weight of Main Unit:2.1 kg
14. Weight of Power Adapter:0.9 kg
15. Dimension of Main Unit:310mmX370mmX170mm
16. Receiving Sensitivity:-114 dB
17. Receiving Frequence:2.4G-2.5G
Wireless Footswitch:
18. Emission Frequency:2.412GHz-2.462GHz
19. Modulation Type:GFSK
20. Effective Radiation Power:12dbm

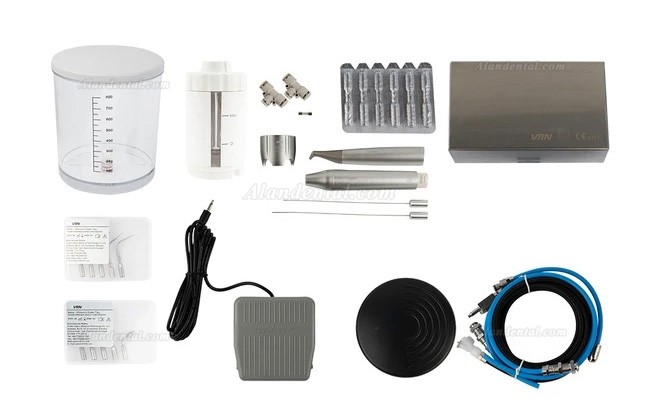

Packing List
1.Main Unit×1 |
10.Waterproof Sticker×1 |
19.Fuse×1 |
2.Water Bottle ×1 |
11.Tip×10 (E1、P12R、P12R、IM1、P16、P11、P12、P12L、G5、P1、G1) |
20.Powder Tank Components×1 |
3.Wireless Foot Swtich×1 |
12.T type Quick Connector(PEG8-6)×2 |
21.Self-locking Quick Female Joint×2 |
4.Wired Foot Switch×1 |
13.Self-locking Quick Connector×1 |
22.Self-locking Quick Male Joint×1 |
5.AH-1 Supragingival Sandblasting Handpiece×1 |
14.Torque Wrench×1 |
23.Needle(0.5)×1 |
6.PH-2 LED Scaling Handpiece×1 |
15.Endo File Wrench×1 |
24.Needle(1)×1 |
7.Disinfection Box×1 |
16.PU Pipe 4x6mm(0.5m)×2 |
25.Endo File(25#)×6 |
8.Power Adaptor×1 |
17.Braided Hose 4x6mm(2.5m)×1 |
|
9.Operation Manual×1 |
18.Silicone Tube 4x1.5(11mm)×2 |
|
Comparison of VRN devices
The main differences in the design and configuration of multifunctional preventive devices produced by Guilin VRN.
|
VRN Q-6 |
VRN DQ 80 |
VRN DQ 40 |
Control |
3.5" LCD display |
7.0" LCD display |
Touch panel |
Water heating system |
/ |
yes |
/ |
Tips |
22 pcs |
10 pcs |
10 pcs |
PH-2 LED Scaling Handpiece |
2 pcs |
1 pcs |
1 pcs |
AH-1 Supragingival Sandblasting Handpiece |
2 pcs |
2 pcs |
1 pcs |
AH-2 Subgingival Sandblasting Handpiece |
1 pcs |
1 pcs |
/ |
Water Tank |
2x 700ml |
1x 900ml |
1x 900ml |
Powder containers |
2 pcs |
2 pcs |
1 pcs |
Box for sterilization |
2 pcs |
2 pcs |
1 pcs |
