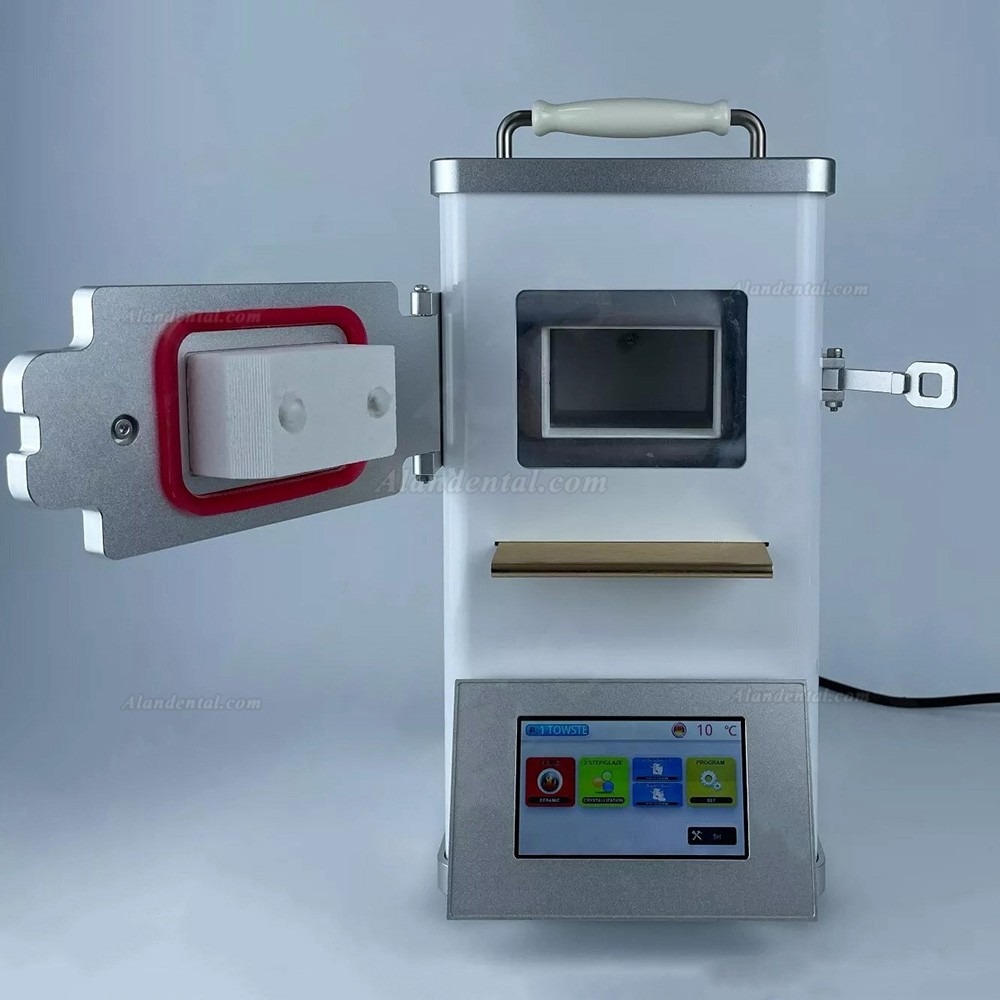

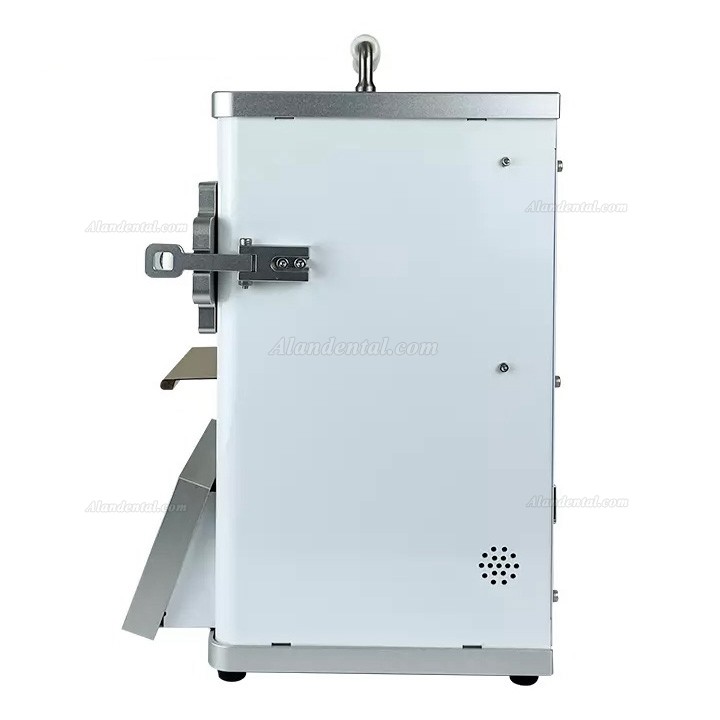

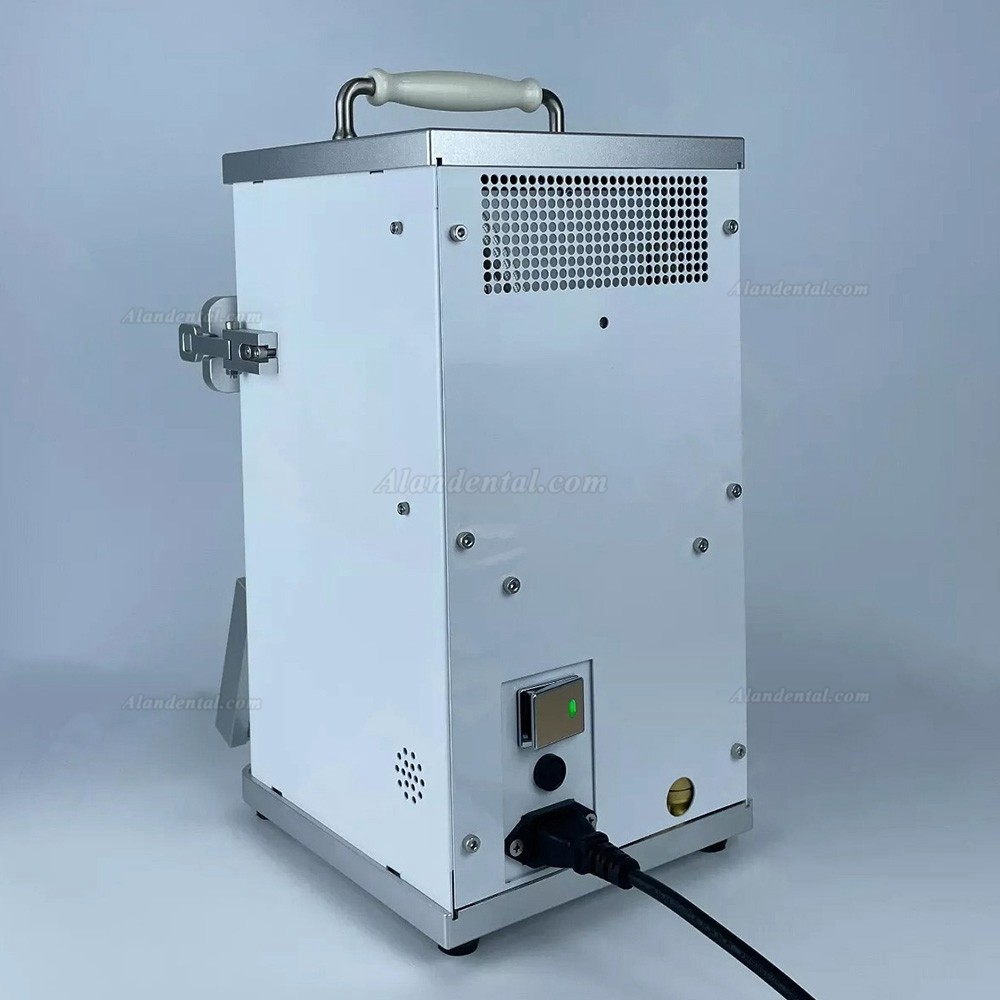

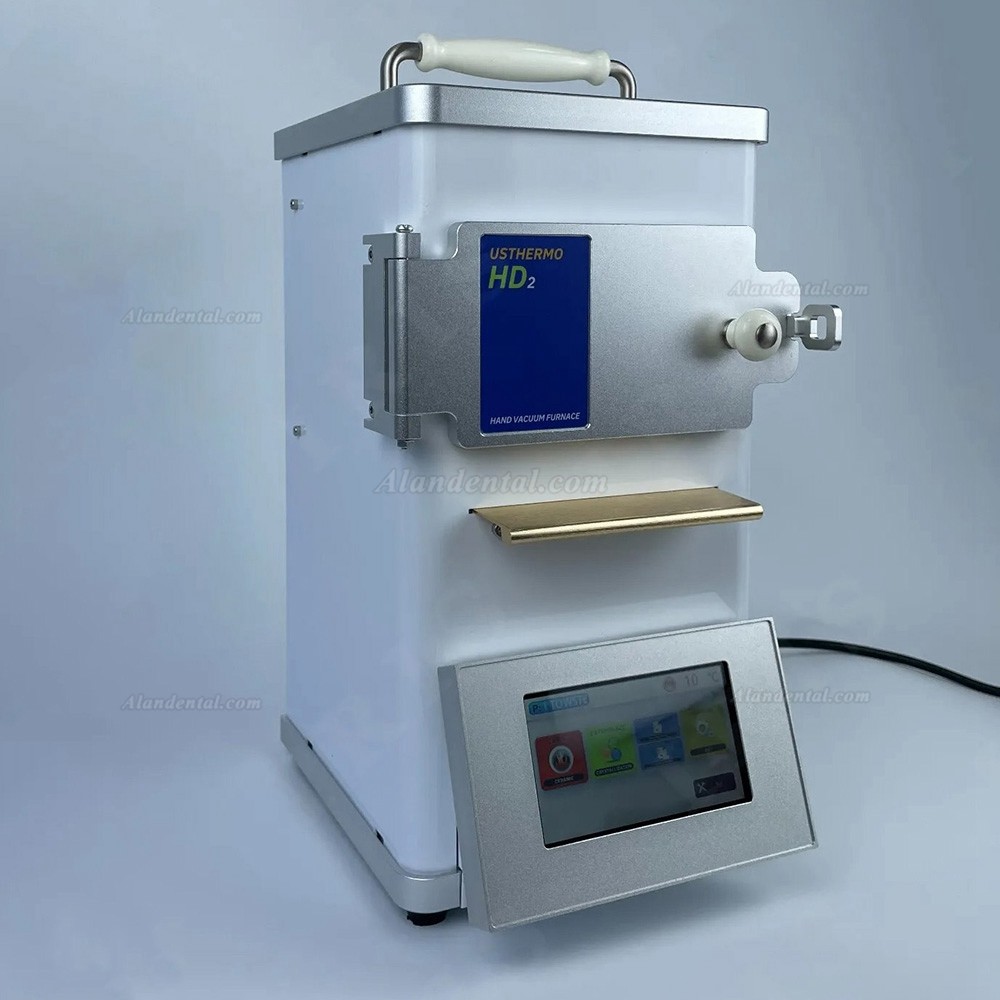

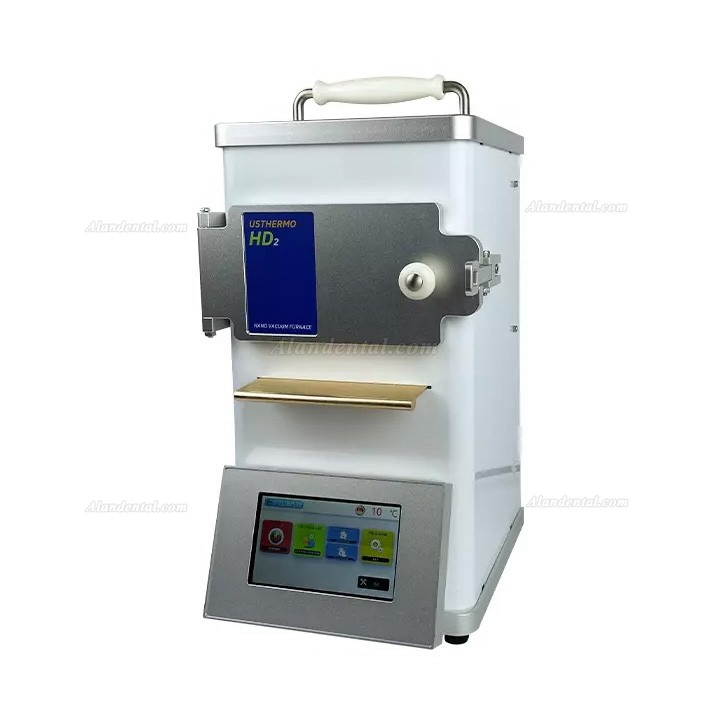

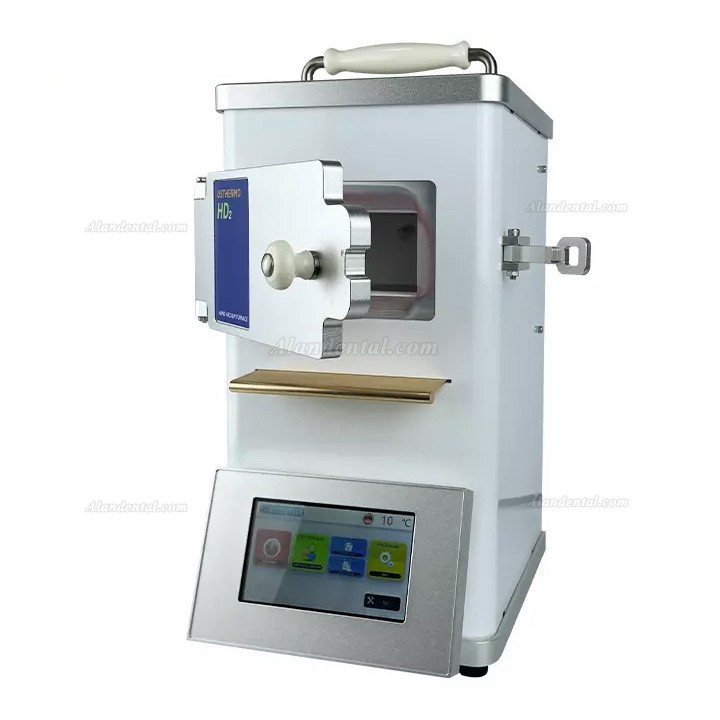

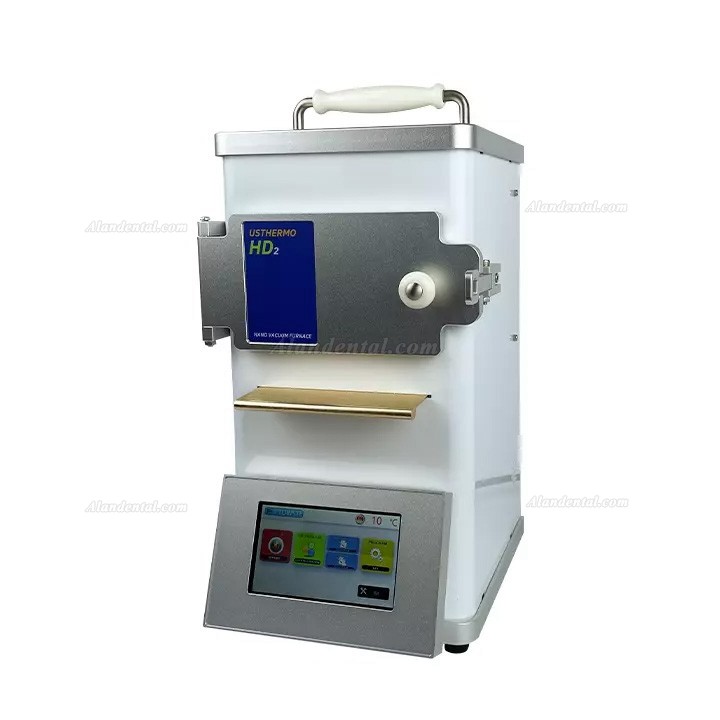

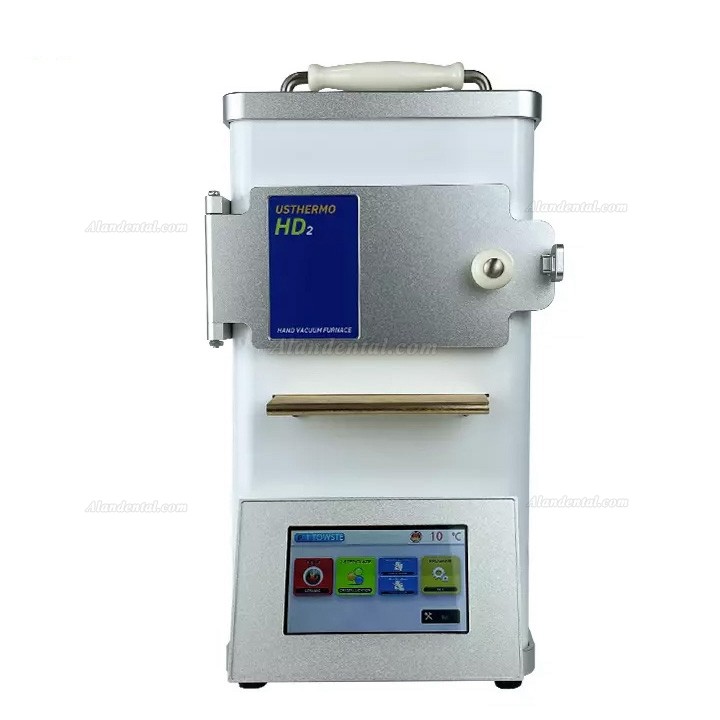

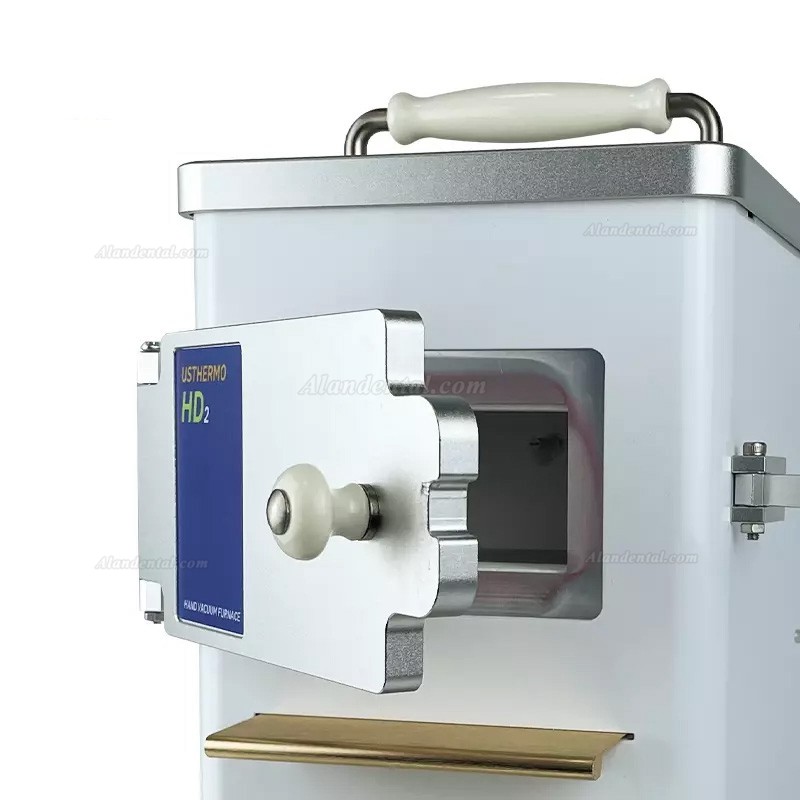

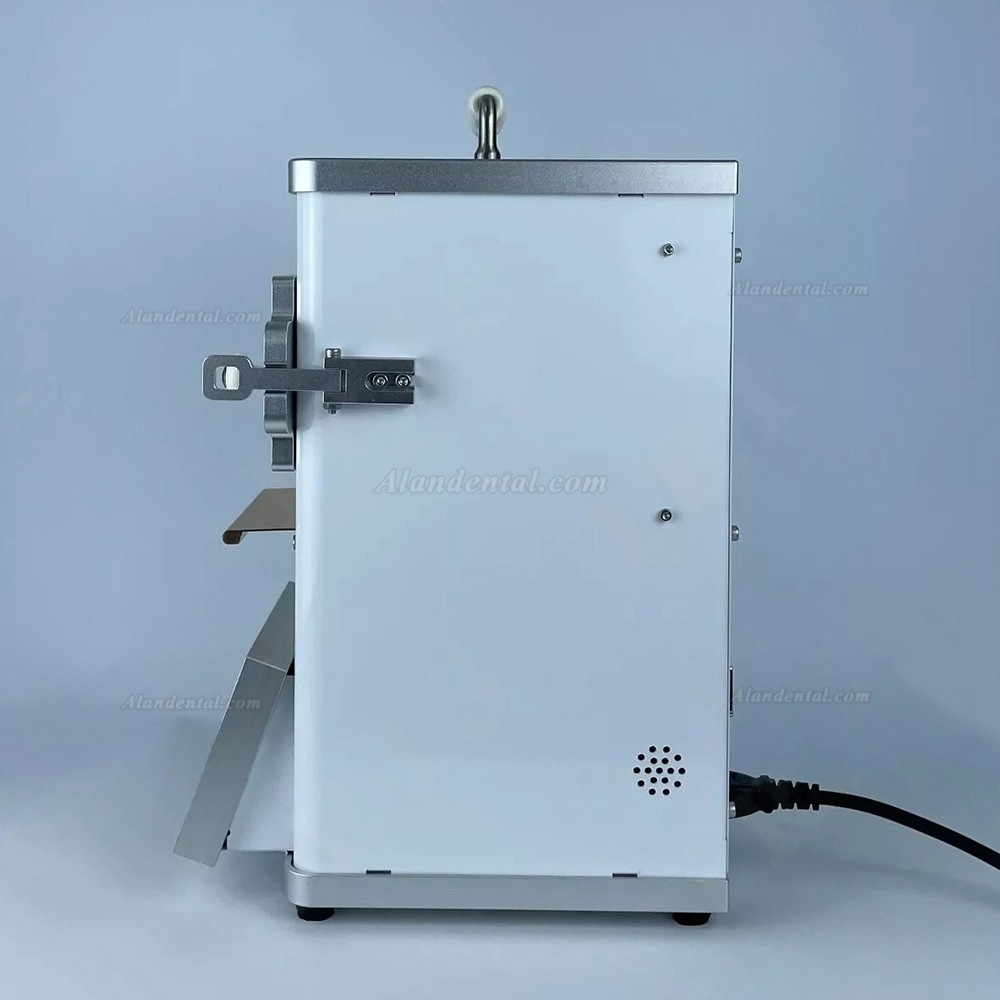

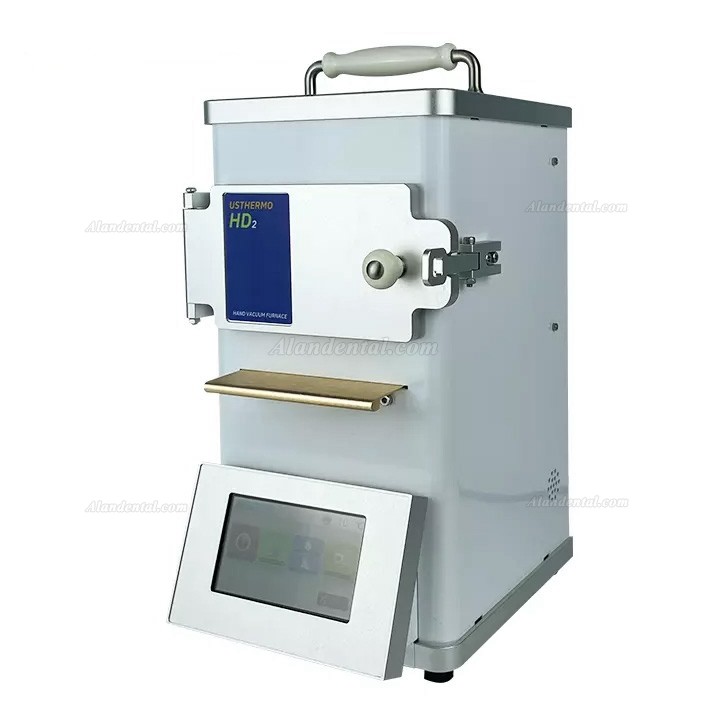

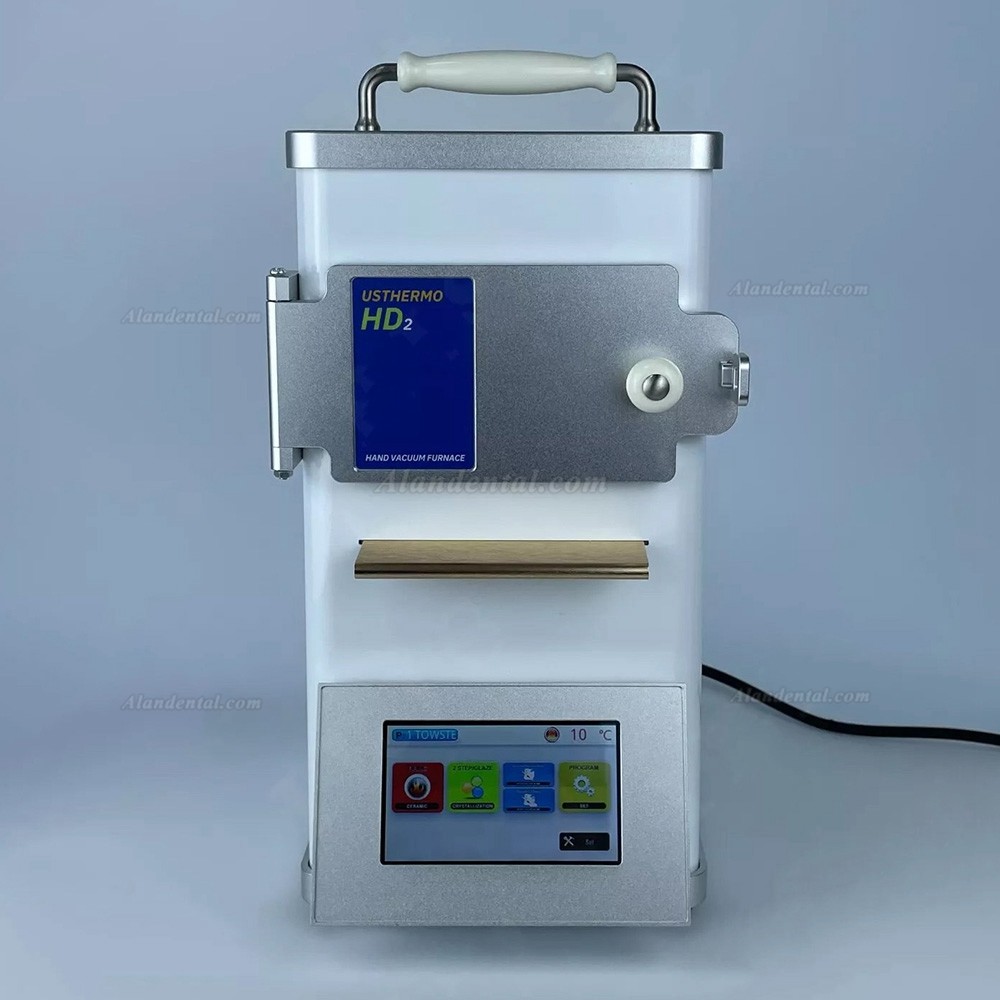

USTHERMO PHOENX-SP8II Dental Portable Porcelain Furnace 8-in-1 Glazing Oven Built in Vacuum Pump

USTHERMO PHOENX-SP8II Dental Portable Porcelain Furnace 8-in-1 Glazing Oven Built in Vacuum Pump
Item No. ADL003519
Reviews: 5 stars, 0 reviews
Brand:Phoenix
Market price:$2638.99
But It Now : $1598.99
Voltage :

Plug :

Quantity :
Weight:0gram
Goods click count:66

Item Description Reviews

USTHERMO PHOENX-SP8II Dental Portable Porcelain Furnace 8-in-1 Glazing Oven Built in Vacuum Pump

Functions:

● Hyperbolic ceramic furnace function, the program can be set to single curve mode or hyperbolic mode, hyperbolic mode provides a complete crystallization process for glass-ceramic crystallization.

● Voice prompt function.

● High quality temperature automatic adjustment function, to ensure that the actual temperature error within + / - 1 degrees.

● Portable for easy transfer and storage.

● Quartz spiral furnace.

● Automatic temperature calibration before each baking procedure.

● The built-in vacuum pump can reach - 90kpa at most.

● True color touch screen, easy to operate.

● 99 custom programs and built-in programs.

● Automatic detection of furnace door closing before heating.

● Full body high thermal conductivity silicon carbide reflection furnace.

Typical application:

Metal oxidation,

Glazing

Body porcelain,

Glass ceramic crystallization,

Ring burning

Add porcelain

Specifications

Operation:

The velocity of temperature increasing: 100℃/min max. (212°F /minute)

The max temperature: : 1100℃ max (2012°F)

The time which can be kept at the max temperature: 2 H

Vacuum level:1-101%

Electric power:

Operation range：100-120V 50/60HZ 230V 50/60HZ

Electric current：14.5ampere@110V 7.0ampere@230V

Power：max 1500w

Typical specification:

WxDxH :width 18cm Depth 25cm Height 38.5cm

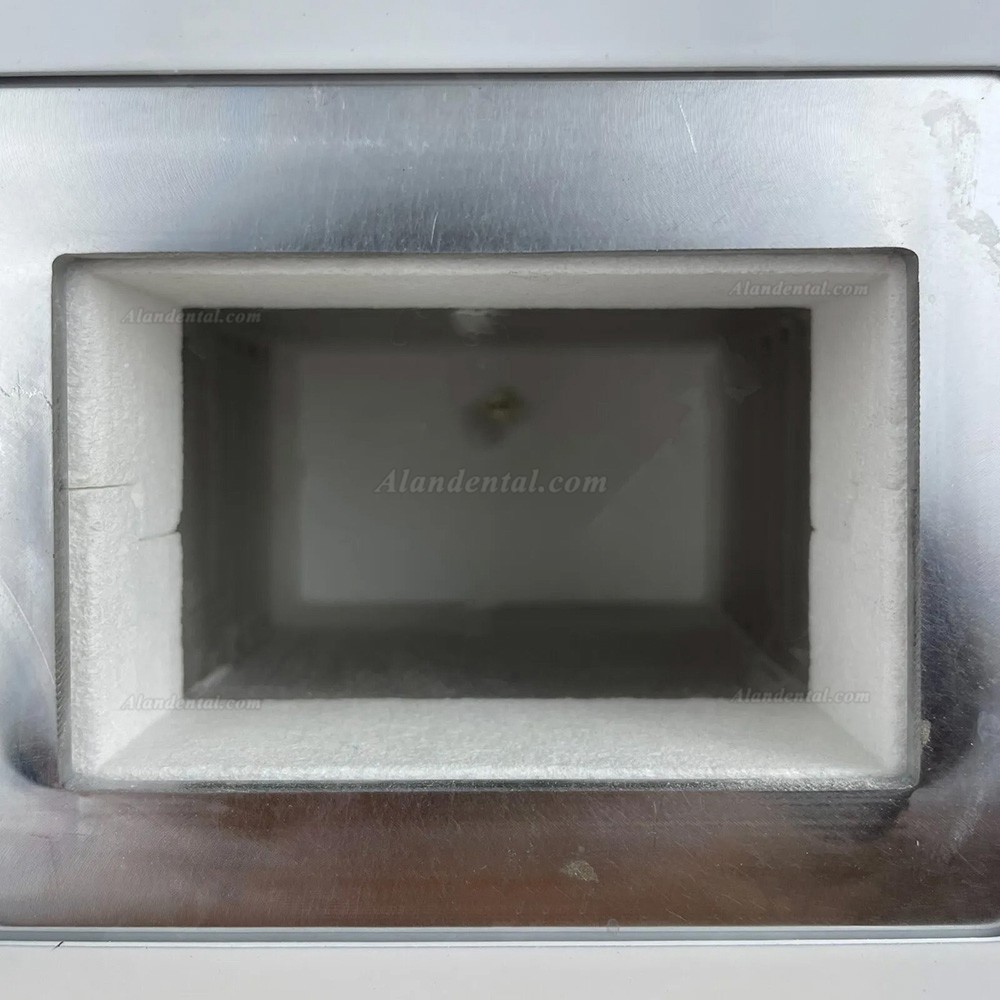

Usable measure (firing chamber): 7*7cm square

Ambient conditions

• Indoor use

• Ambient temperature: 2°C to 40°C

• Relative humidity 80% at 31°C

• Maximum altitude: 1500 m (Special Model:3500m)

• Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage .

Complete with:

• 1 firing pan

• 1 spare wrench for furnace door

• 1 connection cable for the mains power supply

• 1 instructions

• 1 Burning rack
