THREEH EA-MOTOR Portable Dental LED Electric Brushless Micro Motor 90W

THREEH EA-MOTOR Portable Dental LED Electric Brushless Micro Motor 90W
Item No. ADL003611
Reviews: 5 stars, 0 reviews
Brand:3H
- Special Offer in Christmas 2024:
- 6% Off On Total Order Amount!
- Free to get one 3-way air syinge on orders over $100
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Market price:$490.01
But It Now : $296.98
Voltage :

Plug :

Quantity :
Limit points for buying:200 score
Weight:0gram
Goods click count:7

Item Description Reviews

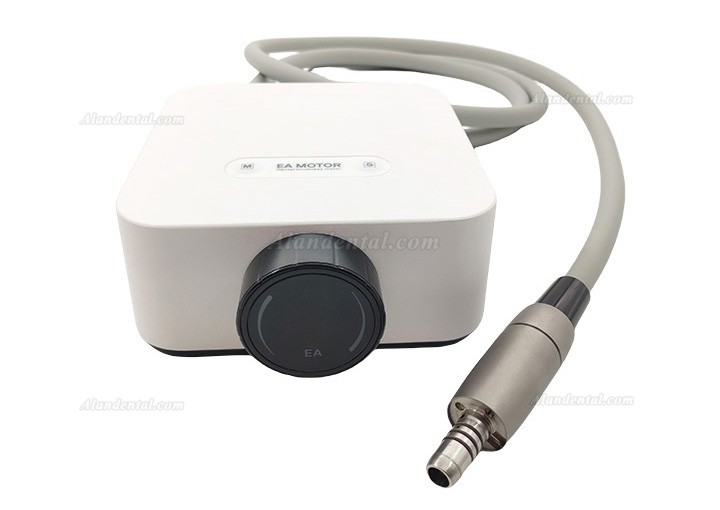

THREEH EA-MOTOR Portable Dental LED Electric Brushless Micro Motor 90W

Features:

Precise Torque Compensation: Equipped with advanced torque compensation technology, easily handles complex dental treatments with precision.

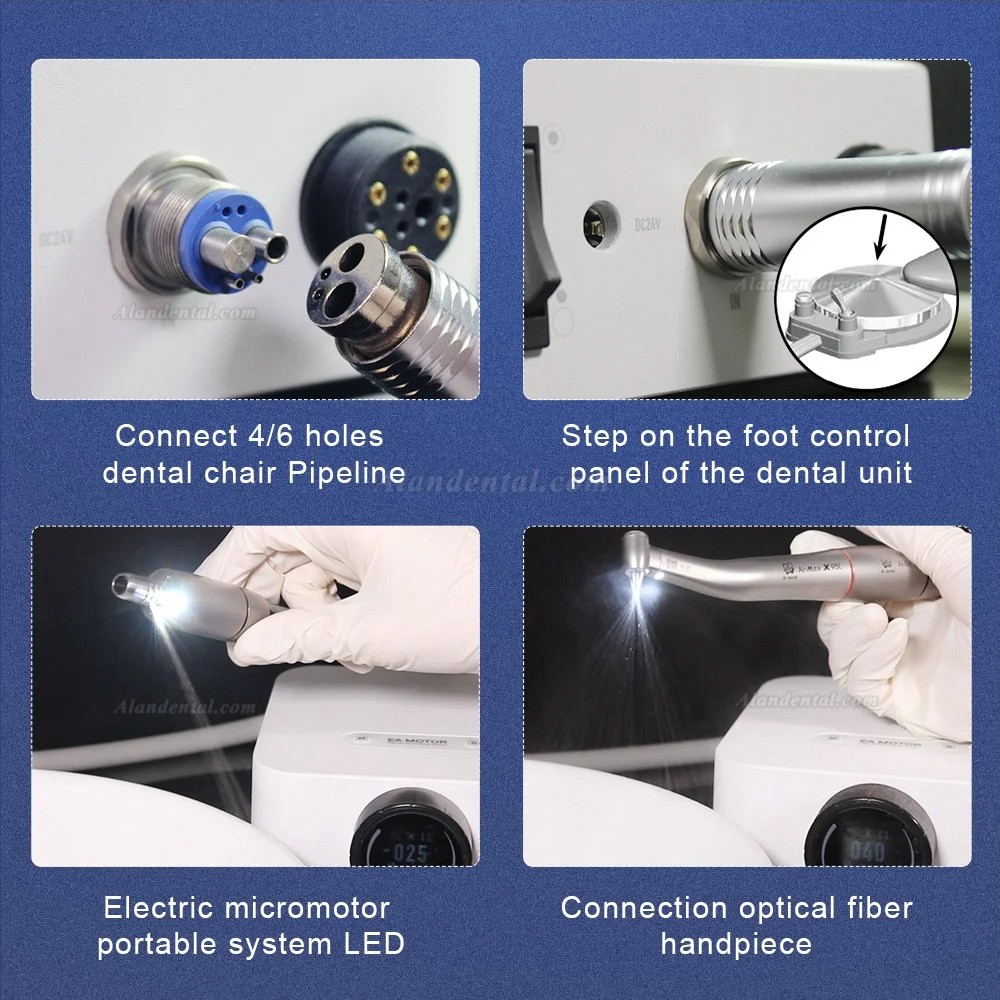

Air Pressure Sensor Control: Innovative air pressure sensor starts/stops the motor, enhancing speed response and durability compared to traditional electric switches.

True-to-Life Lighting: Built-in daylight LED lighting accurately reproduces treatment site colors for clear visibility during delicate procedures.

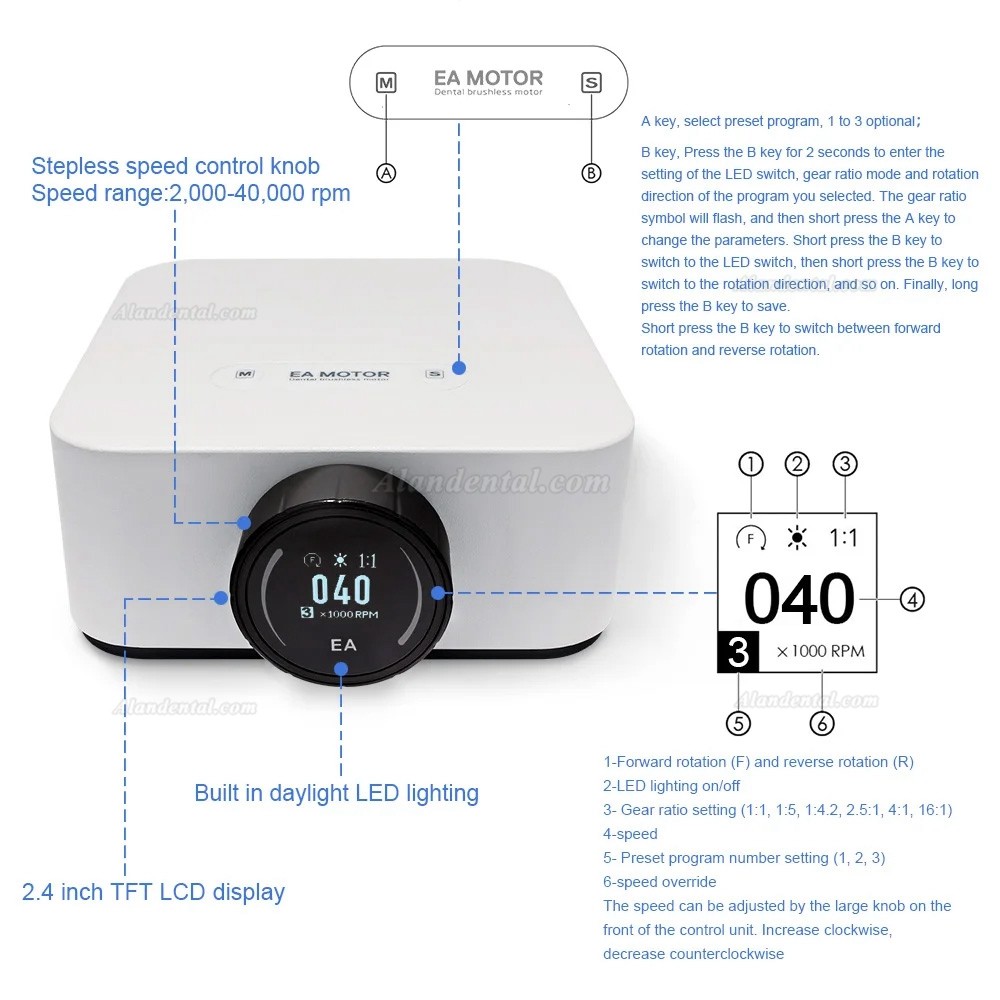

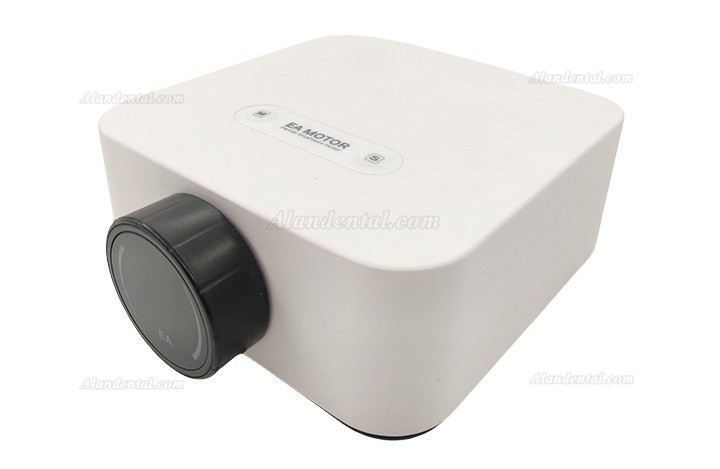

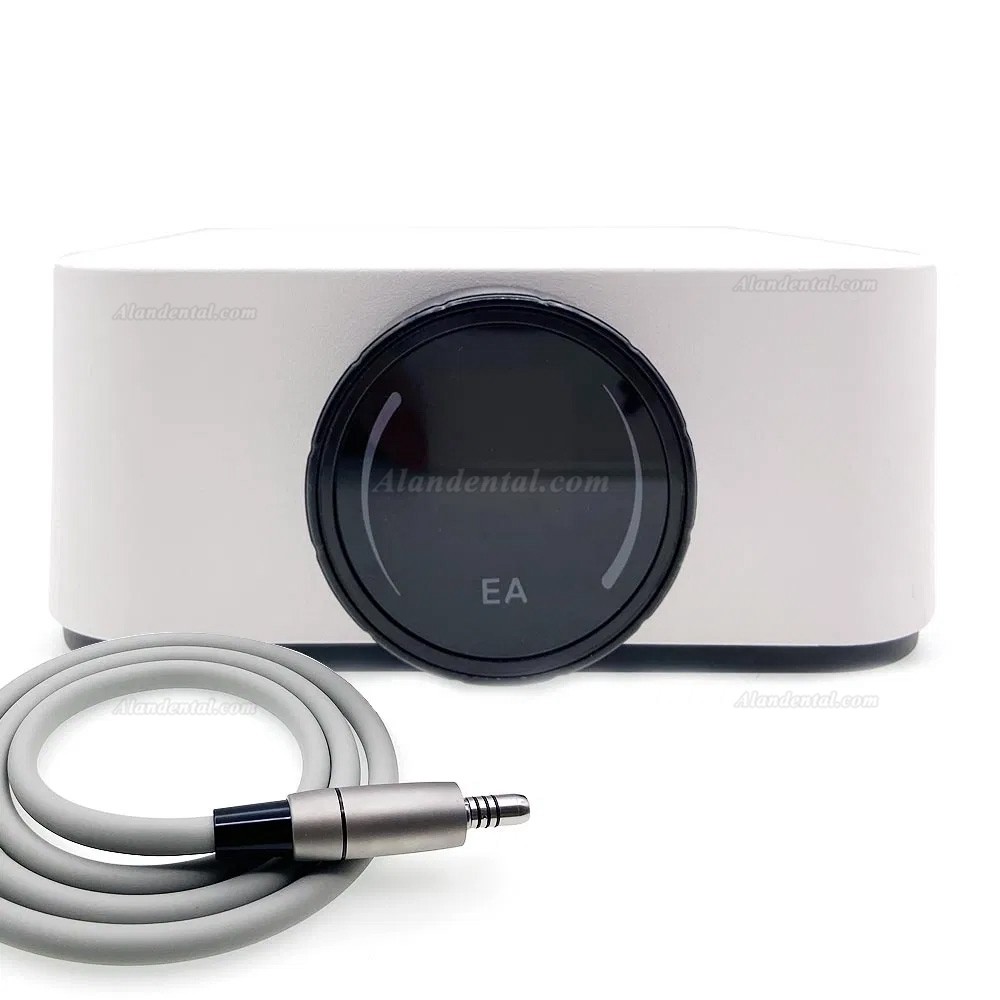

Stepless Speed Control: Features a stepless speed adjustment knob and a 2.4-inch TFT LCD display for intuitive and convenient speed adjustments to suit various treatment needs.

Automatic Memory Function: Smartly remembers the last operation settings, eliminating the need to reset for future use and enhancing work efficiency.

Multiple Gear Ratios: Offers six gear ratios (16:1, 2.5:1, 1:1, 1:3, 1:4, 1:5) covering a wide speed range, suitable for various treatment scenarios.

Intended Use:

Dental Clinics: Ideal for dentists performing dental restorations, root canal treatments, tooth preparations, and other intricate procedures.

Dental Education Institutes: Used as a teaching tool to help students master high-precision dental treatment techniques.

Dental Research Institutions: For the development and experimentation of dental treatment technologies.

Parameters:

Motor Type: Brushless Electric

Speed Range: 2,000 - 40,000 RPM (up to 200,000 RPM max)

Maximum Torque: 3.5 N.cm

Maximum Power: 60W

Dimensions: Motor length 31.55mm, overall dimensions 155 x 113 x 52 mm

Weight: Motor 57g, overall 1.06kg

Lighting: Built-in LED

Spray Function: Internal spray system

Connection Type: E-type quick connect

Cooling & Water Supply: Cooling air 6 - 8 Nl/min (0.2Mpa), water supply >65mL/min (0.2Mpa)

Rotation Direction: Forward/reverse operation control

Power Supply Voltage: 100-240V, 50/60Hz

Input: 32V DC 4A

Drive Pressure: >0.2Mpa

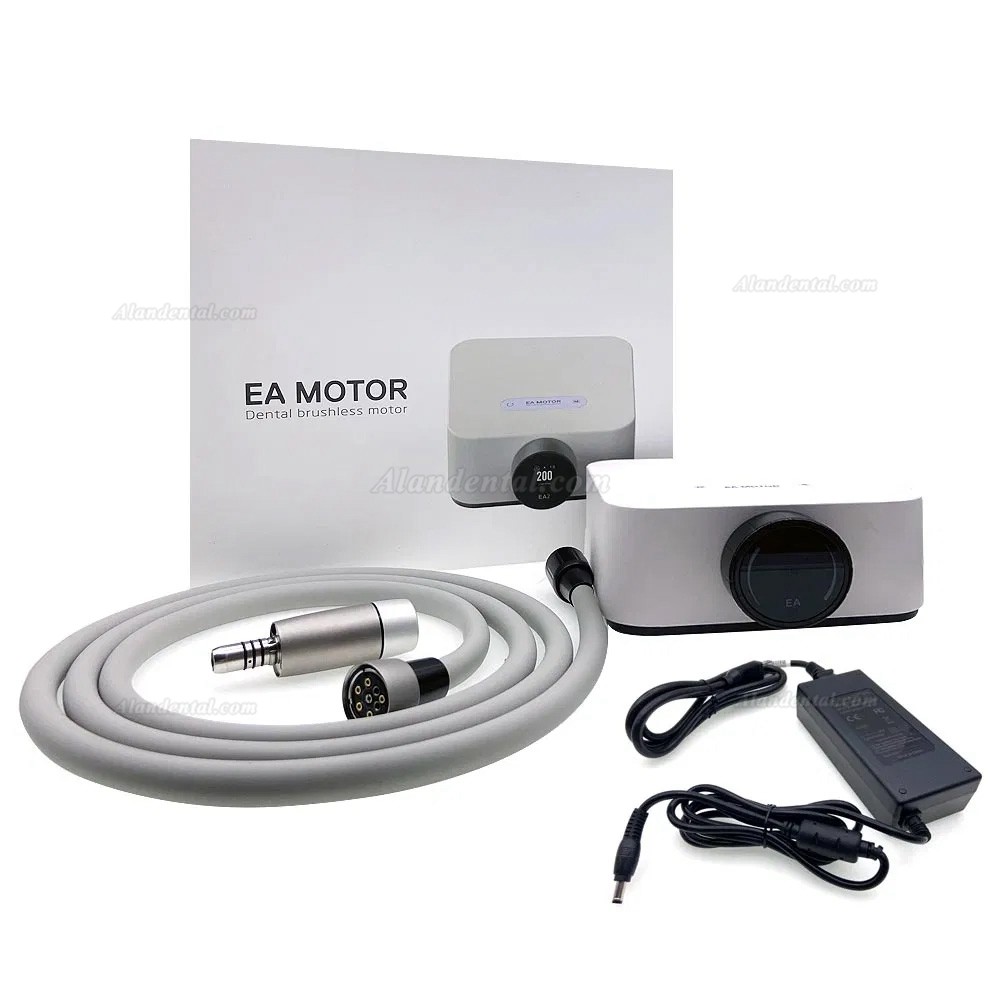

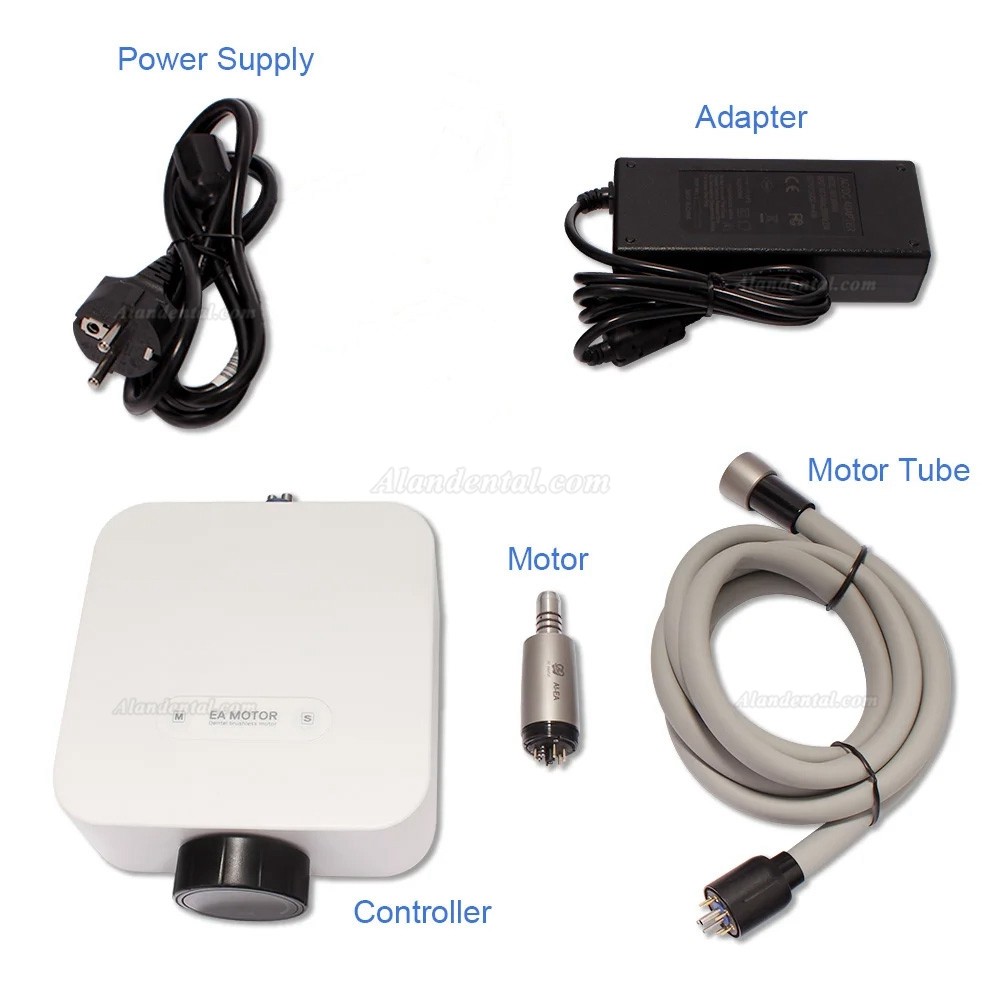

Packaging List:

1 x Controller

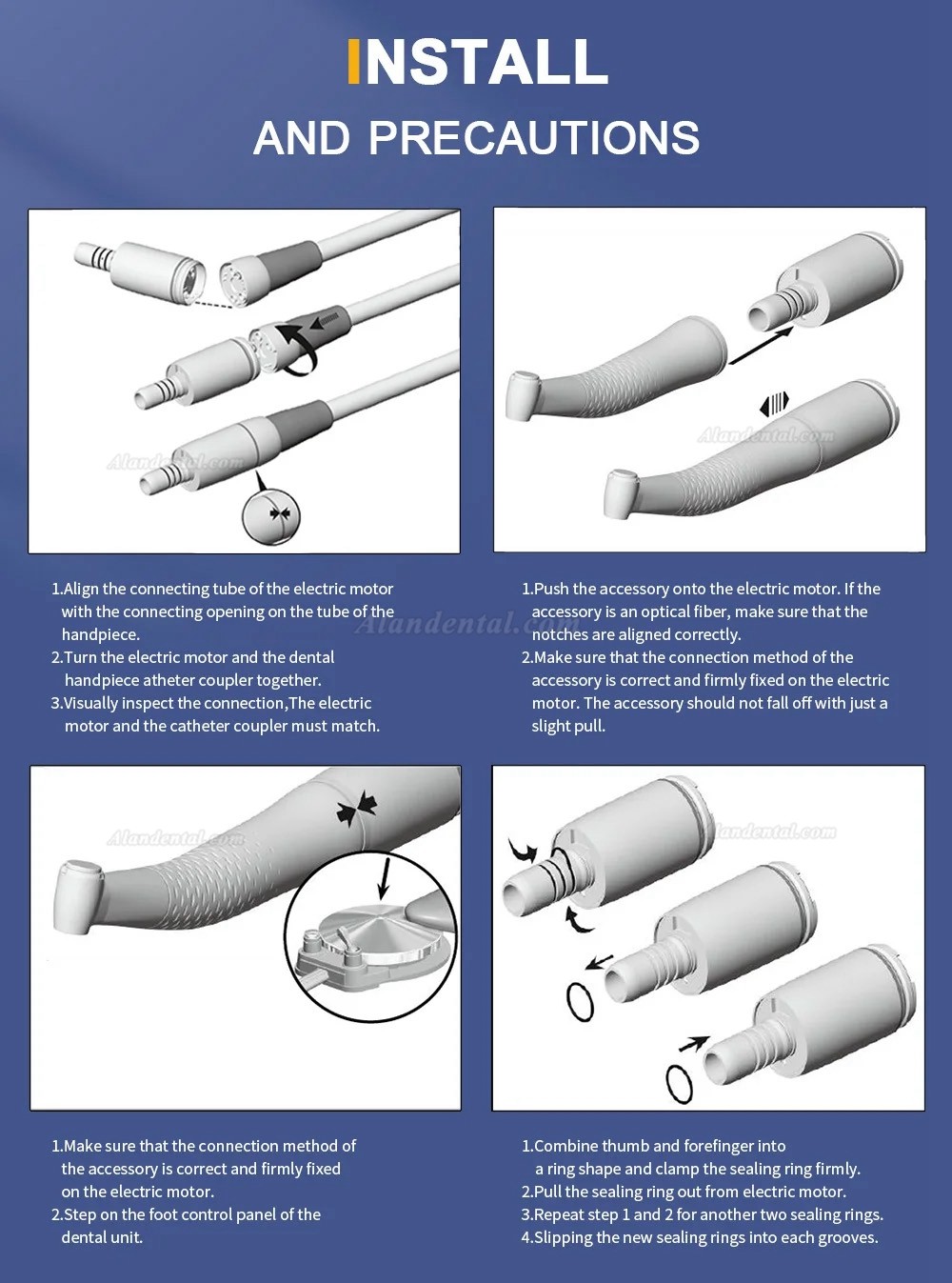

1 x Motor (Please refer to "4.4 Motor Installation" for replacement instructions.)

1 x Motor Sterilization Plug

6 x O Ring

1 x Sterilization Aluminum Sleeve

1 x Power Adapter

1 x High-Speed Motor Hose

1 x User Manual

1 x Warranty Card

Contact Information:
Live Support: Chat with us online
Email: service.alandental@gmail.com
If you have any problem, please do not hesitate to contact us.

Shipment Note:
If your package shipped by Express Delivery, please give us a valid delivery phone number, and also a full and accurate shipping address.
