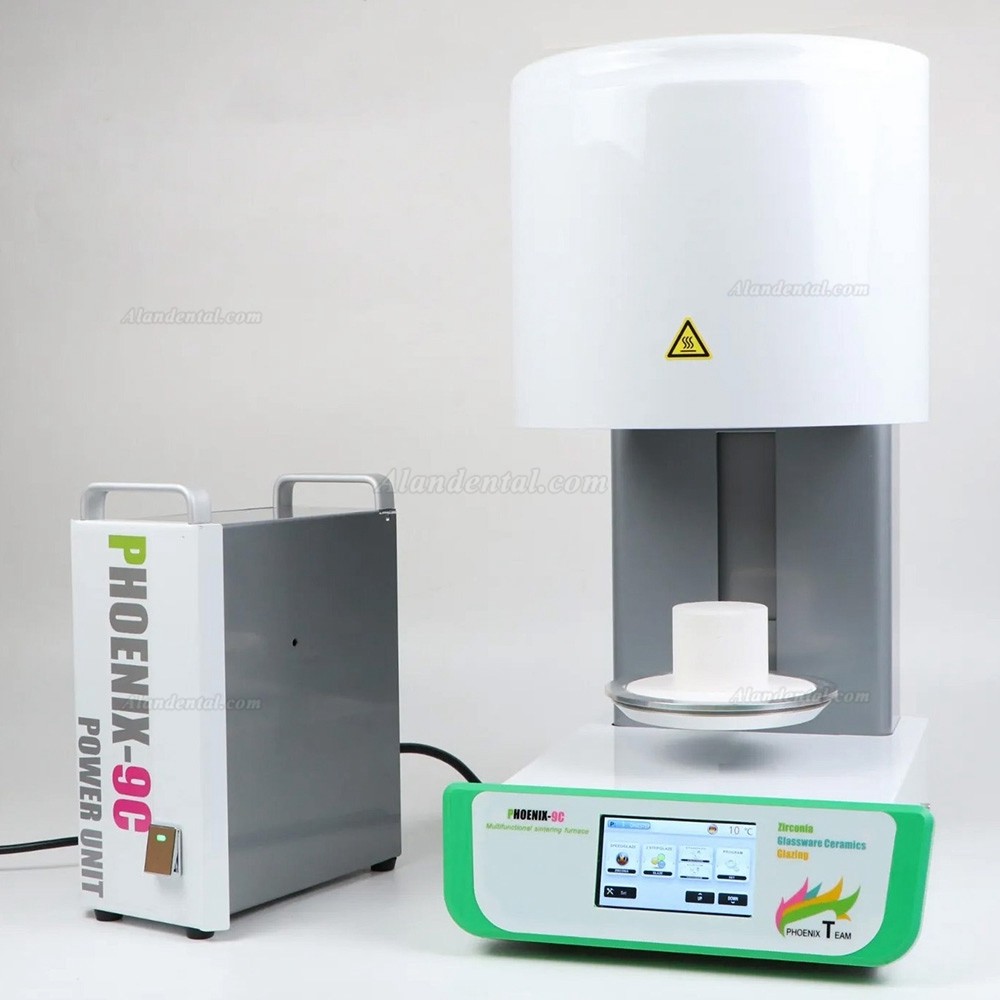

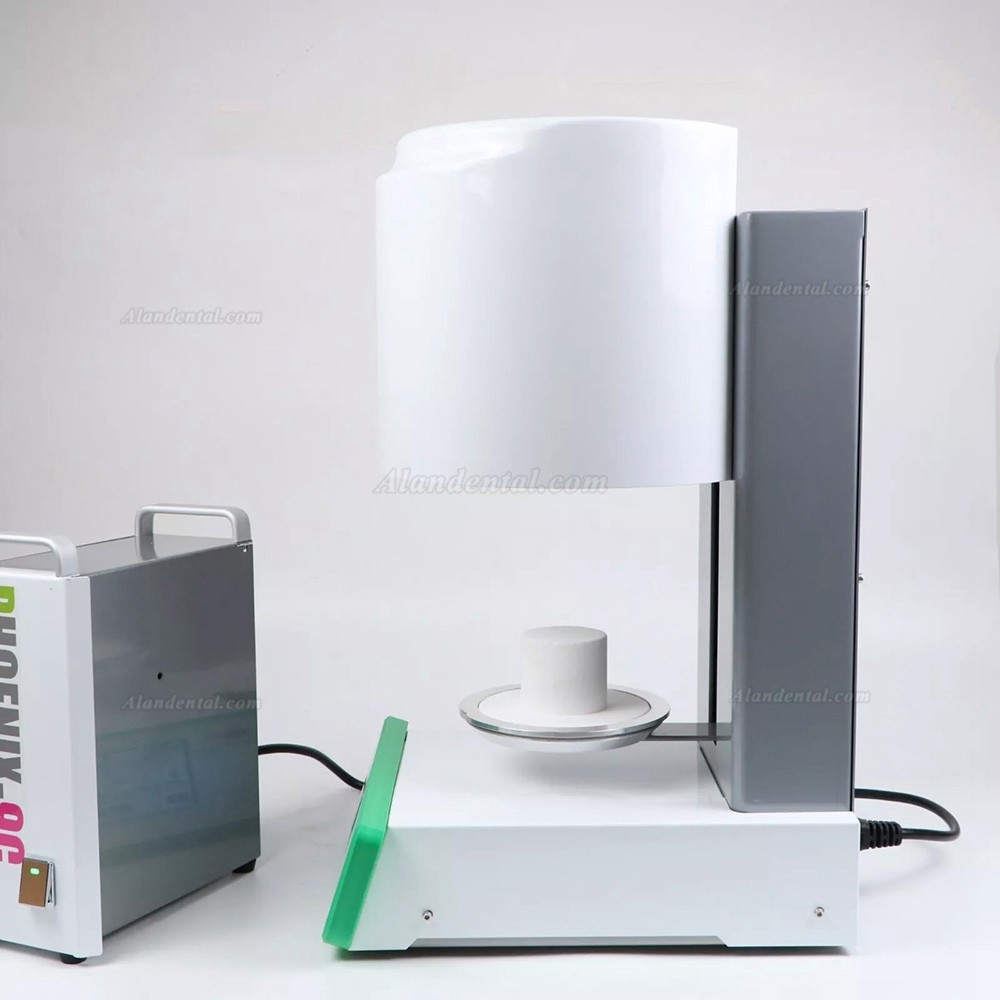

Phoenix-9C Dental Vacuum Zirconia Sintering Furnace Ceramic Glazing Sintering Oven

Features:

1. Voice prompt function.

2. High quality temperature automatic adjustment function, to ensure the actual temperature error within + / - 1.5 degrees.

3. It is easy to operate and small in size. At present, it is one of the smaller furnaces in the world.

4. Precision stepper motor drive, smooth free operation and no jitter.

5. High purity silicon carbide rod / silicon molybdenum rod heater.

6. Hyperbolic sintering system, automatic temperature calibration before each sinter process.

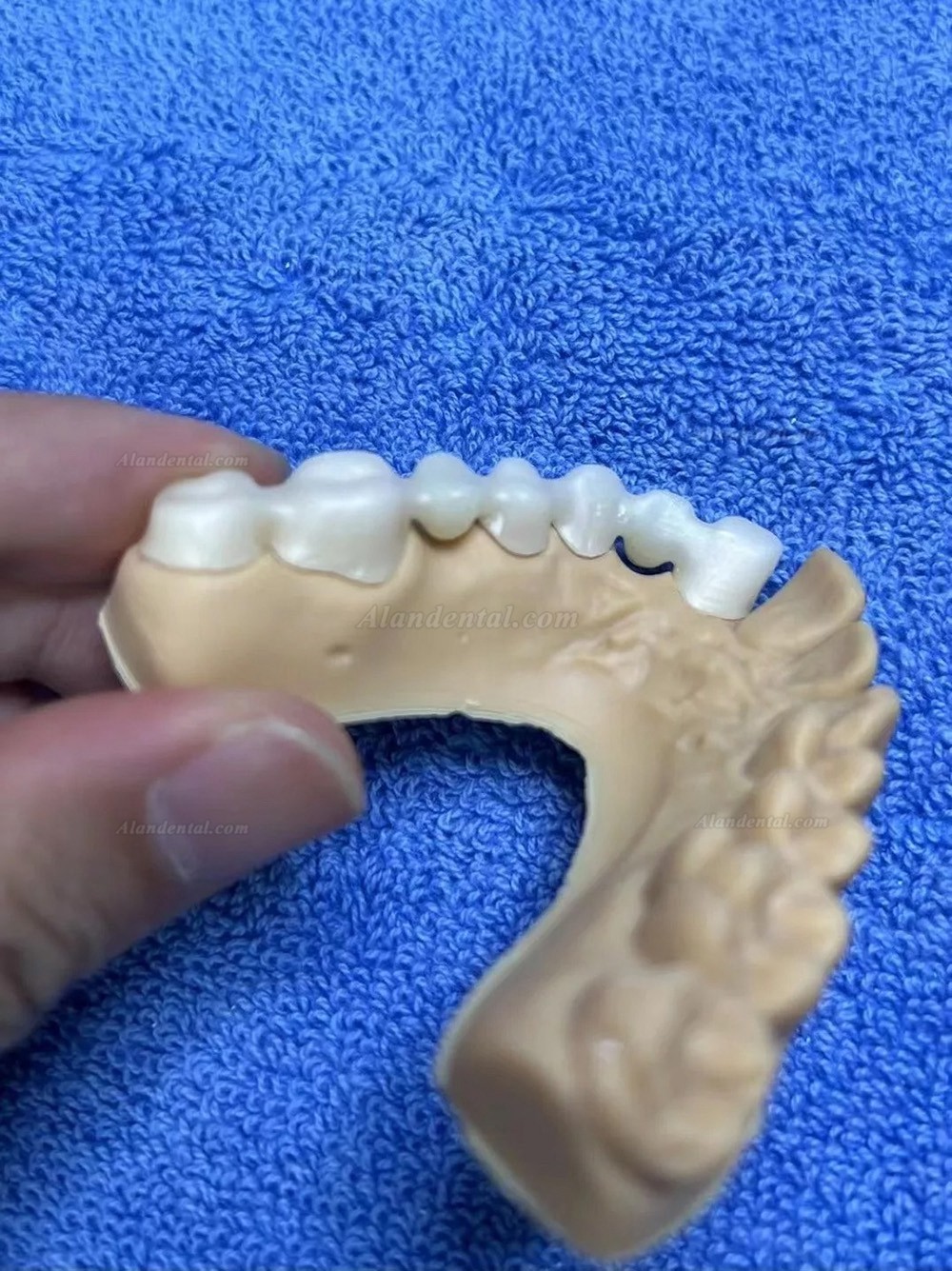

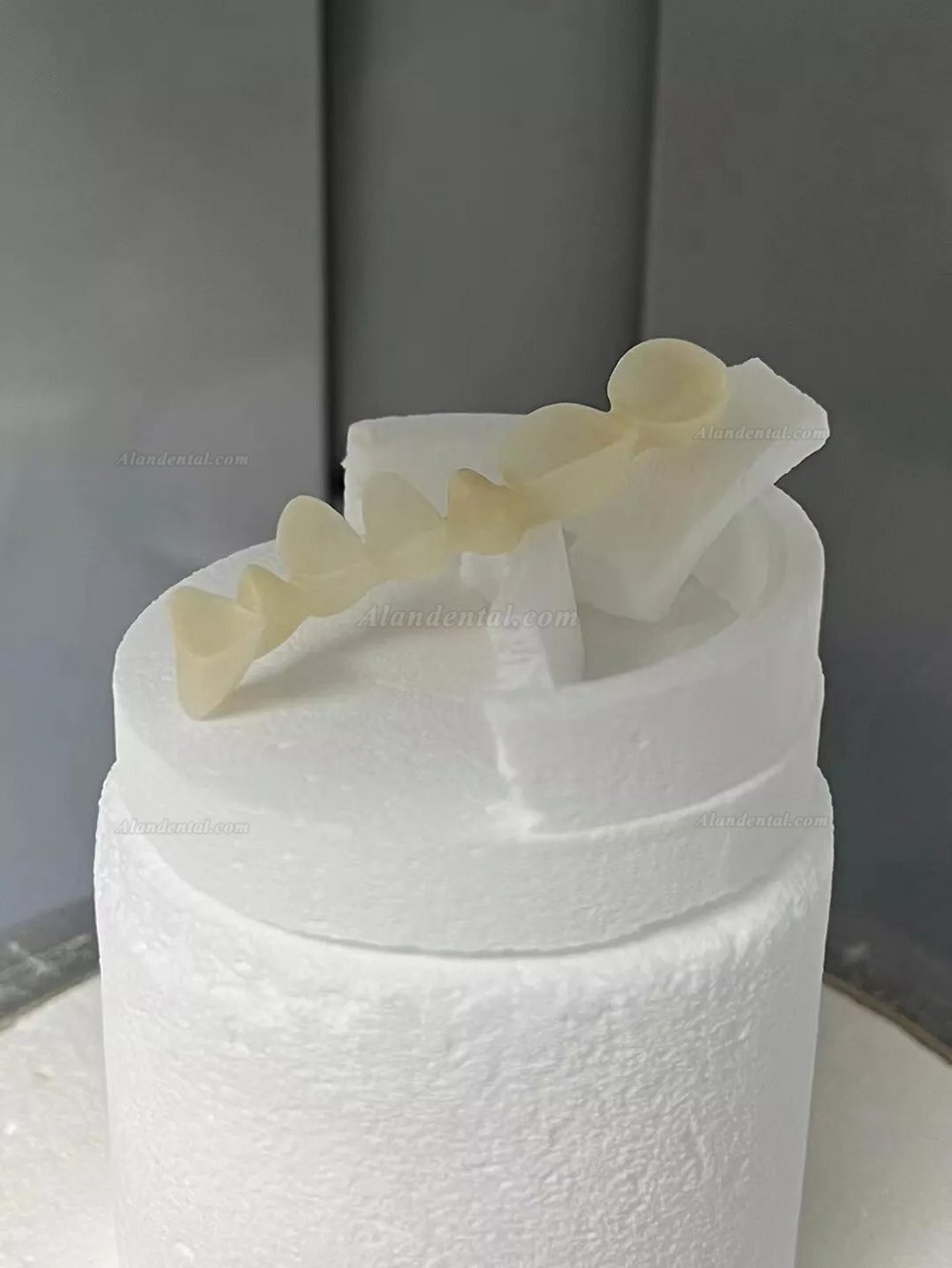

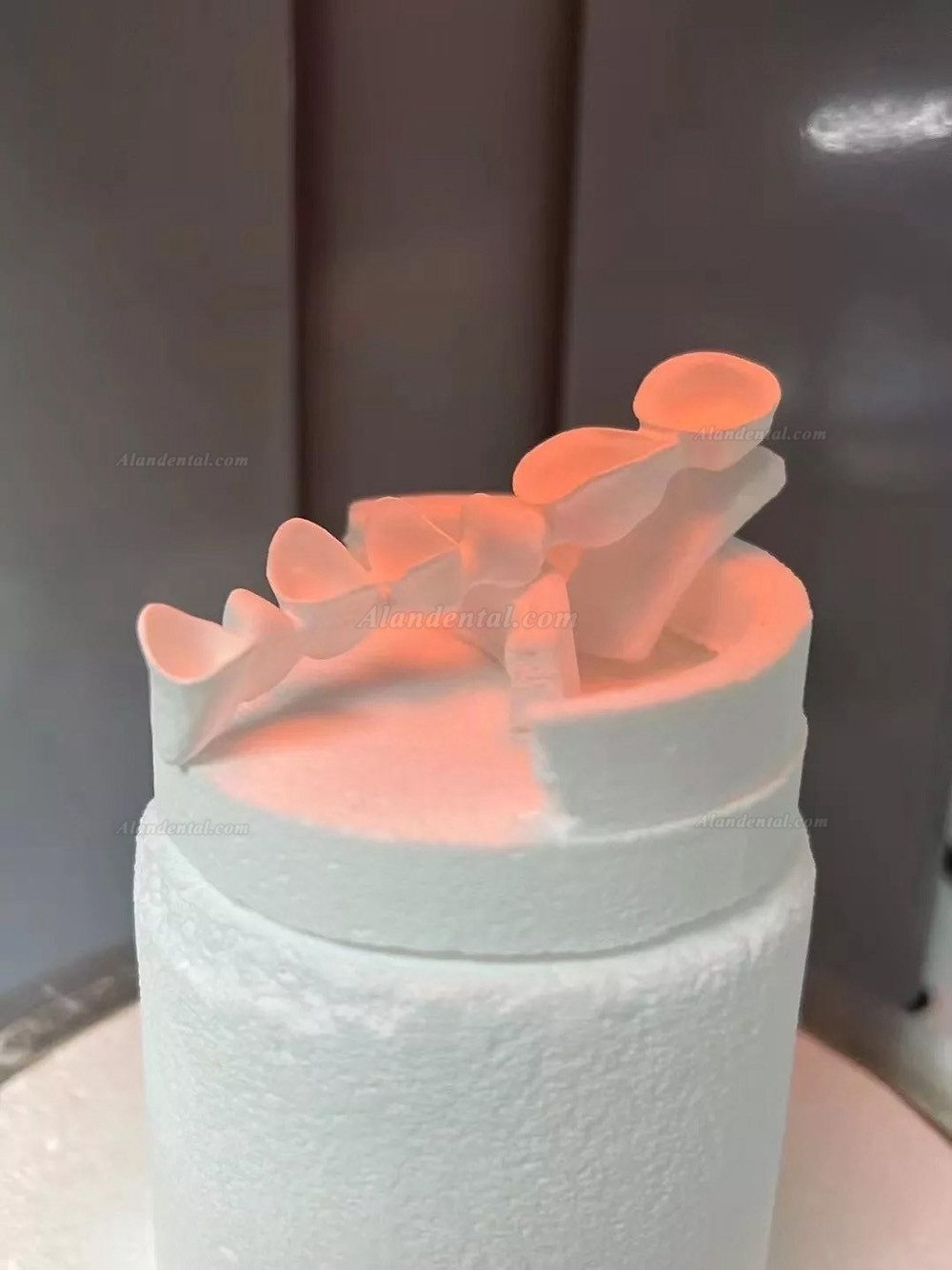

7. Fast sintering zirconia with full anatomical morphology.

8. Low noise tray and the speed is programmable.

9.The maximum temperature can be set to 1530 ℃, fast glazing is finished in 9 minutes. The maximum heating rate is 200 C/min.

10.There is no need to preheat the sintering furnace in advance. Ready to use in any time. Up to 8-20 restorations (60mm tray) can be sintered.

11. Automatic fast cooling technology.

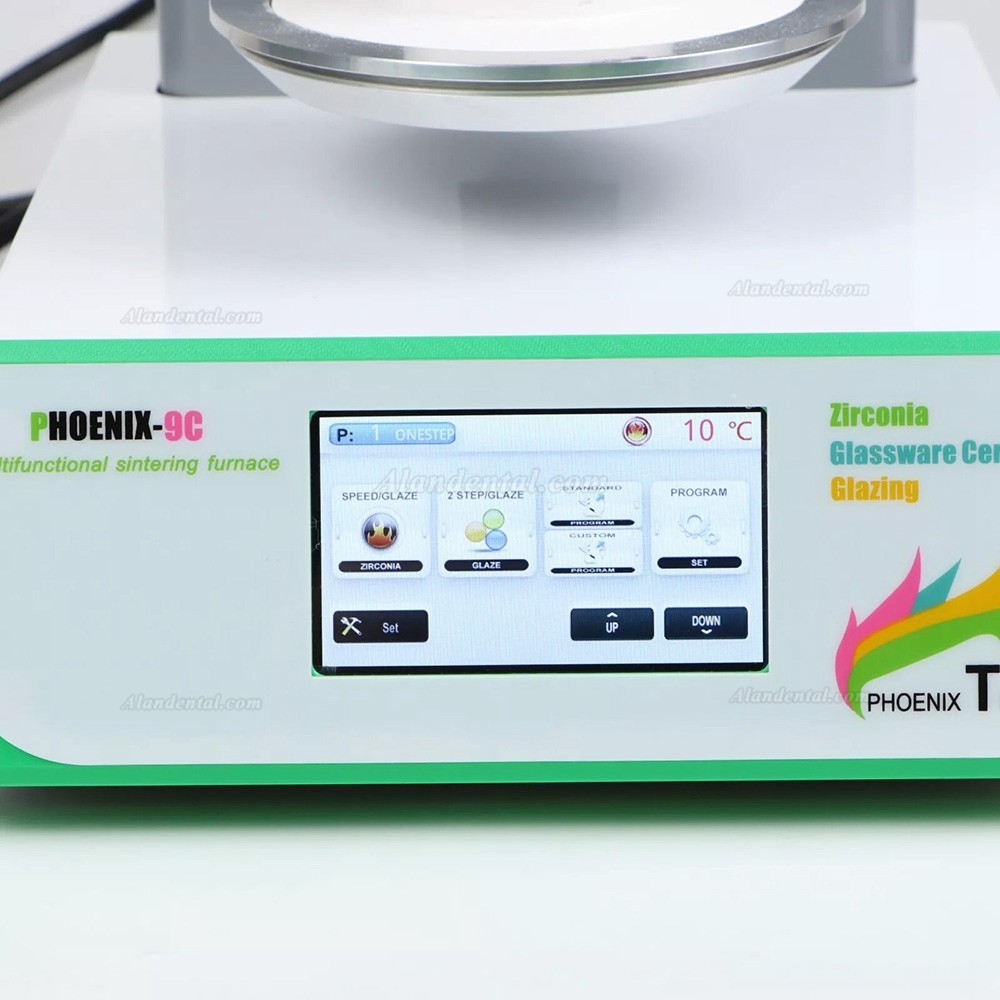

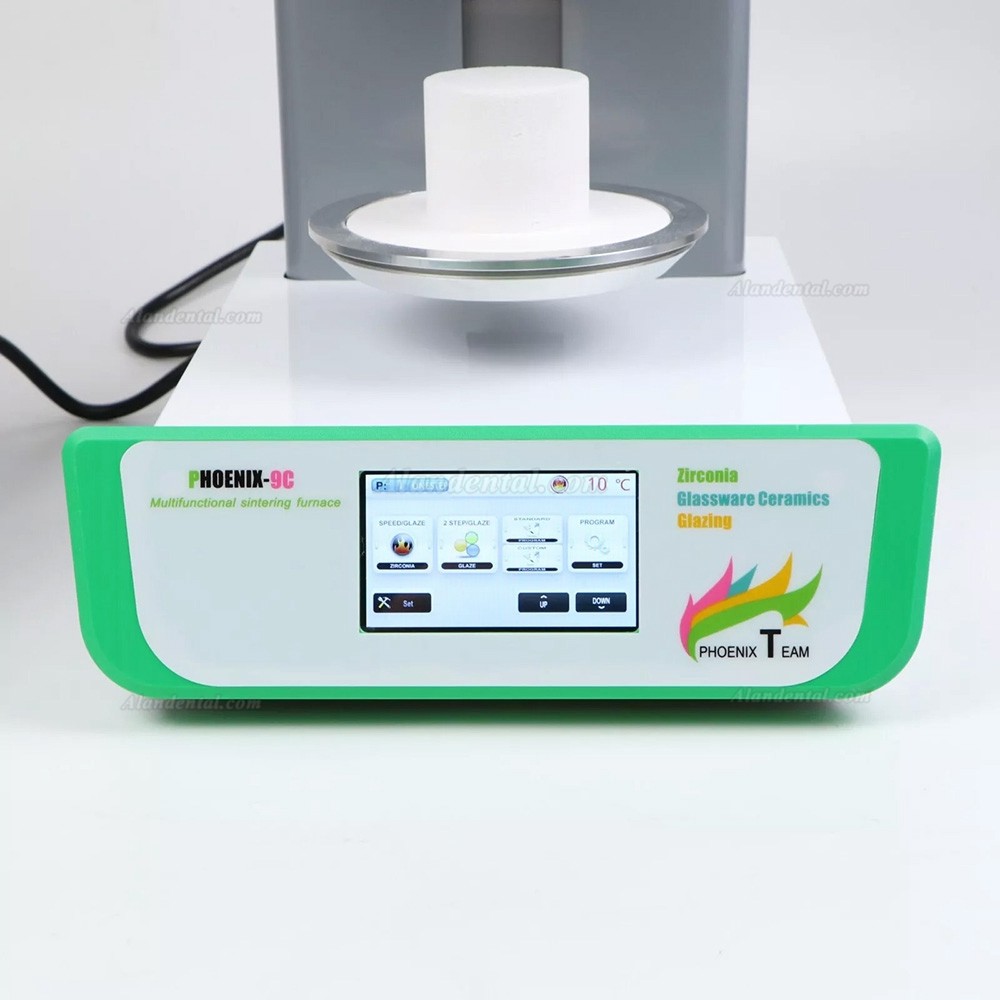

12. True color touch screen, easy to operate.

13. 90 custom programs and built-in programs.

14. Status indication.

Specification:

The velocity of temperature increasing: 200℃/min max. (392°F /minute)

The max temperature: 1200℃ max (2283°F)

The time which can be kept at the max temperature: 2H

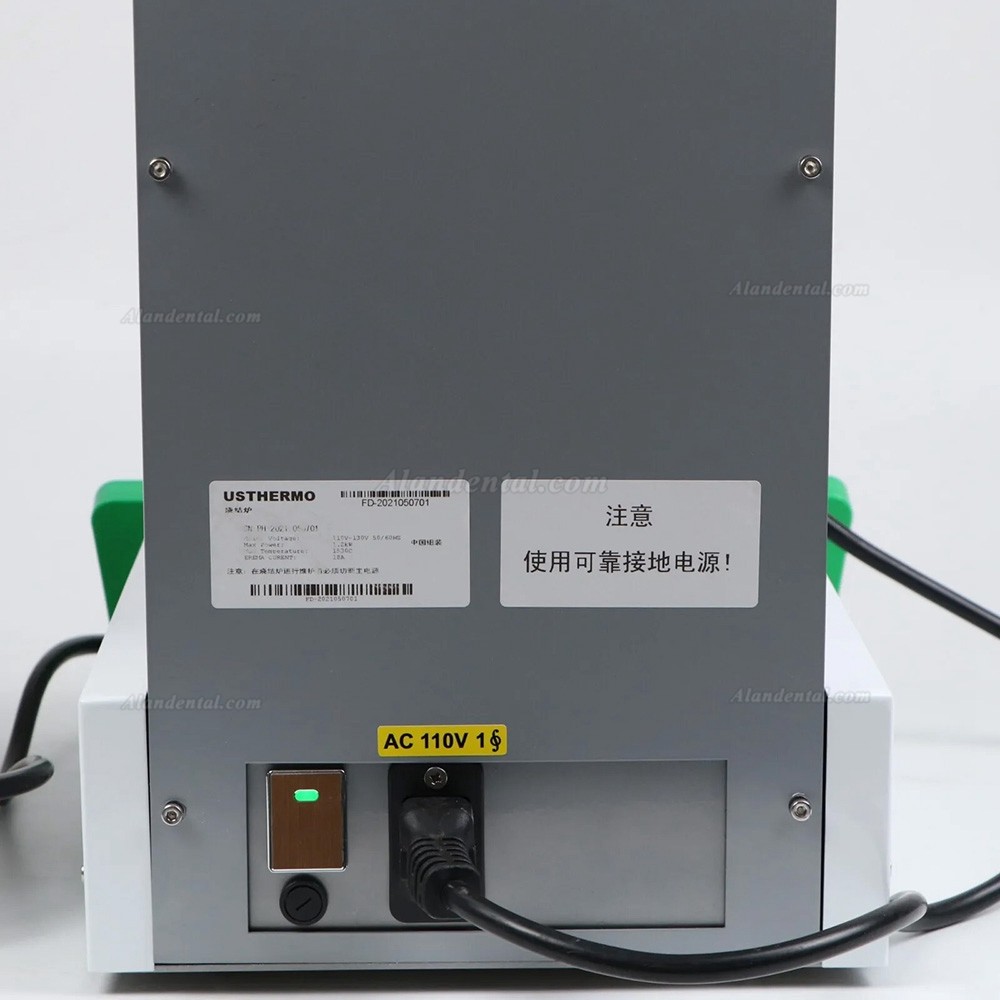

Electric Operation range：100-120V 50/60HZ 230V 50/60HZ

Electric current：14.5ampere@110V 7.0ampere@230V

Electric Power：max 1300W

Size :width 27cm Depth 36cm Height 53cm

Usable measure (firing chamber):：6.5cm（3.5”）

Net weight：20Kg

Weight include the package:23.5Kg

Ambient Conditions:

• Indoor use

• Ambient temperature: 2°C to 40°C

• Relative humidity 80% at 31°C

• Maximum altitude: 1500 m (Special Model:3500m)

• Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage;

Package:

• 1 PHOENIX 9C furnace

• Necessary accessories

Notice:

1. Please read the instruction carefully before you use the furnace. Prevent danger caused by improper operation.

2. Before move or assemble the furnace,please cool down the temperature.

3. Be careful for the part of high temperature when the device is operating.
