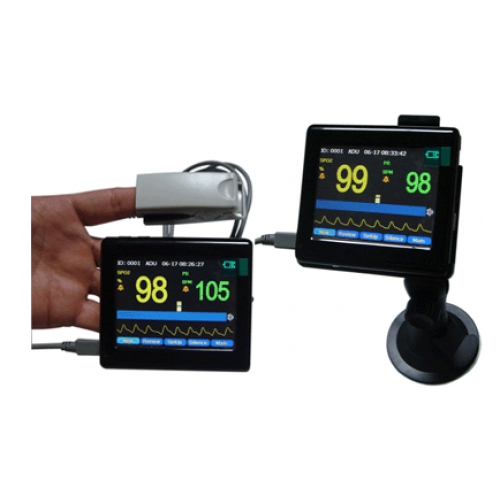

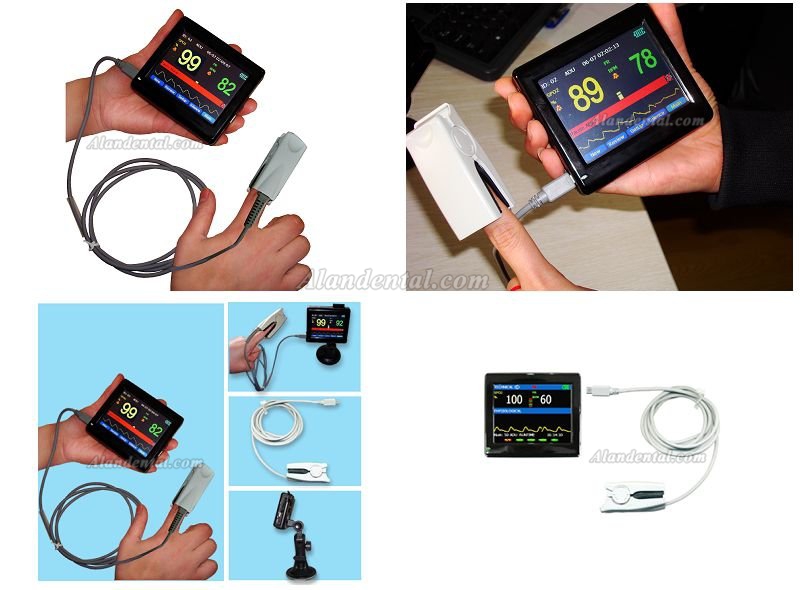

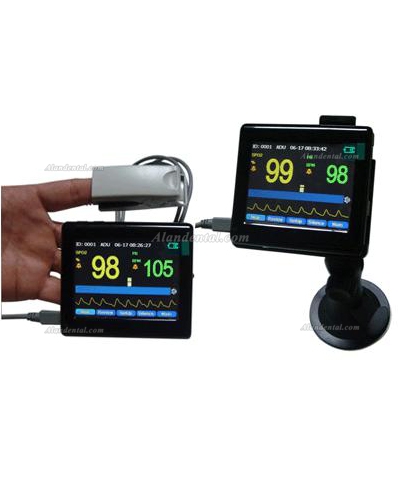

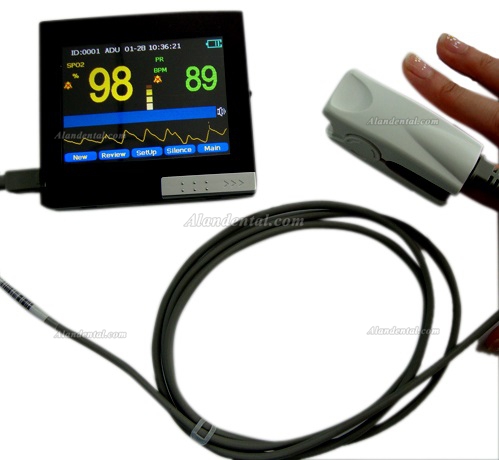

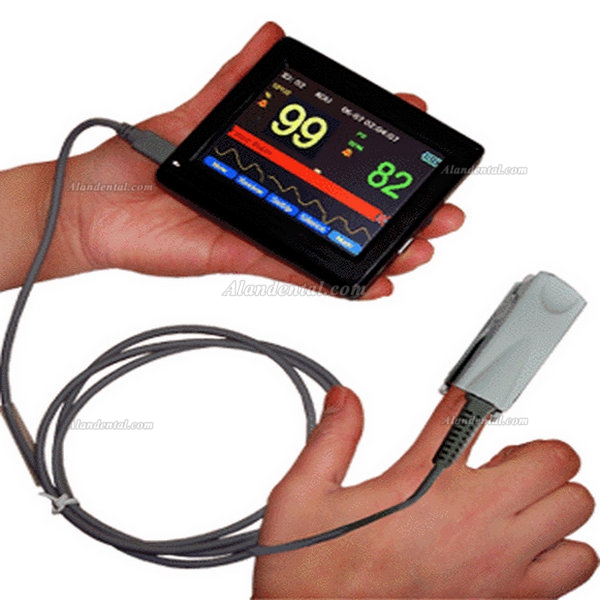

Medical Equipment CONTEC Touch Screen Hand-held Pulse Oximeter PM-60A

Medical Equipment CONTEC PM-60A Touch Screen Hand-held Pulse Oximeter

Features
1. Routine check mode and continuous monitoring mode
2. Data graph and trend Table review
3. Rich analysis report
4. Mount solution
5. Convenient operation by touch screen
6. Large SD card memory for more than 10,000 patient cases storage
7. Advanced analysis software for sleep study (Free with the oximeter)
8. Sync with PC based Software (WinXP and WinVista)

Specifications

Display: 3.5 Color TFT
Resolution: 320x240
Display Mode: Standard face, Waveform face,
Display Direction adjustable
Indicator: Power indicator light, Alarm sound, Pulse tone
Interface: One dual-purpose socket for connecting SPO2 sensors and communication cables
Power Supply: DC 5V, <200MA
Battery: Built-in Li-Polymer, 2 hours for charging, 8 hours for continuous working.
Trend Graph: Resolution from 1s, 5s, 10s. Maximum time 96 hours.
Trend Table: Resolution from 1s, 5s, 10s. Review up to 2000 items.
Alarm: Adjustable High and Low limits. Three level audible and vistual alarm

Technical specifications

Safety
Meet the requirment of IEC60601 series
Type of Protection: Class II with internal electirc power supply
Degree of Protection: BF
Dimension and Weight
Dimension: 92(W)x82(H)x22(D)mm
Weight: 136g(with battery)
Operation Environment:
Temperature: 0℃~ +40℃
Humidity: 15% ~ 95%
Storage Environment:
Temperature: -20℃~ +60℃
Humidity: 10% ~ 95%
Patient Range: Neonate, Pediatric and Adult

SPO2
Measurement Range: 0 ~ 100%
Resolution: 1%
Accuracy: ±2%(70%~100%, Adult/Pediatric)
±3%(70%~100%, Neonate)
0% ~ 69% unspecified
Alarm Range: 0% ~ 100%
Refreshing Rate: 1s

Pulse Rate
Measurement Range: 25 ~ 250 bpm
Resolution: 1bpm
Accuracy: ±bpm
Alarm Range: 25 ~ 250 bmp
Refreshing Rate: 1s
