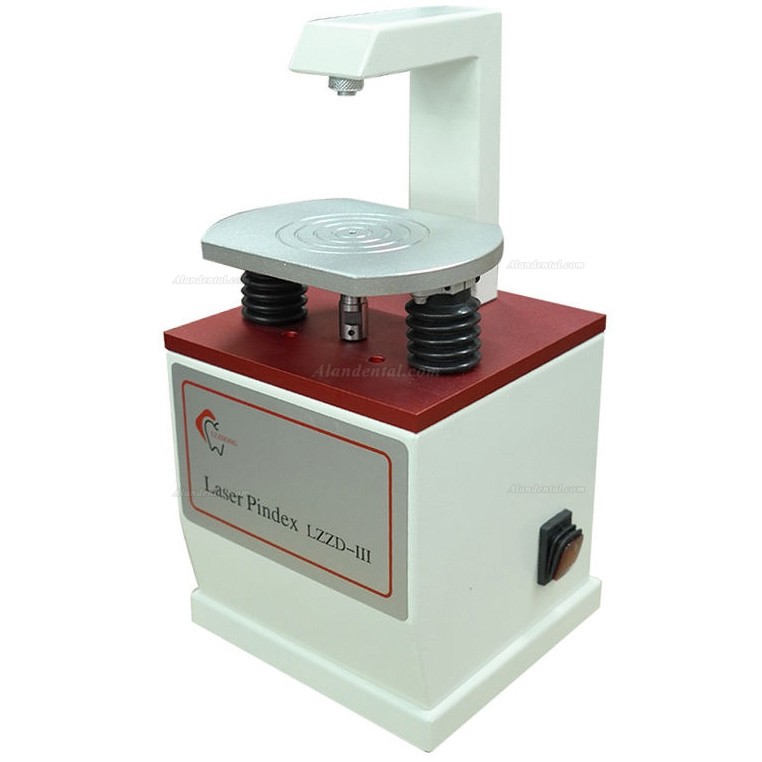

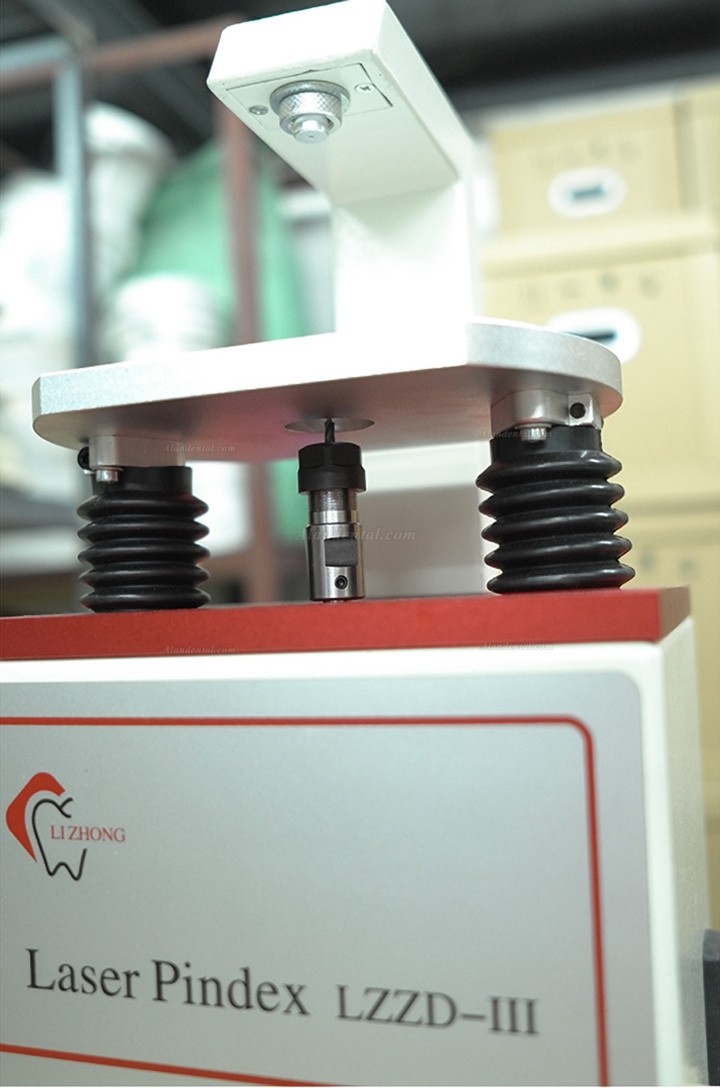

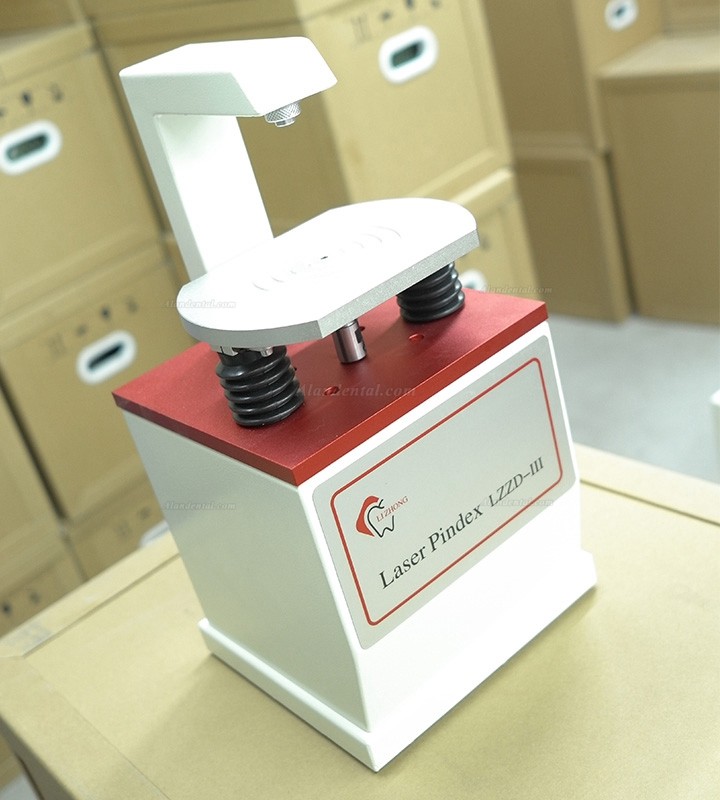

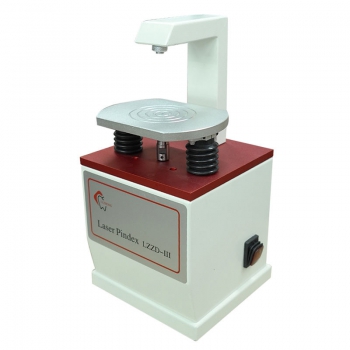

LZ® LZZD-III 180W Dental Lab Laser Pindex Dowel Pin Drill Machine

LZ® LZZD-III 180W Dental Lab Laser Pindex Dowel Pin Drill Machine

The Laser Pin is used for the preparation of porcelain teeth, it is used mainly in the processing plaster molds and plaster
pins. It has the advantages of high rotational speed, low noise, high precision and easy operation. This machine has a laser positioning system, the working platform and the main axis match precisely which ensure the quality of drilling. The depth of drilling can be adjusted by a rotary switch, the minimum adjusting depth is 0.15mm.

Specifications:
Name:Voltage:220V/50Hz, 110V/60Hz
Power:180W
Rotation Speed:2800 RPM;

Instruction
1. Open the package, check whether the machine and accessories are complete, and read this manual carefully.
2. Insert the power cord into the power supply and press the boat switch upward. At this time, the laser light will be on and the motor will rotate.
3. Place the gypsum model to be drilled on the worktable, make the laser coincide with the drilling position, hold the gypsum model and worktable with both hands, keep their relative position unchanged, press the worktable upright and slowly, and the drill bit will drill the required hole on the model.
Cautions
1. This machine is a precision instrument. It should be moisture-proof and handle with care.
2. To ensure safety, the hand should not be too close to the small hole in the center of the worktable.
3. After the laser is aimed at the center of the plaster model drilling, both hands should hold the model until the end of the drilling, to ensure that the relative position of the plaster model and the workbench remains unchanged, then the ideal position of the hole can be drilled.
4. When the bit becomes blunt after several months of operation, remove the swivel head with the wrench provided with the machine, sharpen the top edge or replace the swivel head with a new one.
