Handheld Dental X-Ray Machine Portable X-Ray Unit + 2230 / 2635 Dental Xray Sensor

Handheld Dental X-Ray Machine Portable X-Ray Unit + 2230 / 2635 Dental Xray Sensor
Item No. ADL003599
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
- Special Offer in Christmas 2024:
- 6% Off On Total Order Amount!
- Free to get one 3-way air syinge on orders over $100
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Market price:$2738.96
But It Now : $1659.98
Model :

Quantity :
Limit points for buying:1600 score
Weight:0gram
Goods click count:4

Item Description Reviews

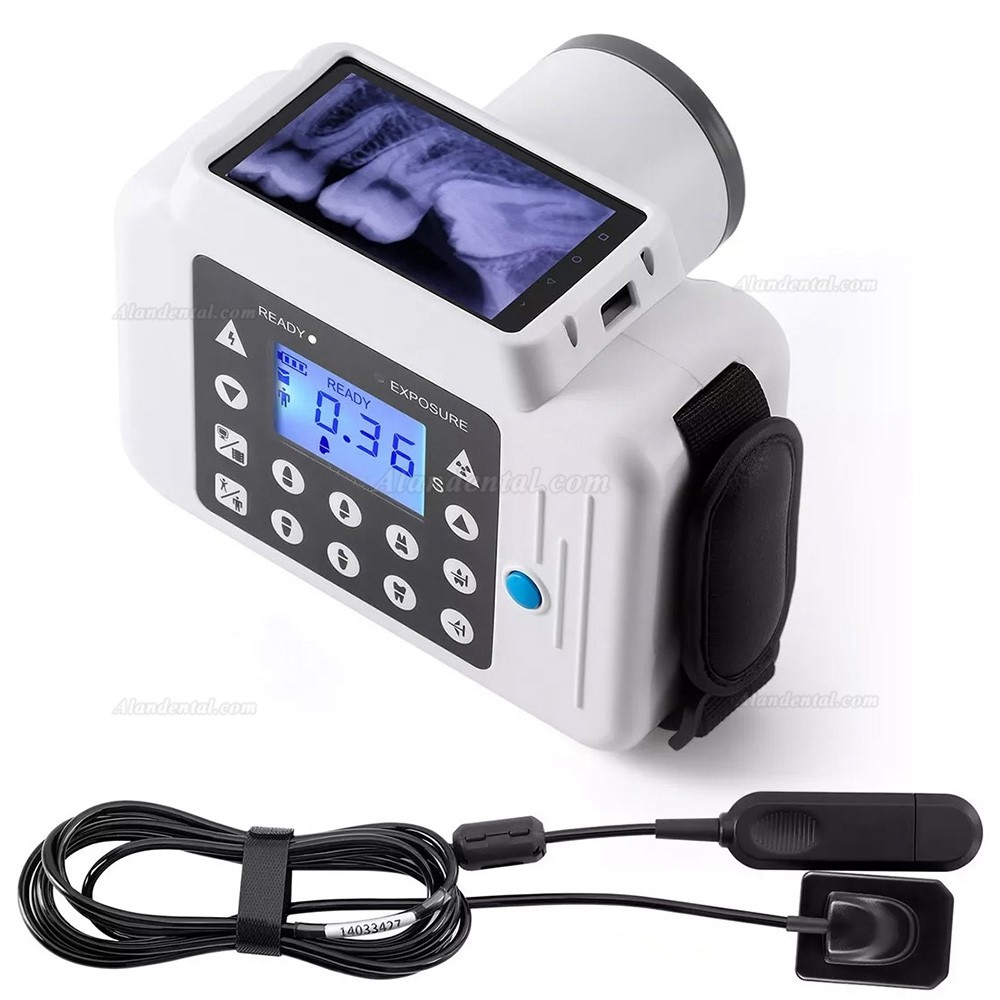

Handheld Dental X-Ray Machine Portable X-Ray Unit + 2230 / 2635 Dental Xray Sensor

Featuref:

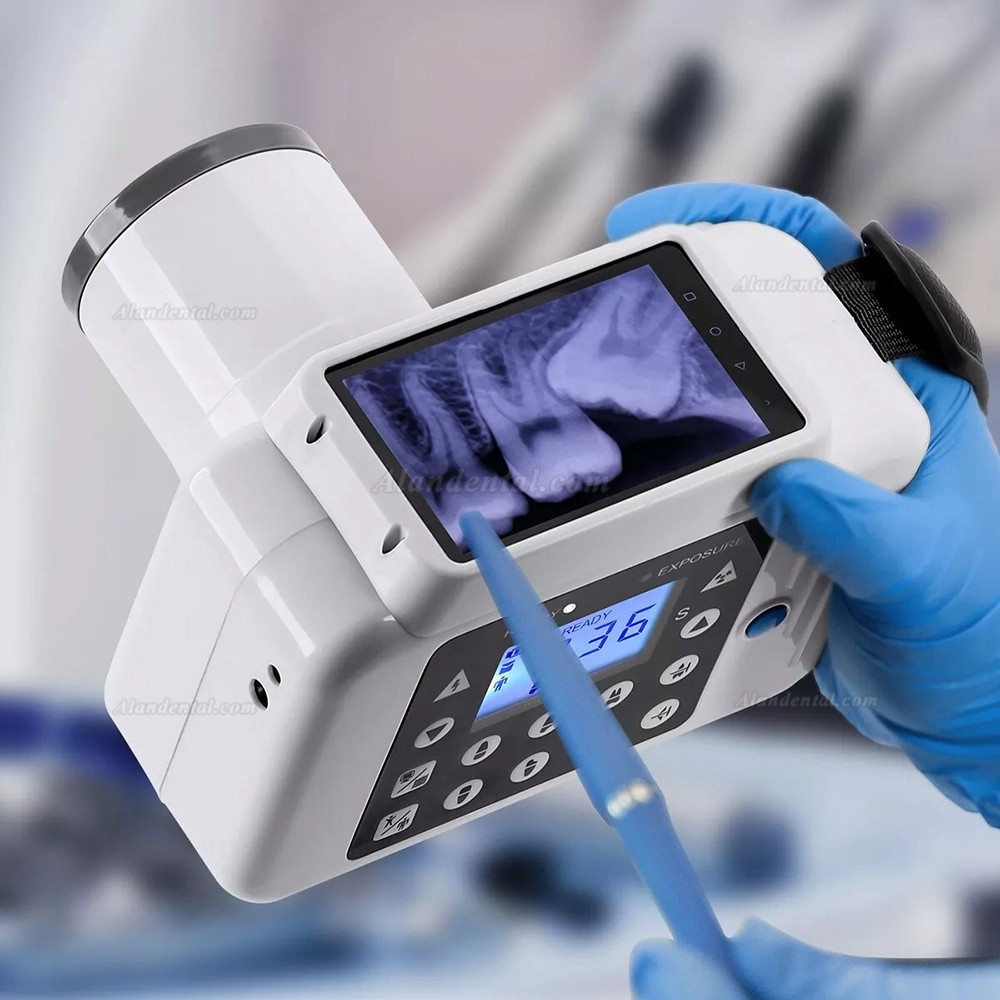

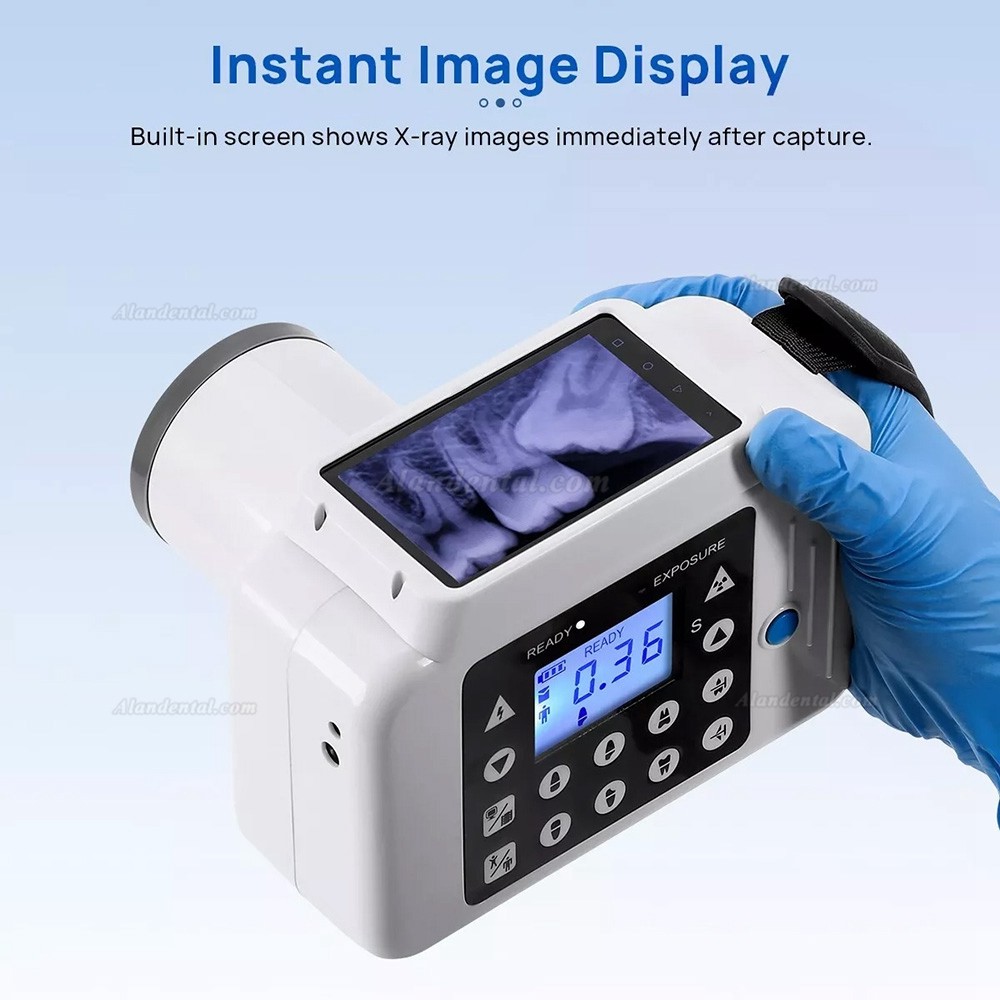

1. Instant Image Display: When connected to our sensors, built-in screen shows X-ray images immediately after capture.

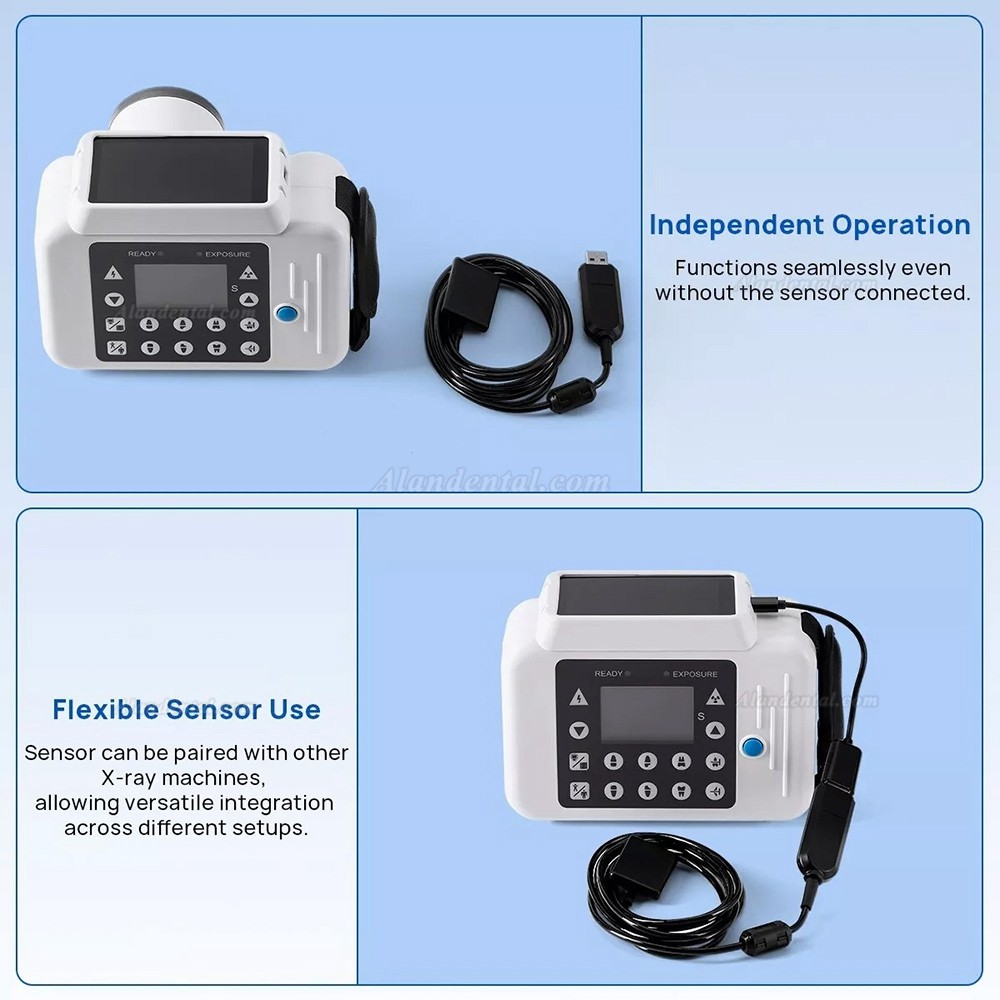

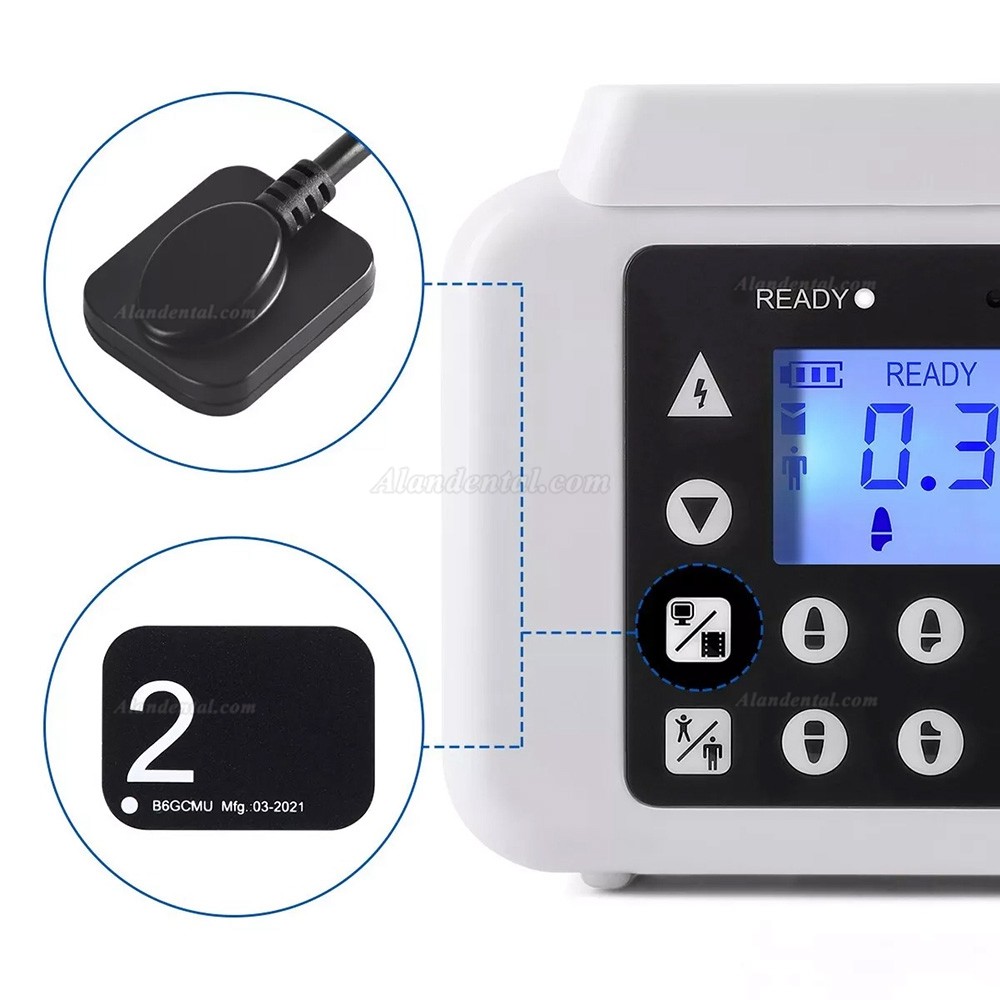

2. Independent Operation: Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate scanners.

3. Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.

4. Enhanced Workflow: Streamlined design improves efficiency and adapts to various clinical needs.

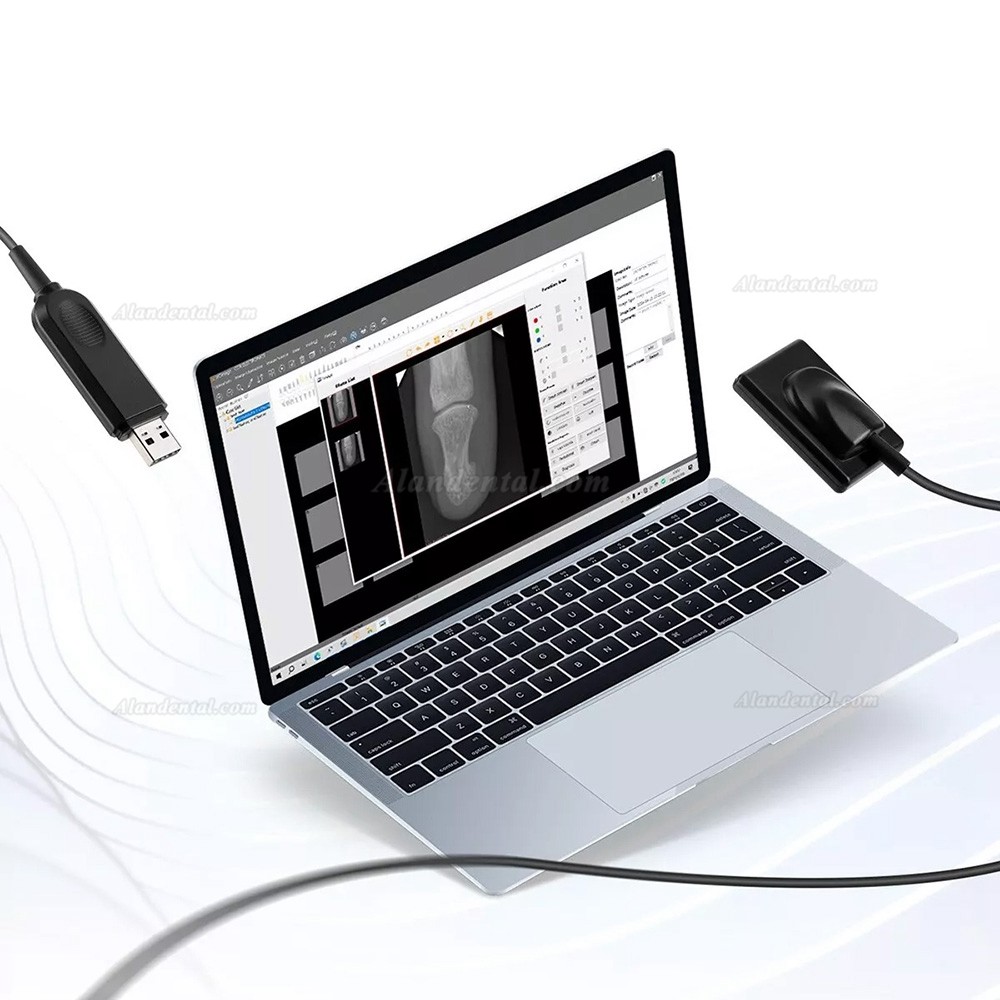

5. Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.

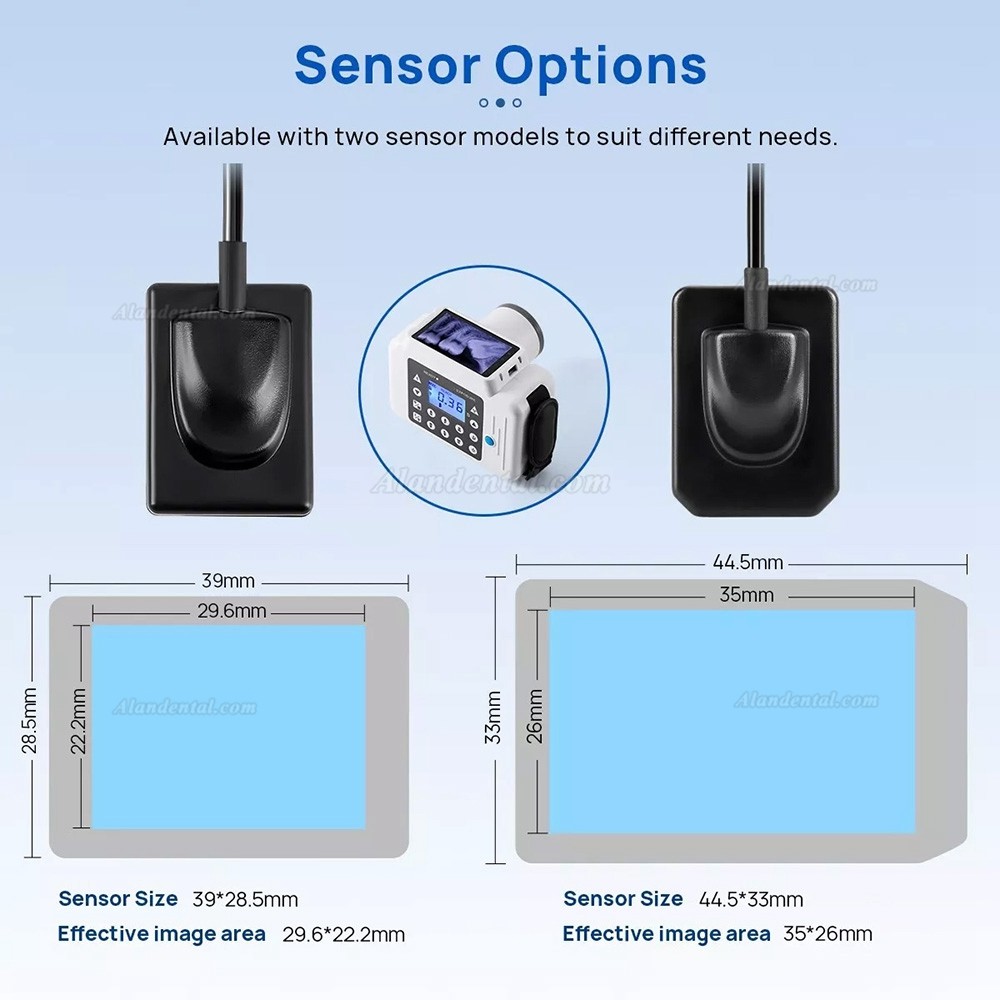

6. Sensor Options: You can choose one of the two sensor models to suit different needs.

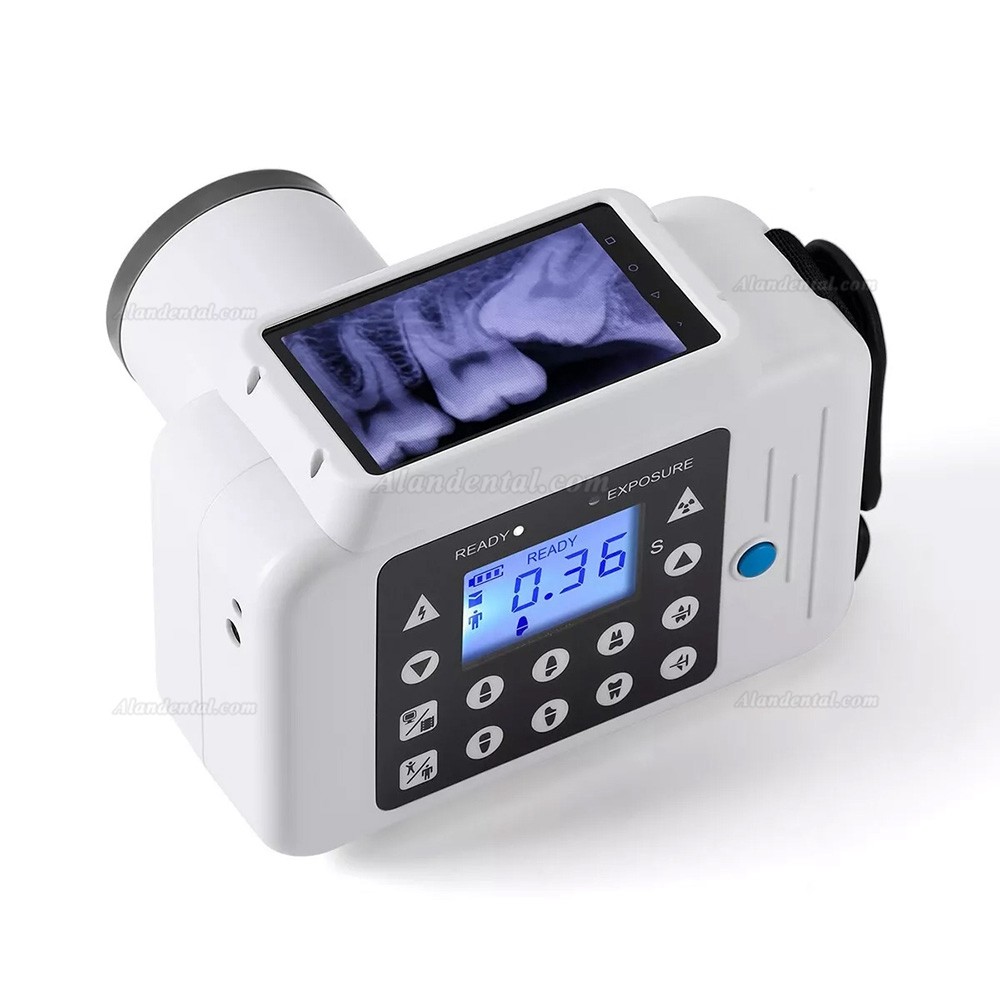

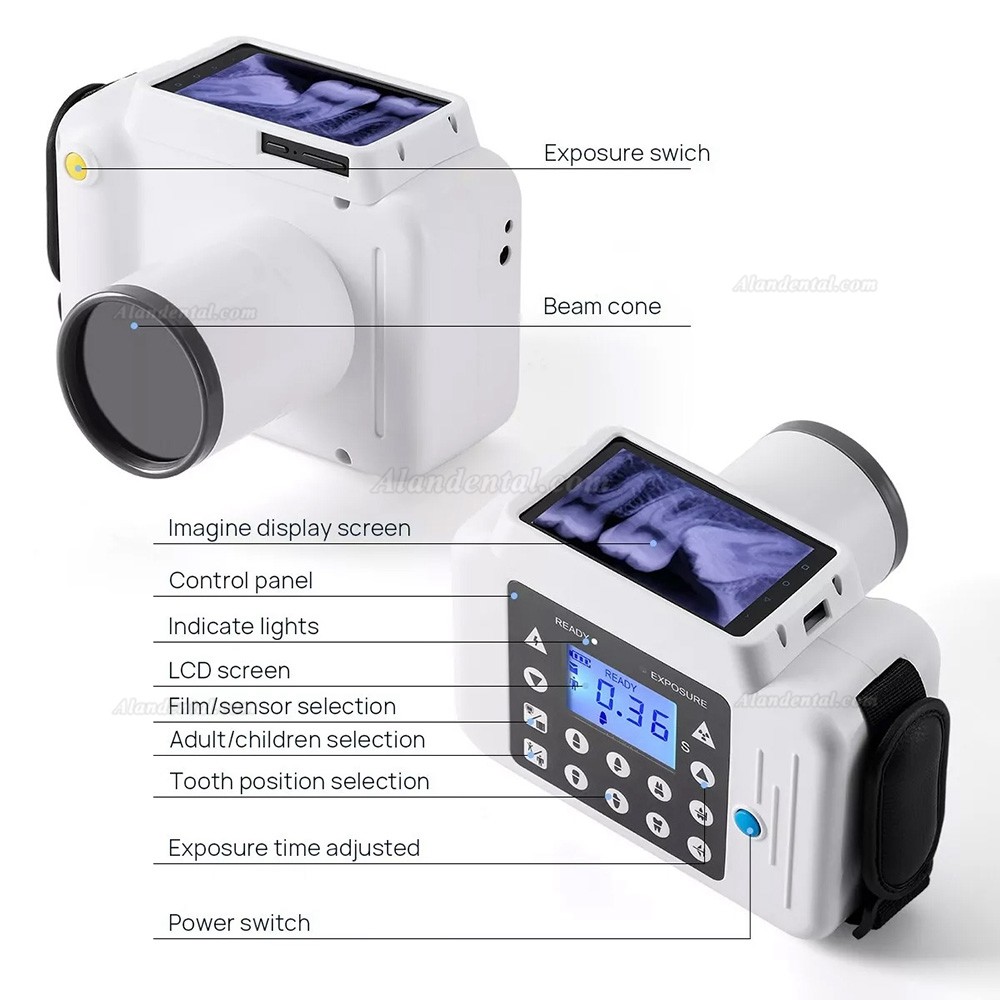

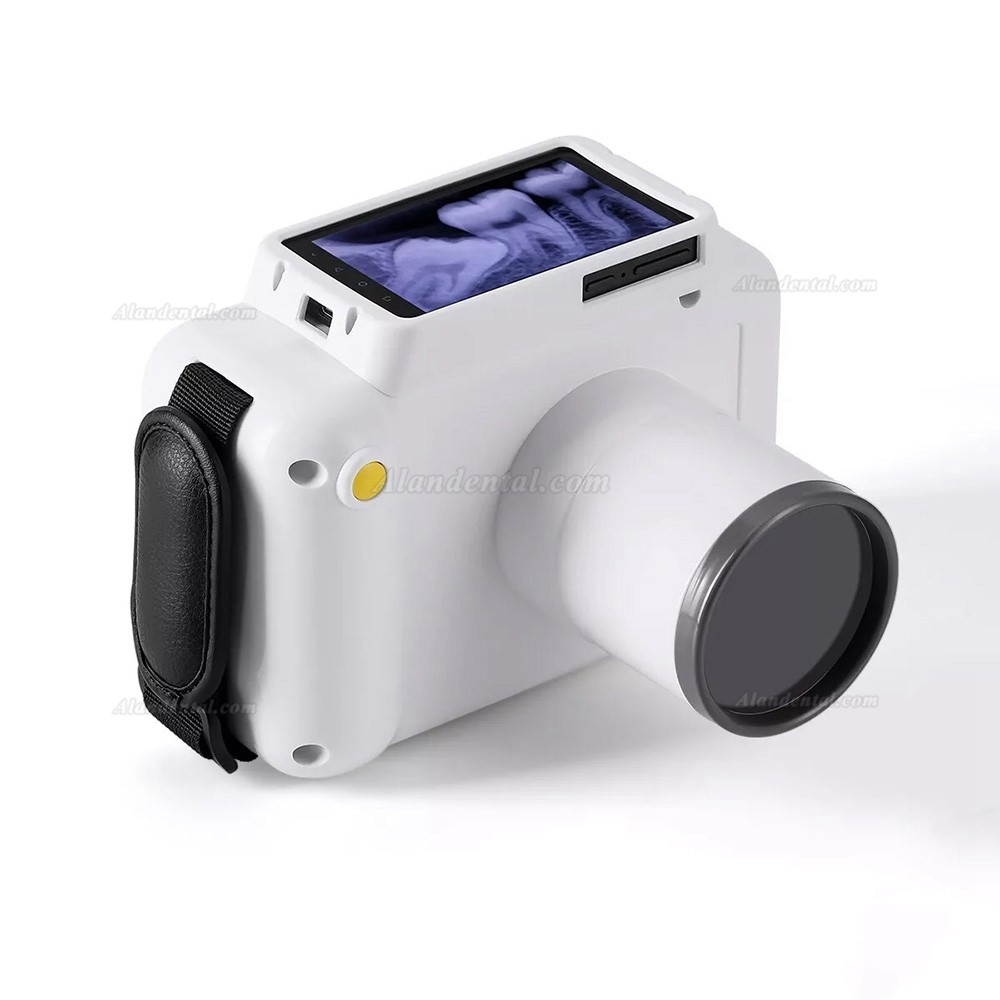

7. Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.

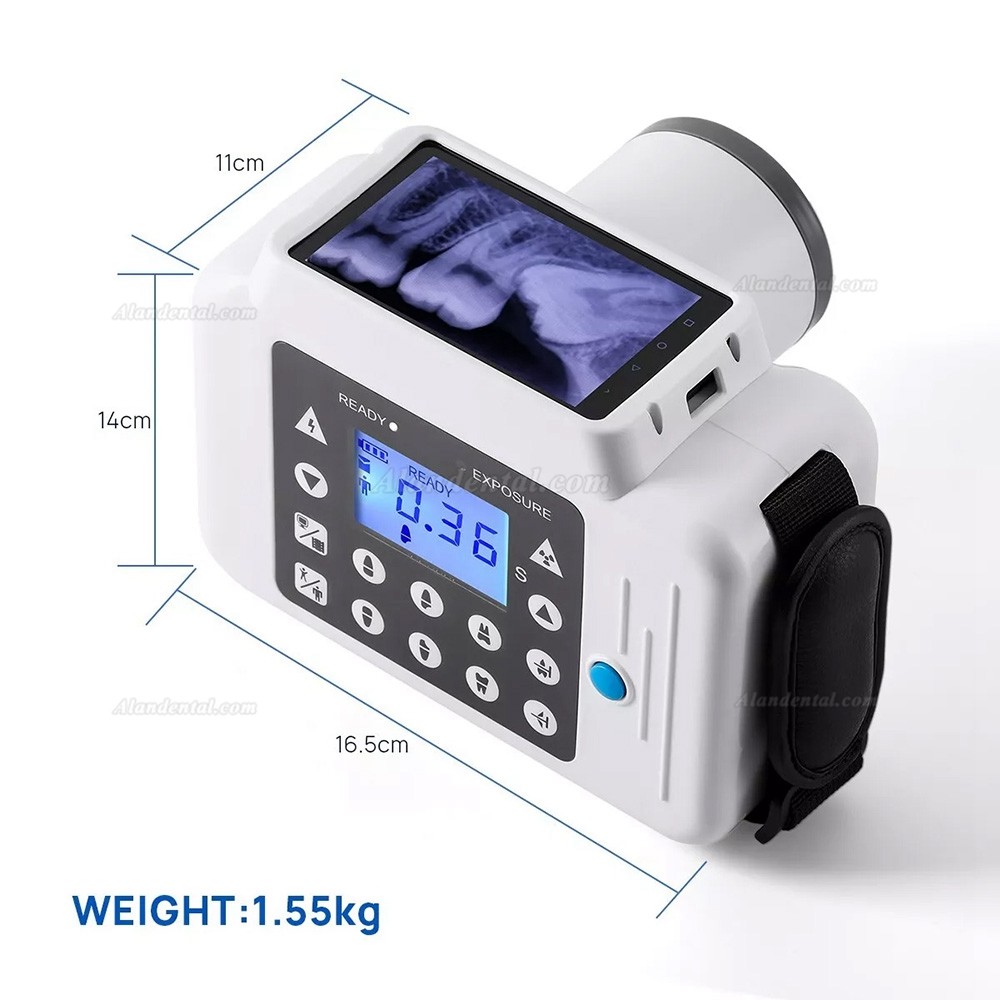

8. The body is small, light in weight, and the radiation leakage is less than 20μgy/h.

9. It has excellent image quality, portable storage, save more space.

10. It uses high frequency and DC international power supply.

11. All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

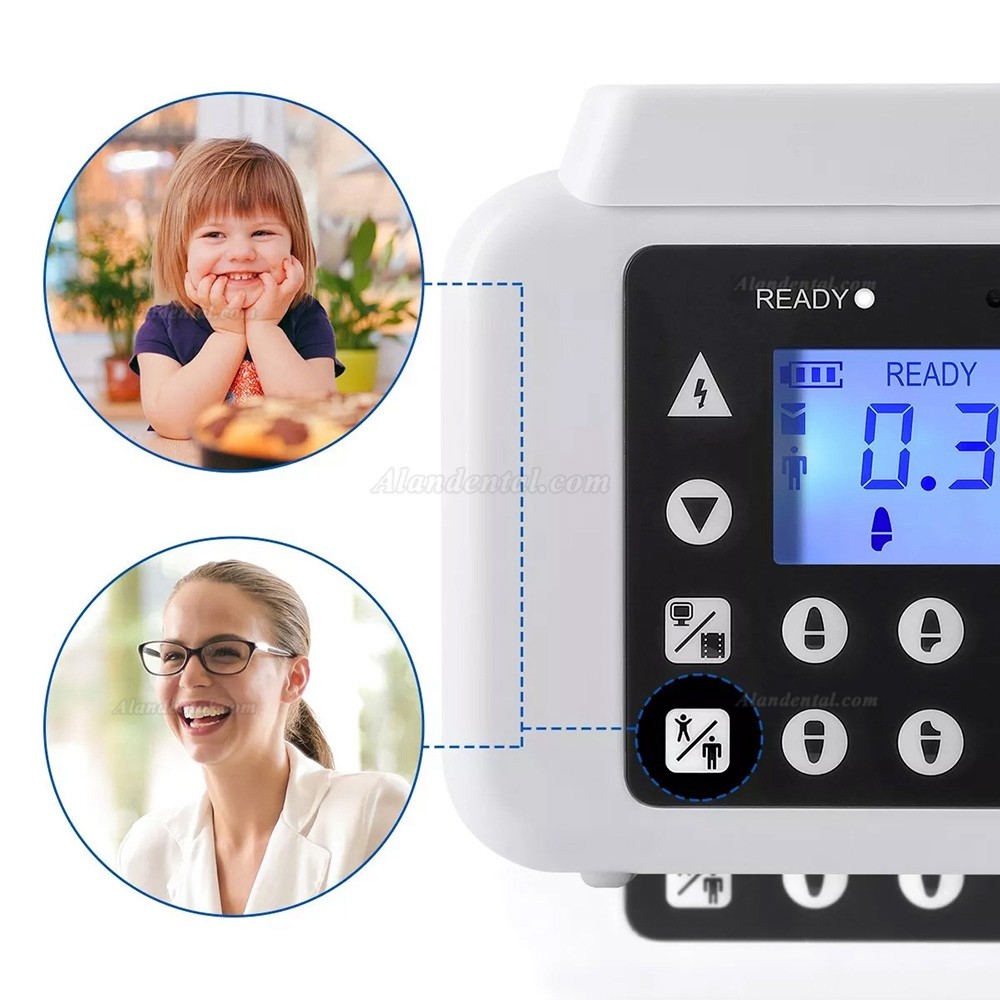

12. Different exposure times are preset for adults and children.

13. The battery is durable, it can take about 4 hundred images after fully charged.

Technical Specifcations:

1. Tube voltage：60KV

2. Tube current：2mA

3. Exposure time：0.1-2.0S

4. Frequency：30kHz

5. Rate power：120VA

6. Distance from skin to cone：105mm

7. Tube focus：0.8mmx0.8mm

8. Battery：DC14.8V 1600mAh

9. Charger input voltage：AC100V-240V+10%

10. Output voltage：DC16.8V

11. Ambient temperature：5℃~40℃

12. Relative temperature：<75%RH

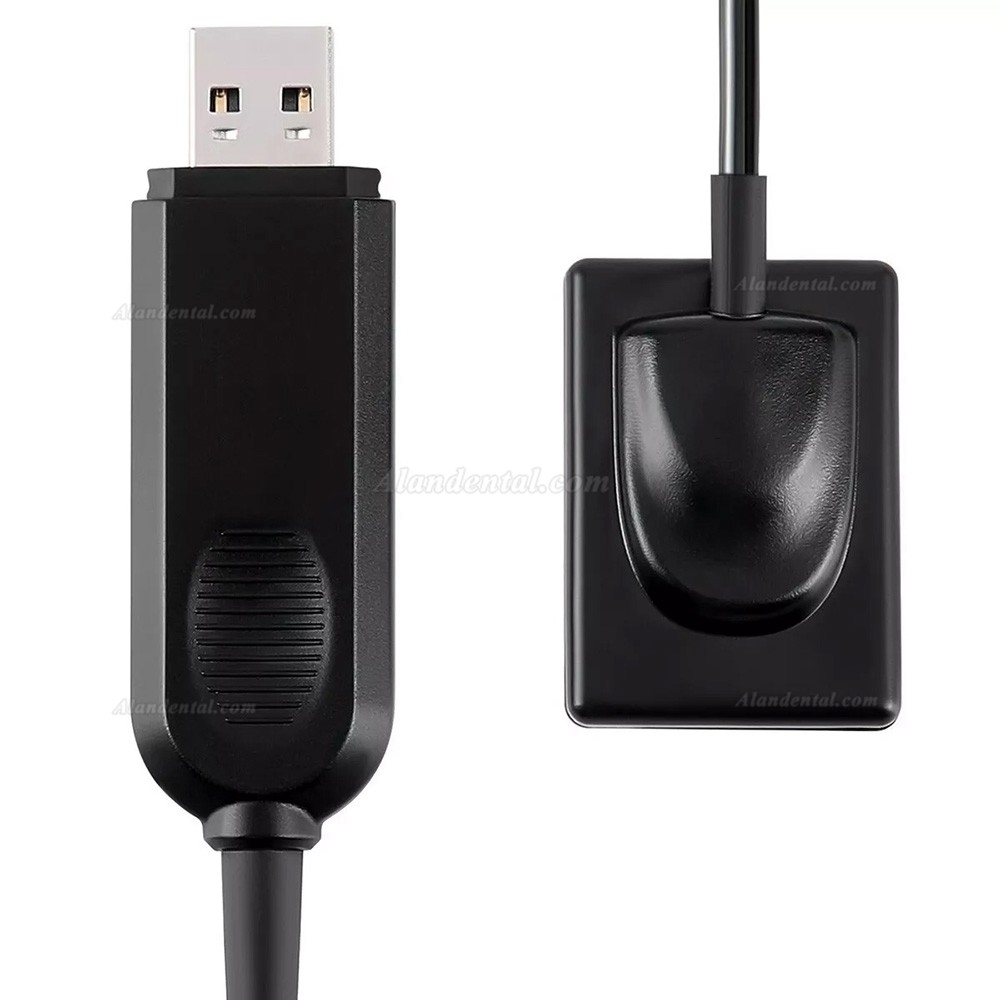

Sensor Technical Parameter:

Model	COX2230	COX2635
Detector Technology	APS CMOS	APS CMOS
Pixel Size	18.5μm
>Theoretical Resolution	27lp/mm
>True Resolution	CsI：≥14 lp/mm
>Pixel Matrix	>1200*1600	>1402*1888

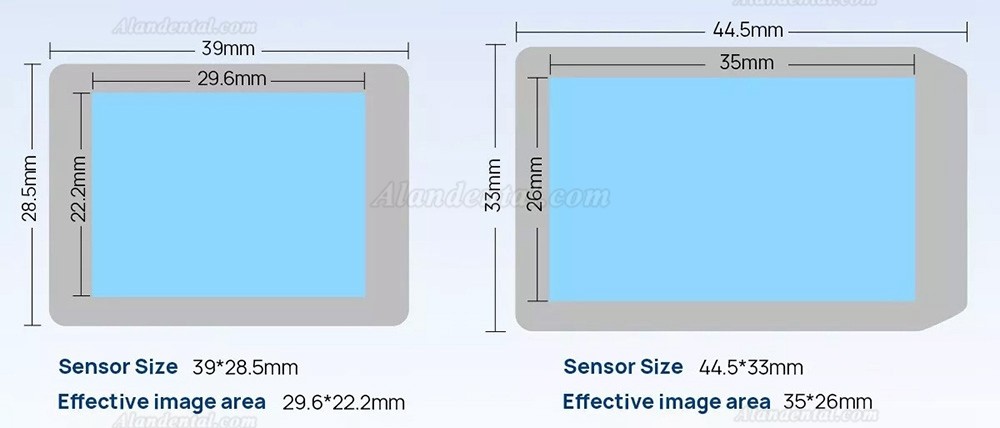

>Active Area(mm)	>29.6 X 22.2	>35 X 26
>Mechanical Size(mm)	>39 X 28.5 X 6	>44.5 X 33.0 X 6
>Data interface	USB
>Digitization	12/14/16 bit
>Imaging Time	3-4s

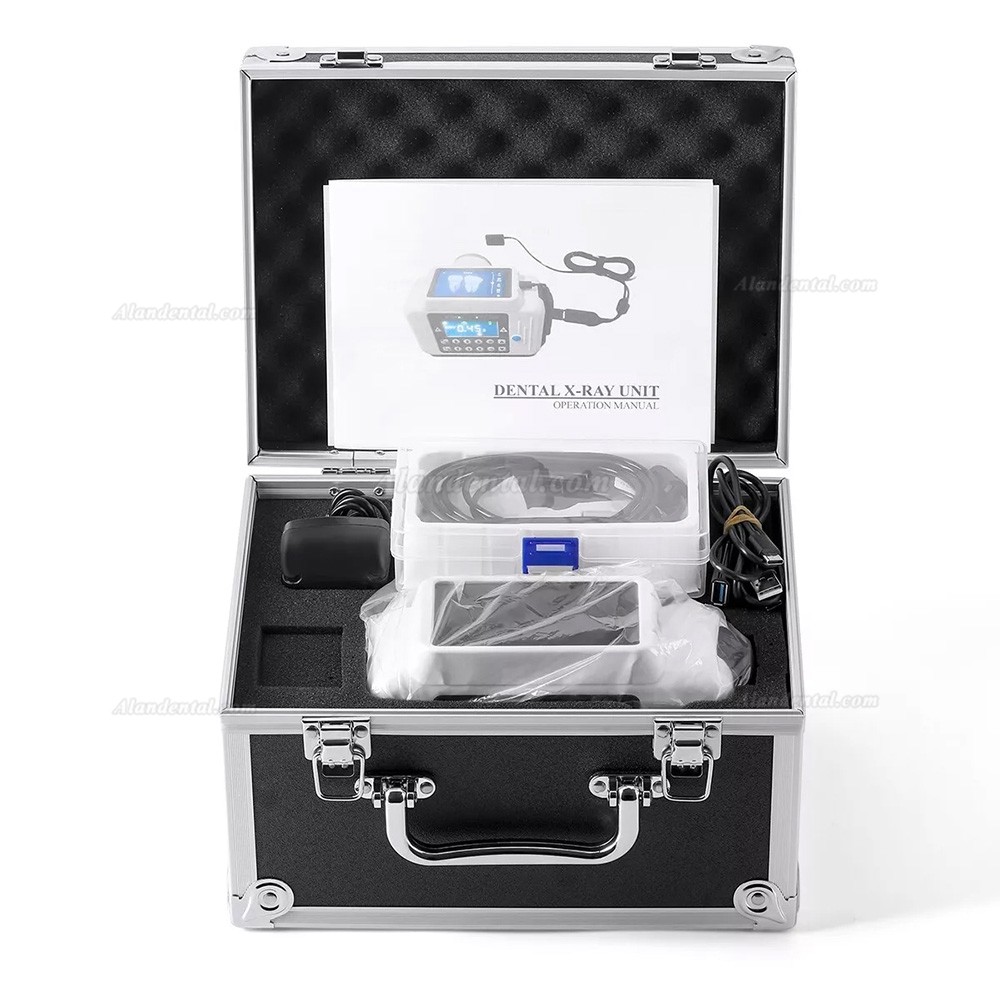

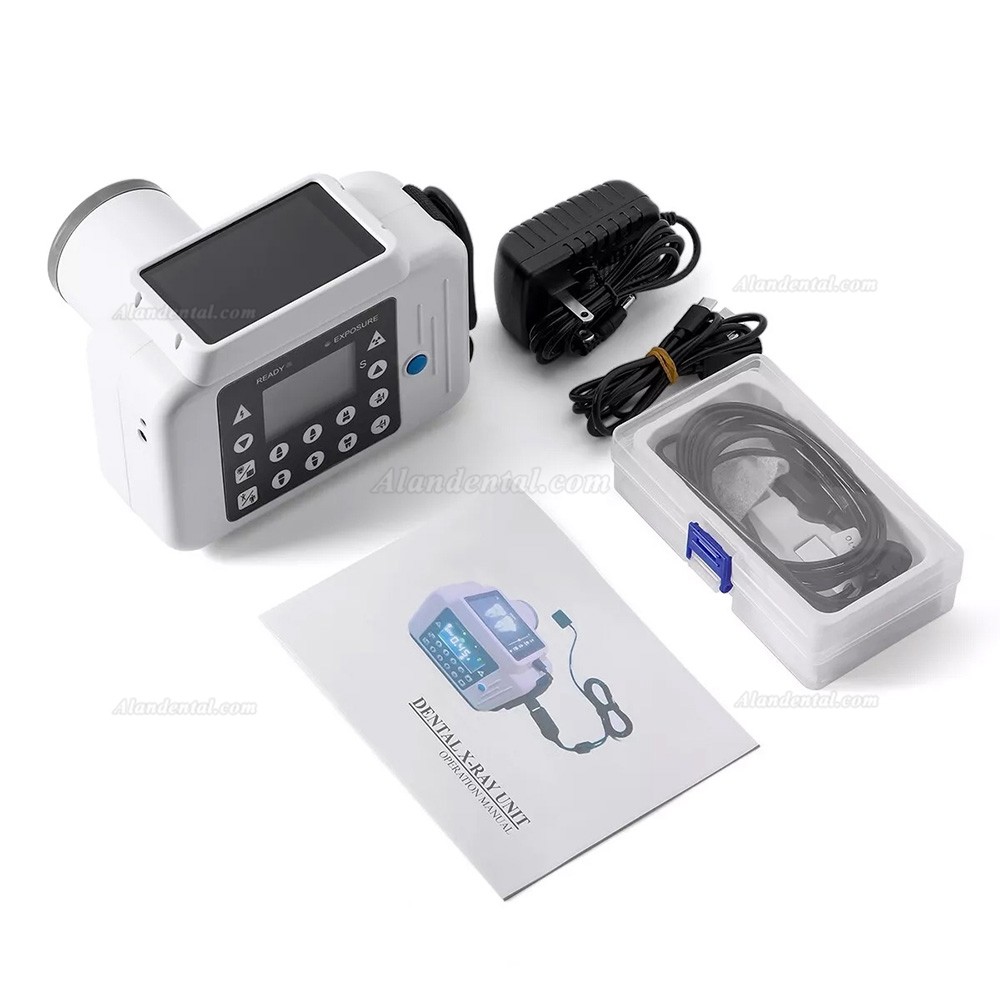

Package:

Aluminum box *1

X-ray machine *1

Sensor (with U disk) *1

Charger *1

Manual*1

Data cable*2

Note:

We are have two options for you to choose:

RAY-121 with 2230sensor

RAY-121 with 2635sensor
