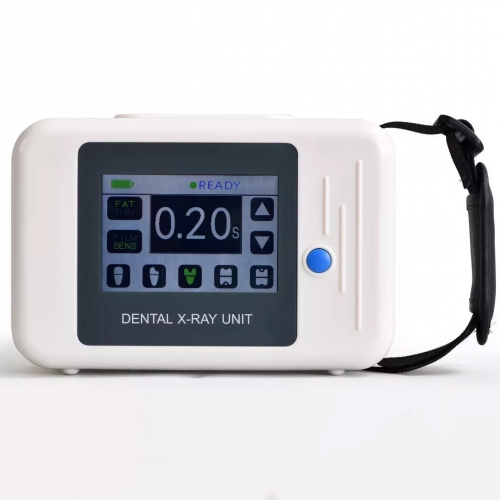

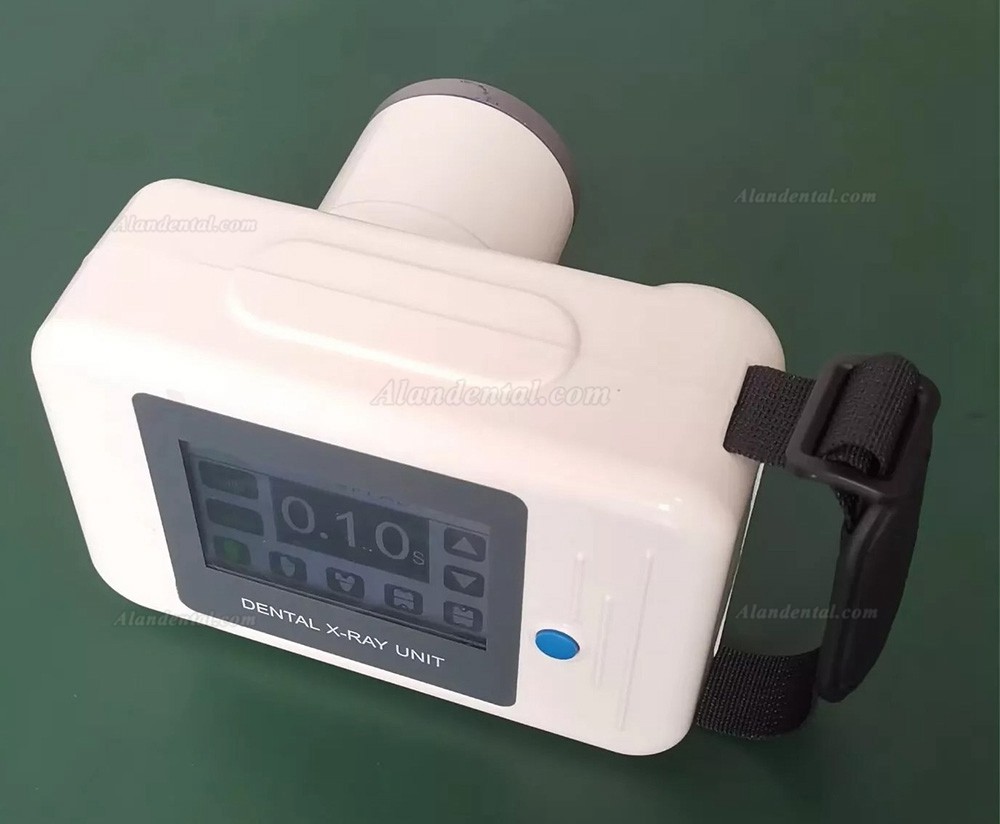

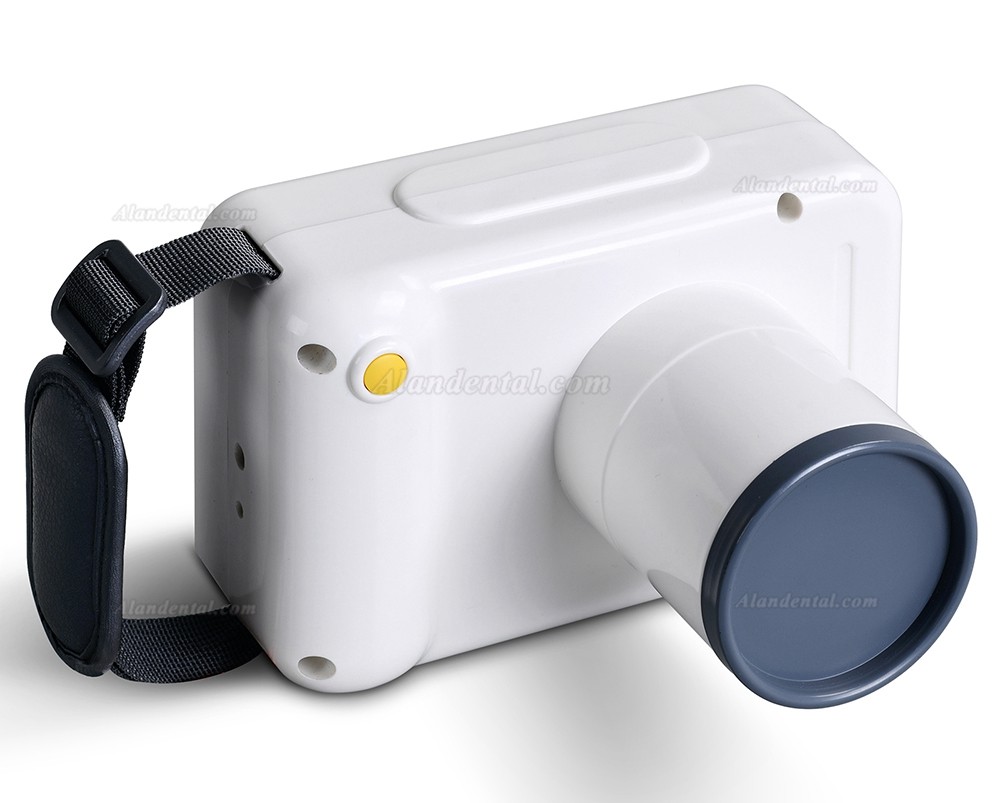

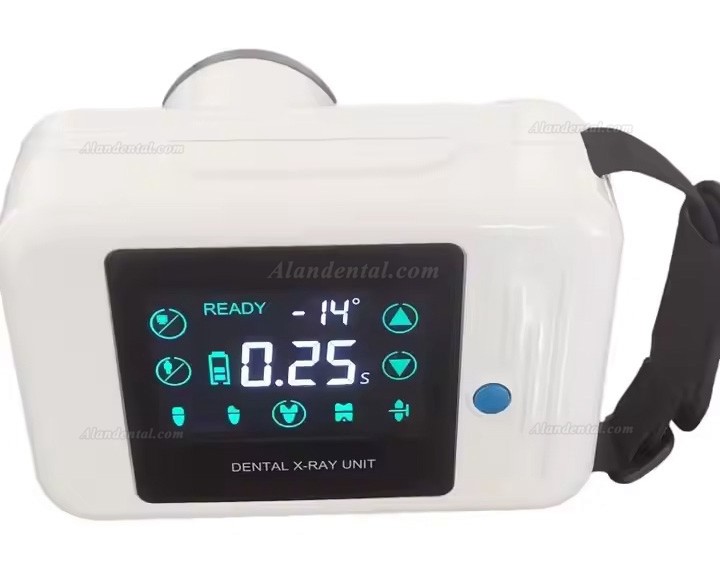

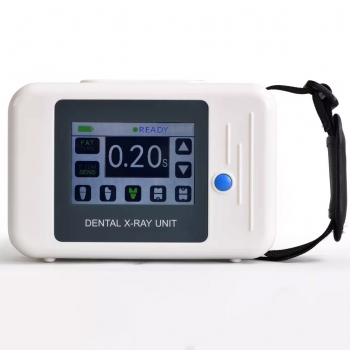

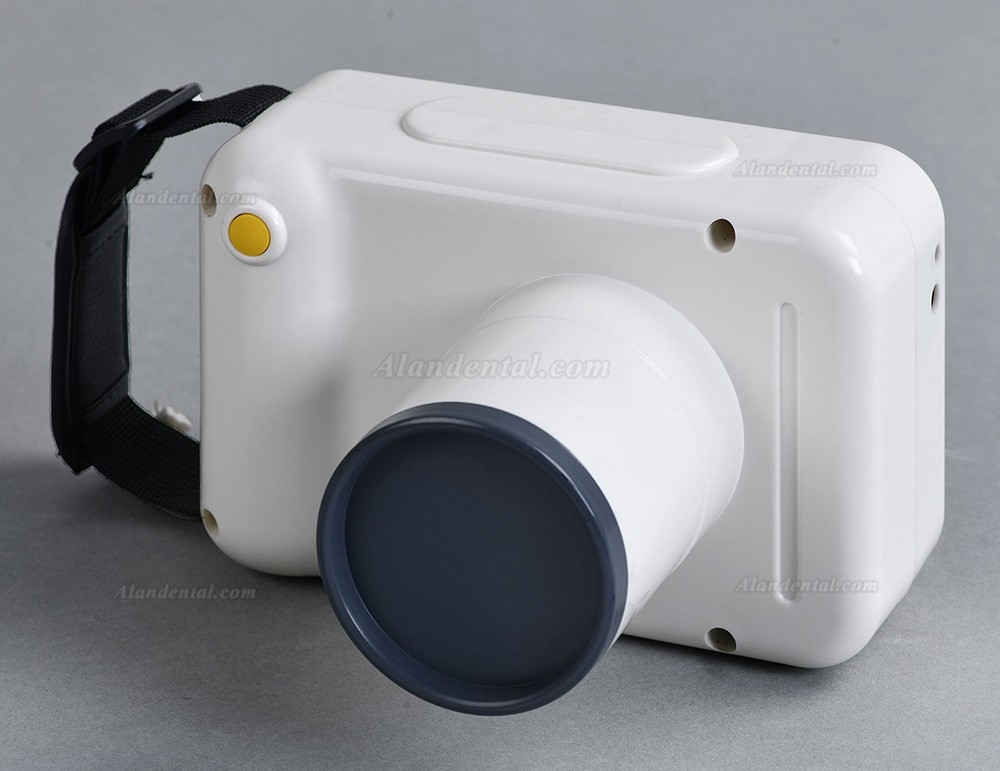

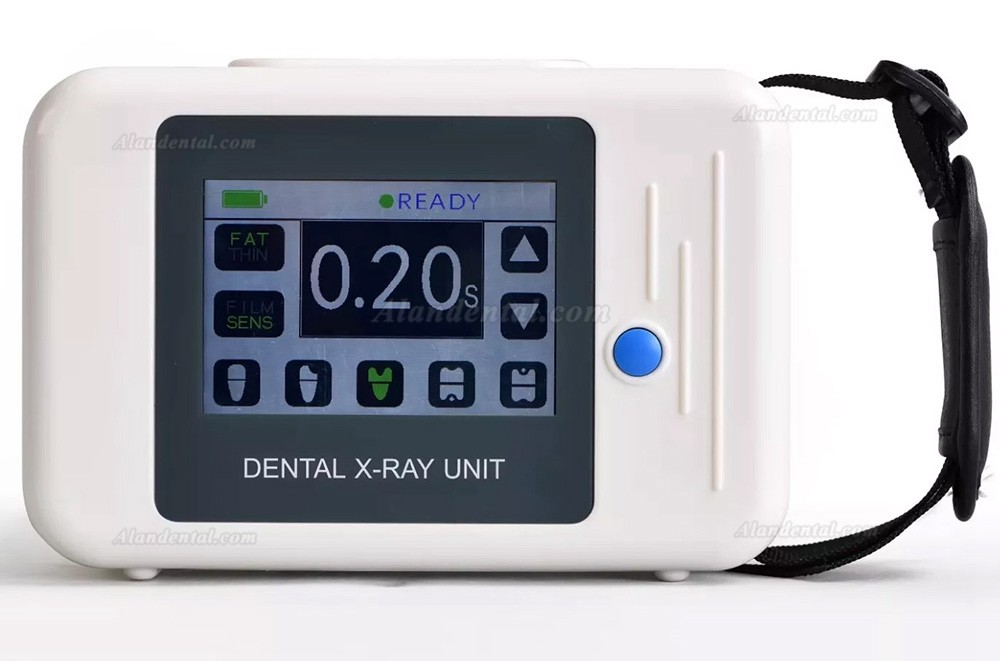

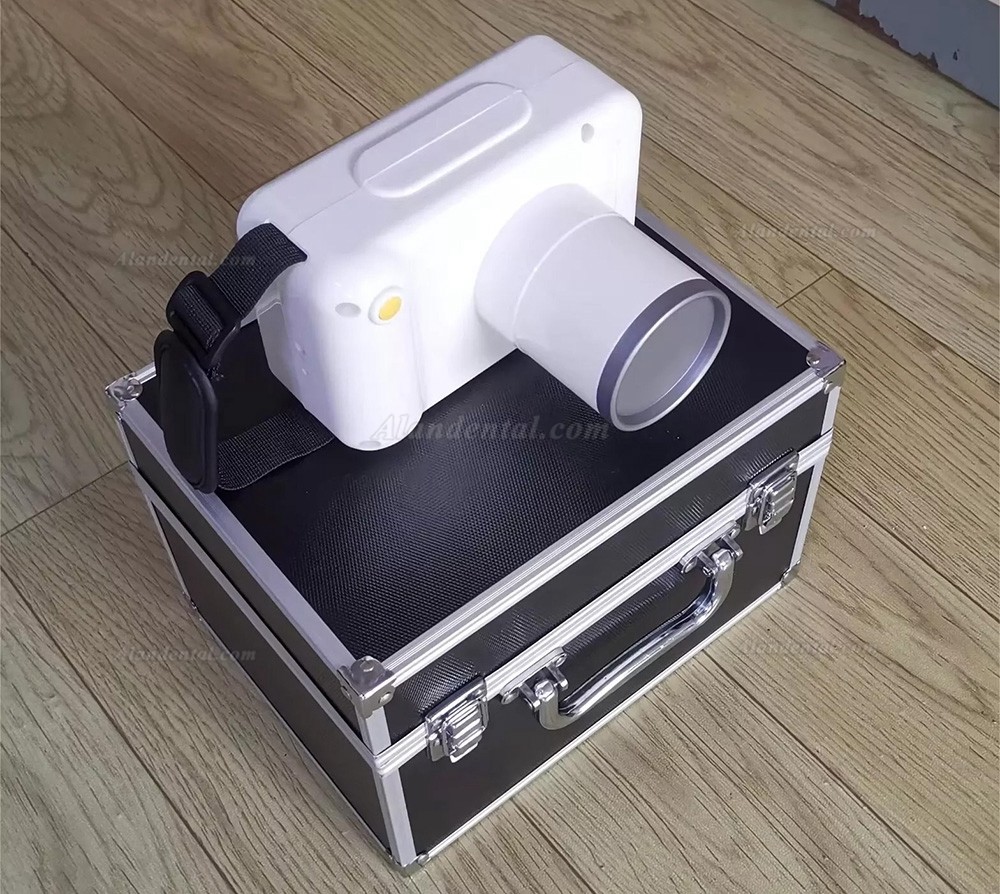

Dental Handheld X-ray Machine Portable Digital Xray Imaging Unit RAY-141 with Touch Screen

Dental Handheld X-ray Machine Portable Digital Xray Imaging Unit RAY-141 with Touch Screen
Item No. ADL003604
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
- Special Offer in Christmas 2024:
- 6% Off On Total Order Amount!
- Free to get one 3-way air syinge on orders over $100
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Market price:$1222.65
But It Now : $741.00
Voltage :

Plug :

Quantity :
Weight:0gram
Goods click count:31

Item Description Reviews

Dental Handheld X-ray Machine Portable Digital Xray Imaging Unit RAY-141 with Touch Screen

Feature:

1. Compatible with digital sensors, X-ray film, and image plate scanners.

2. Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.

3. The body is small, light in weight, and the radiation leakage is less than 20μgy/h.

4. It has excellent image quality, portable storage, save more space.

5. It uses high frequency and DC international power supply.

6. All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

7. Different exposure times are preset for adults and children.

8. The battery is durable, it can take about 4 hundred images after fully charged.

Technical Specifcations:

Tube Voltage:60KV，70KV

Tube Current:2.0（1.0，1.5，2.5）mA

Rated power:100-300VA

Focus Size:0.8*0.8（0.4*0.4）mm

Battery Voltage /Capacity:14.8V 1600mAh

Rated power:120（100~175）VA

Charger Input Voltage:AC110-240V 50/60Hz

Charger out put Voltage:DC16.8V

Exposure time:0.1-2s

The distance from the collimator tube to the skin:130 mm

Frequency:30KHz

Ambient temperature:5℃~ 40℃

Relative humidity:<75%RH

Net weight:1.7KG

Gross weight:3.5KG

Size (mm):110*140*165mm
