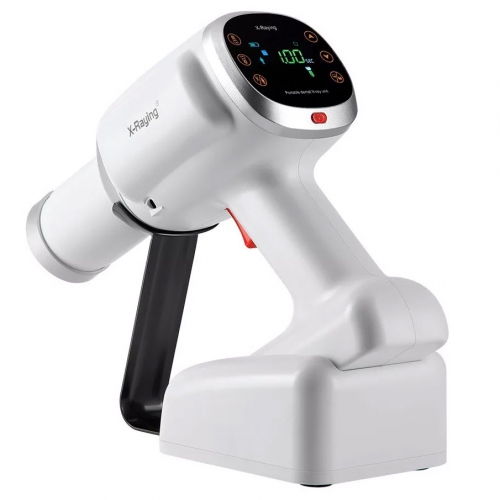

Handheld Dental Digital Ray Machine RAY-500 Portable Dental X-ray / Raying Unit

Handheld Dental Digital Ray Machine RAY-500 Portable Dental X-ray / Raying Unit
Item No. ADL003591
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
- Special Offer in Christmas 2024:
- 6% Off On Total Order Amount!
- Free to get one 3-way air syinge on orders over $100
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Market price:$1202.99
But It Now : $728.98
Voltage :

Plug :

Quantity :
Weight:0gram
Goods click count:41

Item Description Reviews

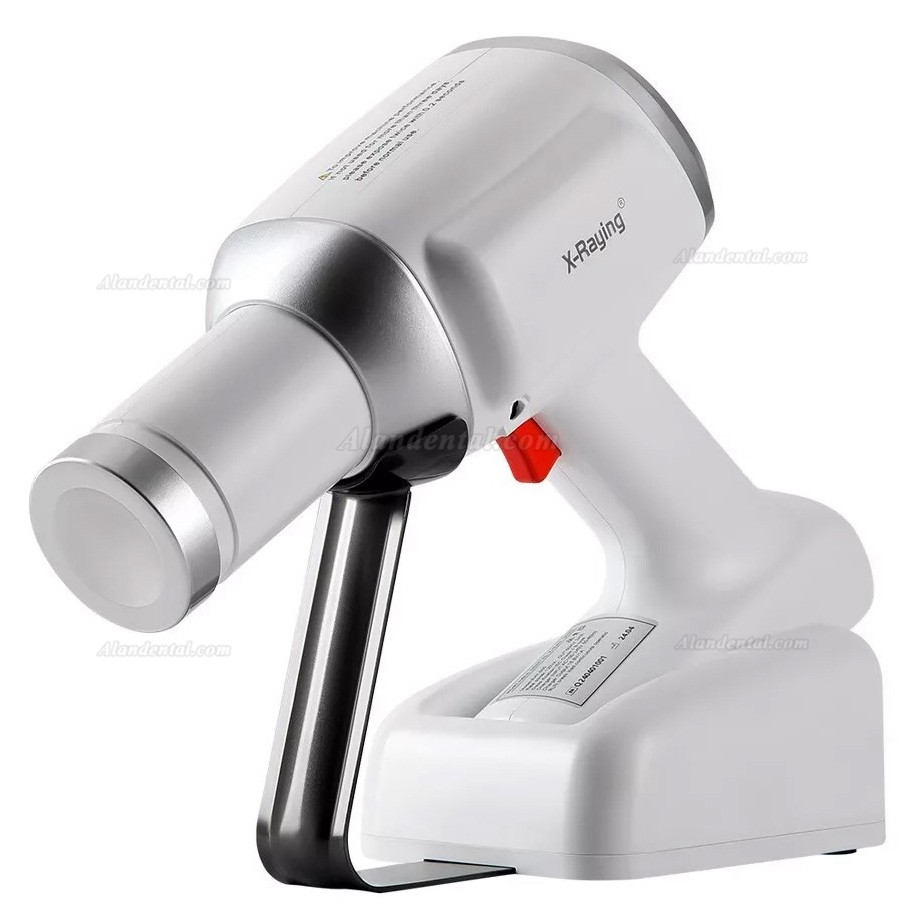

Handheld Dental Digital Ray Machine RAY-500 Portable Dental X-ray / Raying Unit

Features:

1. Compatible with digital sensors, X-ray film, and image plate scanners.

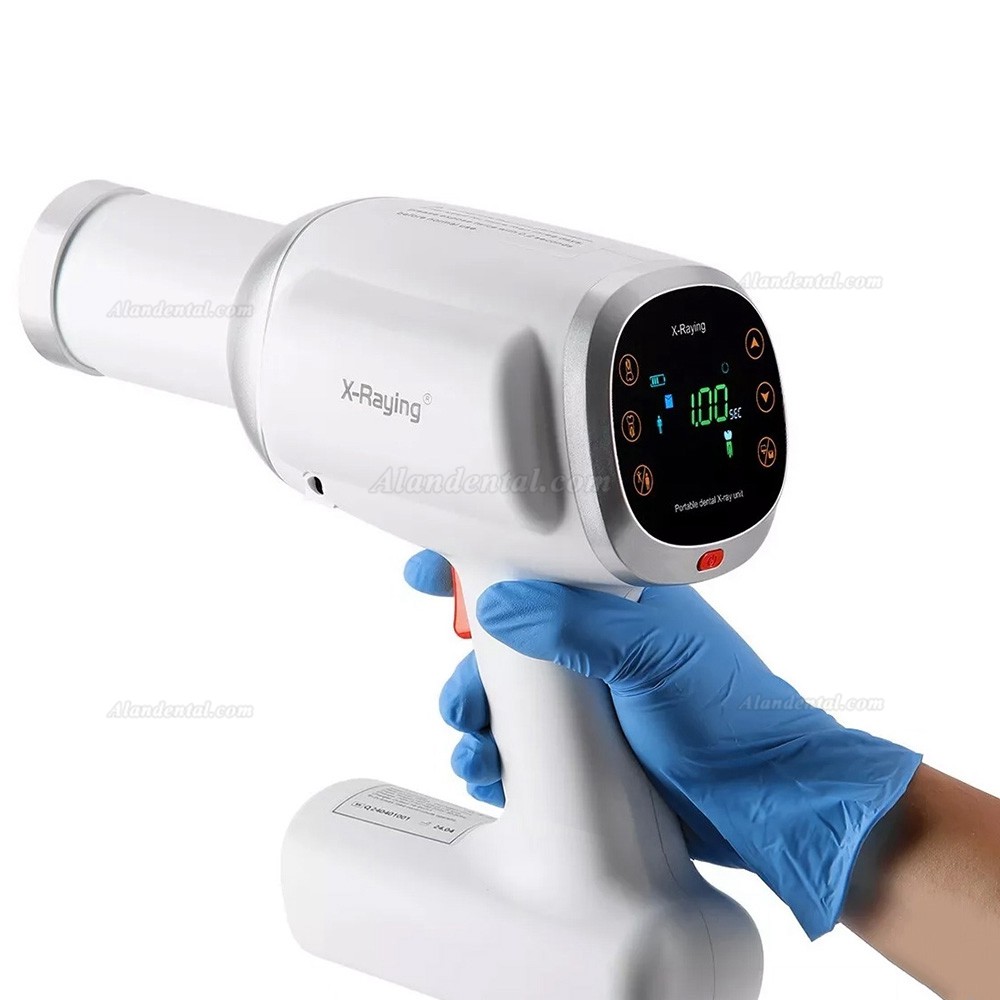

2. Small shape, light weight, easy to carry and can take pictures with one hand.

3. The body is small and light in weight.

4. It has excellent image quality, portable storage, save more space.

5. It uses high frequency and DC international power supply.

6. All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

7. Different exposure times are preset for adults and children.

8. The battery is durable, it can take about 2 hundred images after fully charged.

9. Micro-focus tube, the focal size is 0.4mm, the radiation is concentrated, the scattering ray is less, and the image is more clear.

Specifications:

Tube voltage: 60KV

Tube current: 2.0 Ma

Exposure time: 0.1-2.0 s

Frequency: 30KHz

Rate power: 120VA

Distance from the skin to cone: 150mm

Tube fouse: 0.4mm

Battery: DC1550mAh

Charger input voltage: AC100V-240V

Output voltage: DC14.8-16.8V

Gross weight: 4.0kg

Package size: 422mm×195mm×370mm

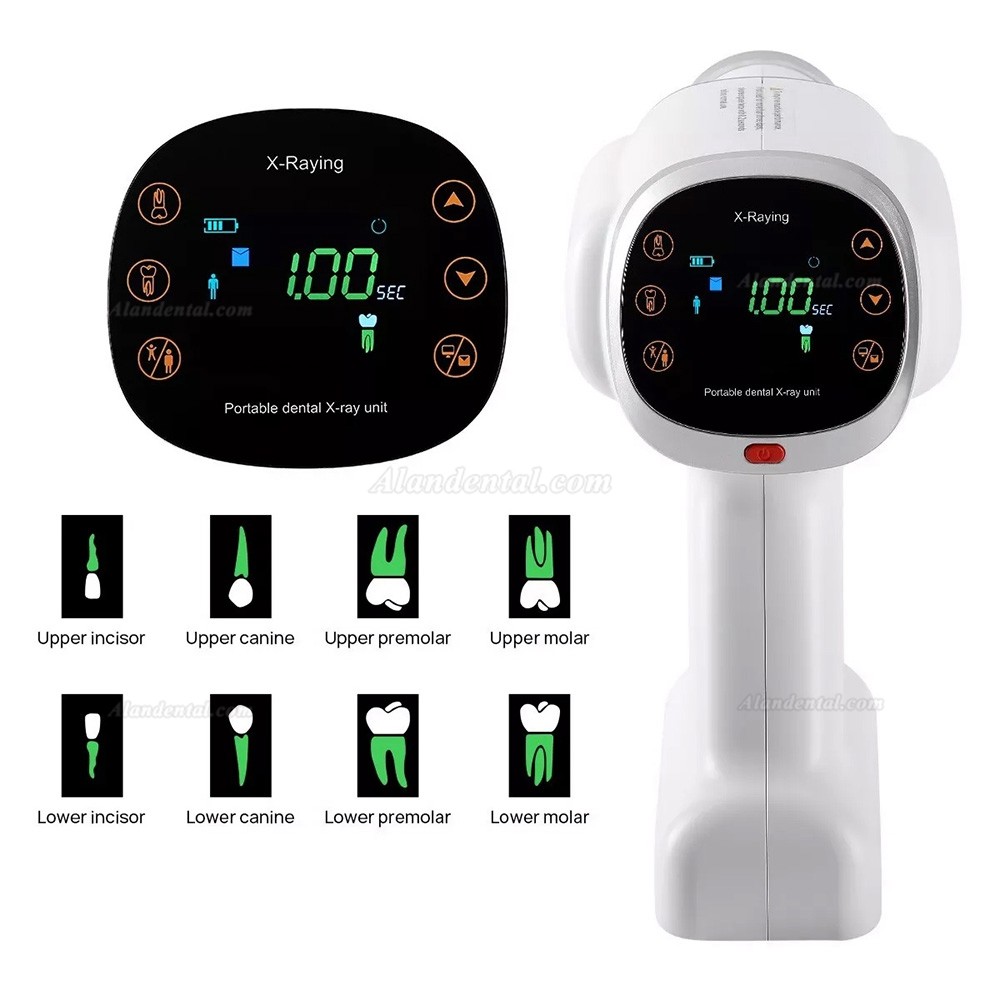

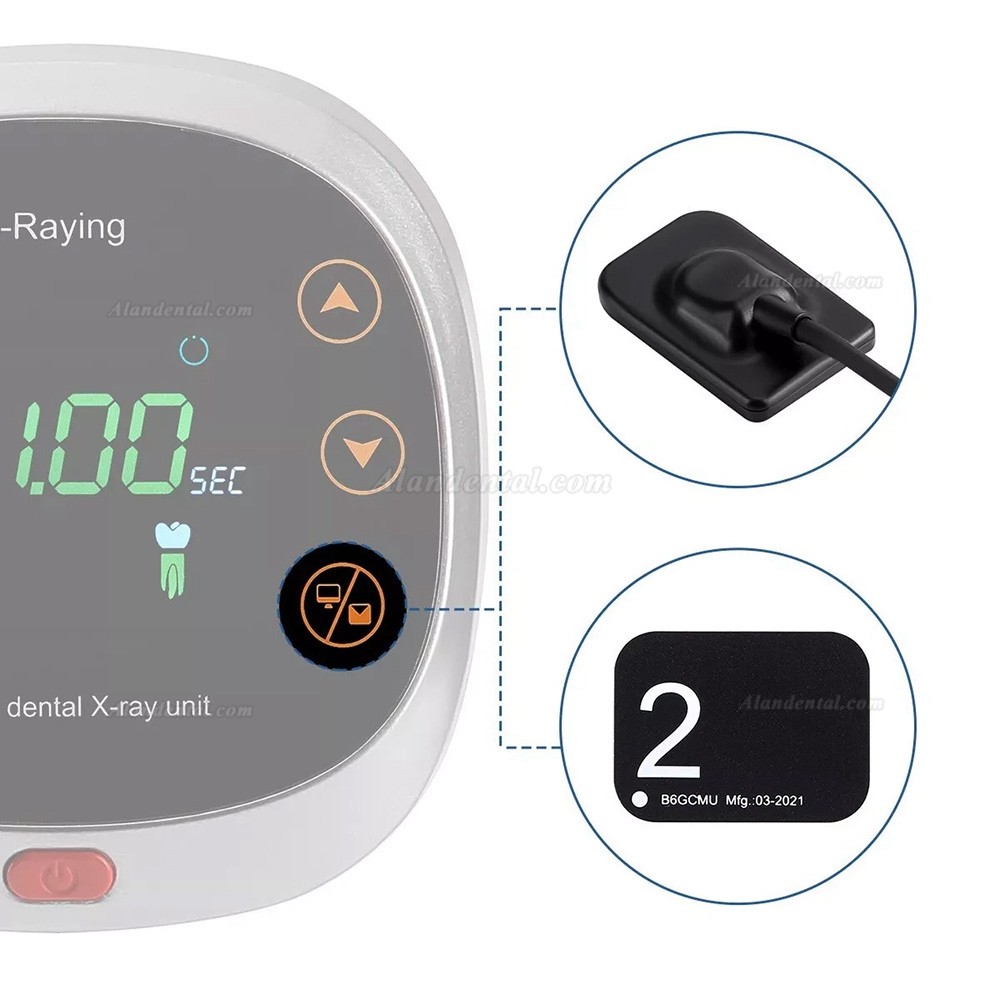

Dental film and sensor selection function

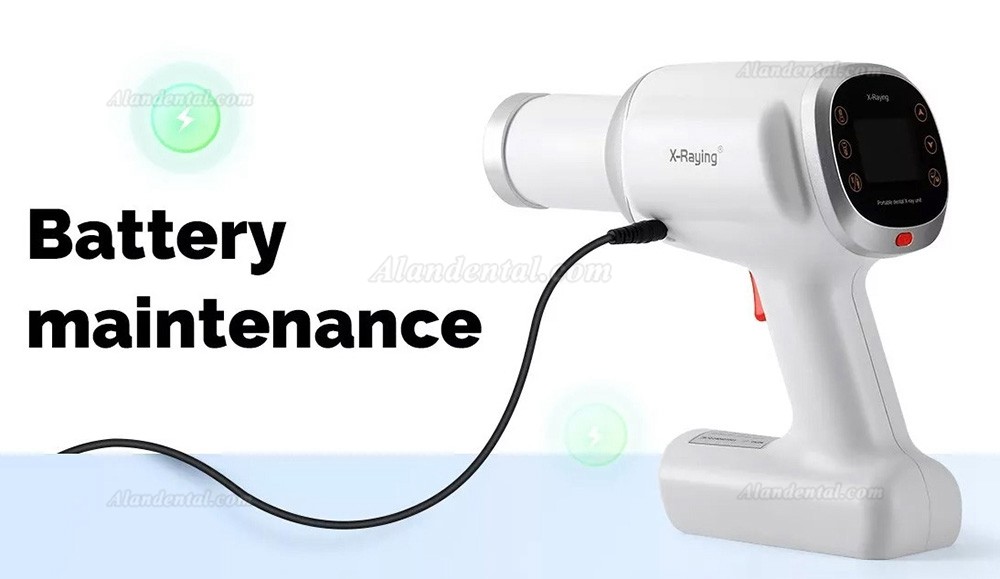

Battery maintenance

1. When the machine indicates "E01"must charging immediately. If notusing for a long time should charging 80% electricity and rechargeable every 1 month to avoid the battery over discharge to cause damage.

2. The indicate light of the charger from red turn green is mean the battery is fully.

3. The lithium battery is not resistant to impact, hightemperature, damp, electromagnetic wave, high pressure. Please pay attention to the environment and gently during the transportation and the using.

4. Please use the charger with the machine self and do not use inferior or other types of battery charger.

Contact Information:
Live Support: Chat with us online
Email: service.alandental@gmail.com
If you have any problem, please do not hesitate to contact us.

Shipment Note:
If your package shipped by Express Delivery, please give us a valid delivery phone number, and also a full and accurate shipping address.
