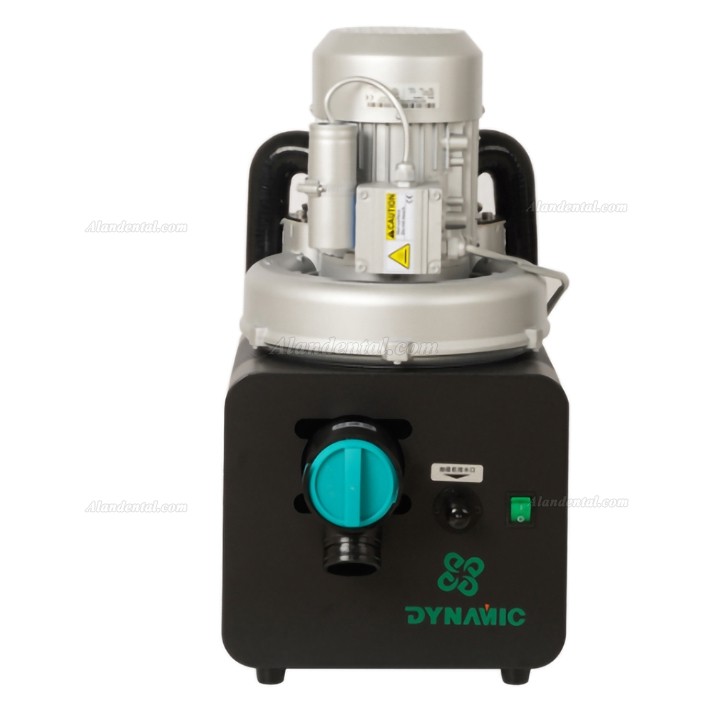

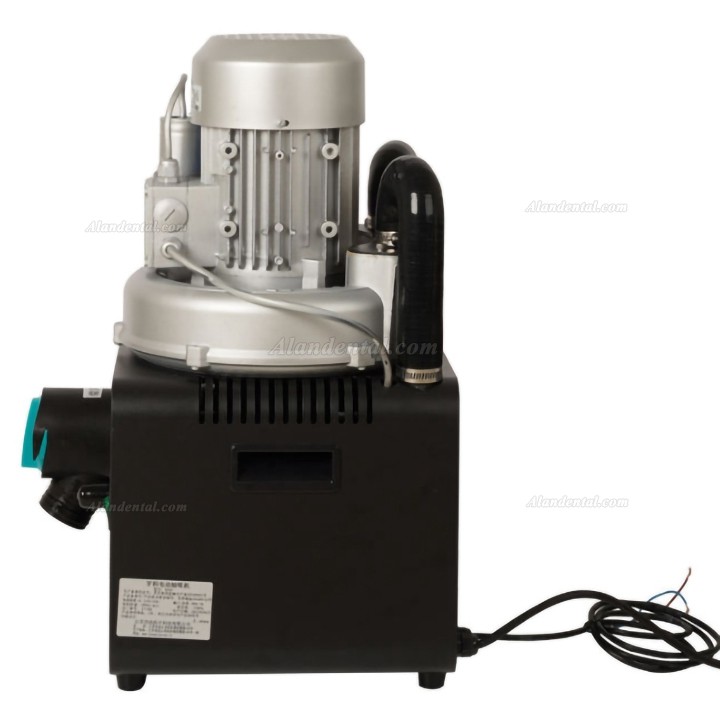

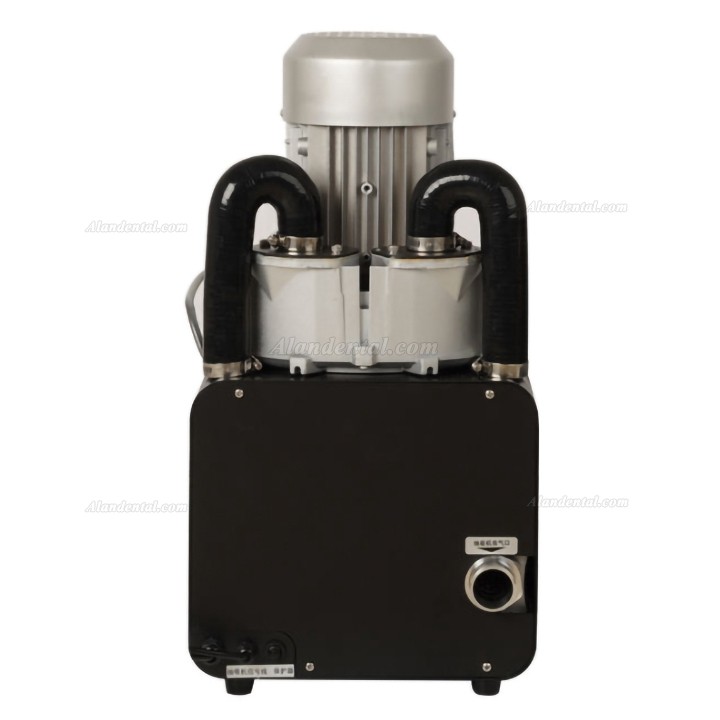

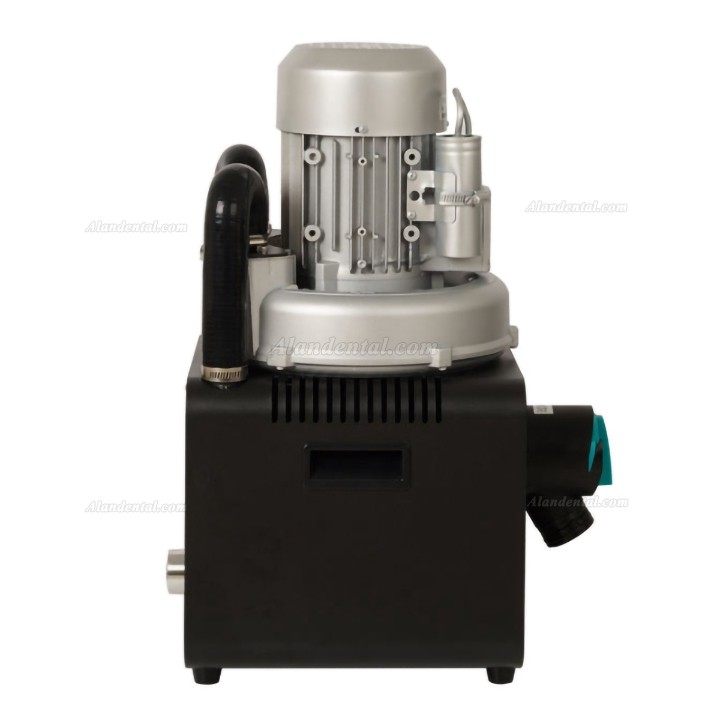

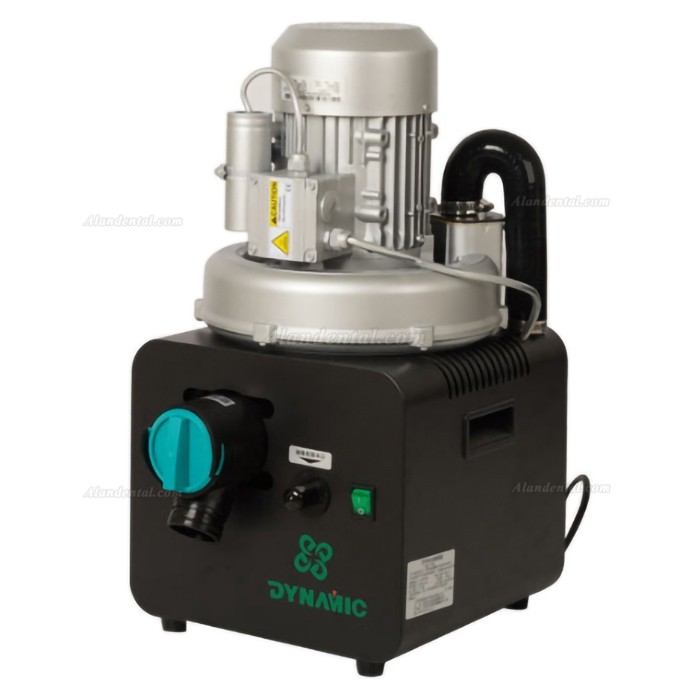

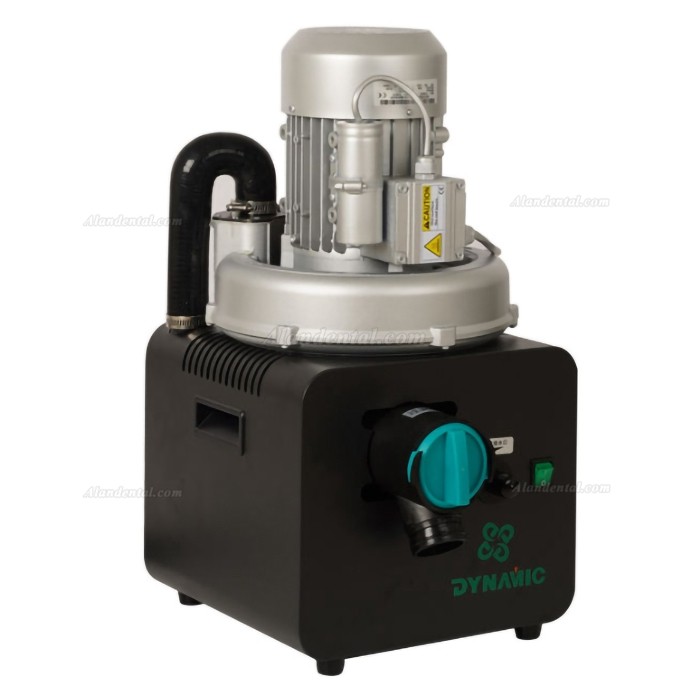

Dynamic DS01 / DS02 / DS04 Dental Suction Unit/ Dentist Vacuum Pump 0.45KW / 0.8KW / 1.3KW



Dynamic DS Series dental electric suction machine is a negative pressure suction power source for dental treatment units, which can effectively take away the cells and polluted liquids/debris produced in oral treatment. This ensure the clarity of doctors' visual field and effectively prevent the diffusion of aerosols when treating. Imported air pump is used inside, with strong power and high negative pressure. Imported air pump is used inside, with strong power and high negative pressure. The impeller is internally oxidized and equipped with anti-corrosion coating to ensure longer service life. Constant pressure device is equipped to ensure the stability of output power.



1. Compact structure - small volume, large flow

2. Innovative structure -- Integrated Design of separator and negative pressure pump

3. Constant negative pressure suction system -- stable output

4. Electrochemical anti-corrosion coating - professional coating treatment to ensure service life

5. Quiet - built in silencer safety system to ensure low noise and safe operation



Model: DS01 / DS02 / DS04

Voltage: 220V

Frequency: 50Hz

Power: 0.45KW (DS01) / 0.8KW (DS02) / 1.3KW (DS04)

Flow (L/min): 300 (DS01)/ 600 (DS02) /1200 (DS04)

Vacuum degree: -11KPa (DS01) / -15Kpa (DS02) / -17Kpa (DS04)

Weight: 22/25/28KG

Noise: ≤65dB(A)

Size: 350*300*570 (DS02)/ 420*300*580 (DS02)/ 420*300*580 (DS04)
