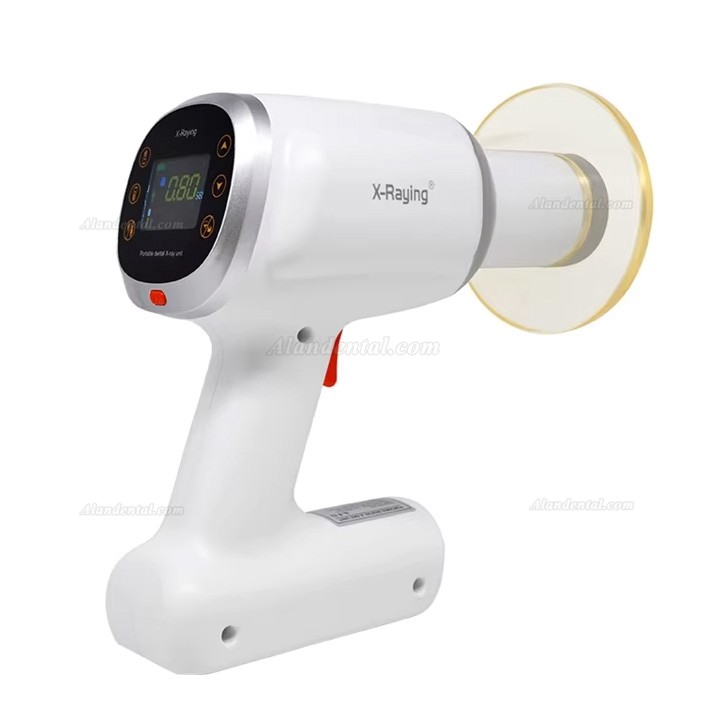

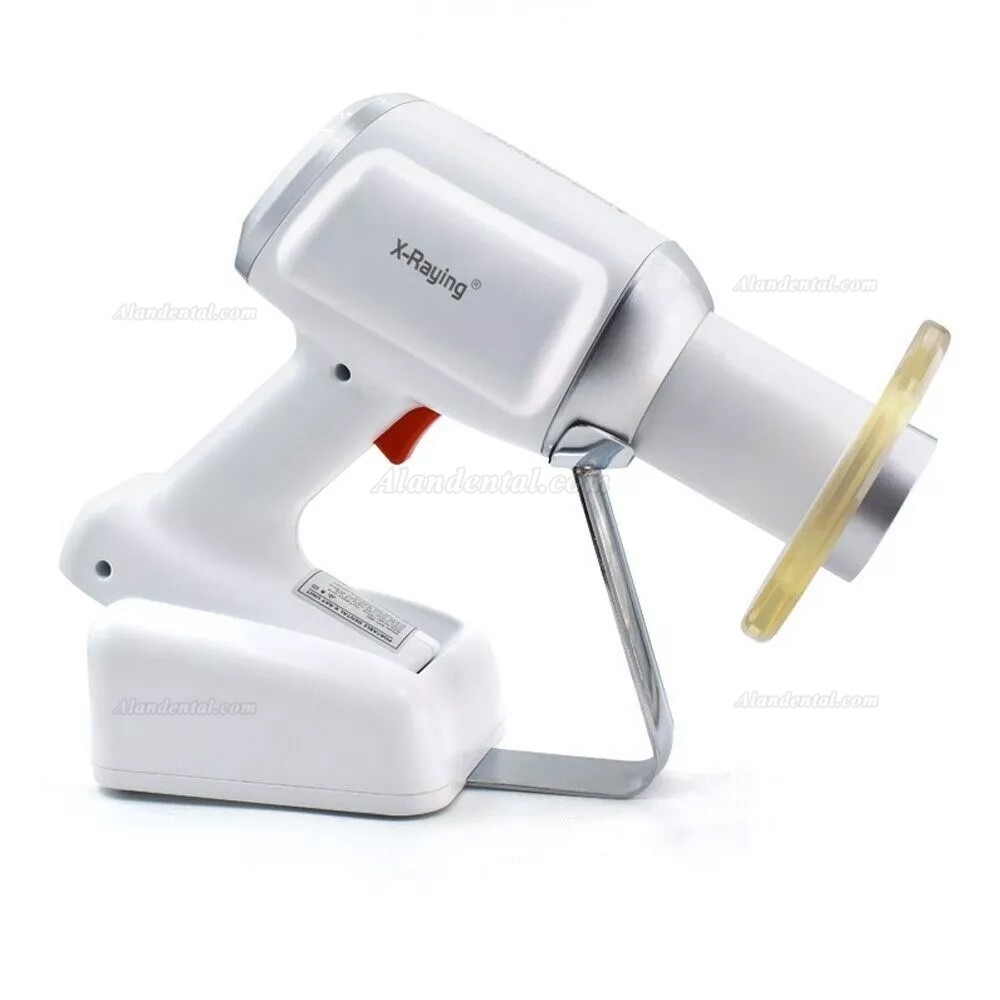

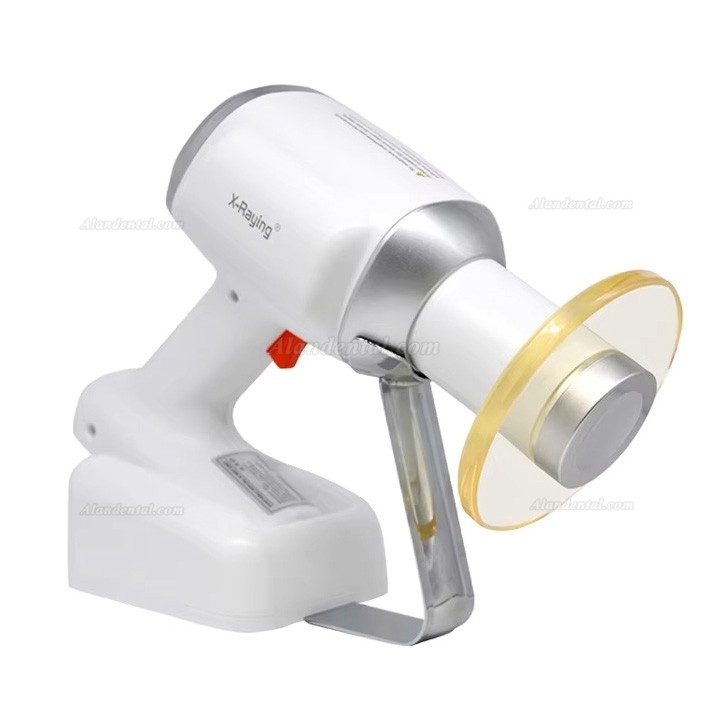

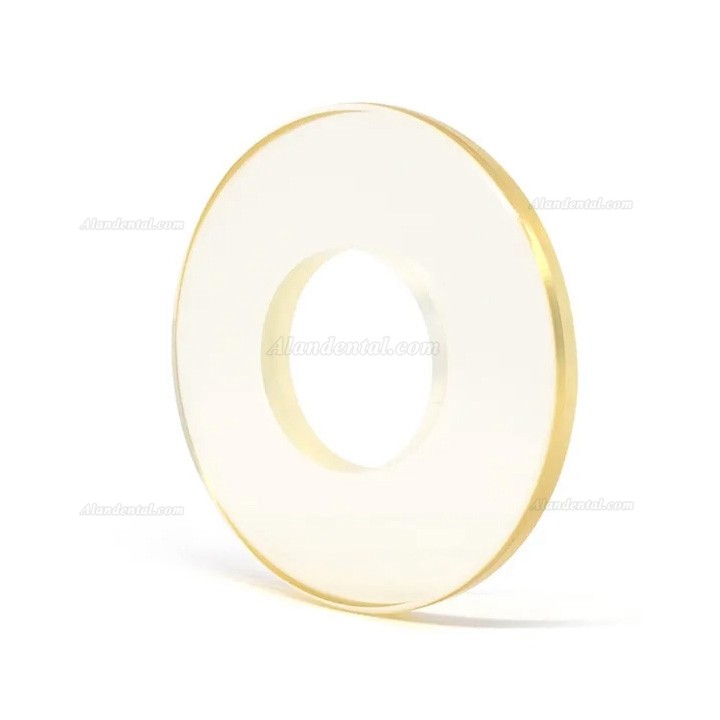

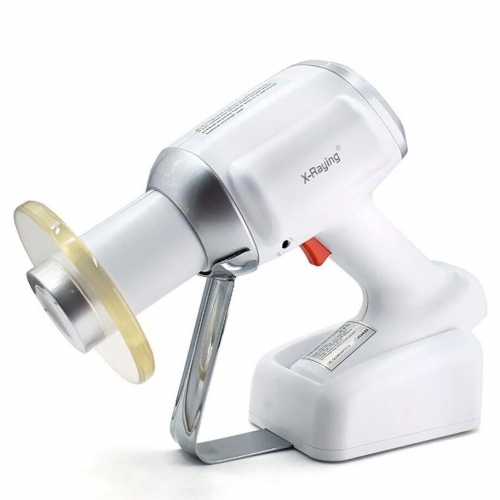

Dental Portable Digital X-Ray Machine RAY-500X with Protective Shield





Working principle：The high voltage generator provides high voltage to both ends of the X-ray tube filament and metal target in the internal X-ray source assembly, a large number of electrons are generated on the cathode filament of the X-ray tube and move at a high speed in the vacuum tube, impact the metal target to generate the X-ray. The X-ray penetrate the different tissue densities of the body, such as teeth and muscles after pass through the X-ray window and beam tube, the X-ray which carry image information through body tissue, are passed through image receiving devices such as phosphor sheets, film or digital image receivers, to show different densities of human tissue images.

Application Range: used for the teeth to taking an X-ray photography, with an intraoral image

receiver, images are obtained for the clinical diagnosis.

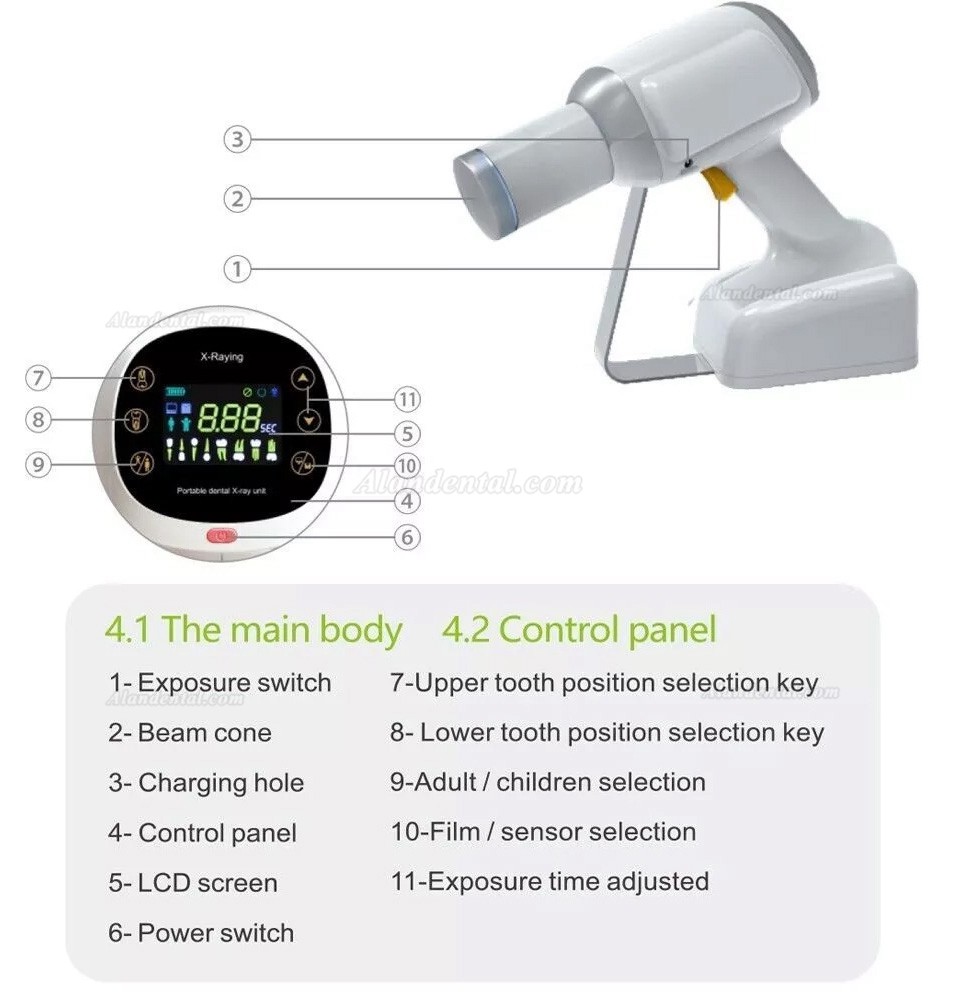

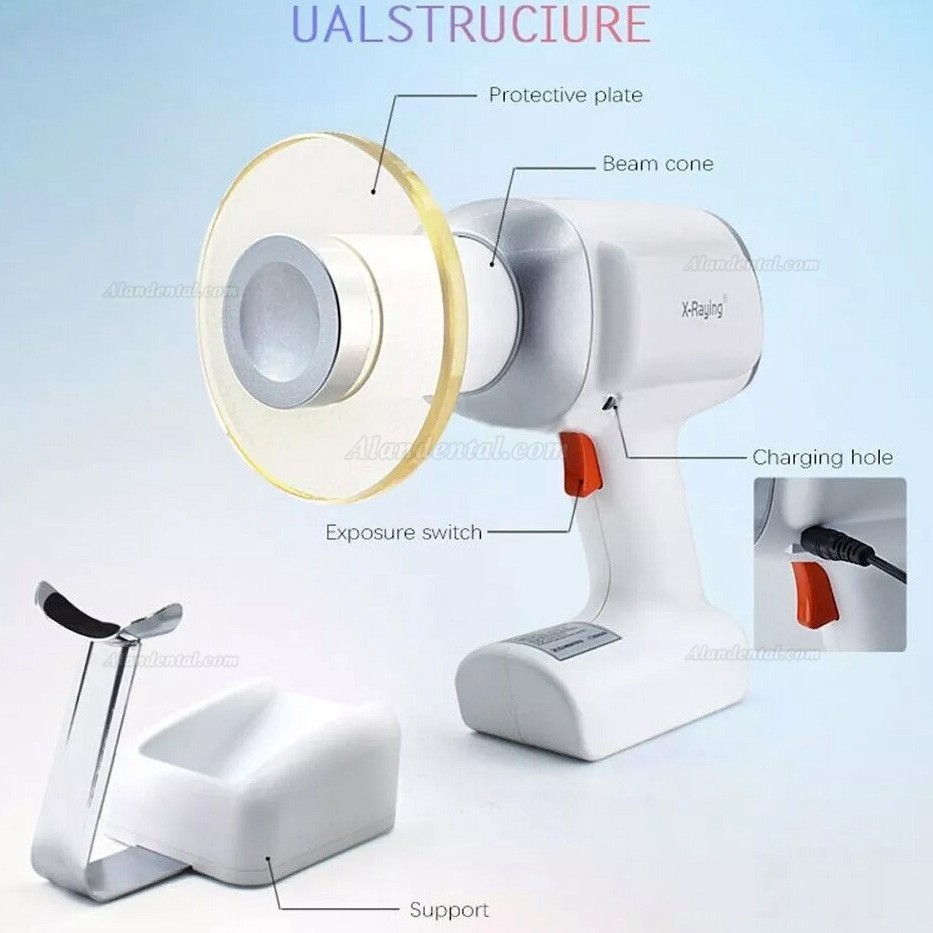

Structural composition: the product consists of the host (including the X-ray tube, controller and rechargeable battery), beam limiting tube, power adapter, stand and exposure switch.

Contraindication: the patients and operators with cardiac pacemakers are prohibited, pregnant women exposed to X-ray is prohibited, X-ray irradiation should be used with caution in children.

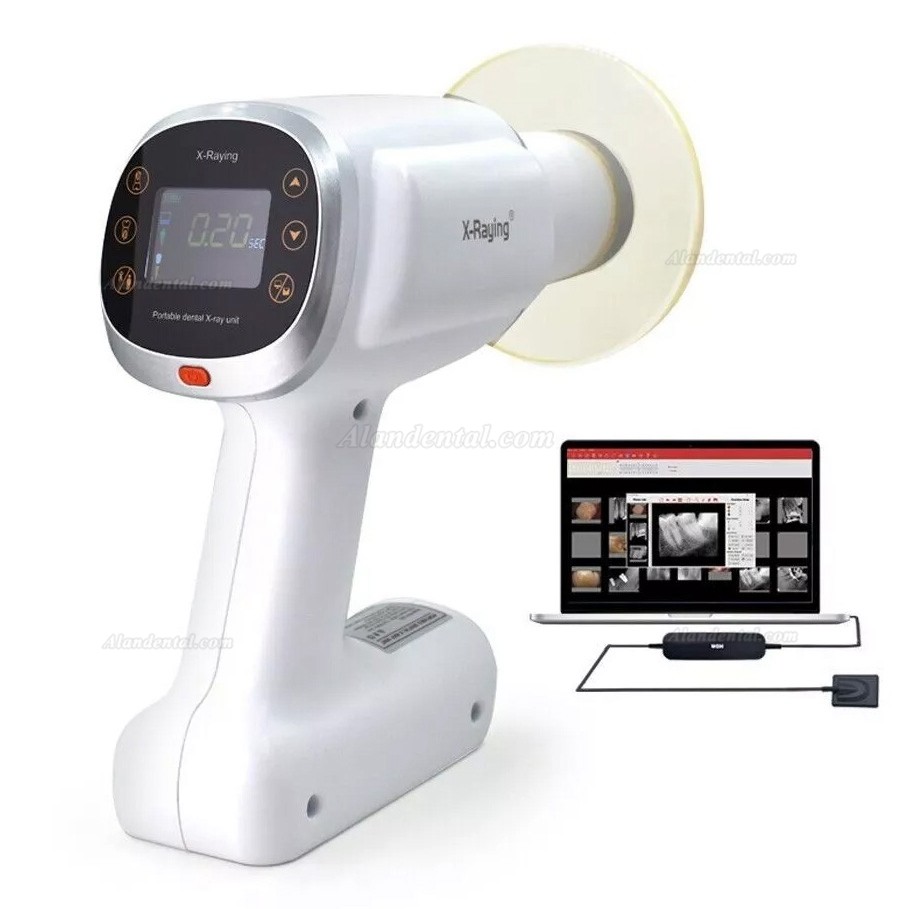

Main feature: the product is a high frequency dental X-ray equipment, rated tube voltage is 60kV DC, rate tube current is 2 mA, the inverter X-ray control method is adopted, for chemical film and digital sensor diagnostics to obtain high quality dental images, the power supply of the X-ray system is 24V DC, powered by a rechargeable battery pack.



Tube voltage: 60KV

Tube current:2mA

Exposure time:0.1-2.0s

Frequency:30KHz

Rate power:120VA

Distance from skin to cone:150mm

Tube focus:0.4mmx0.4mm

Battery:1550mAh

Charger input voltage:AC110V-240V

Output voltage:DC14.8V-16.8V

Ambient temperature:5*C-40'C

Relative temperature:<75% RH

Net weight:1.7KG

Gross weight:4.0KG

Size(mm):276*125.235

Package Size(mm):420 185*350

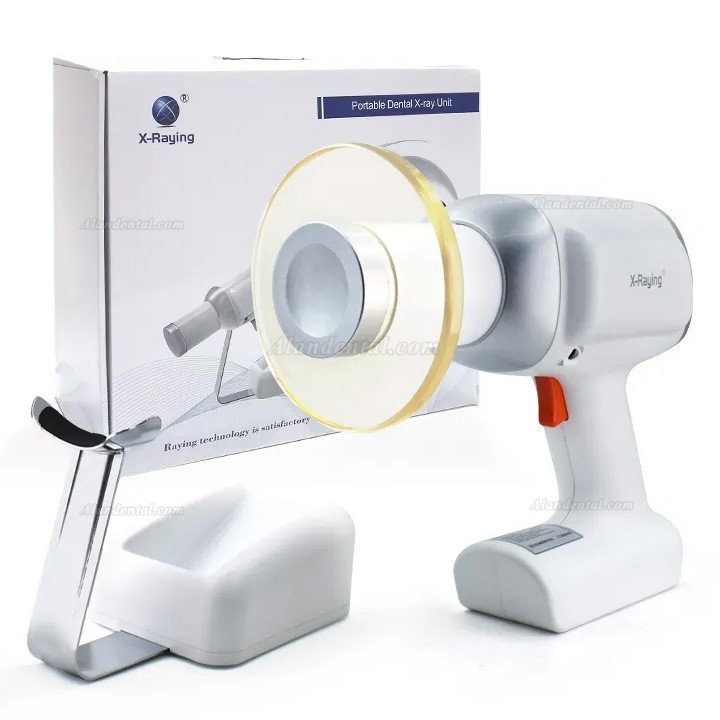

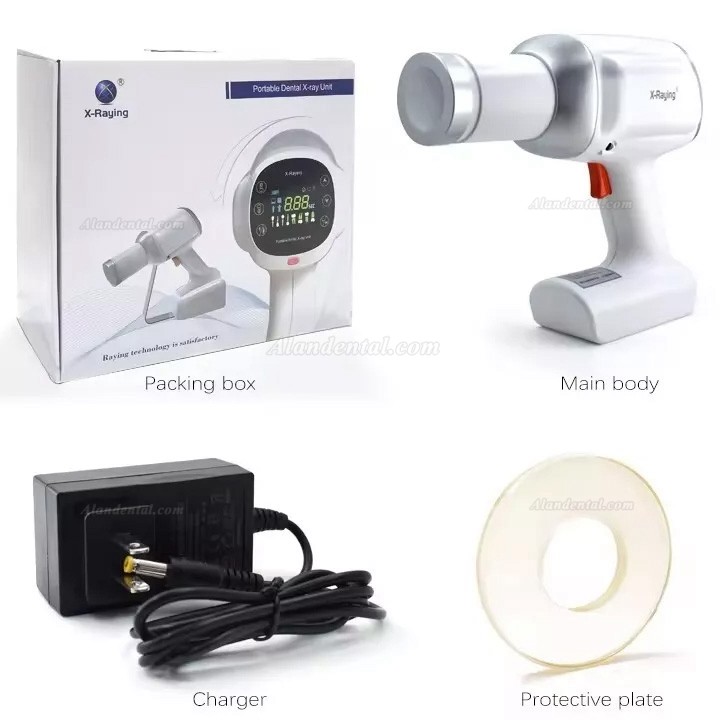

Main Unit 1pc

Adaptor 1pc

Power Line 1pc (length 2m)

Beam limiting device 1pc

Lead apron 1pc

English Manual 1pc

Packing Box 1pc
