Dental Electrocautery System Portable Electrosurgery Unit ES-01

Dental Electrocautery System Portable Electrosurgery Unit ES-01
Item No. ADL003613
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
- Special Offer in Christmas 2024:
- 6% Off On Total Order Amount!
- Free to get one 3-way air syinge on orders over $100
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Market price:$1270.46
But It Now : $769.98
Voltage :

Plug :

Quantity :
Limit points for buying:700 score
Weight:0gram
Goods click count:13

Item Description Reviews

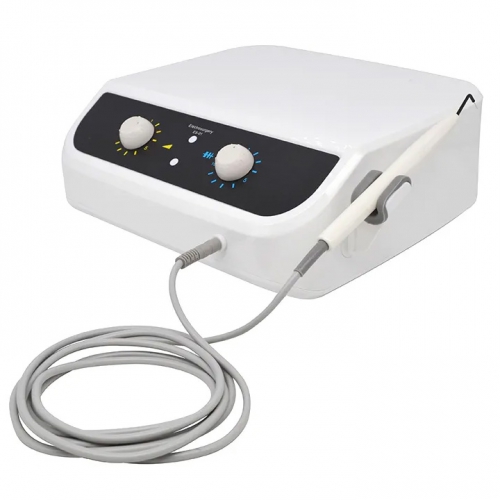

Dental Electrocautery System Portable Electrosurgery Unit ES-01

Features:

1. Safe/Professional/Effective/Convenient

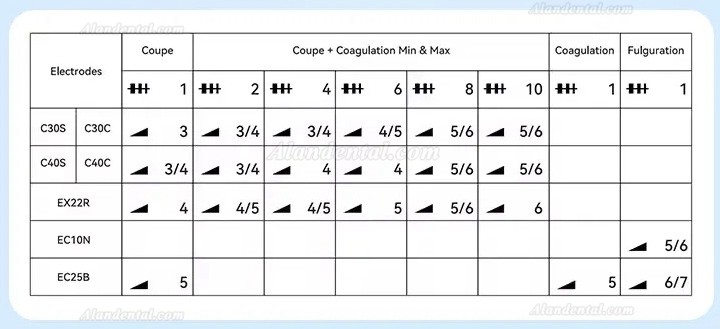

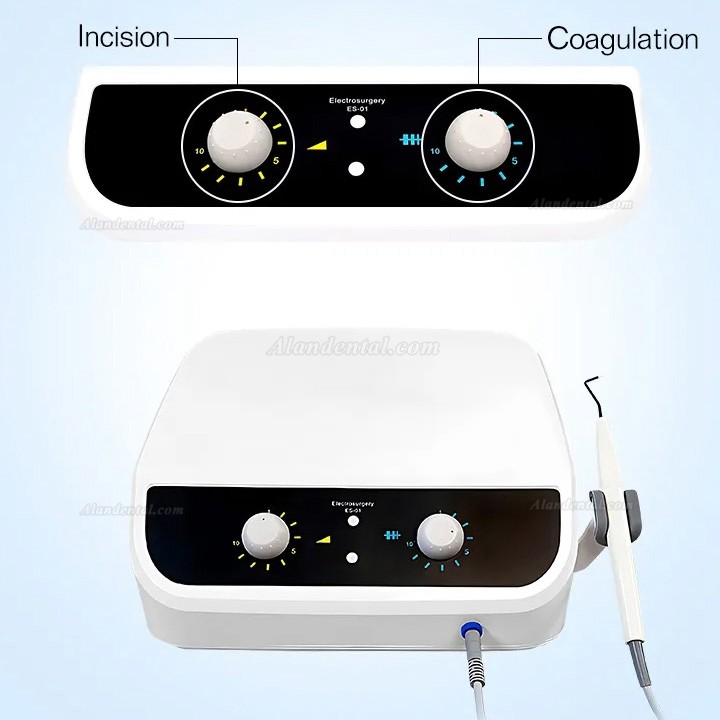

2. Incision and coagulation can be adjusted freely

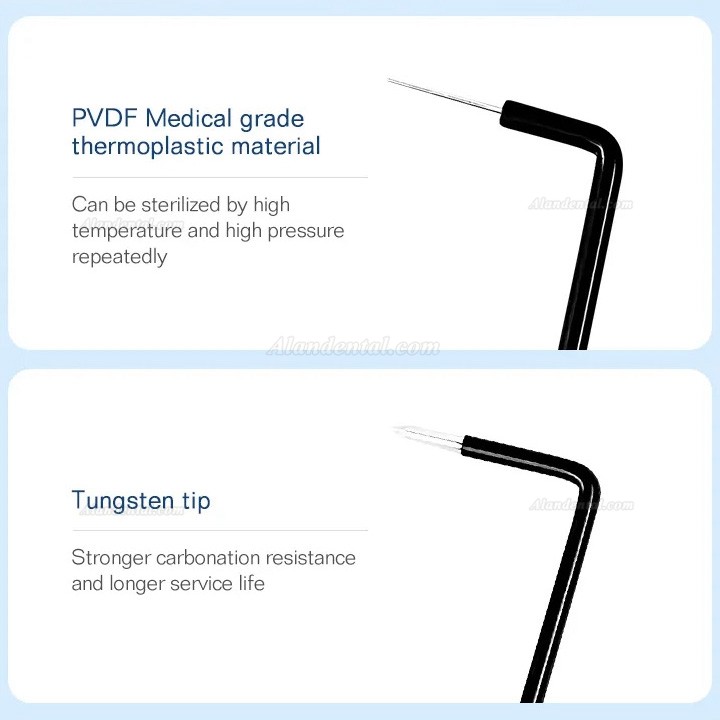

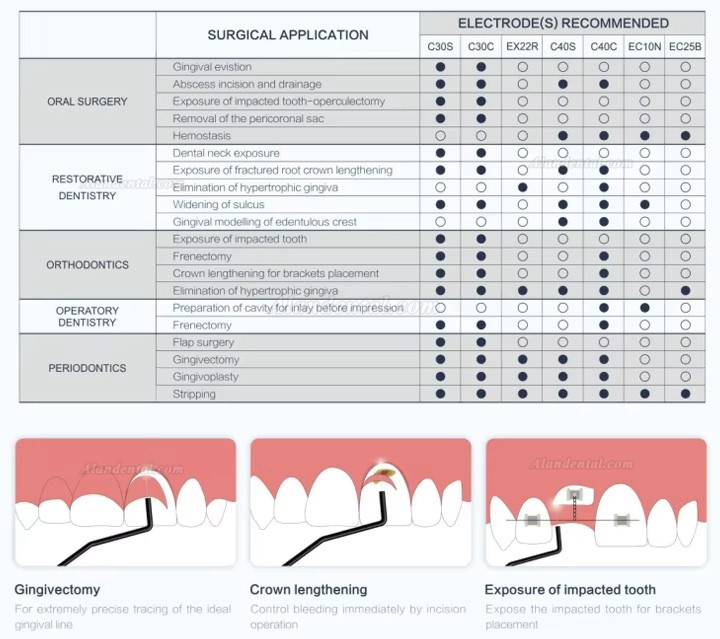

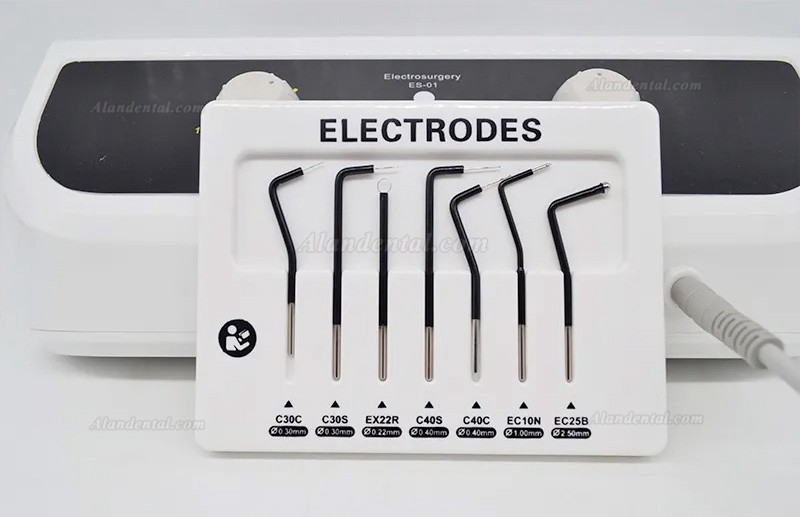

3.Seven pieces high performance and hyperfine electrodes

4. Reliable and compact unit

5. Excellent therapeutic control

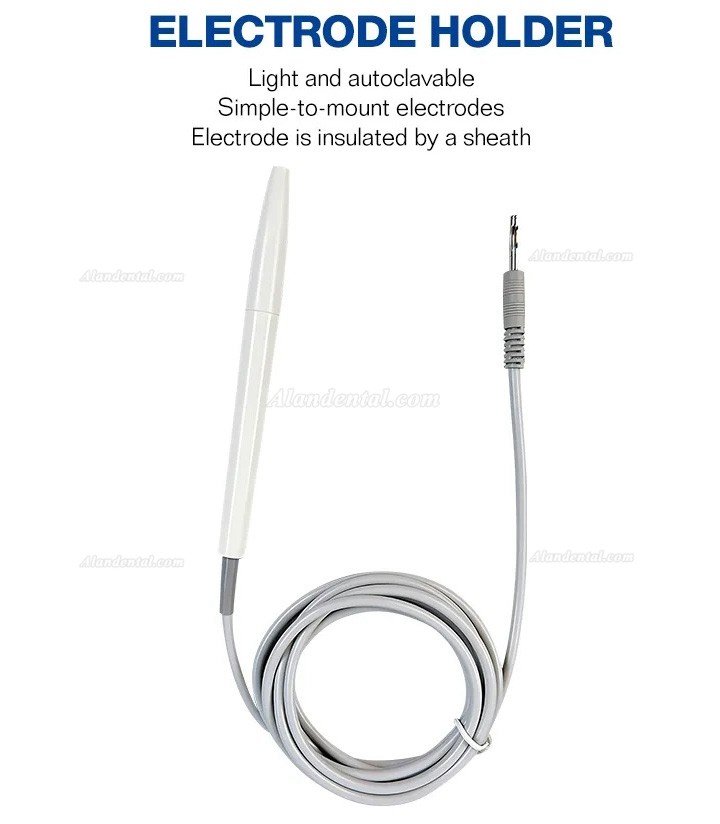

6. The whole set of electrode holder is light and autoclavable

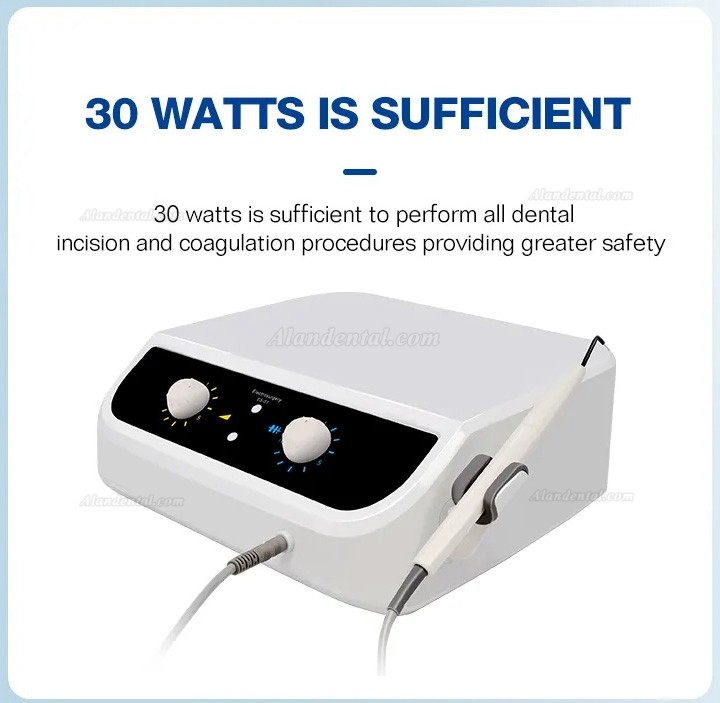

7. Innovative conductive bracelet (Neutral Electrode) 8. 30 watts is enough for greater

Specifications:

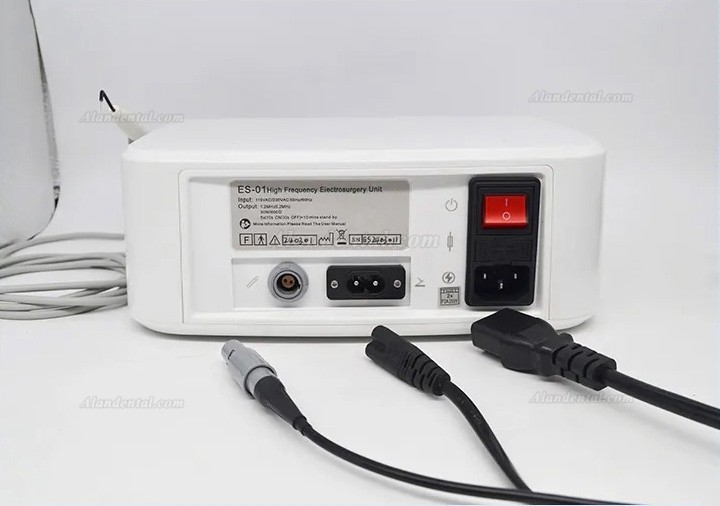

Supply voltage: 115VAC / 230VAC

Supply frequency: 50 Hz / 60Hz

Power consumption: 170 VA to 230 VA

Max power output: 30W

Characteristic impedance: 600Ω

Output impedance range: 100Ω to 2000Ω

Output voltage: 650V PP - P = 10, W=1

Output frequency: 1.2MHz ± 0.2MHz

Main unit dimensions: 23 x 26 x 11cm

Main unit weight: 1.5kg

Net weight: 2.0kg

Gross weight: 3.0kg

Box dimensions: 37 x 37 x 17cm

Operating temperature: +10ºC to +30ºC

Storage temperature: -20ºC to +70ºC

Operating relative humidity: 30% to 75%

Storage relative humidity: 10% to 100% including condensation

Atmospheric pressure: 80KPa to 10

Altitude : ≤2000 met

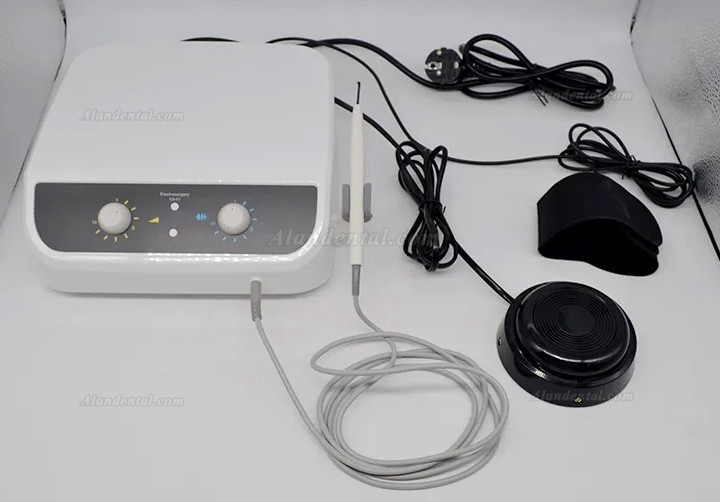

Packing List:

1. Main Unit x1

2. Electrode Holder x1 with cord

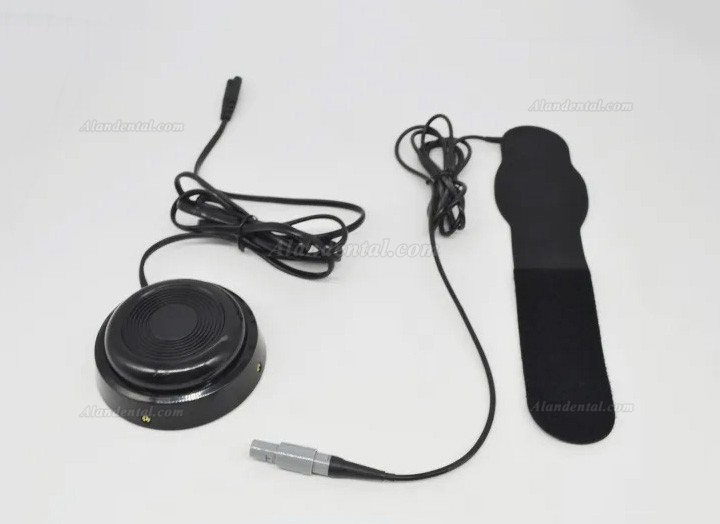

3. Wired Foot switch x1

4. Power Cable x1 with grounding

5. Electrode Holder Silicone Pad x2

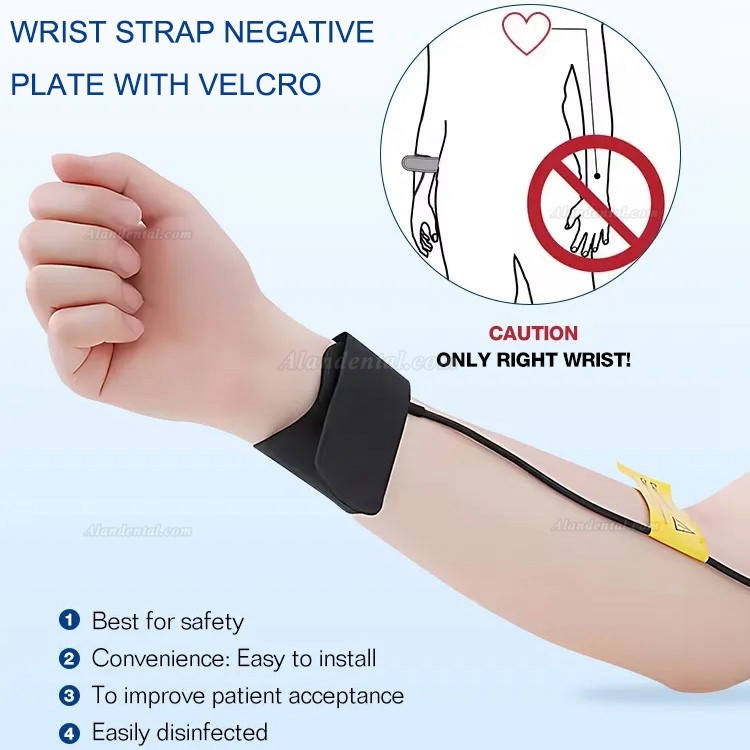

6. Bracelet (Neutral Electrode) x1 with cord

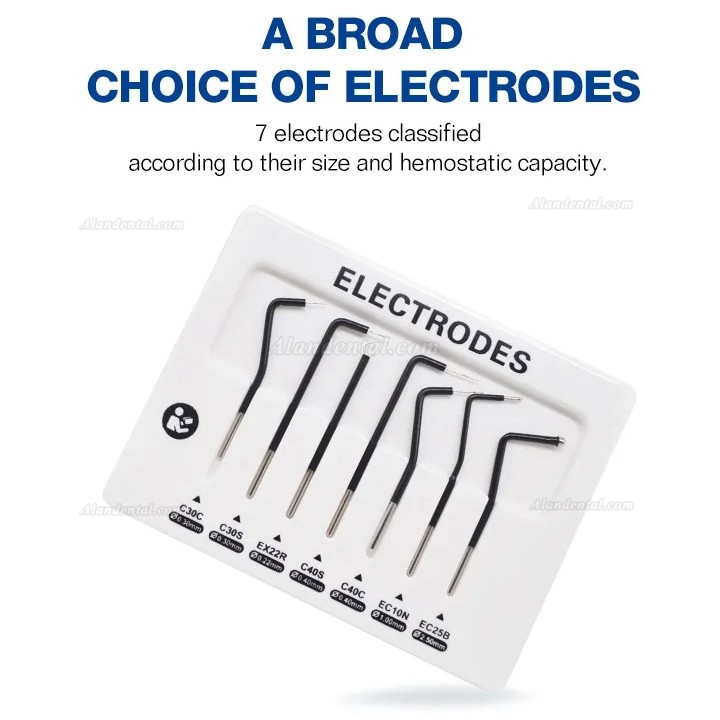

7. Electrodes x7 7 pcs/box

8. User Manual x1

9. Warranty Card x1

10. Packing List x1

11. Quick Guide x1
