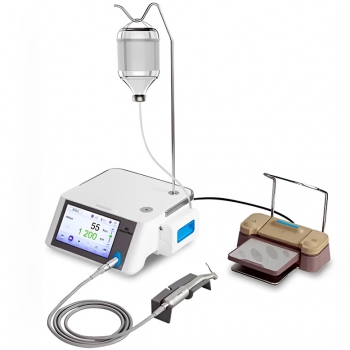

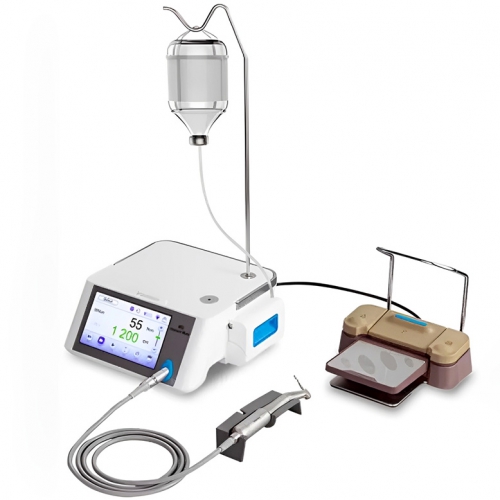

Dental Brushless Implant Motor Surgical Unit Mate M3

Dental Brushless Implant Motor Surgical Unit Mate M3
Item No. ADL003620
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
Market price:$3615.11
But It Now : $2190.98
Voltage :

Plug :

Quantity :
Limit points for buying:2100 score
Weight:0gram
Goods click count:9

Item Description Reviews

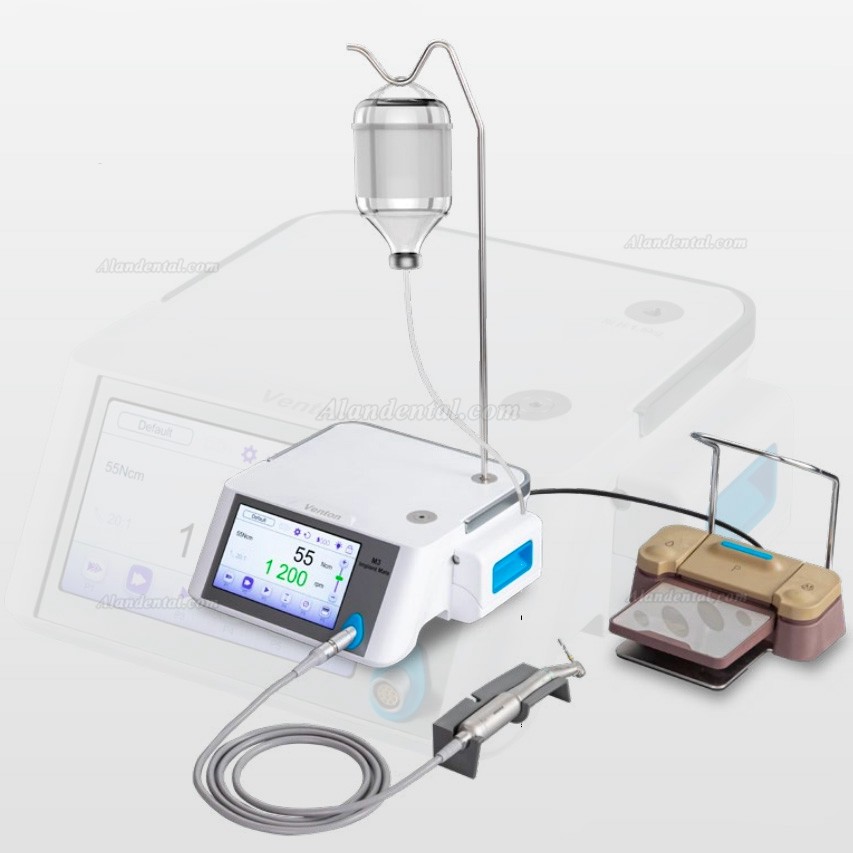

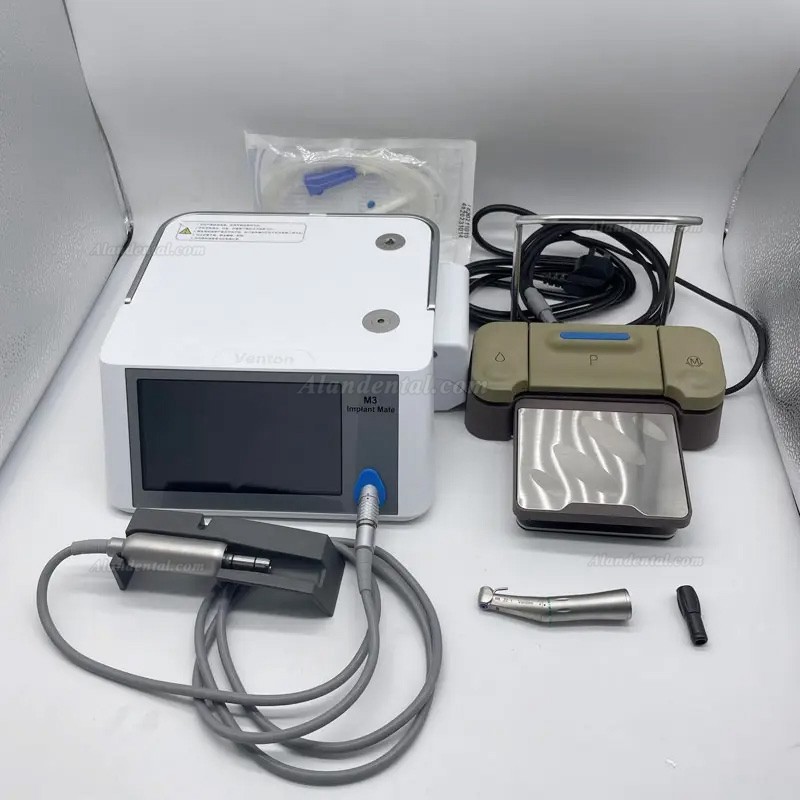

Dental Brushless Implant Motor Surgical Unit Mate M3

Features:

- 7-inch touch screen for easier use Implant data can be stored in USB

- 10 program Settings to meet the needs of customized implantation

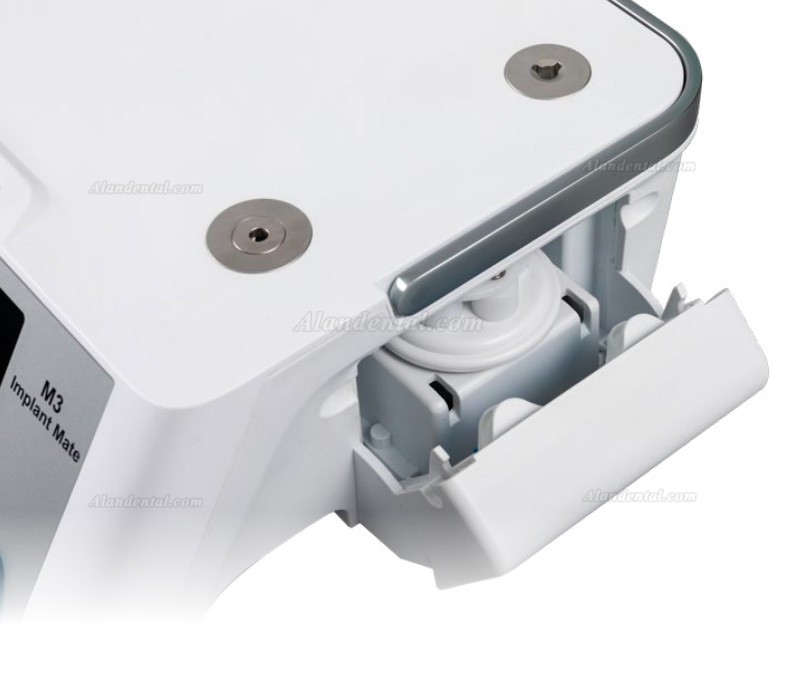

- New pump design, making water tube installation more convenient

- The 20:1 dental handpiece features a slim design and an elegant appearance, with a torque range of 5-70 N·cm.

- A multifunctional foot control that includes a water volume switch, program selection, motor rotation direction control, and stepless speed regulation.

About Automatic Thread Cutter Mode:

- When this mode[P5] is activated, the speed in both forward and reverse modes is 20rpm and can no longer be changed.

- When the foot pedal is pressed, the bur rotates inwards until the torque is reached.

- When the set torque is reached, the bur automatically switches to reverse.

-Disengaging and then re-engaging the foot pedal will switch the device back to forward operation.

Venton Mate M3 Dental Brushless Implant Motor Surgical Unit

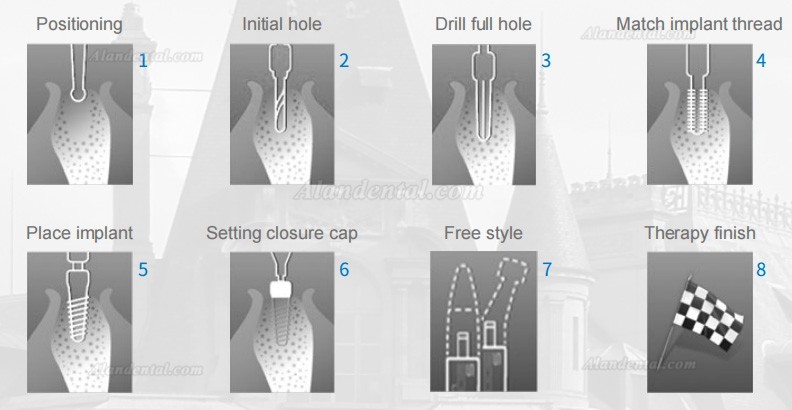

Recommended setting:

	Positioning	Initial hole	Drill full hole	Match implant thread	Place implant	Setting clos ure cap
RPM	1200-1500	1000-1200	800-1000	15	15	15
N.cm	100%	100%	100%	50	30	30
Coolant volume level	Third level	Third level	Third level	Close	Close	Close
Handpiece ratio	20:1	20:1	20:1	20:1	20:1	20:1

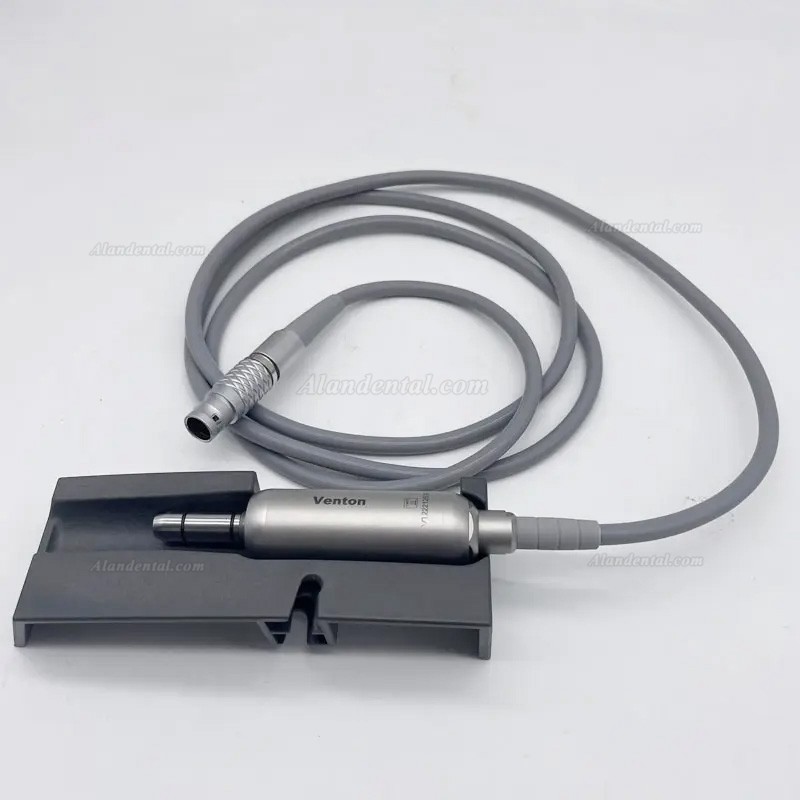

20:1 Handpiece technical parameters:

-	Motor without LED	Motor with LED
Maximum torque of motor	5.5N.cm	5.5N.cm
Dimension of motor	L49xW22mm	L69xW23.9mm
Net weight of motor	110g	139g
Length of motor cable	1.8m	1.8m
Autoclavable motor and cable	134°C, last at lease 3 mins	134°C, last at lease 3 mins
The maximum noise of the motor without loading	<40dB	<40dB
Motor with LED light at high color rendering index	-	Natural daylight,adjustable brightness levels

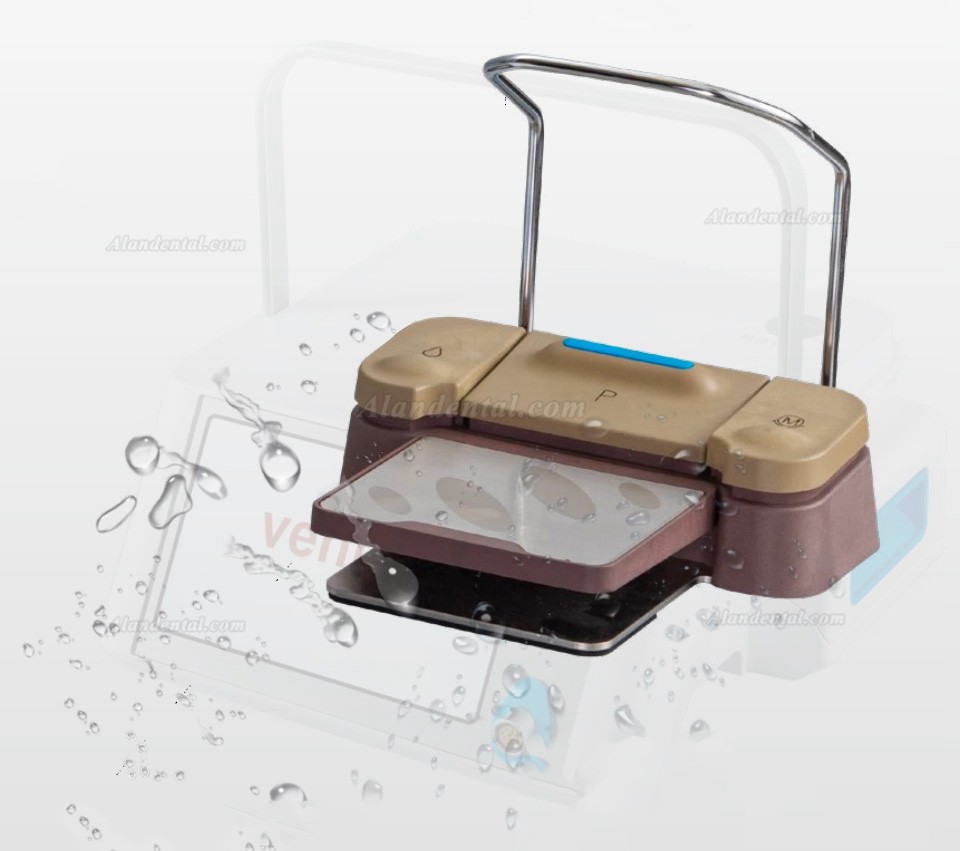

Foot control technical parameters:

Waterproof level of foot control: IPX6

Dimension of foot control (LxWxH): 200X210X85mm

Cable length of foot control: 2.8m

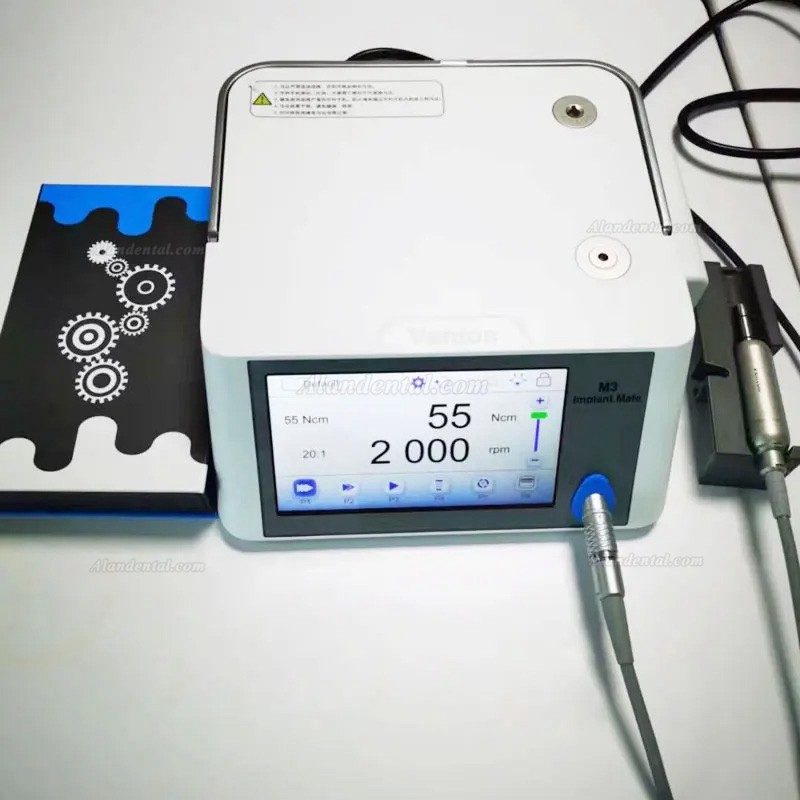

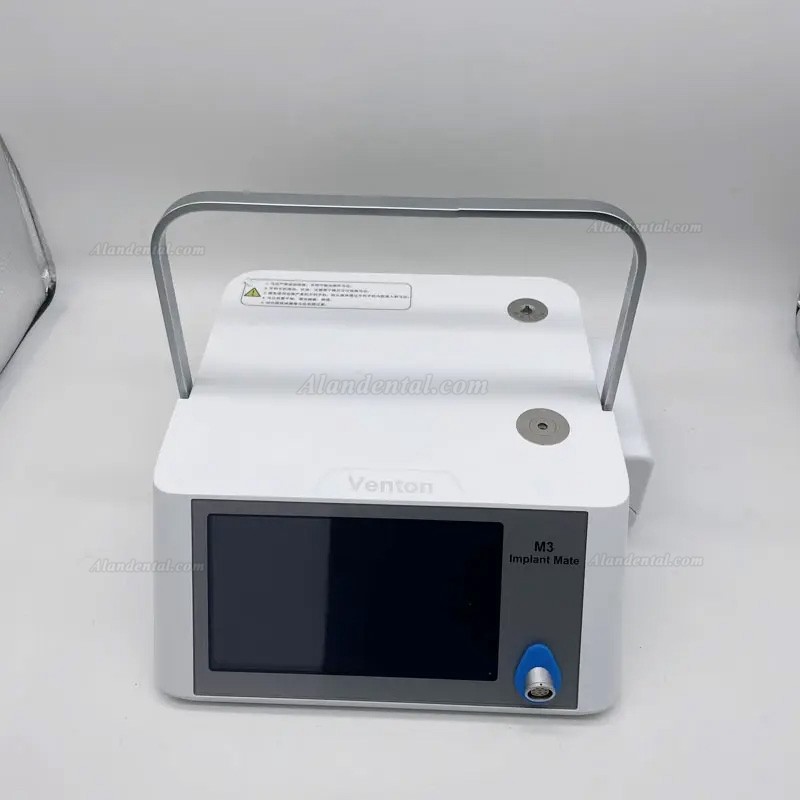

Technical parameters:

Model	M3
Touch screen size	1024x600mm (7 inches)
Speed and torque display	Real time
Program settings	10 types
User modes	9 types

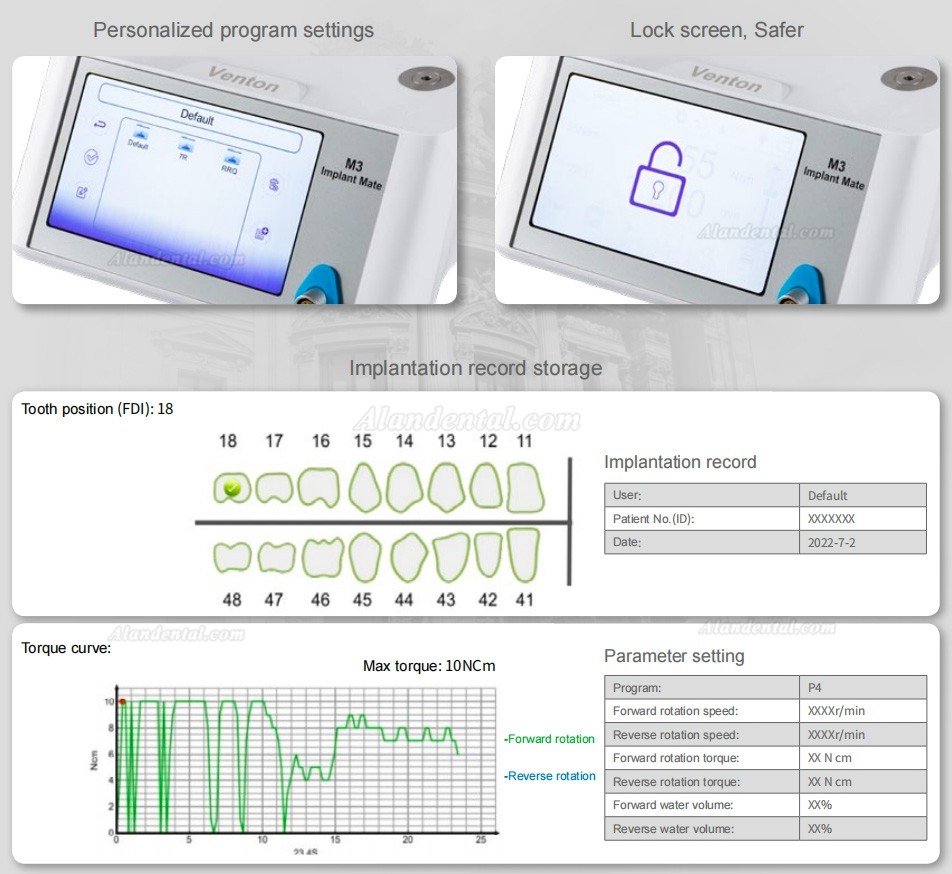

Curve of torque during implantation	Allow data storage and export
Implant record	Allow data storage and export
Setting parameter record	Allow data storage and export, indudes: program,speed,torque, coolant volume
Torque testing of handpiece	Yes
Lock screen function	Yes
Automatic thread cutter function	Yes
Adjustable motor rotation	100-40,000rpm
Motor with LED light at high color rendering index	Natural daylight, adjustable brightness levels
Transmission ratio of handpiece	1:1,20:1
Maximum torque of bur	7ONcm
Waterproof level of foot controller	IPX6
Function of foot controller	Coolant pump ON/OFF, Program change, Forward/reverse rotation
Coolant pump	Built-in
Coolant volume at 100%	>90mL/min
Colour of main unit	White

Dental Brushless Implant Motor Surgical Unit Mate M3
