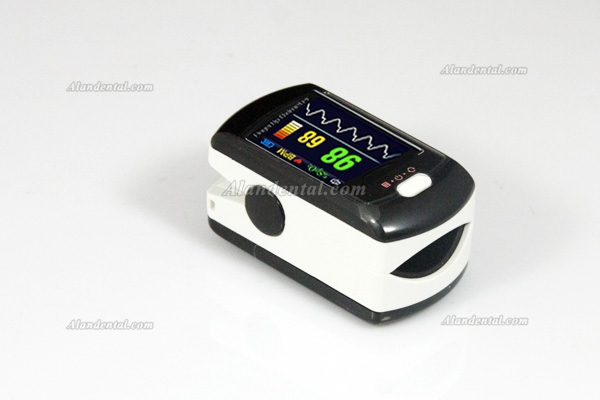

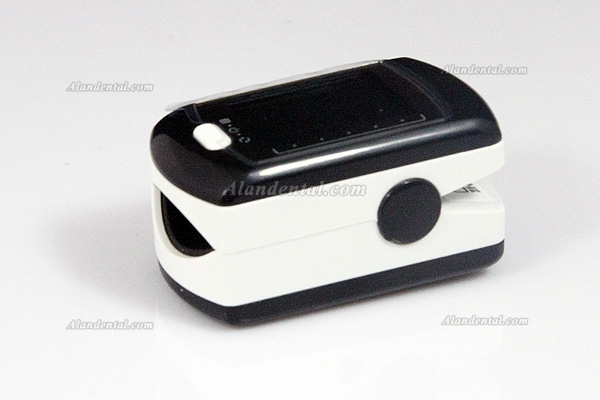

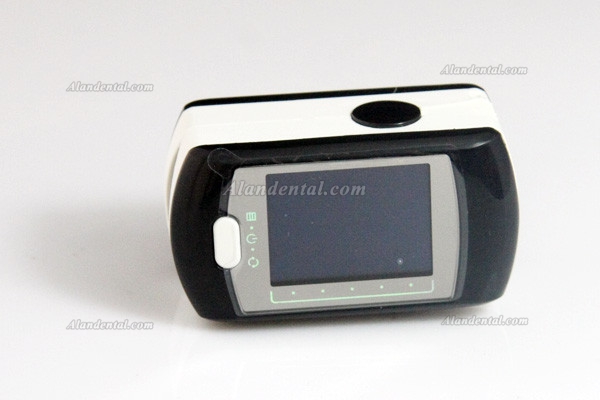

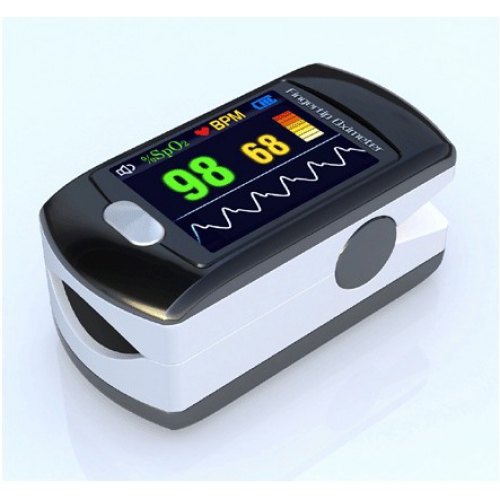

CMS50E Fingertip Pulse Oximeter

CMS50E Fingertip Pulse Oximeter

Major Features
1. Integrated with SpO2 probe and processing display module
2. Small in volume、light in weight and convenient in carrying
3. Operation of the product is simple ,low power consumption
4. Operation menu for the function setting
5. SpO2 value display
6. Pulse rate value display, bar graph display
7. Pulse waveform display
8. The display mode can be changed
9. Screen brightness can be changed
10. A pulse rate sound indication
11. With measured data overruns limits and low-voltage alarm function，the upper/down alarm range can be adjustable
12. Battery capacity indication
13. Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage，and with alarm function
14. With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers）
15. Real-time data can be transmitted to computers
16. Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe.
17. RF Wireless communication function(option)（only applied for Ver6.6R or above )
18. Connected with an external oximeter probe(option)（CMS50EW, only applied for Ver6.6R or above of CMS50E

Main performance
Display Mode: 1.3" 65K Color OLED display
Screen Resolution：128*96
SpO2 Measuring Range：0%～100%, (the resolution is 1%).
Accuracy：70%～100%：±2% ,Below 70% unspecified.
PR Measuring Range：30bpm～250bpm, (the resolution is 1bpm)
Accuracy：±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption：less than 50mA
Voltage: DC 3.6V～4.2V
Power Supply: Voltage 3.6 rechargeable lithium battery × 1
Battery working hour:10 hours
Battery working life: Charge and discharge no less than 300 times.
Safety Type: Interior Battery, BF Type

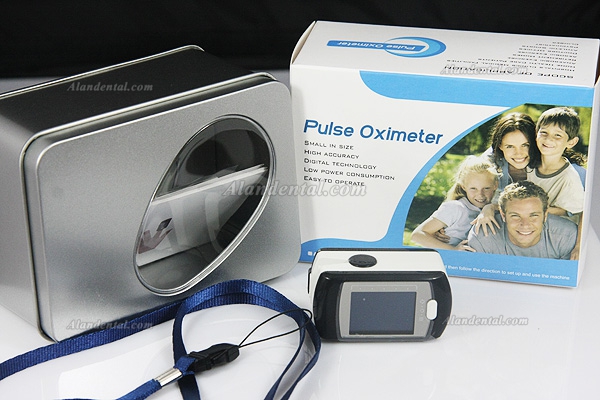

Accessories
Sell in standard
 a hanging rope
 a user manual
 a data line
 a disk (PC software)

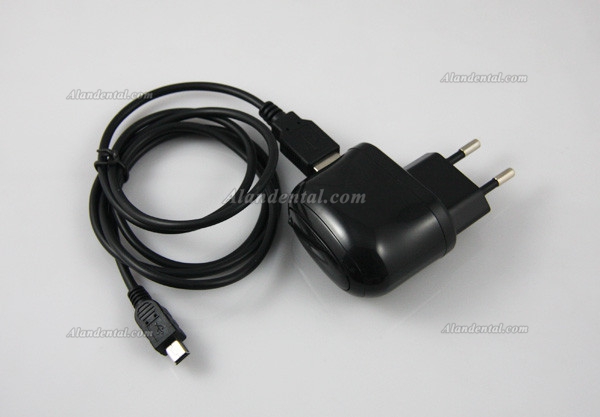

 a power adapter （GTM41076-0605;CMS0105）

Physical Identity
Dimension: 57(L) × 32(W) × 30(H) mm
Weight: About 50g (with a rechargeable battery)
