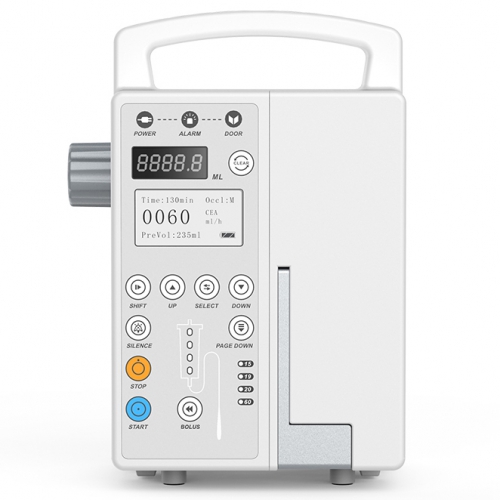

Beyond® BYS-820D Infusion Pump without Support

Beyond® BYS-820D Infusion Pump without Support
Item No. BYS-820D
Reviews: 5 stars, 0 reviews
Brand:Beyond
Manuals and Documentation:

Beyond BYS820,BYS820D,BYS820S Brochure.pdf.pdf
- Special Offer in Christmas 2024:
- 6% Off On Total Order Amount!
- Free to get one 3-way air syinge on orders over $100
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Market price:$866.99
But It Now : $525.99
Quantity :
Weight:0gram
Goods click count:2034

Item Description Reviews

Beyond® BYS-820D Infusion Pump without Support

Features of Infusion Pump

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;

2. Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;

3. Compatible with any brands of infusion sets after correct calibration;

4. Preset solution volume to greatly reduce the workload of nurses;

5. Work mode: ml/h and drop/min can switch freely;

6. Three levels of occlusion: high, middle and low;

7. Purge function;

8. KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 1-5ml/h(1ml/h step);

9. Power Source: AC100---240V, 50/60Hz; Internal Battery;

10. Automatically record the settings of last infusion;

11. BYS-820D can store 2000pcs of infusion records and it has a drug library.

Specification of Infusion Pump

Rate:1ml/h ~ 1,200ml/h

Flow Rate Accuracy:Within ±5% (after correct calibration)

Mechanical precision:Within ±2%

Purge Rate:100ml/h ~ 1,000ml/h (100 ml/h step)

Infusion Volume:1ml ~ 9999ml

Total Infusion Volume:0.1ml ~ 9999.9ml

KVO rate:1ml/h ~ 5 ml/h (1ml/h step)

Occlusion:

High: 800mmHg ±200mmHg (106.7kPa±26.7kPa

Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa

Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )

Unique audible and visible alarm:

Human voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.

Power Source:

AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup

Bubble detector:Ultrasonic wave detector; detection sensitivity ≥25μL

Fuse:F1AL/250V, 2 pc inside

Power Consumption:18VA

Operating Condition:

Ambient temperature: +5℃ ~ +40℃;

Relative humidity: 20 ~ 90%

Atmospheric pressure: 86.0kpa ~ 106.0kpa

Transport & Storage Condition:

Ambient temperature:-30℃ ~ +55℃

Relative humidity: ≤95%

Equipment Classification:Class II, internal power supply, Type CF

IP Classification:IPX4

Dimension:140mm (L) ×157mm(W) ×220mm(H)

Weight:1.8kg (net weight)

Beyond® BYS-820 Infusion Pump without Support
