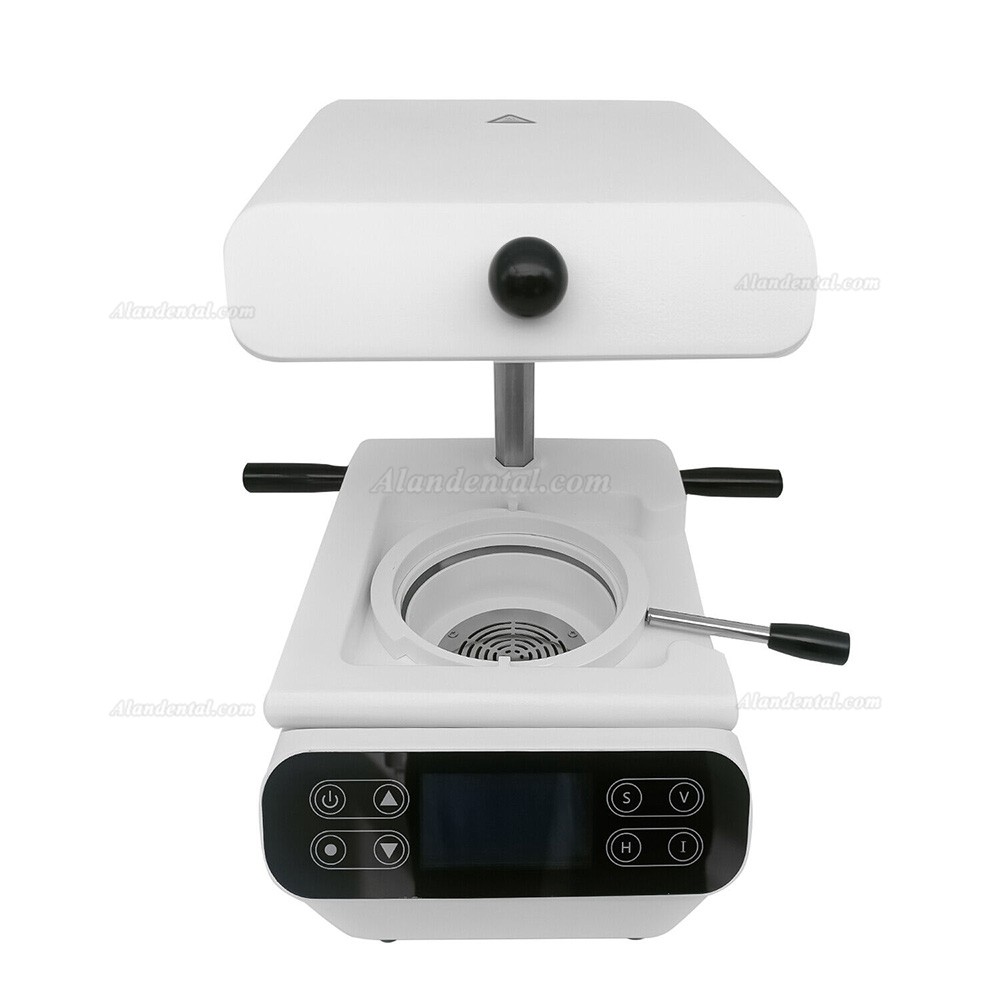

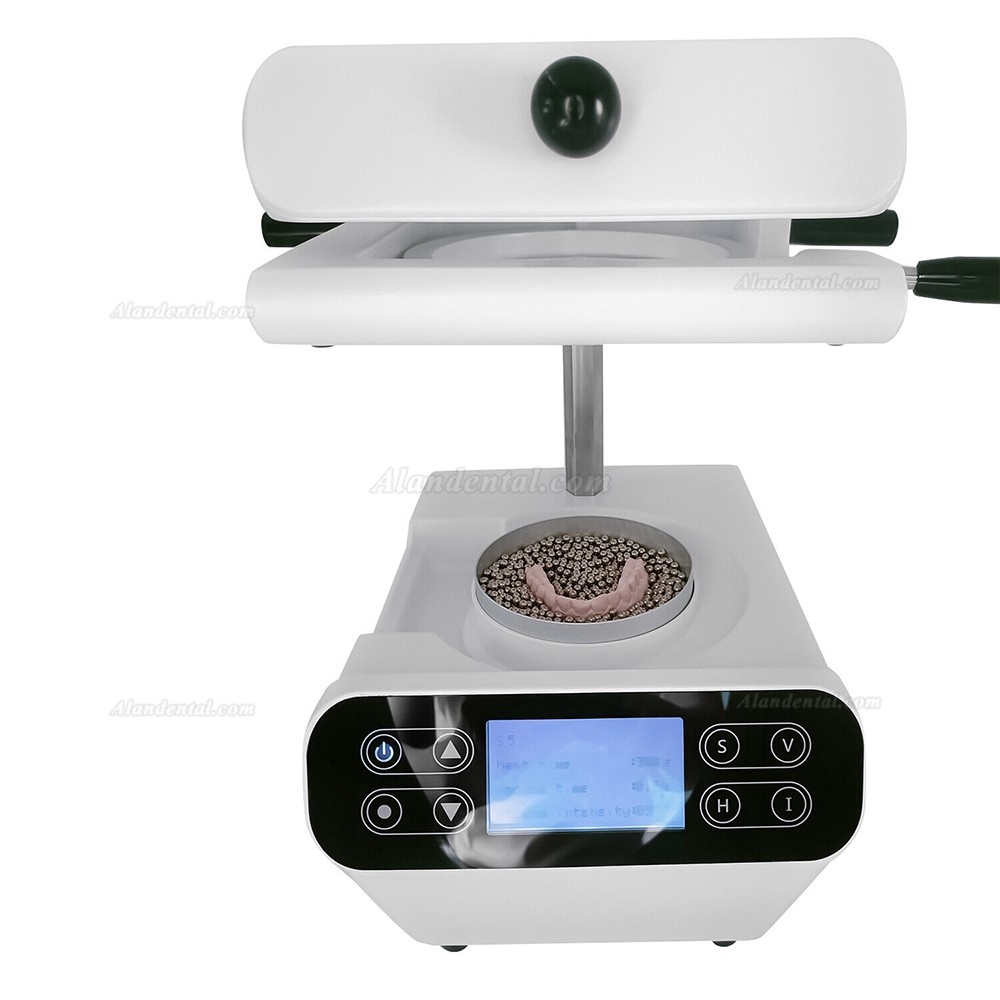

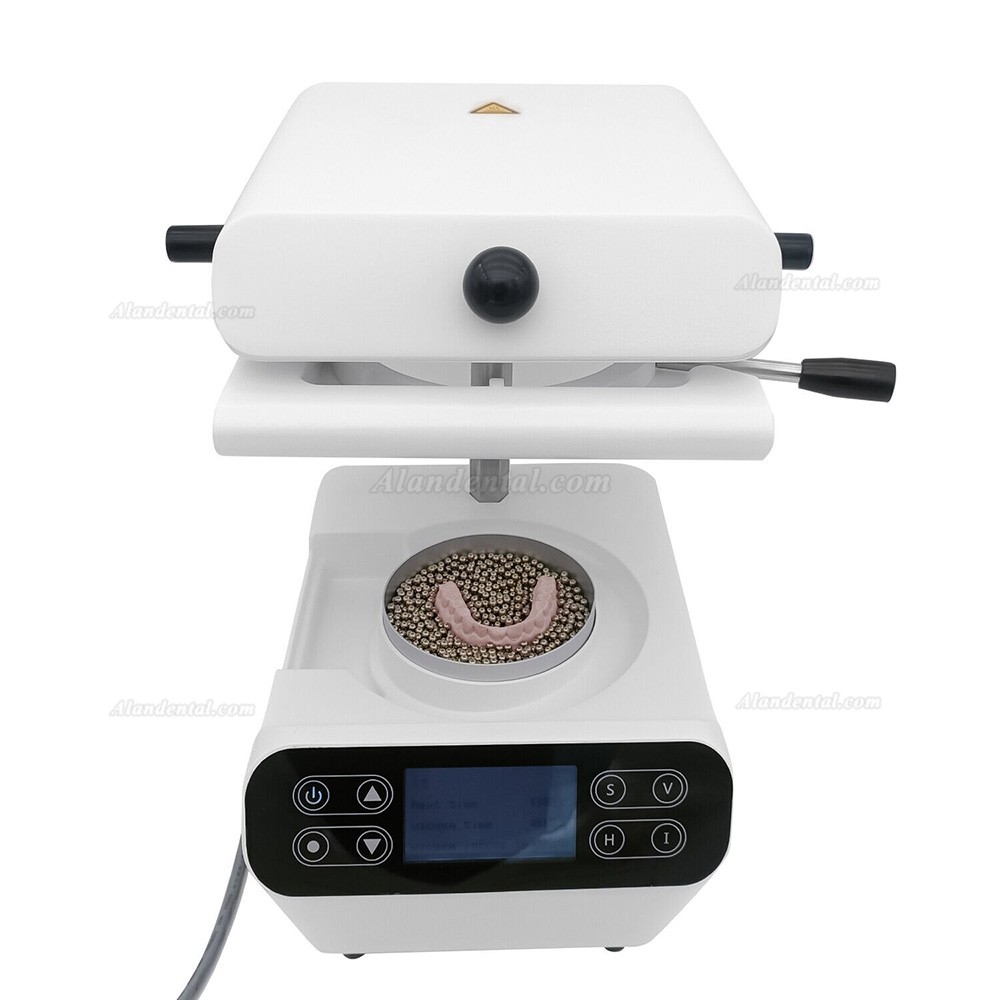

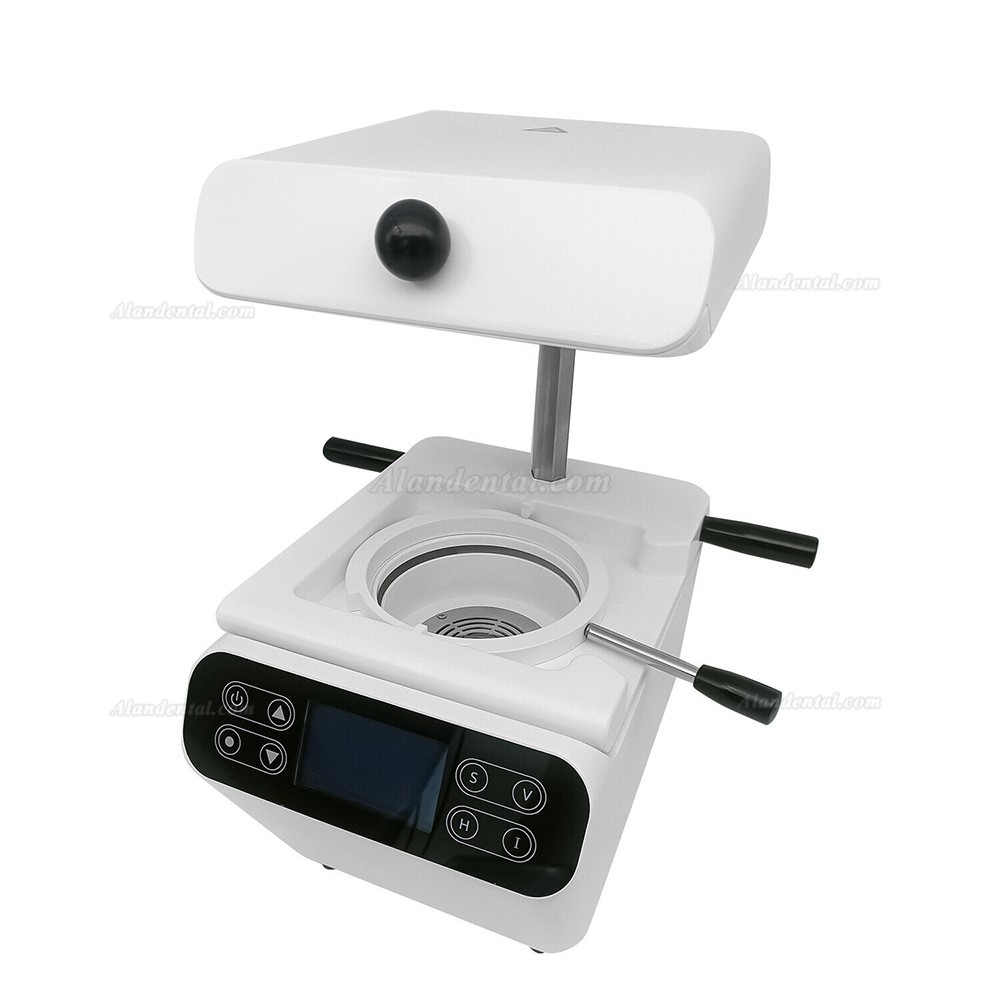

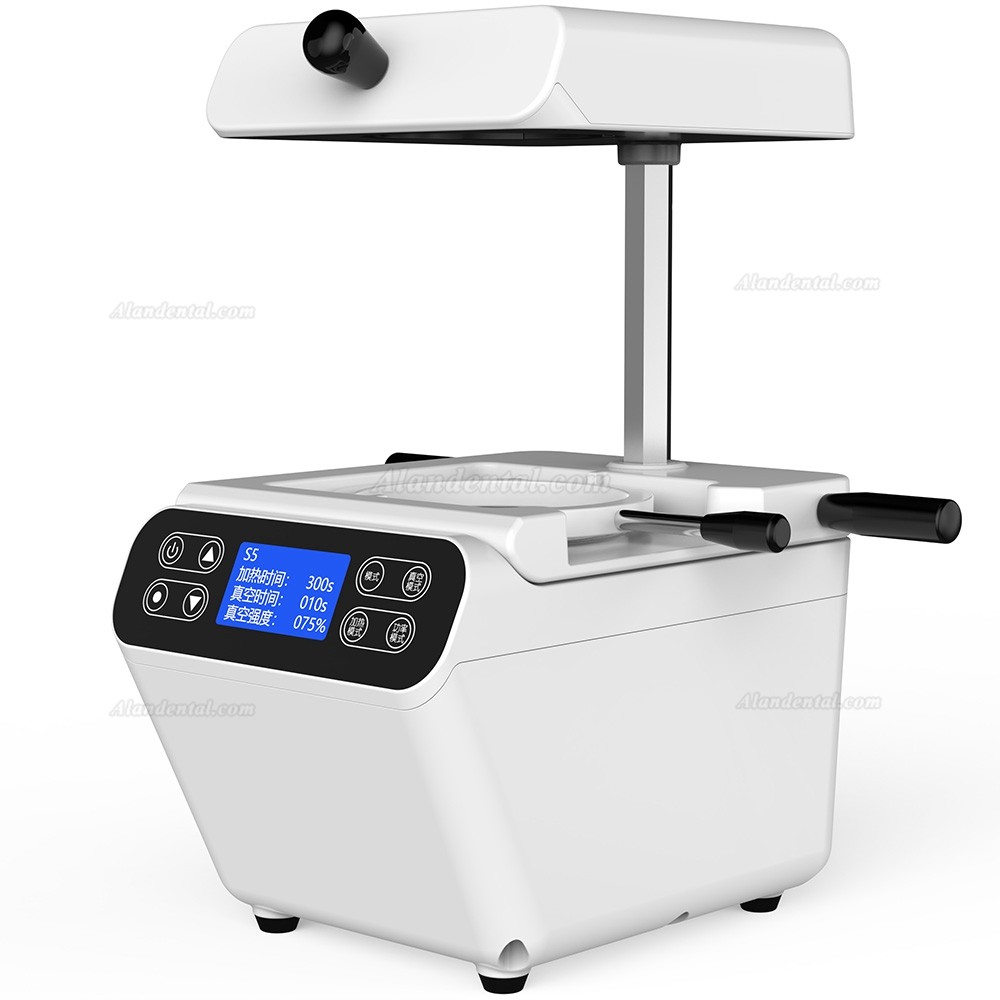

900W Dental Vacuum Forming Former Thermoforming Machine D-1 110V/220V





Professional dental vacuum former devices fit all shapes of thermoplastics sheet

The product is suitable for a variety of clinical applications, from making mouthguards to manufacturing custom trays and retainers.



Tools for creating custom orthodontic appliances: Our vacuum former allows you to set the precise heating time, vacuum time, and vacuum power intensity, giving you complete control over the manufacturing process. With this level of customization, you can produce unique and high-quality appliances that meet the specific needs of your patients. Our vacuum former is easy to use and produces consistent results, making it an essential tool for any dental practice. Invest in our dental vacuum former and take your orthodontic appliance production to the next level.



One of the main features of this Dental Vacuum Former is its heavy-duty downdraft vacuum motor, which provides precise downward suction. This allows dental thermoplastics to be molded accurately and consistently, ensuring a good fit every time.

In addition, the vacuum motor features a symmetrical heating system that achieves even heat distribution and corrosion resistance. This means that the thermoplastics will be heated uniformly, resulting in a smooth and consistent finish.

The adjustable, rust-resistant body of the Dental Vacuum Former is also a great feature. It allows for customization of the forming process to meet the specific needs of each patient. The non-rotating system makes the operation easier and ensures that the thermoplastics are formed in the correct position every time.

Our Dental Vacuum Former is compatible with all dental thermoplastics, making it a versatile and valuable addition to any dental practice. With its high-quality features and precise forming capabilities, this product is a must-have for any dental professional.





The device can store up to five operation modes, labeled as S1-S5. Each operation mode can be set and stored for a heating time, vacuum time, and vacuum power intensity. The heating time can be set within a range of 1-300 seconds, the vacuum time within a range of 1-99 seconds, and the vacuum power intensity within a range of 75%-100%.

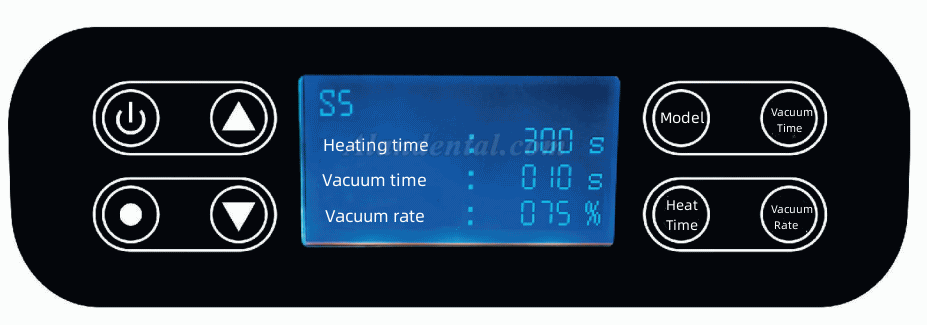

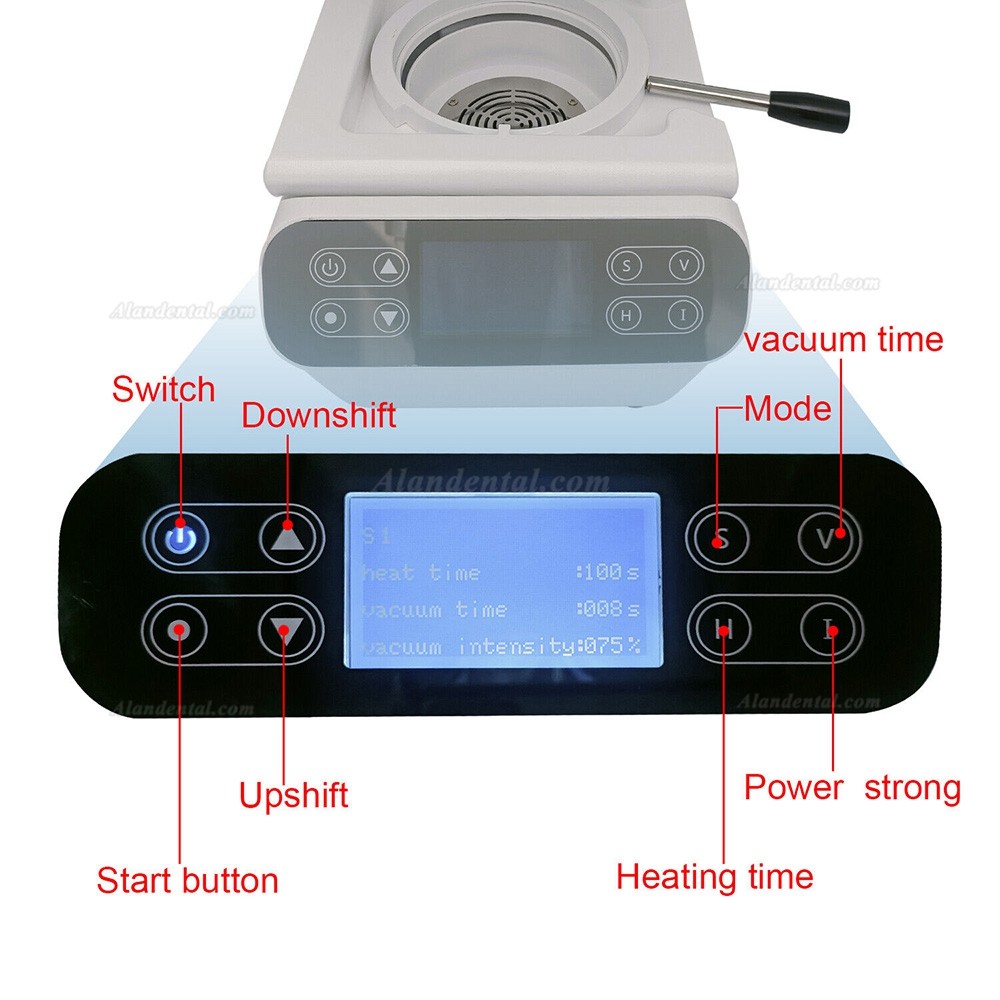

When the device is turned on, the code for the currently set mode will appear on the screen. Pressing the “Mode” button repeatedly will cycle through the five operation modes (S1-S5) and display the specific data for each mode.



1. For setting the heating time: select the desired storage mode and press the “Heating Time” button once. The “Heating Time” button will remain lit, and the “Heating Time” display on the screen will flash. Adjust the heating time by pressing the Triangular Up Arrow or Down Arrow key until the desired time is reached. Press the “Heating Time” button again to turn off the button light. Then, press and hold both Triangular Up Arrow and Down Arrow keys for three seconds until the device emits a “click” sound to lock in the set heating time. The setting for a heating time under that mode is now complete.

2. For setting the vacuum time: press the “Vacuum Time” button once. The “Vacuum Time” button will remain lit, and the “Vacuum Time” display on the screen will flash. Adjust the vacuum time by pressing the Triangular Up Arrow or Down Arrow key until the desired time is reached. Press the “Vacuum Time” button again to turn off the button light. Then, press and hold both Triangular keys for three seconds until the device emits a “click” sound to lock in the set vacuum time. The setting for vacuum time under that mode is now complete.

3. For setting the vacuum power intensity: press the “Vacuum Power” button once. The “Vacuum Power” button will remain lit, and the “Vacuum Power” display on the screen will flash. Adjust the vacuum power intensity by pressing the Triangular Up Arrow or Down Arrow key until the desired intensity is reached. Press the “Vacuum Power” button again to turn off the button light. Then, press and hold both Triangular Up Arrow and Down Arrow keys for three seconds until the device emits a “click” sound to lock in the set vacuum power intensity. The setting for vacuum power intensity under that mode is now complete.





Plugin: 220V 60Hz, 110V 50Hz.

Fuse:250V 8A

Vacuum power: 900W

Heating power: 400W

Dimension: 260x315x380 mm

Net weight: 7.5 Kg
