Yesbiotech Intraoral Xray Sensors Imaging System Dental USB Digital

Yesbiotech Intraoral Xray Sensors Imaging System Dental USB Digital

Product Profile:

Dental digital x-ray imaging system is consisted of sensor, image controller ,image capture system and connection cable (USB port), connected with PC or notebook via USB cable. The power of controller and sensor is supplied by USB port, require no battery or power charge system. The whole equipment need to work together with imaging software.

SKU: DL-L-YES

Operating conditions

Environment Temperature : +10℃～+40℃

Environment relative humidity : ≤75%；

Air pressure : 860hPa～1060hPa；

Transport and Storage conditions

Environment Temperature: -25℃~+85℃;

Environment relative humidity : 10%~80%;

Air pressure : 860hPa~1060hPa;

Technical Specifications

Power: DC5V

Sensor: APS CMOS sensor

External dimension (mm) :27.5×38.5(size1) ; 32.3×44.3(size 2)

Sensor Active Area : 22.5×30(size1) ; 27×36(size2)

Sensor Thickness : 6mm

Dynamic Range : 4,096

Power : USB2.0 (5V, 4.25min)

Image Transfer Time :< 3sec

Cable Length :> 2m

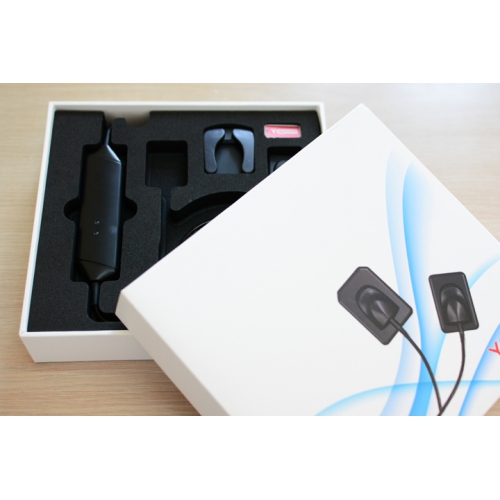

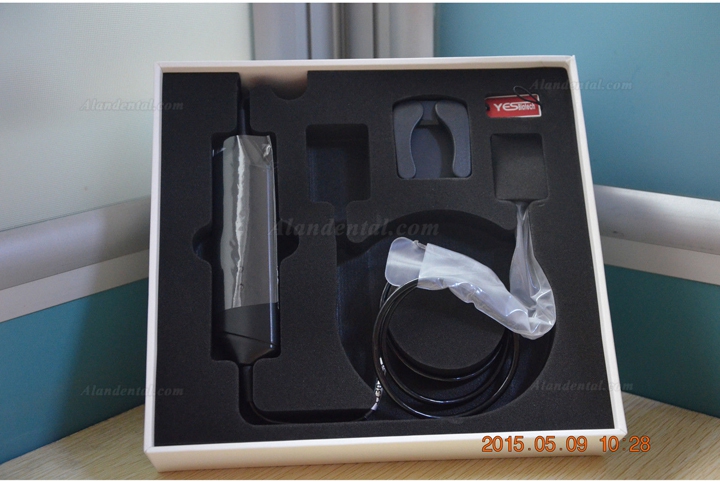

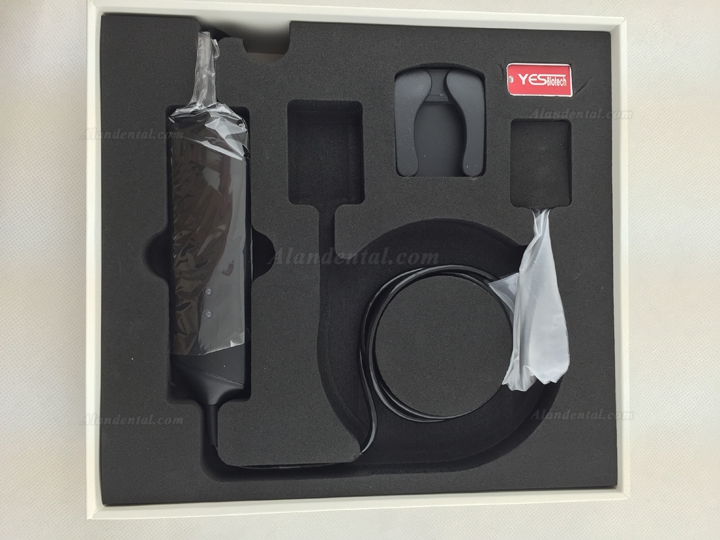

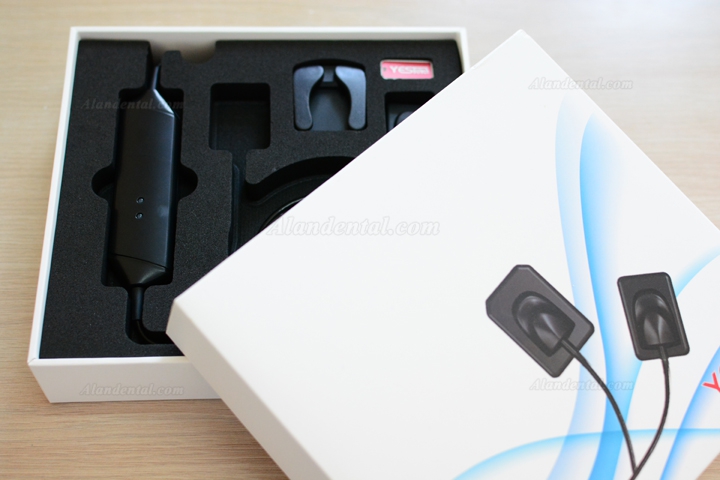

Packing list

Manual     1pcs

CD        1pcs

X-Ray Sensor and Control Box   1pcs

Holder     1pcs

Sleeves     50pcs
