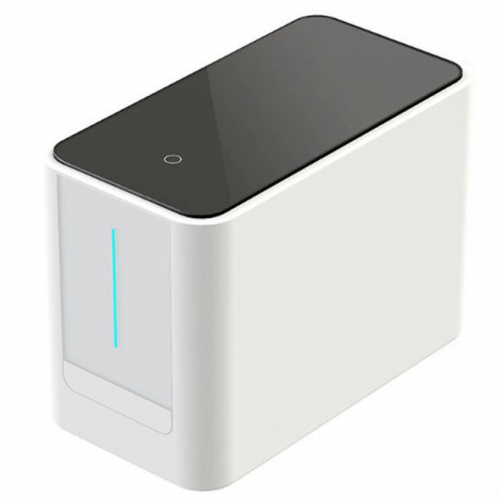

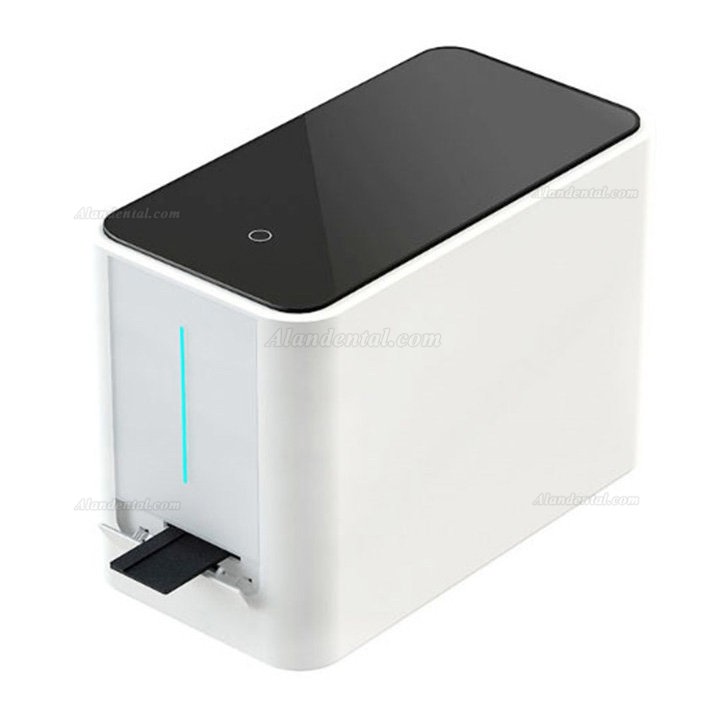

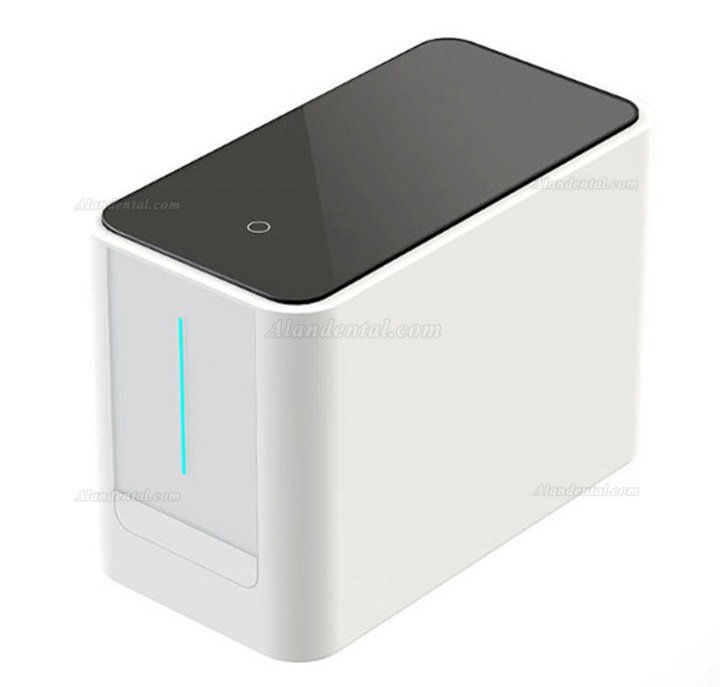

TYRIS CR-100 Dental Digital Intraoral Imaging Plate Scanner Dental Scanning Processing System
Features:

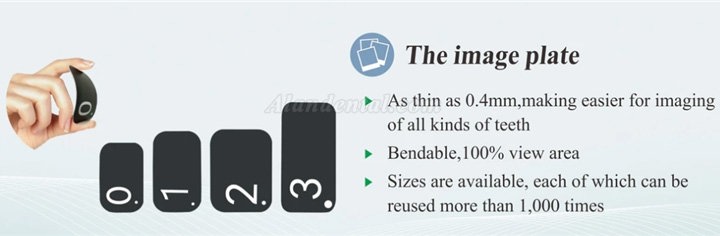

The image plate
As thin as 0.4mm, making easier for imaging of all kinds of teeth. Bendable,100% view area. Sizes are available, each of which can be reused more than 1,000 times.

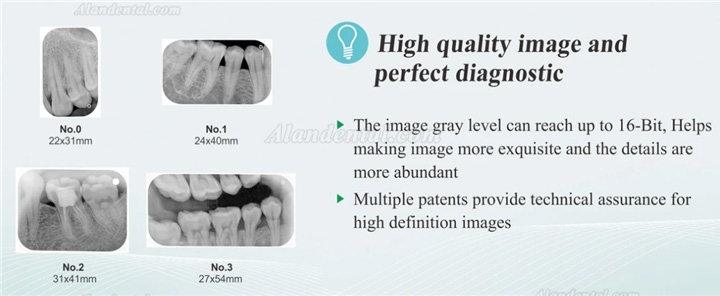

High quality image and diagnostic
The image gray level can reach up to 16-Bit, helps making image more exquisite and the details are more abundant.
Multiple patents provide technical assurance for high definition images.

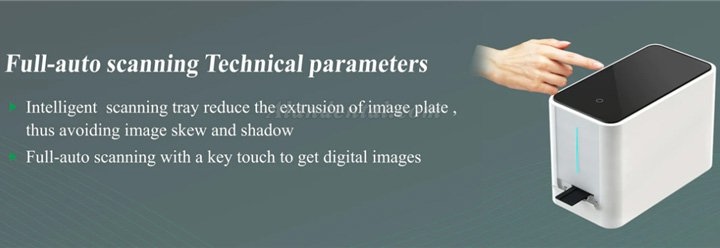

Full-autoscanningTechnical parameters
Intelligent scanning tray reduce the extrusion of image plate thus avoiding image skew and shadow.
Full-auto scanning with a key touch to get digital images.

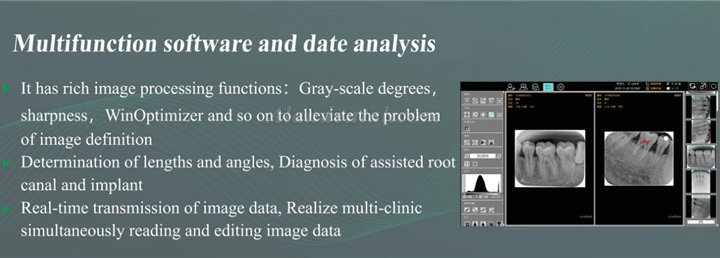

Multifunction software and data:analysis
It has rich image processing functions: Gray-scale degrees, sharpness, WinOptimizer and so on to alleviate the problem of image definition
Determination of lengths and angles, Diagnosis of assisted root canal and implant

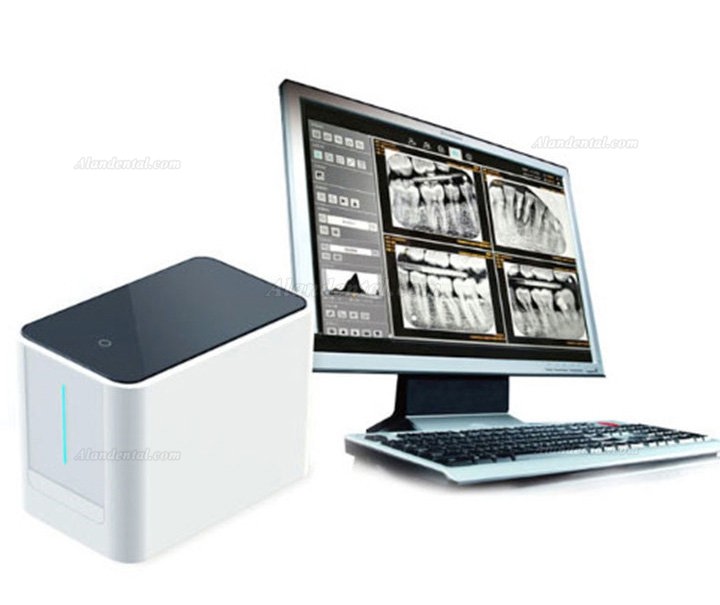

Real-time transmission of image data, Realize multi-clinic simultaneously reading and editing image data
Main technical parameters:
Detailed description of each technical parameter of the product
Image plate size: S0 S1 S2 S3
Image gray levels: 16 bit
Dimension: 345*185*245mm
Weight~8kg
Voltage: 220±22V
Frequency: 50±1Hz
Power: 60Va
Laser classification: 3R
Laser power: 4±0.5mw
Laser wavelength: 630 – 645nm
Supported Photophor Size:
Size 0: 22×31mm
Size 1: 24×40mm
Size 2: 31×41mm
Size 3: 27×54mm
