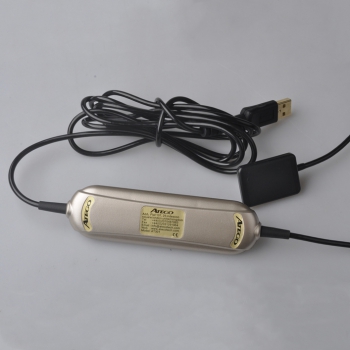

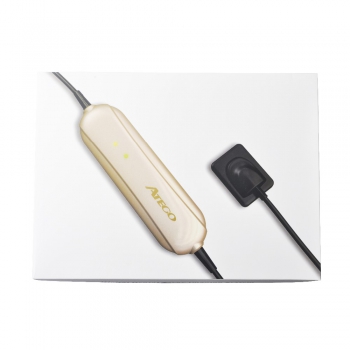

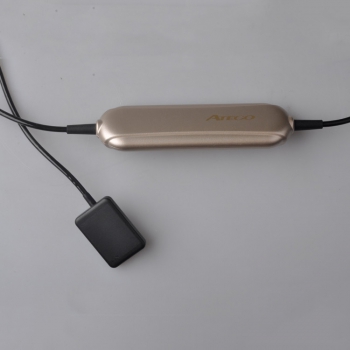

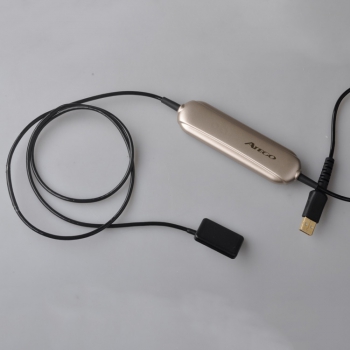

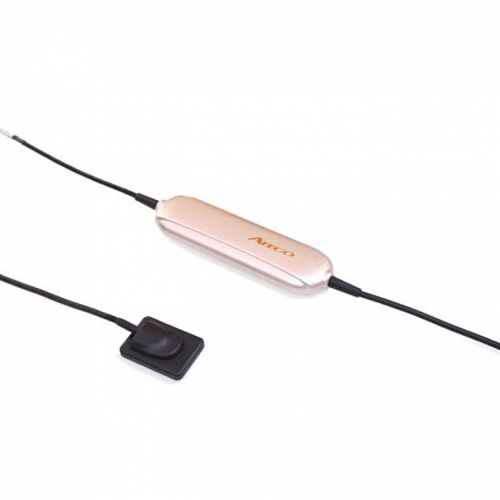

High Resolution Digital USB Type Dental X Ray Sensor Rvg
A. High identify ability of details and low x-ray dose helps you to diagnose the tooth lesion problems, making more accuracy.
B. Providing professional connectivity solutions, all the information can be viewed in different locations.

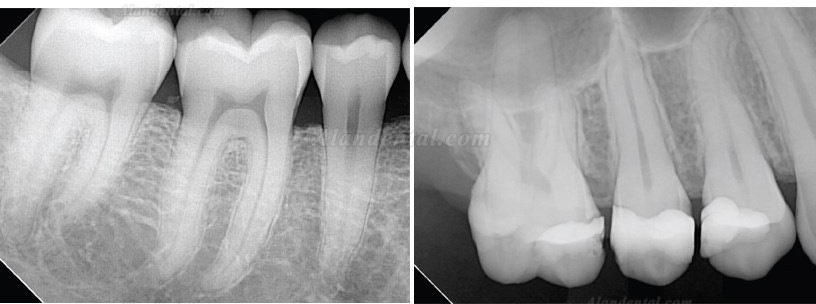

C. The scintillator makes high-definition images.
D. Fast imaging employing steady acquisition, saving the filming time and improving work efficiency.
E. Professional image management software to help you manage images easily and efficiency.
F. Two-Year Warranty, Free to use latest software for life.
Parameters
Item: AT-301; AT-302
Image Pixel: 1.9M(1600*1200); 2.7M(1920*1440)
Pixel size: 18.5um
Chip Type: CMOS APS
Fiber Optical Plate: Yes
Scintillator: Gos
Resolution(lp/mm): Theoretical value: 27lp/mm; Actual value: 12-14lp/mm(GOS)
Operation system: Windows2000/xp/Win7/Win8(32bit&64bit)
Dimension: 27.5x38.5mm; 32.3x44.3mm
Active: 22.5x30mm(675mm²); 27x36mm(972mm²)
Additional: TWAIN Driver

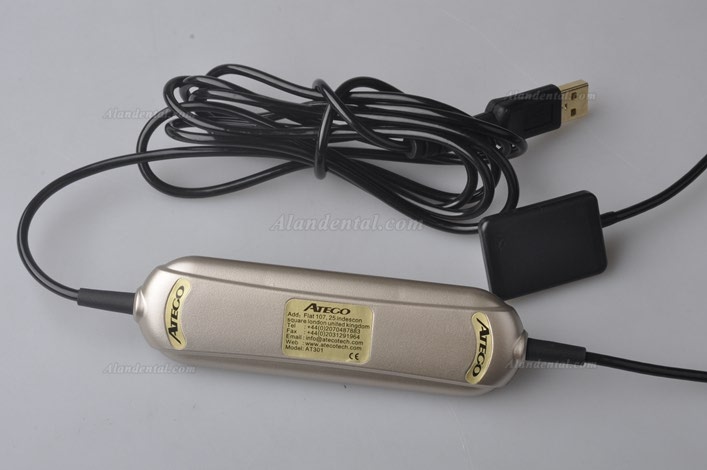

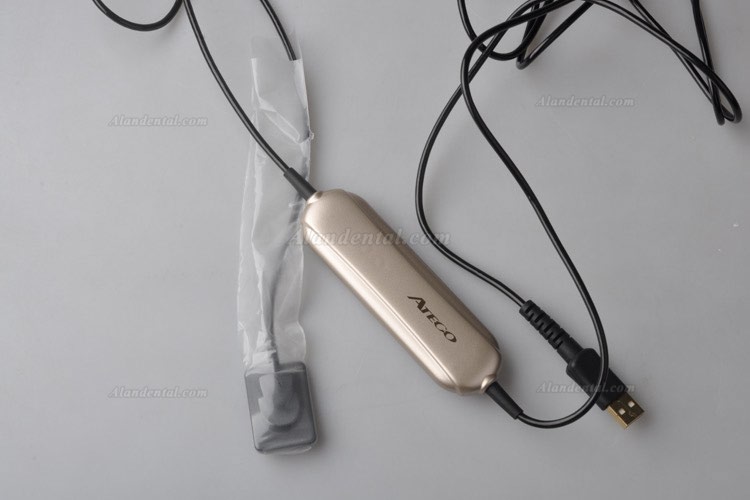

Control box
Overall size(L*W*H): 120x35x15 mm
PC Intertace: USB 2.0
Supply Voltage: 5.0V(4.25V min.)
Supply Current: 500 mA max
Digitization: 12 bits perpixel
Advantage
The whole cable is made of medical grade flame fire-retardant PU material, Good tensile resistance, antibacterial and protecting ultrafine conductive wire core, Long lifetime and durable in use. and durable in use.
Waterproof design, can be wiped disinfection

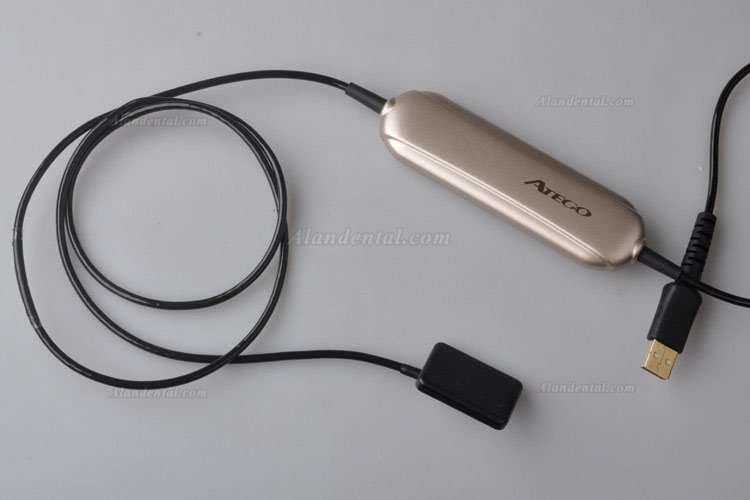

Split design. Separating the sensor image acquisition device and processing equipment, it reduces the possibility of failure, and save the maintenance cost to maximum extent.
The chip’s size consumes more cost on the cutting of size. The imagining area increased obviously and doctor can capture the image conveniently although the cost increased.
The control box is made of golden ABS resin same materials as sensor head. More wear-resisting and compressive resistance.
The cable can bend 100 thousand times in 180 degree and be repaired or changed, furthest ensuring product usage. Adopting eight cored wire in international standard, each wire contains 16 twisted-pair, ensuring normal data transmission of sensor and picture quality.
Shell is used with smooth chamfered corner design, making patients feel more comfort after putting in mouth.
Professional image processing software with rapid image processing by one key diagnosis, it is most convenient for dentists’ usage.
